    Combat Flight Simulator 3 is the latest installment of the flying combat series. Play a full campaign as USA, RAF or Luftwaffe or select your own quick battle with full customization. Dogfight over huge maps from North England all the way to East Berlin.


    Follow my step-by-step guide on installing, configuring and optimizing Combat Flight Simulator 3 in Linux with PlayOnLinux.

    Note: This guide applies to the Retail version of Combat Flight Simulator 3. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.1 64-bit
    PlayOnLinux: 4.2.10
    Wine: 2.0

    Wine Installation

    Click Tools

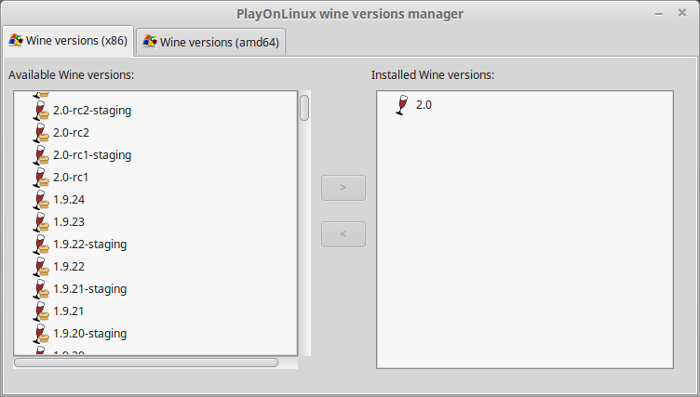

    Select "Manage Wine Versions"

    Look for the Wine Version: 2.0
    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

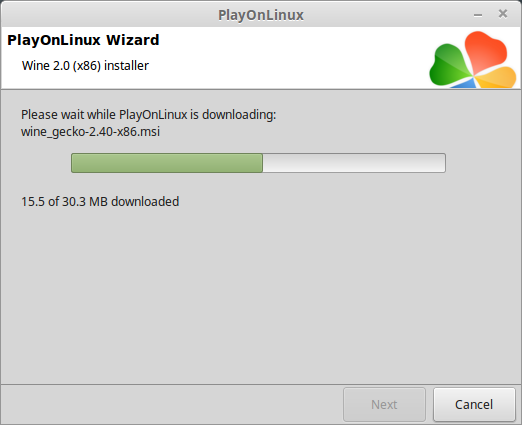

    Downloading Gecko

    Installed

    Wine 2.0 is installed and you can close this window

    Copying Disk Files

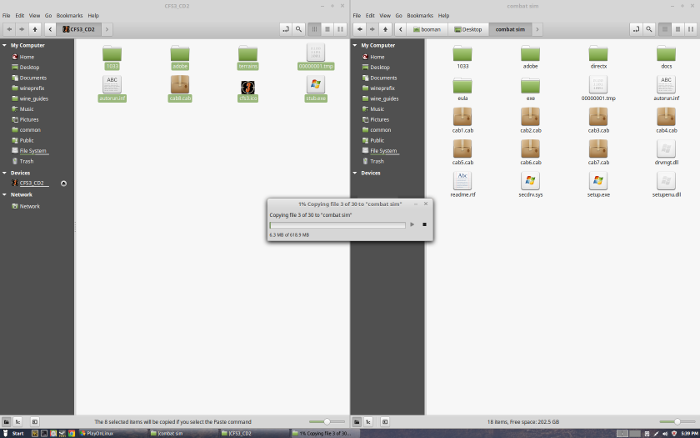

    Open the Combat Flight Simulator 3 disk and copy everything into a new folder on your Desktop.
    Enter the 2nd disk and copy everything too.

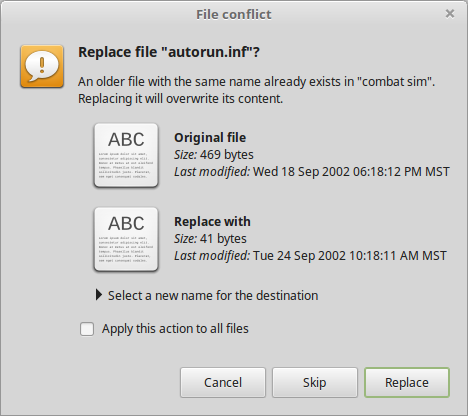

    Click Skip for all duplicate files

    PlayOnLinux Setup

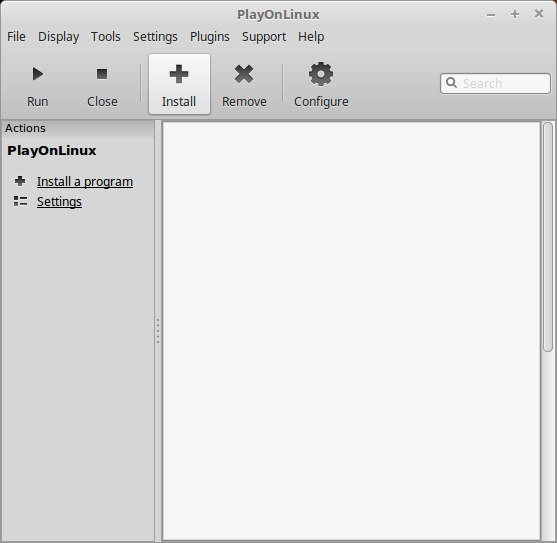

    Launch PlayOnLinux
    Click Install

    Click "Install a non-listed program"

    Select "Install a program in a new virtual drive"
    Click Next

    Name the virtual drive: combatsim3
    Click Next

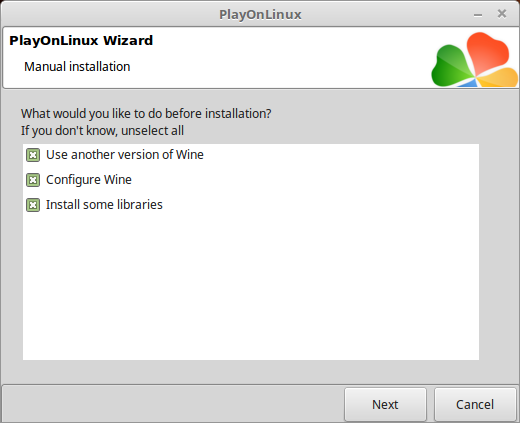

    Check all three options:
    • Use another versions of Wine
    • Configure Wine
    • Install some libraries
    Click Next

    Select Wine 2.0
    Click Next

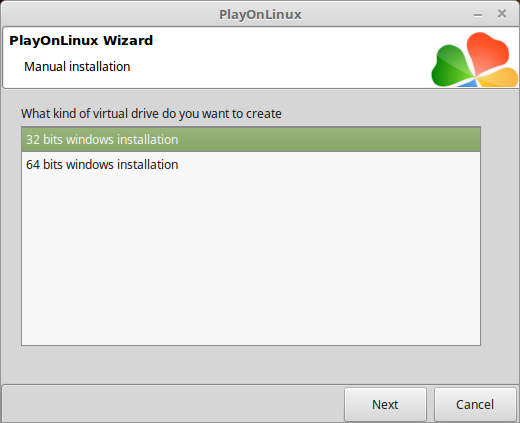

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

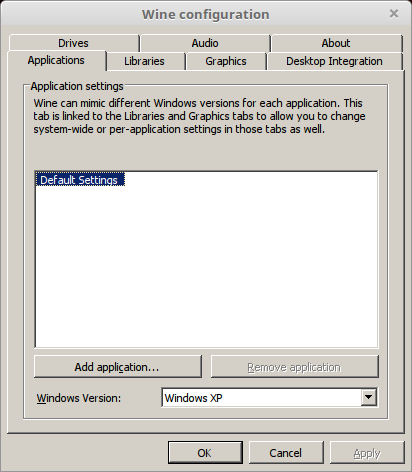

    Applications Tab
    Windows version: Windows XP

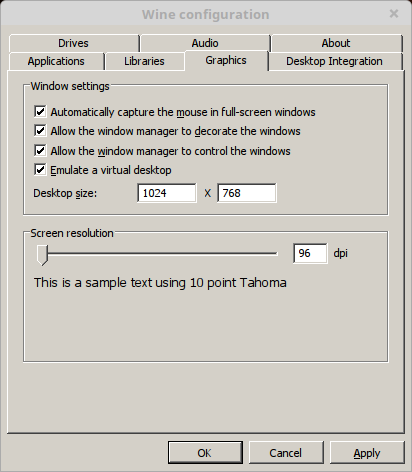

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop"
    Desktop size: 1024x768
    Click OK

    PlayOnLinux Packages (DLLs, Libraries, Components)

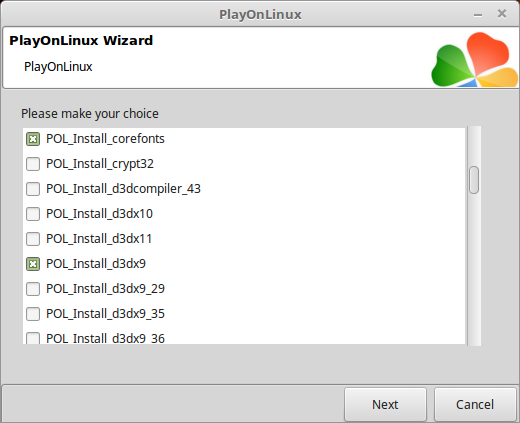

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_msxml3
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Combat Flight Simulator 3

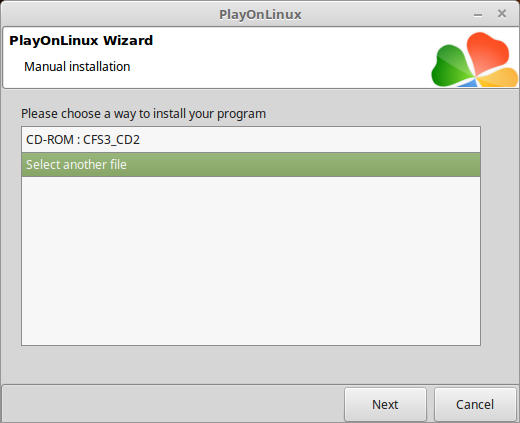

    Select "Select another file"
    Click Next

    Click Browse

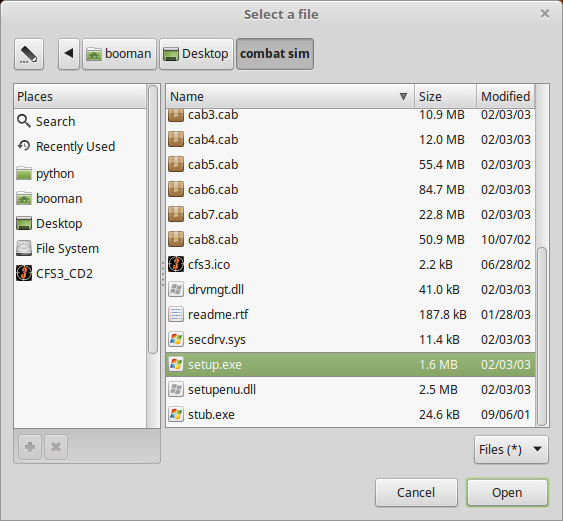

    Navigate to the folder on your Desktop
    Select "setup.exe"
    Click Open

    Click Next again...

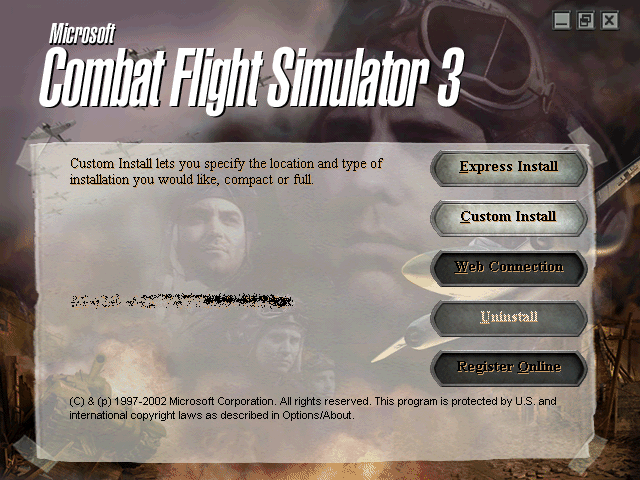

    Click "Custom Install"

    Click Next

    Click "Full Install, uses this option to maximize performance. 1598.5MB"
    Uncheck "Create Desktop Icon"
    Click Install

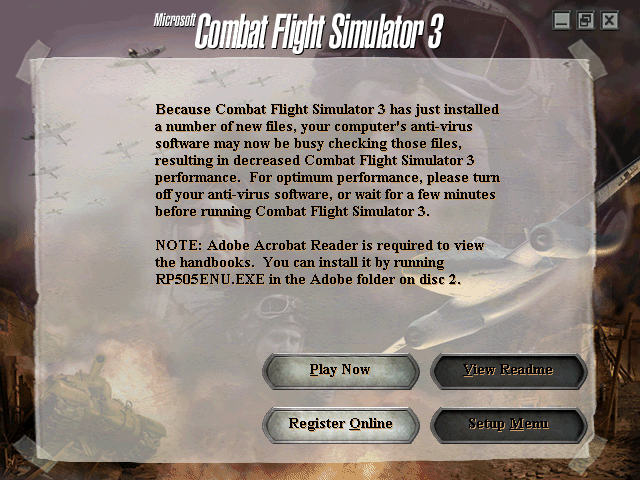

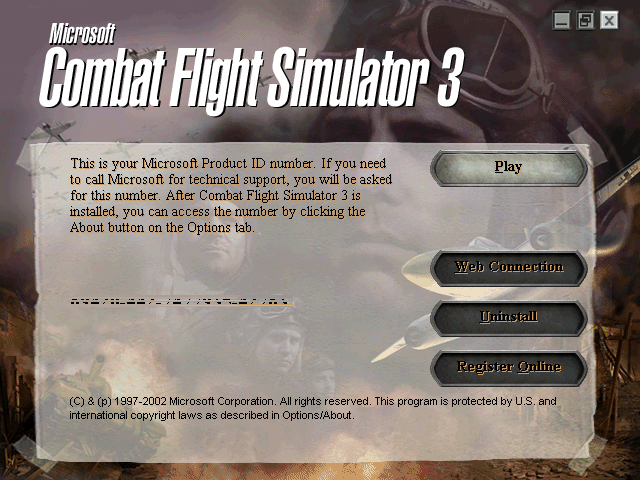

    Click the X to close the installer

    Click the X again to close the installer

    PlayOnLinux Shorcut

    Select "cfs3.exe"
    Click Next

    Name the shortcut: Combat Flight Simulator 3
    Click Next

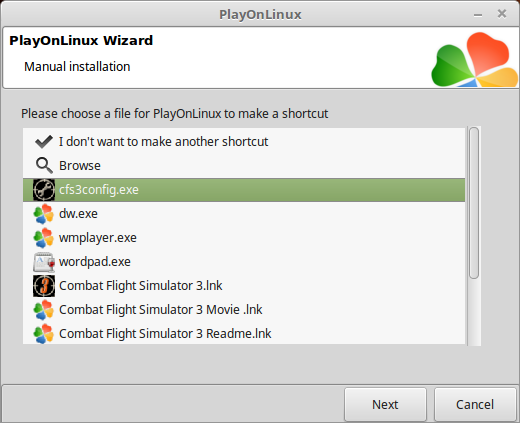

    Select "cfs3config.exe"
    Click Next

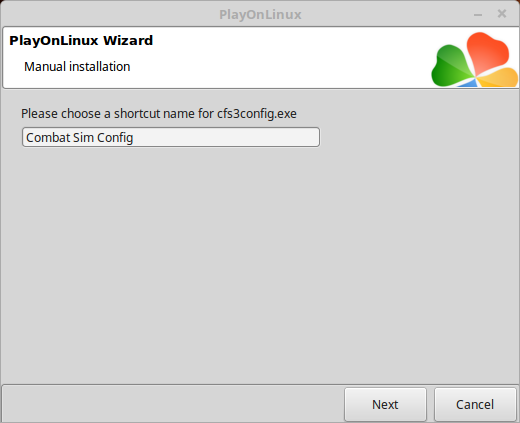

    Name this shortcut: Combat Sim Config
    Click Next

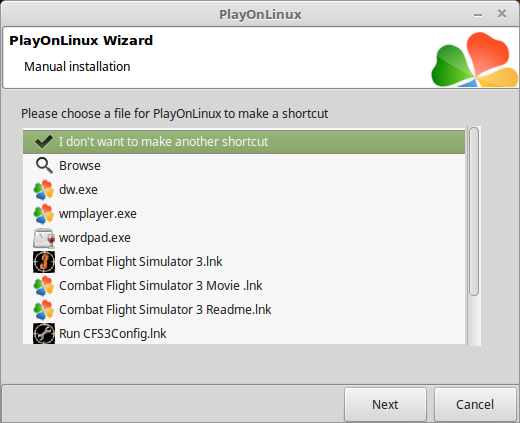

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

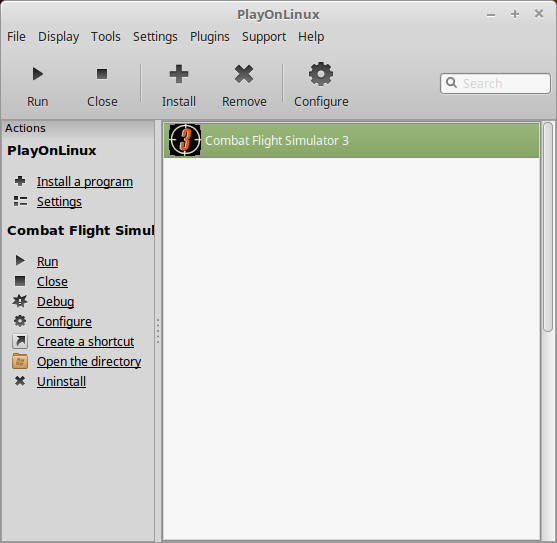

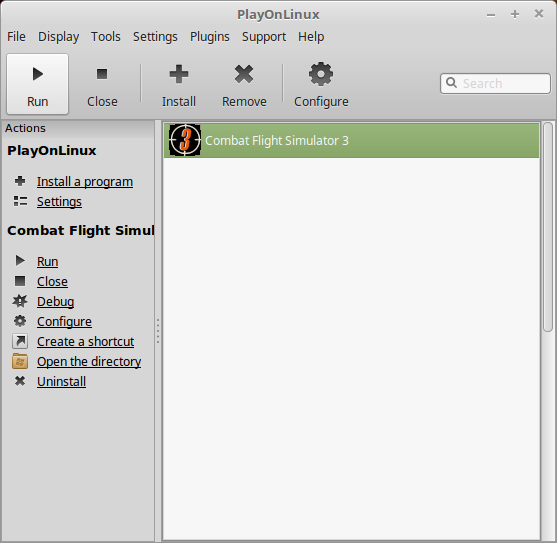

    Back to PlayOnLinux
    Select "Combat Flight Simulator 3"
    Click Configure

    General Tab
    Wine version: 2.0

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine.

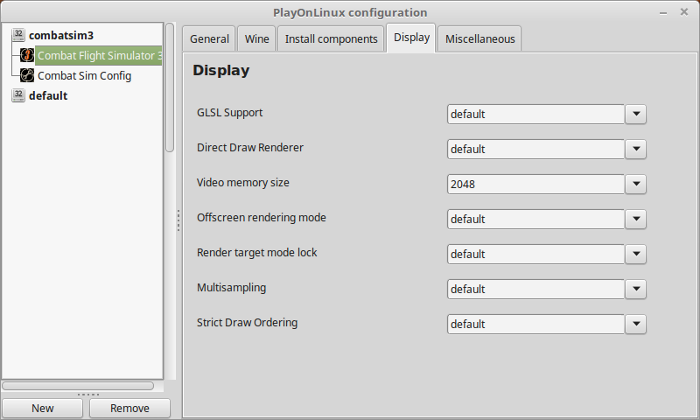

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

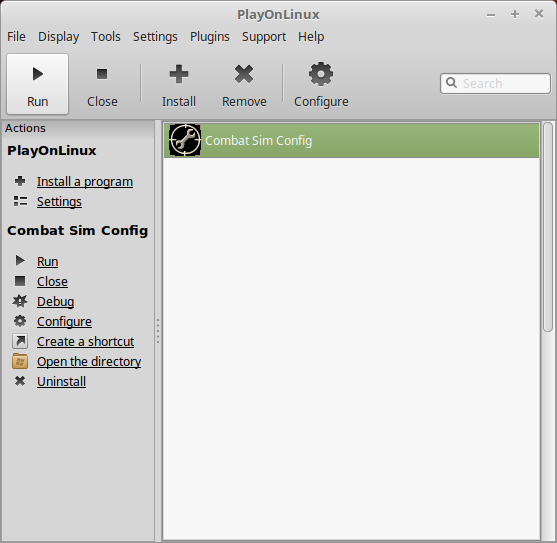

    Select "Combat sim Config"
    Click Run

    Note: Click debug to see errors and bugs

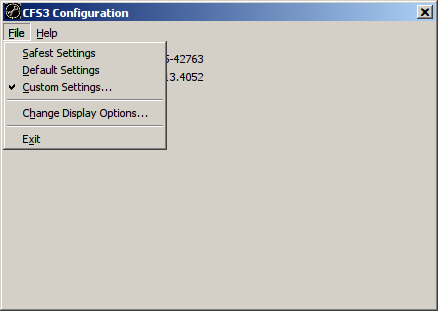

    Click File
    Select Custom Settings

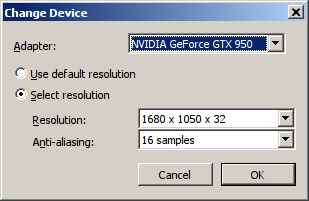

    Check "Select resolution"
    Set the resolution to match your Linux Desktop
    Adjust Anti-aliasing
    Click OK

    If you see a (null) error
    Just click OK and try it again

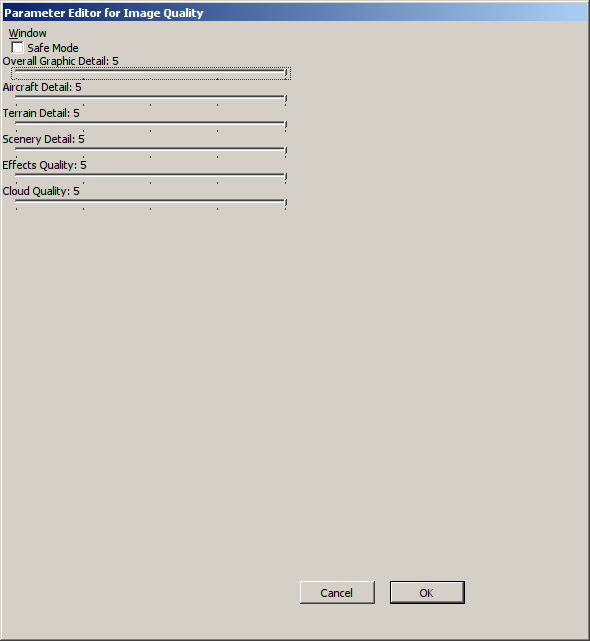

    Click "Change Display Options"

    Adjust:
    • Over all Graphic Detail
    • Aircraft Detail
    • Terrain Detail
    • Scenery Detail
    • Effects Quality
    • Cloud Quality
    Click OK

    Click Exit

    Launching Combat Flight Simulator 3

    Select "Combat Flight Simulator 3"
    Click Run

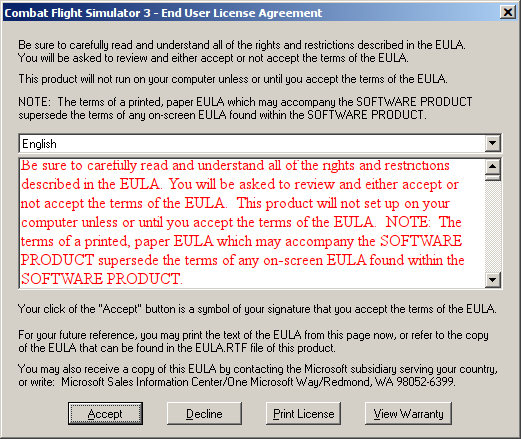

    Click Accept

    I received the (null) error a few times at first launch

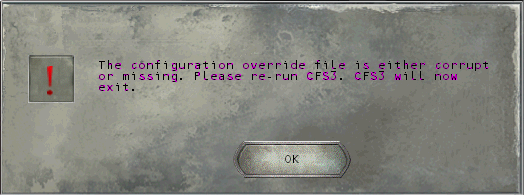

    The configuration override file is corrupt or missing
    Click OK

    Go back to the "Combat sim Config" again and adust your settings again

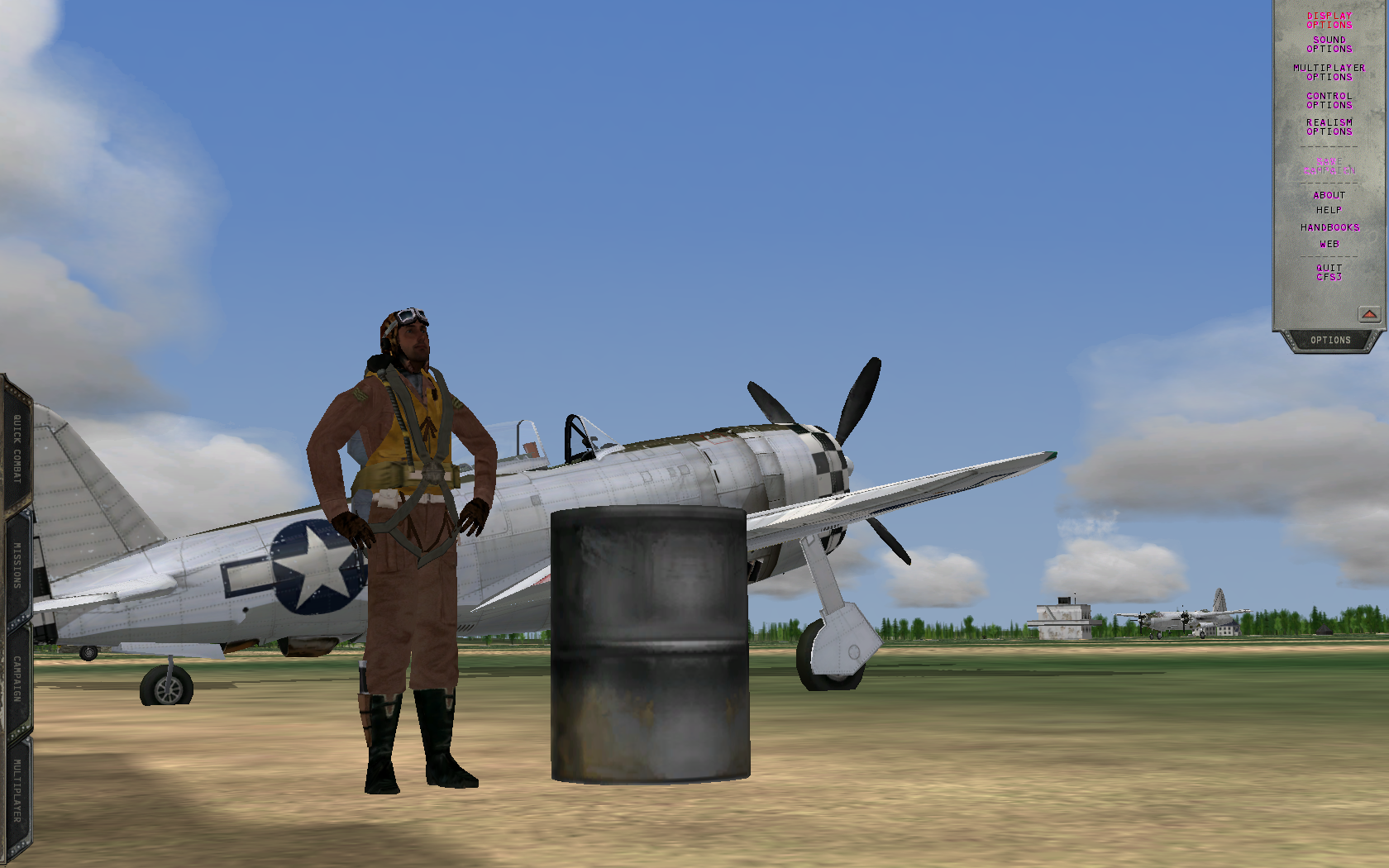

    In Game Options

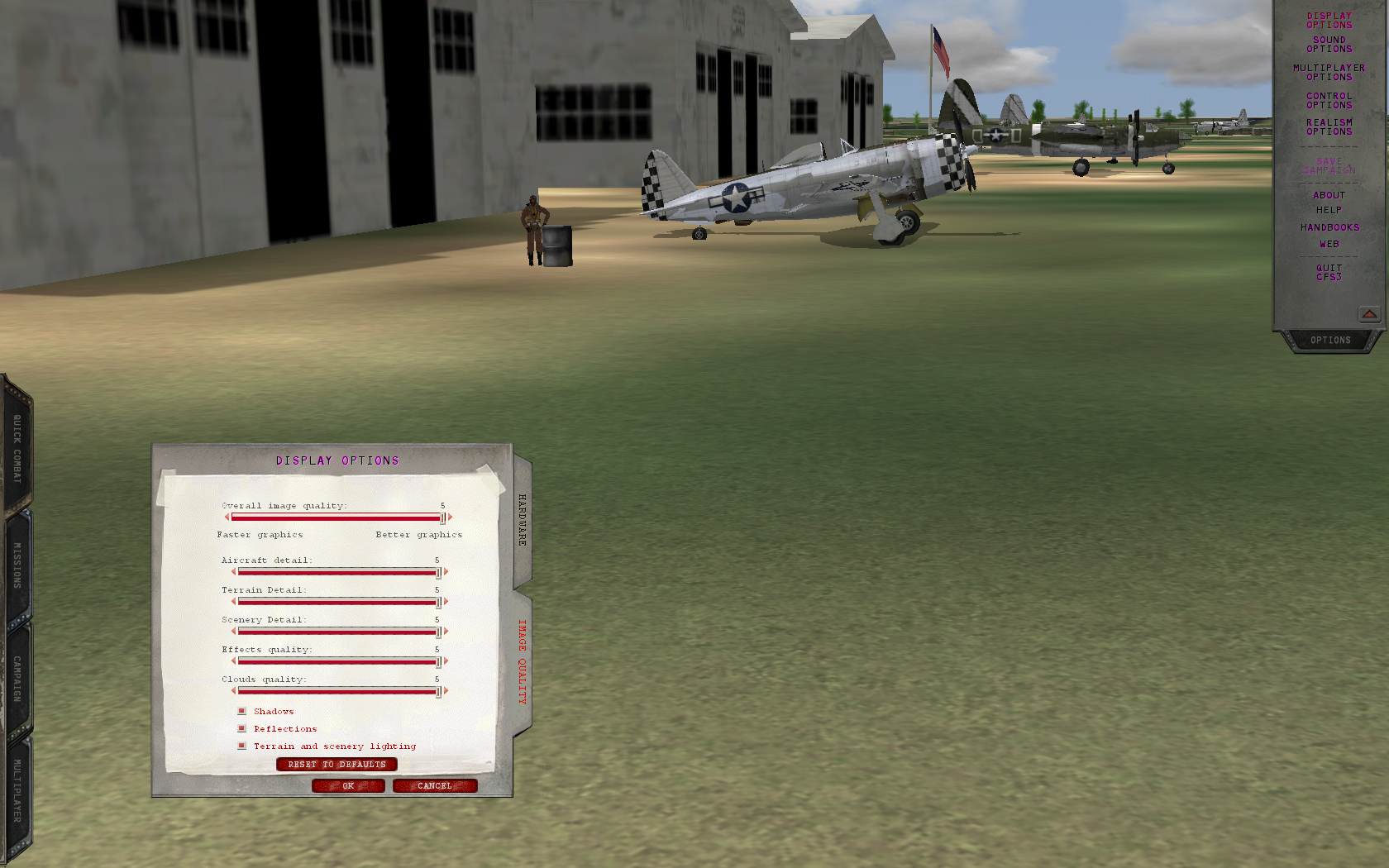

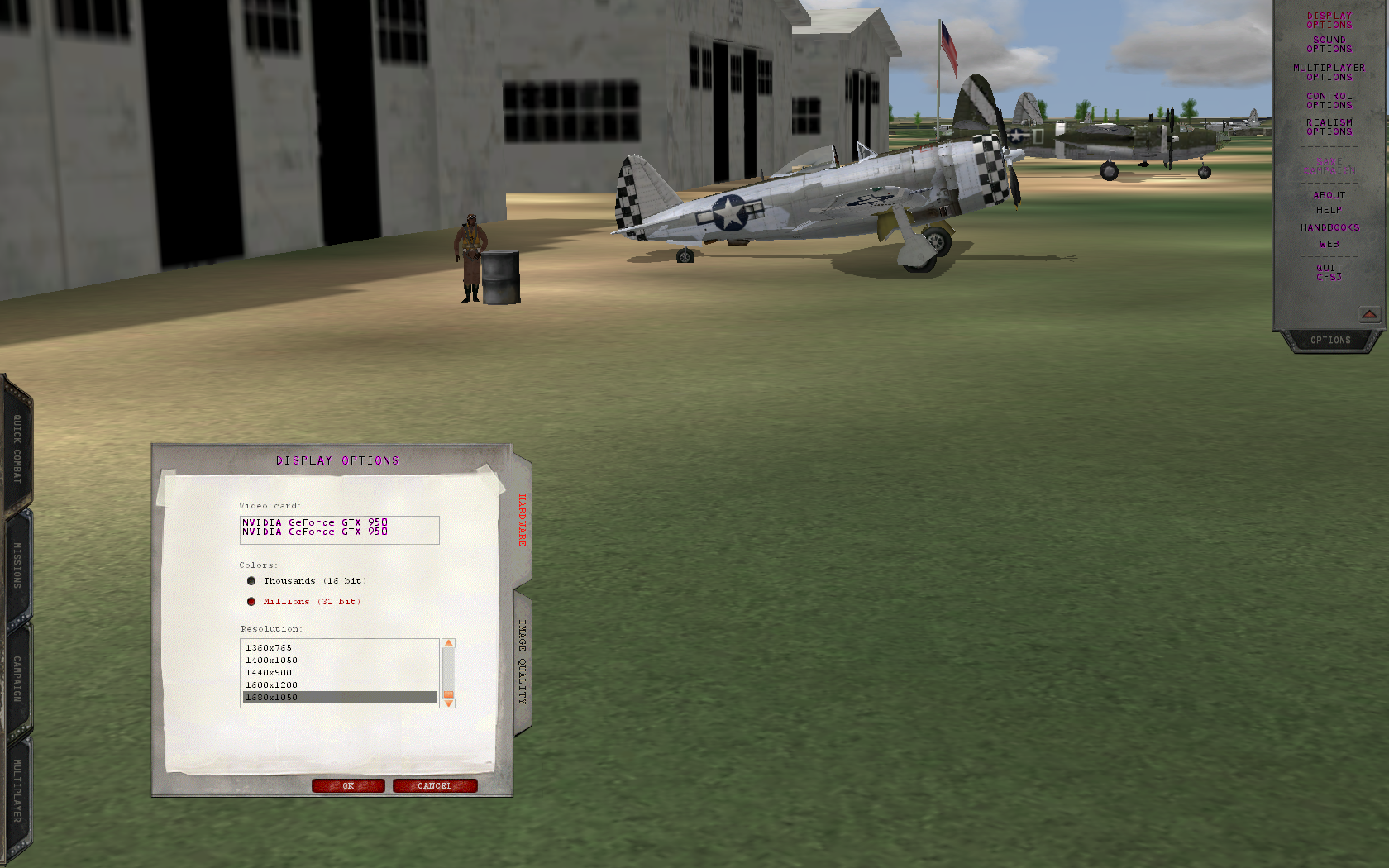

    Click "Display Options"

    Make your adjustments just like in the config
    combatsim41.png combatsim42.png

    Close Options

    Conclusion:
    After successfully setting the config properly, the game ran perfectly! I was even able to set modern widescreen resolutions. This is an older game, so it should run on just about any laptop desktop. You can probably skip the pre config and just launch the game in 1024x768 and adjust the resolution in-game. Either way I was able to select all of the planes, pilots and missing without any problems. I even used an old Logitech USB flight stick controller.

    Gameplay video:

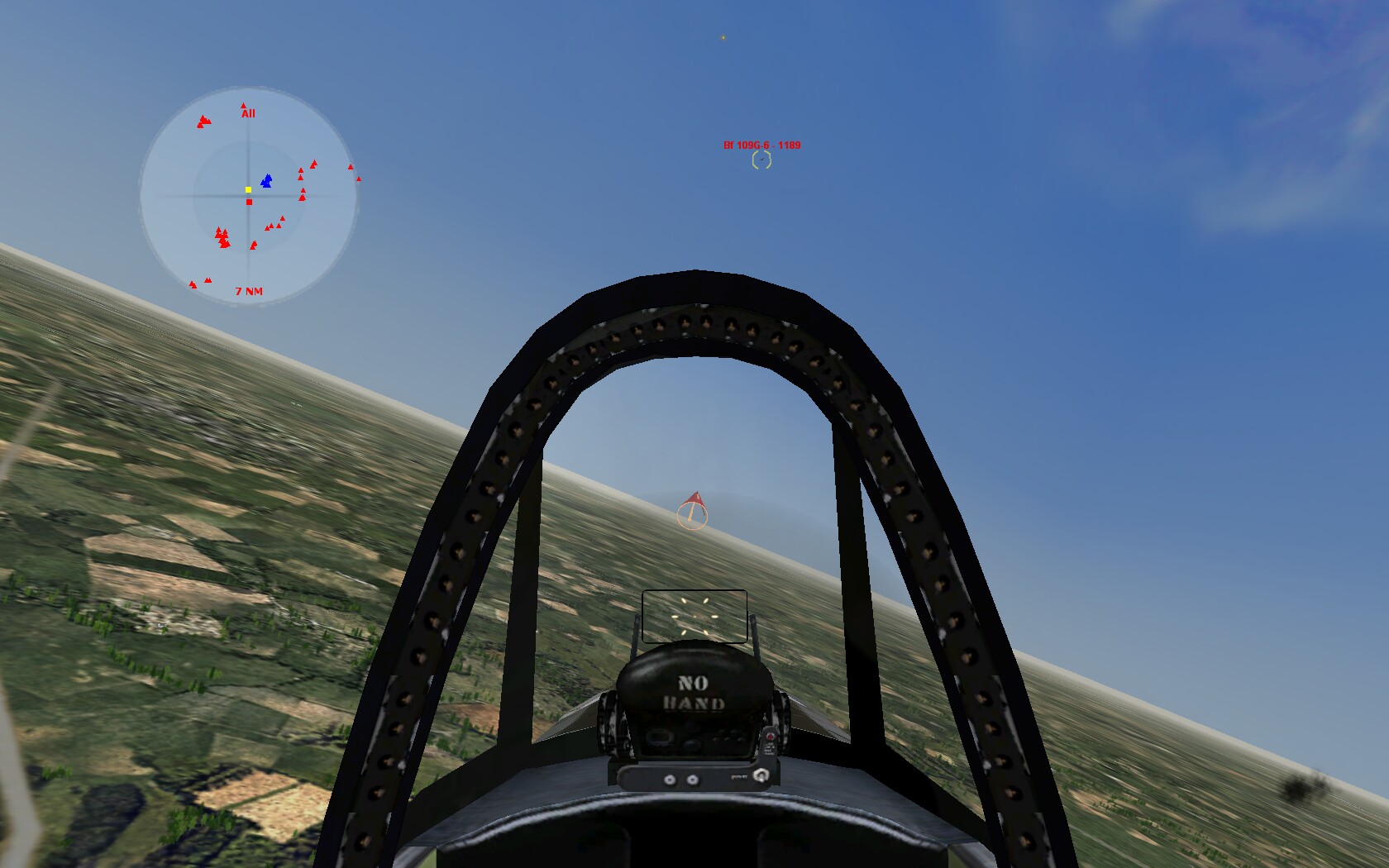

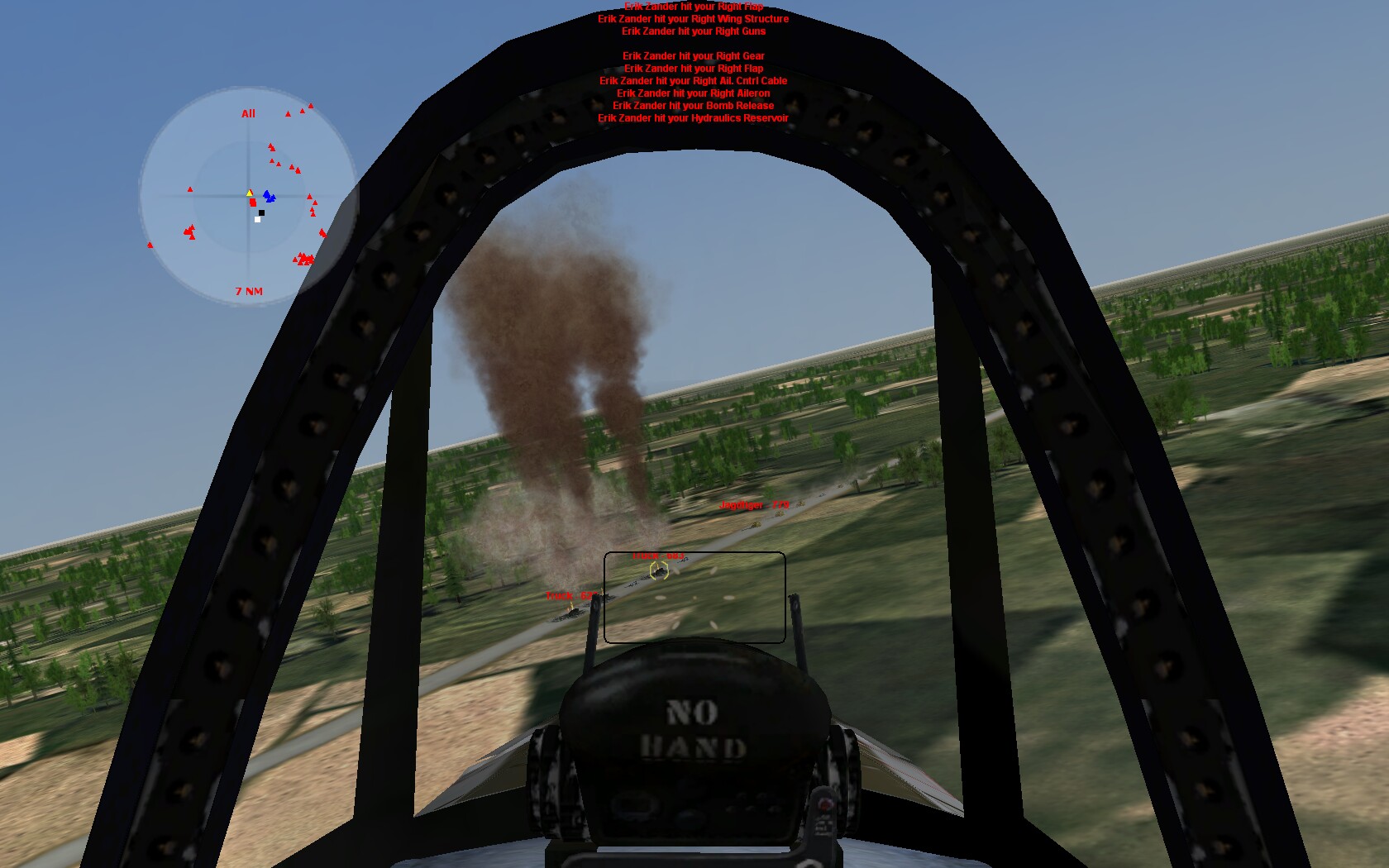

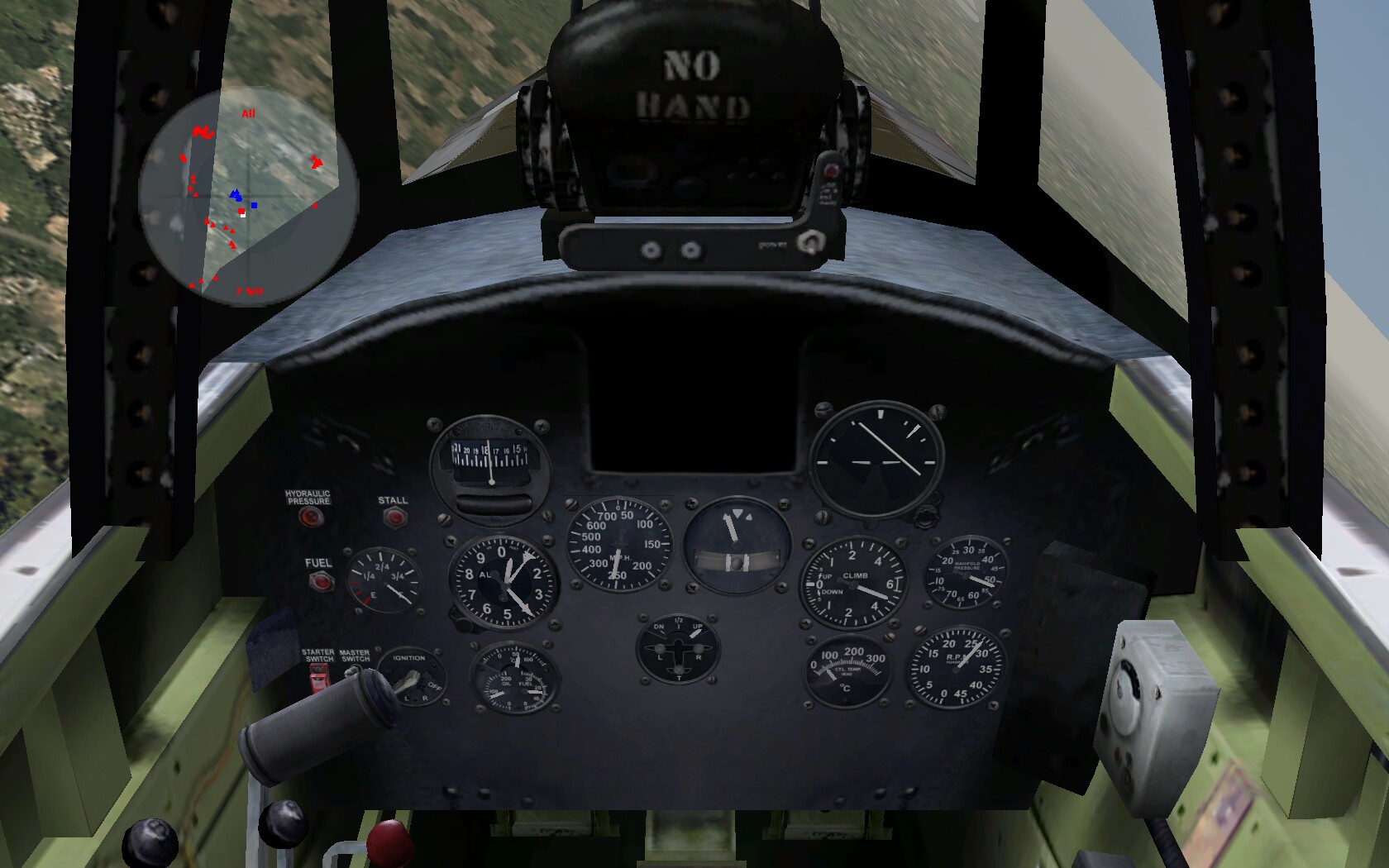

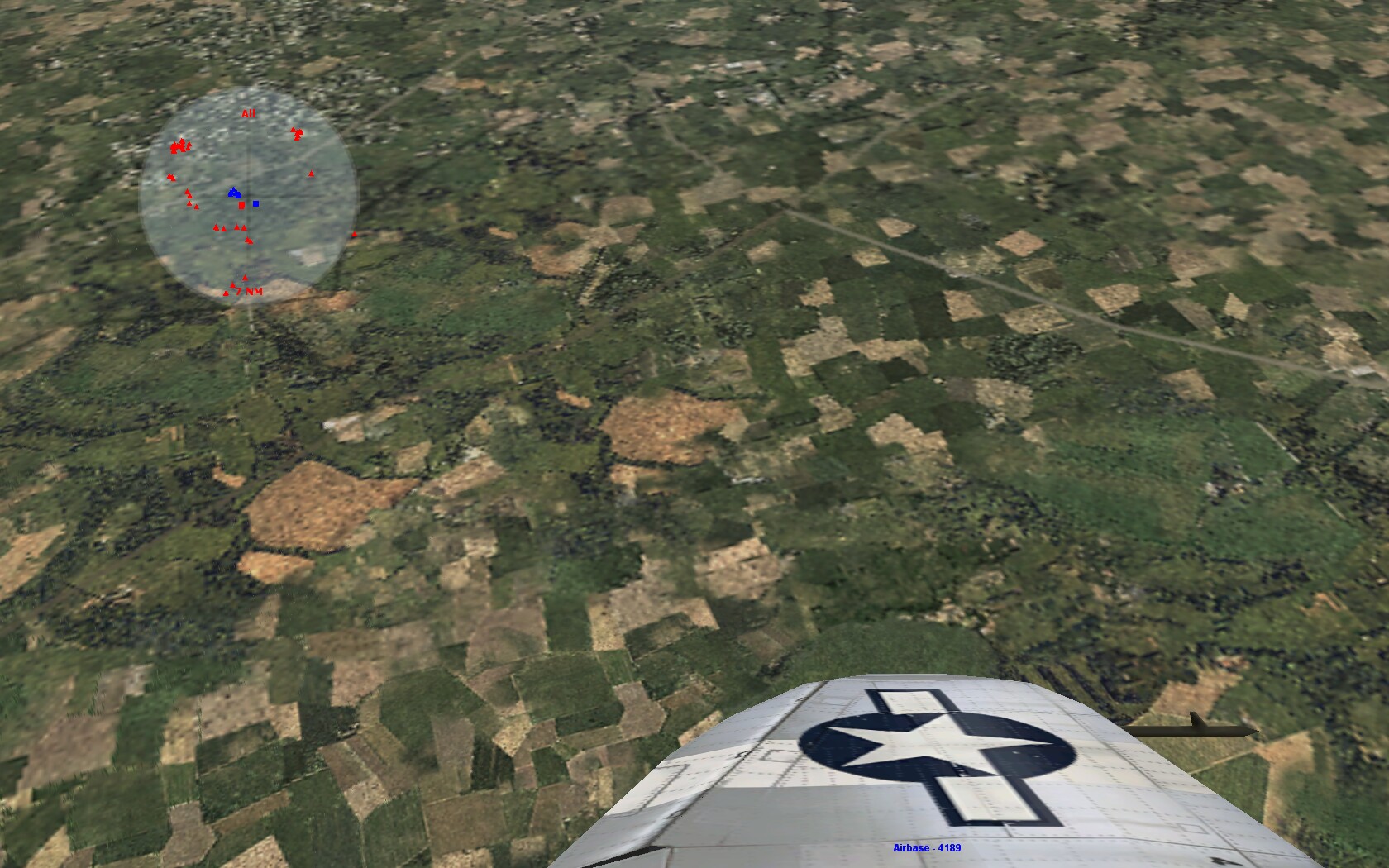

    Screenshots:



    Last edited: Nov 5, 2018
