    Grim Dawn is an action hack-n-slash created by the makers of Titan Quest. Slaughter minions and bosses in a dark fantasy world of exploration, loot, hacking, slashing and a lot of skills! Do not miss this game! You will love the AAA experience from a small indie team who are very talented and passionate about Action RPG's!



    Follow my step-by-step guide on installing, configuring and optimizing Grim Dawn in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Grim Dawn. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.6
    Wine: 1.7.39staging

    Wine Installation

    Note: Versions of Wine older than 2.0.2 and Wine 2.12-staging no longer work with Steam

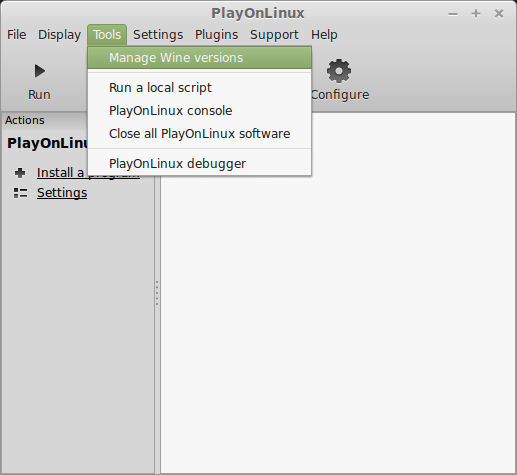

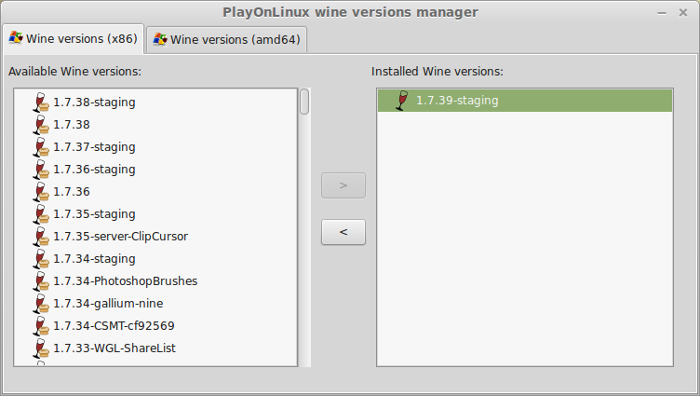

    Click Tools

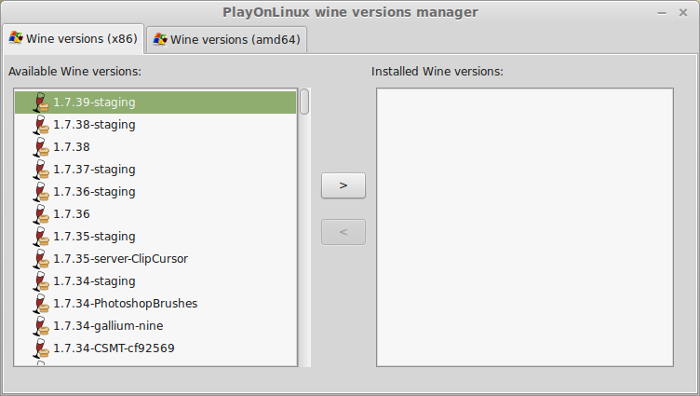

    Select "Manage Wine Versions"

    Select it
    Click the arrow pointing to the right

    Click Next

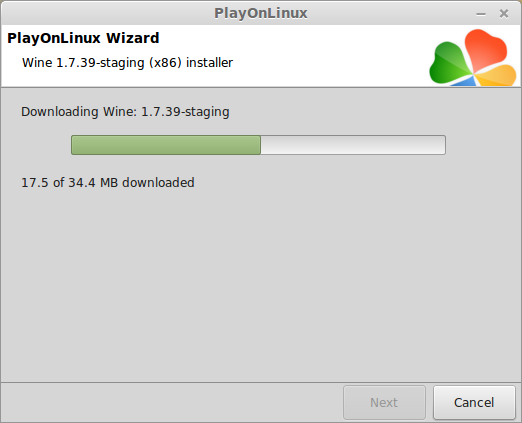

    Downloading Wine

    Extracting

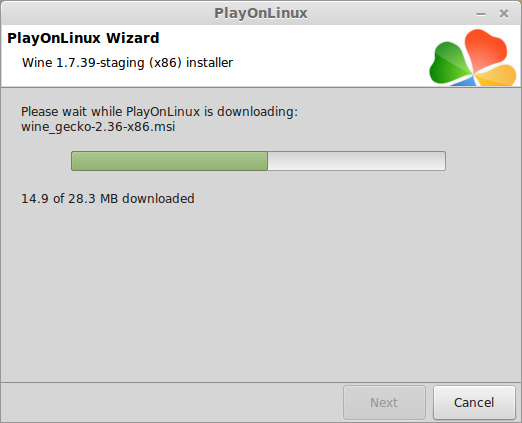

    Downloading Gecko

    Installed

    Wine 1.7.39staging is installed and you can close this window

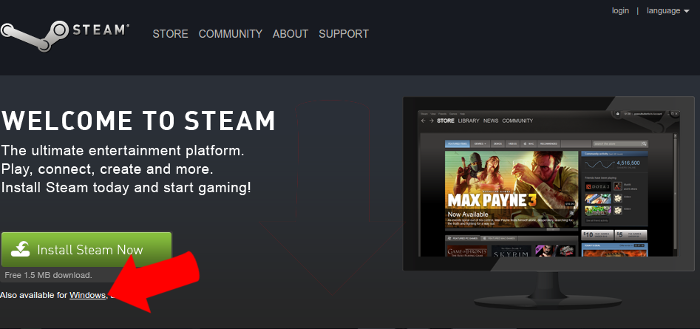

    Downloading Steam

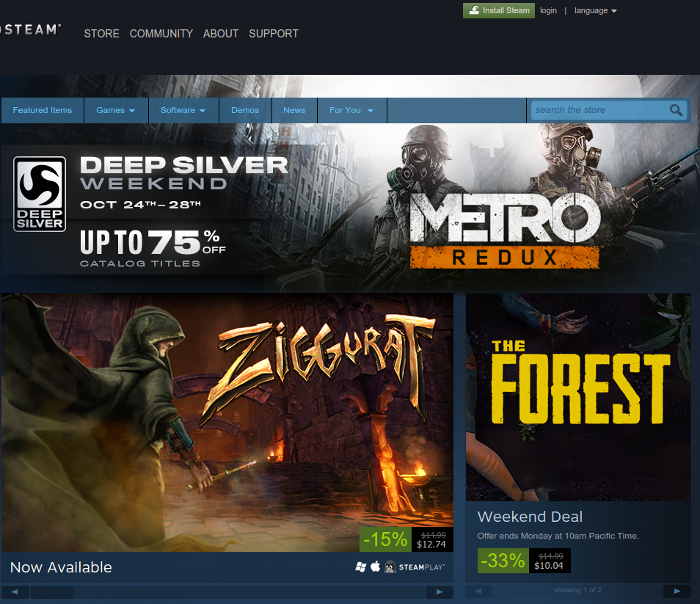

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam. Since Grim Dawn isn't made for Linux, we will download the Windows Steam instead.
    click "Windows" under the green button

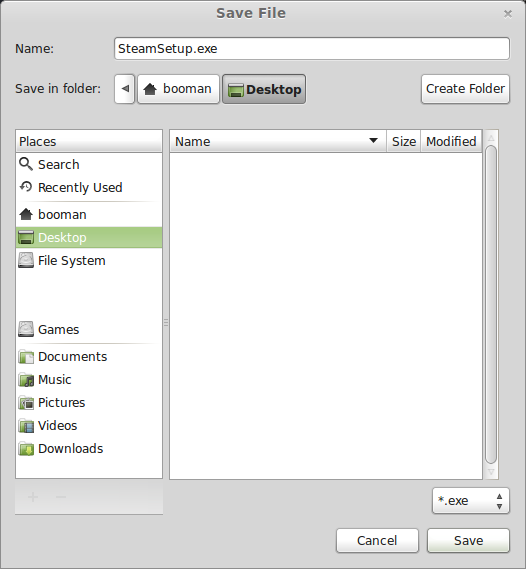

    Navigate to your desktop
    Click Save

    Setup PlayOnLinux

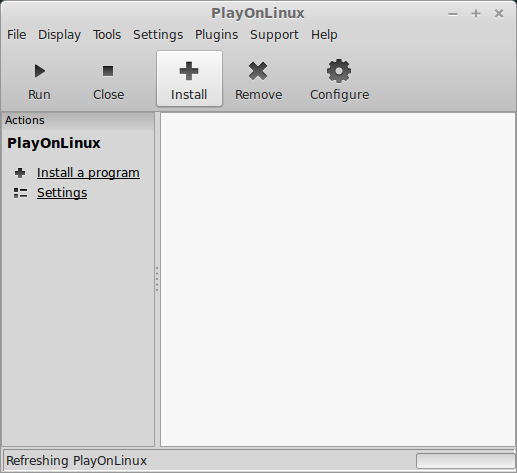

    Launch PlayOnLinux

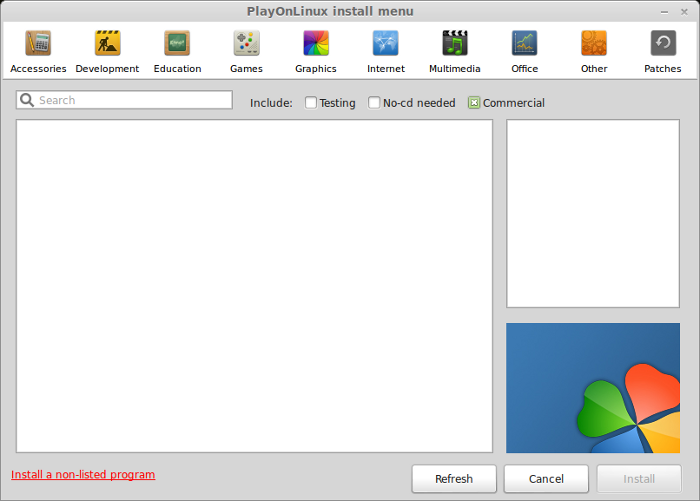

    Click Install

    Click "install a non-listed program"

    Click Next

    Select "Install a program in a new virtual drive"
    Click Next

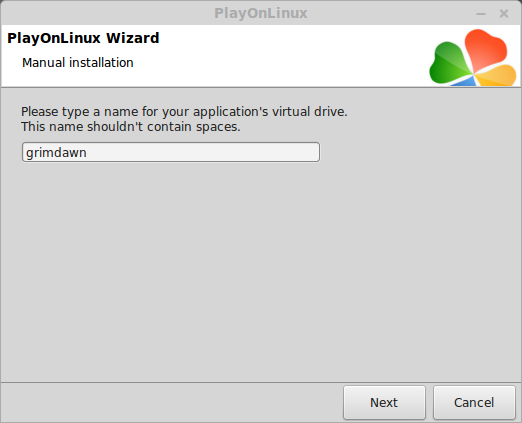

    Name you virtual drive: grimdawn
    Click Next

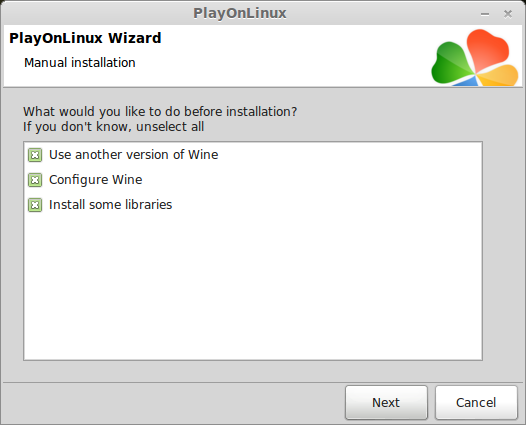

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

    Select Wine 1.7.39staging
    Click Next

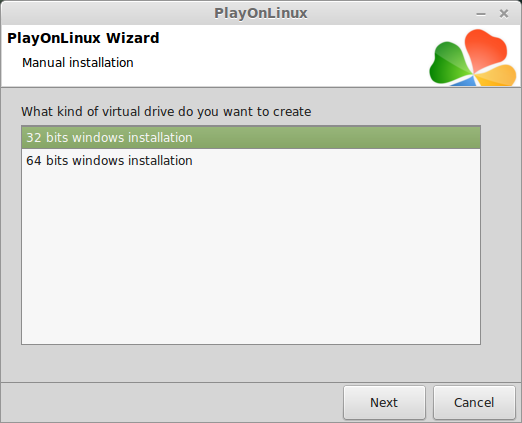

    Select "32 bits windows installation"
    Click Next

    Configure Wine

    Applications Tab
    Windows Version: Windows 7
    Click Apply

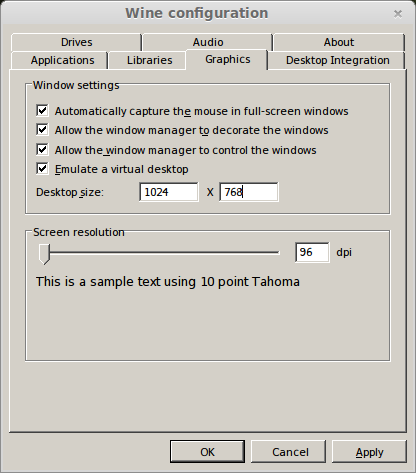

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    Install Libraries

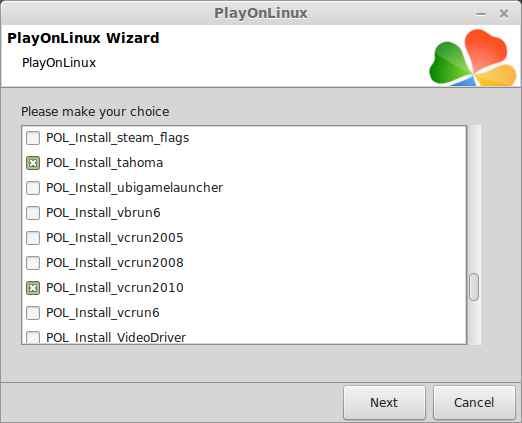

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    • POL_Install_vcrun2010
    • POL_Install_vcrun2012
    Click Next
    Note: vcrun2015 will be installed later in PlayOnLinux configure

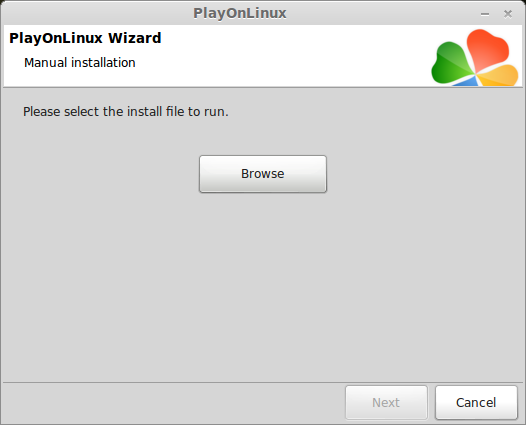

    Installing Steam

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

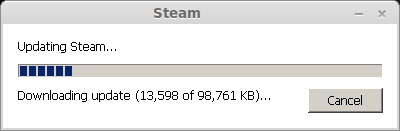

    More downloading, updating, extracting and installing

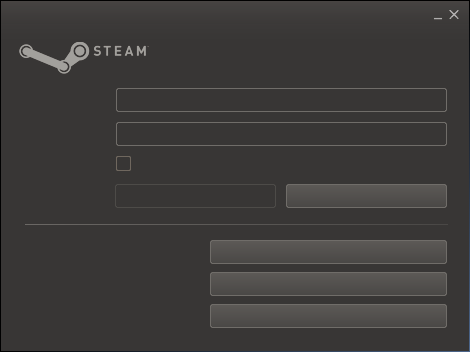

    When Steam is done installing the login screen will pop up. You probably won't see any text because there is a font bug.
    Click the "X" to close Steam login

    PlayOnLinux Shortcut

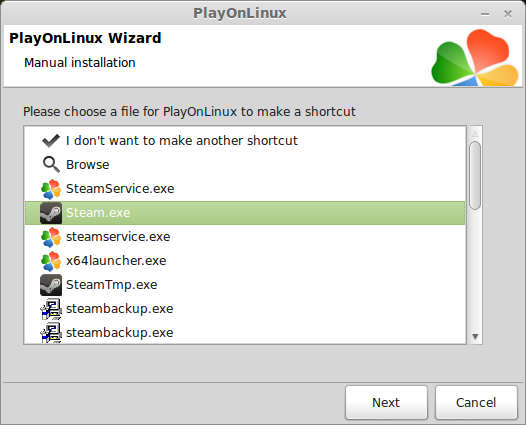

    Select Steam.exe
    Click Next

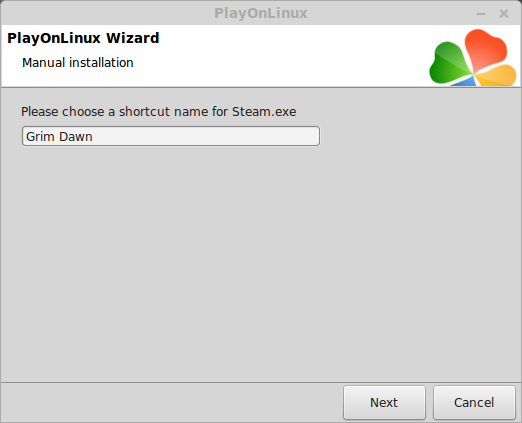

    Name your shortcut: Grim Dawn
    Click Next

    Click Next

    PlayOnLinux Configure

    Back to PlayOnLinux
    Click Configure

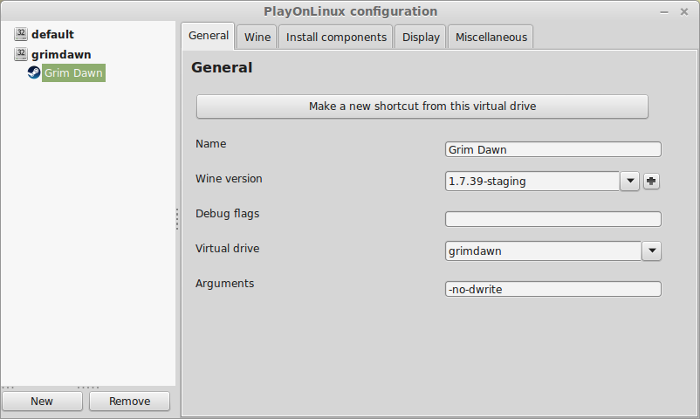

    General Tab
    Wine version: 1.7.39staging
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes the missing font and store problem

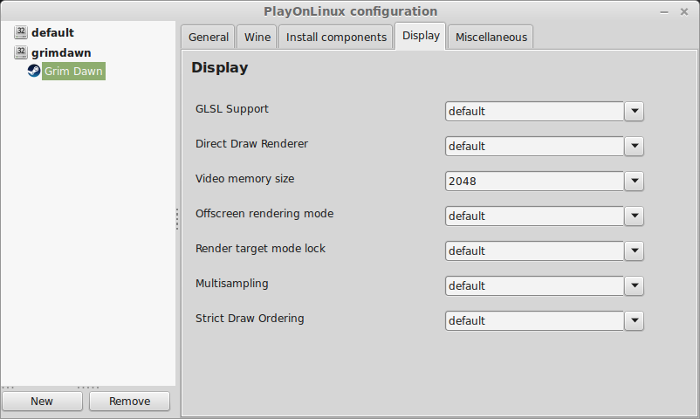

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Installing vcrun2015

    Note: vcrun2015 has to be installed before first launch of Grim Dawn. Otherwise the game installs vcrun2015 for you and breaks Wine. If you accidentally launch Grim Dawn one time, you will have to delete the virtual drive and start over from the beginning.

    Miscellaneous Tab
    Click "Open a Shell"
    Copy/Paste:
    Code:
    wget  https://raw.githubusercontent.com/Winetricks/winetricks/master/src/winetricks
    Press Enter

    Copy/Paste
    Code:
    chmod +x winetricks
    Press Enter

    Copy/Paste
    Code:
    WINEPREFIX=/home/username/.PlayOnLinux/wineprefix/grimdawn ./winetricks -q vcrun2015
    Press Enter

    Note: Replace "username" with your login

    Close Shell

    Close Configure

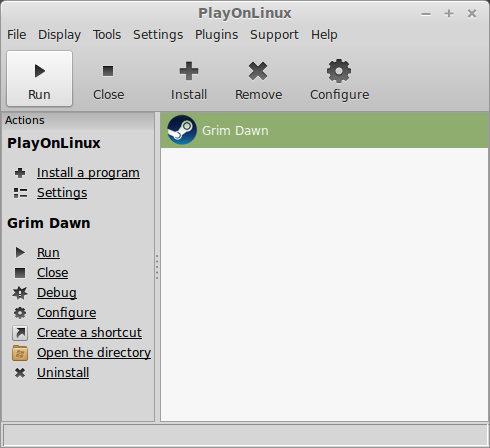

    Launching Steam

    Select Grim Dawn
    Click Run

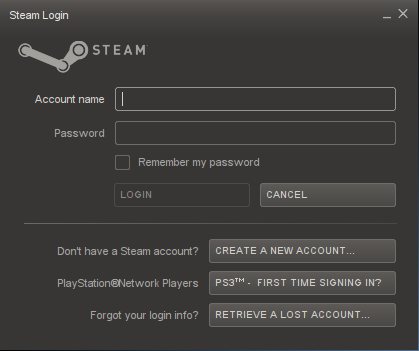

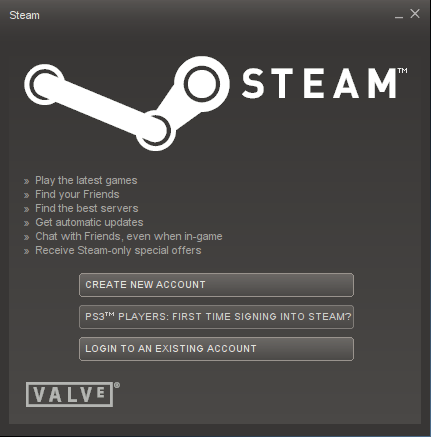

    Click "Login to existing account"

    Login

    Steam Overlay

    Steam overlay has been known to cause problems launching games.
    Click Steam menu
    Click Settings

    Select "In-game"
    Uncheck "Enable Steam Community In-Game"
    Click OK

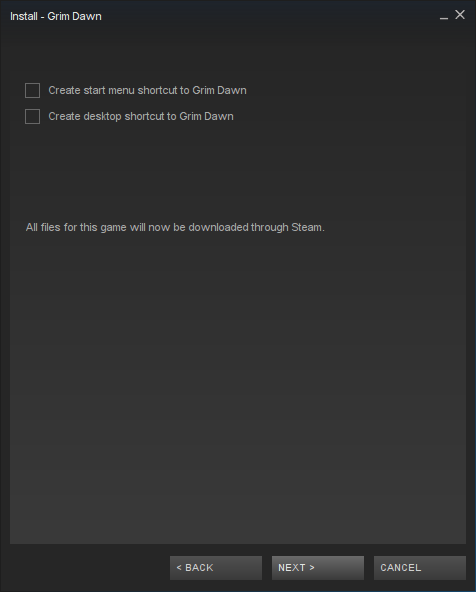

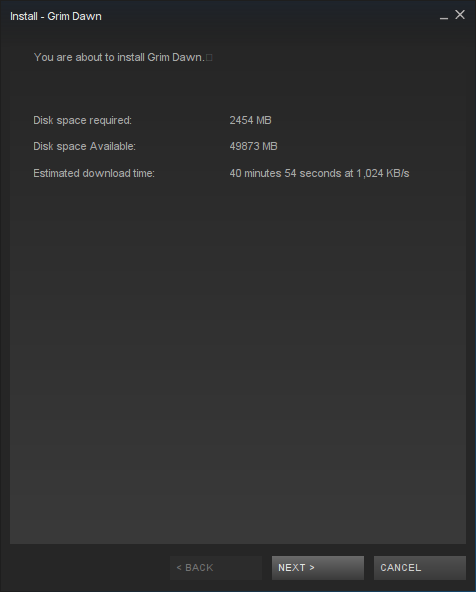

    Installing Grim Dawn

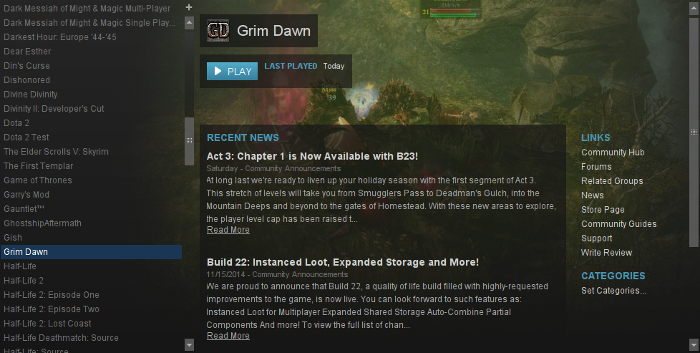

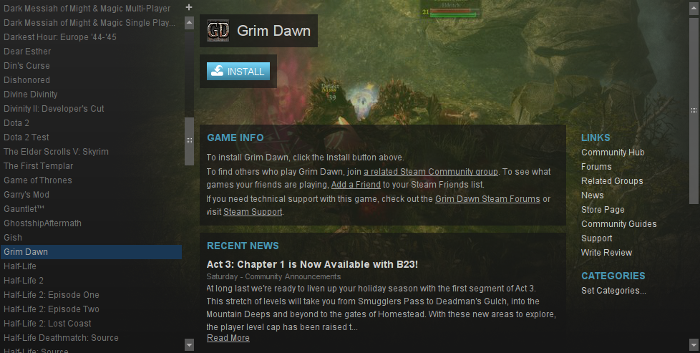

    Click Library
    Select Grim Dawn
    Click Install

    Click Next

    Click Next

    Click Finish

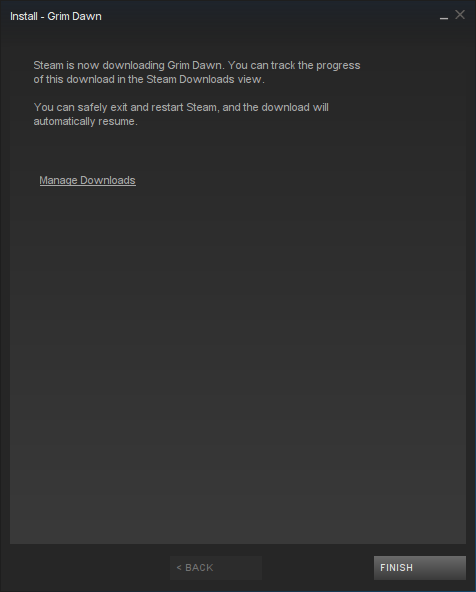

    Wait while Grim Dawn downloads

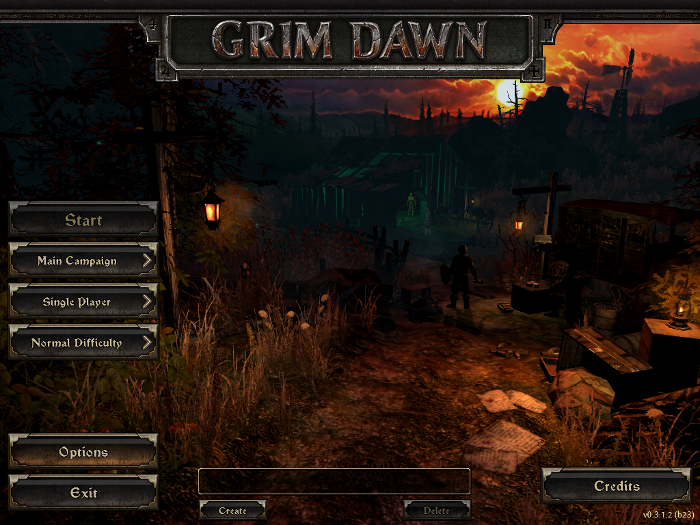

    Click Play

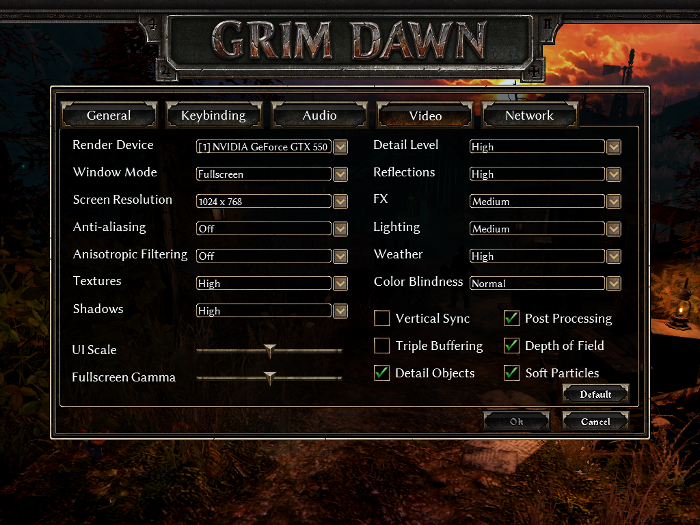

    Optimization

    Click Options

    Click Video
    Change Window Mode to Fullscreen
    Select Resolution to match your Linux Desktop

    Adjust:
    Anti-aliasing
    Anisotropic Filtering
    Texture
    Shadows
    Detail Level
    Reflections
    fX
    Lighting
    Weather

    Enable/Disable:
    Vertical Sync
    Triple Buffering
    Detail Objects
    Post Processing
    Depth of Field
    Soft Particles

    Click OK to apply settings

    Rule of Thumb:
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Conclusion:
    Grim Dawn didn't have too many problems with my GeForce 550 Ti. Tested with Wine 1.7.39 staging and now everything runs beautifully with hardly any lag. There were a few times when the game slowed down because of all the minions in the screen. Lowering the anti-Alias and Anisotropic filtering helped. I also tried adjusting fX and Lighting to produce better performance while it didn't affect the visuals. There were a few occurrences where my character had invisible texture upon loading. Quitting the game and launching again would fix this problem.

    Texture/Font Bugs:
    There is some texture reload issues in Grim Dawn that can be resolved by adding launch option in Steam:
    Code:
    /d3d9
    To fix any missing textures:
    1. Configure
    2. Wine Tab
    3. Registry
    4. Navigate to
      Code:
      [HKEY_CURRENT_USER\Software\Wine\Direct3D]
    5. right-click Direct3D
    6. Select New
    7. String Value
    8. Name:
      Code:
      CheckFloatConstants
    9. Value: enable

    Gameplay Video:

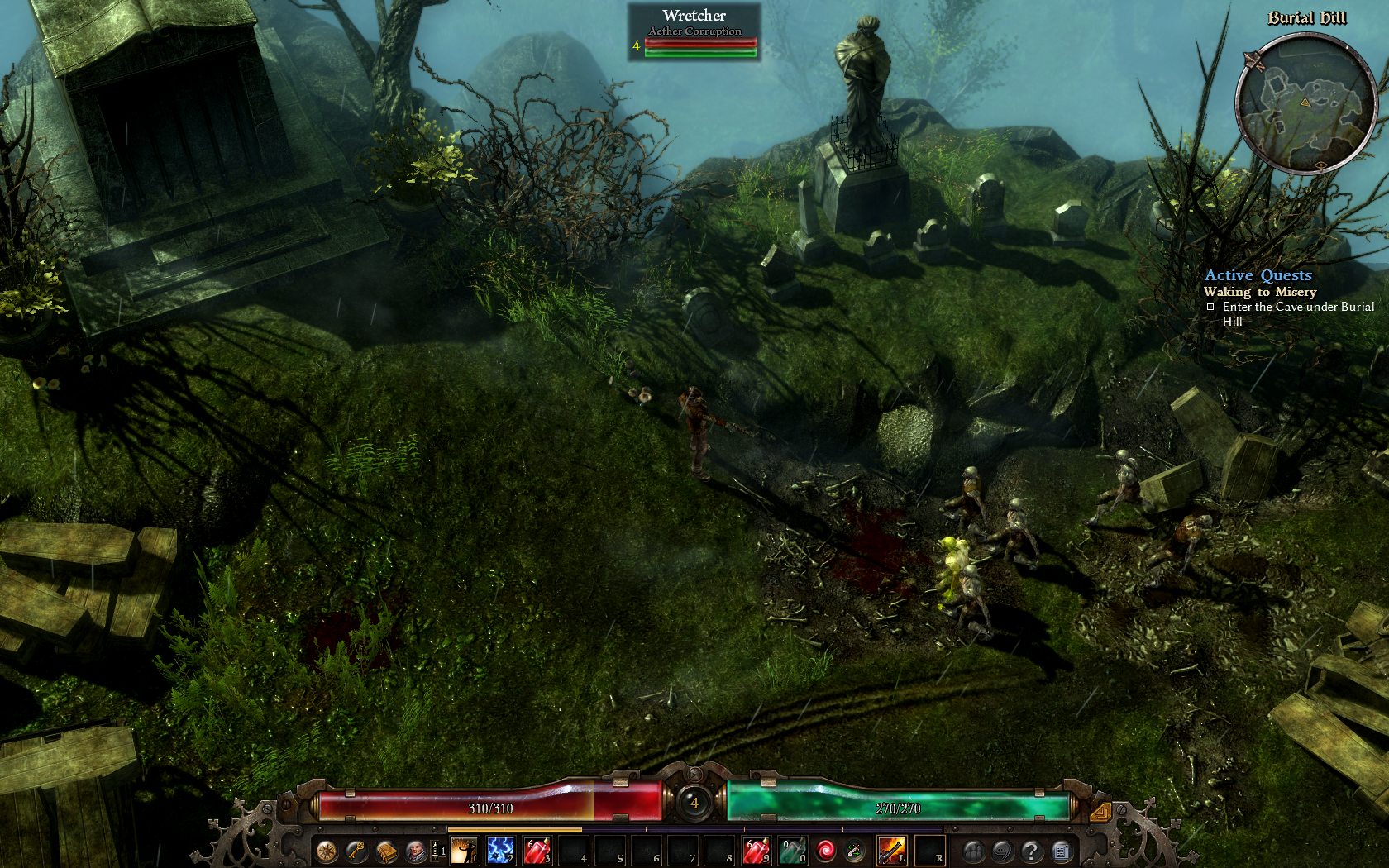

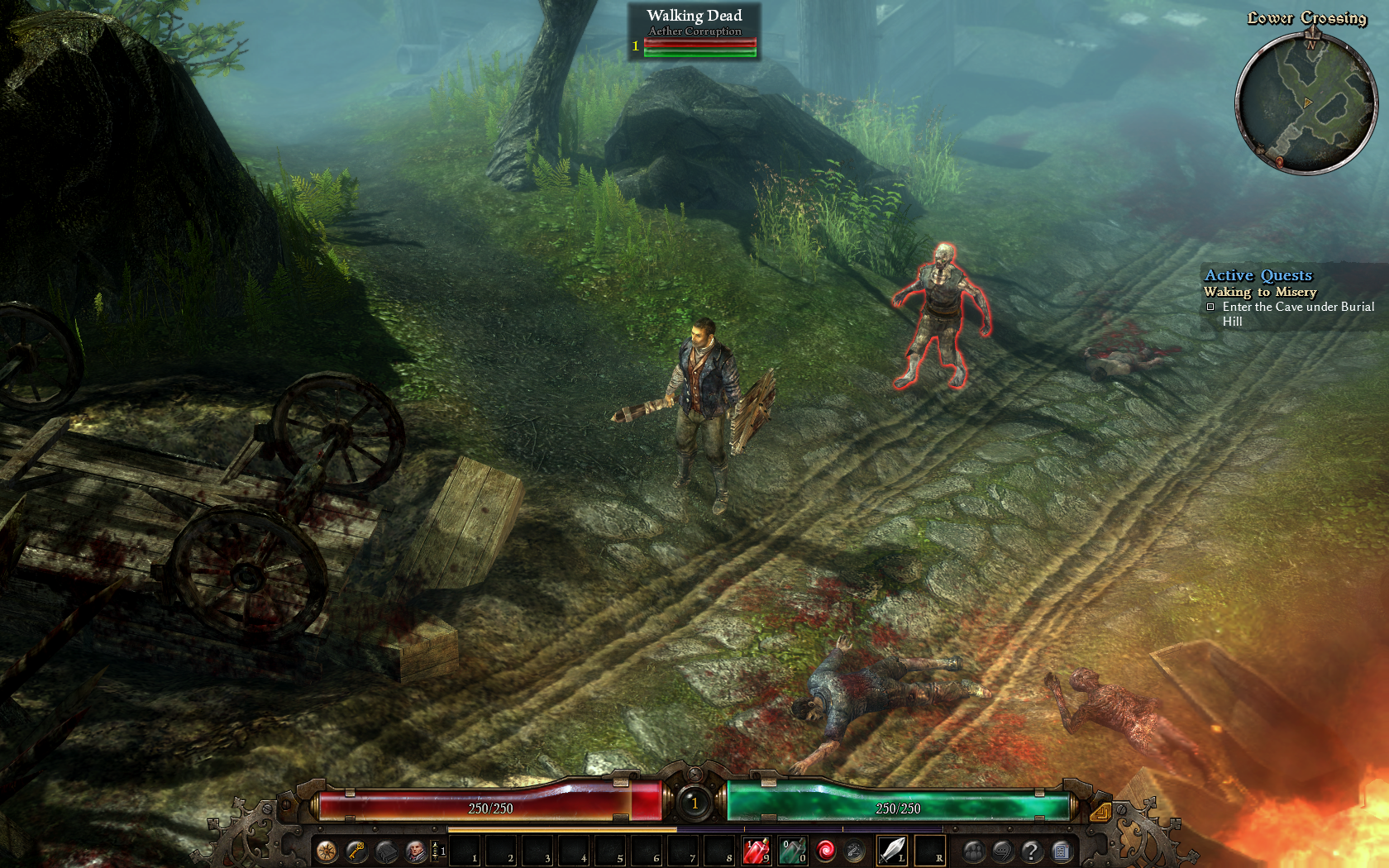

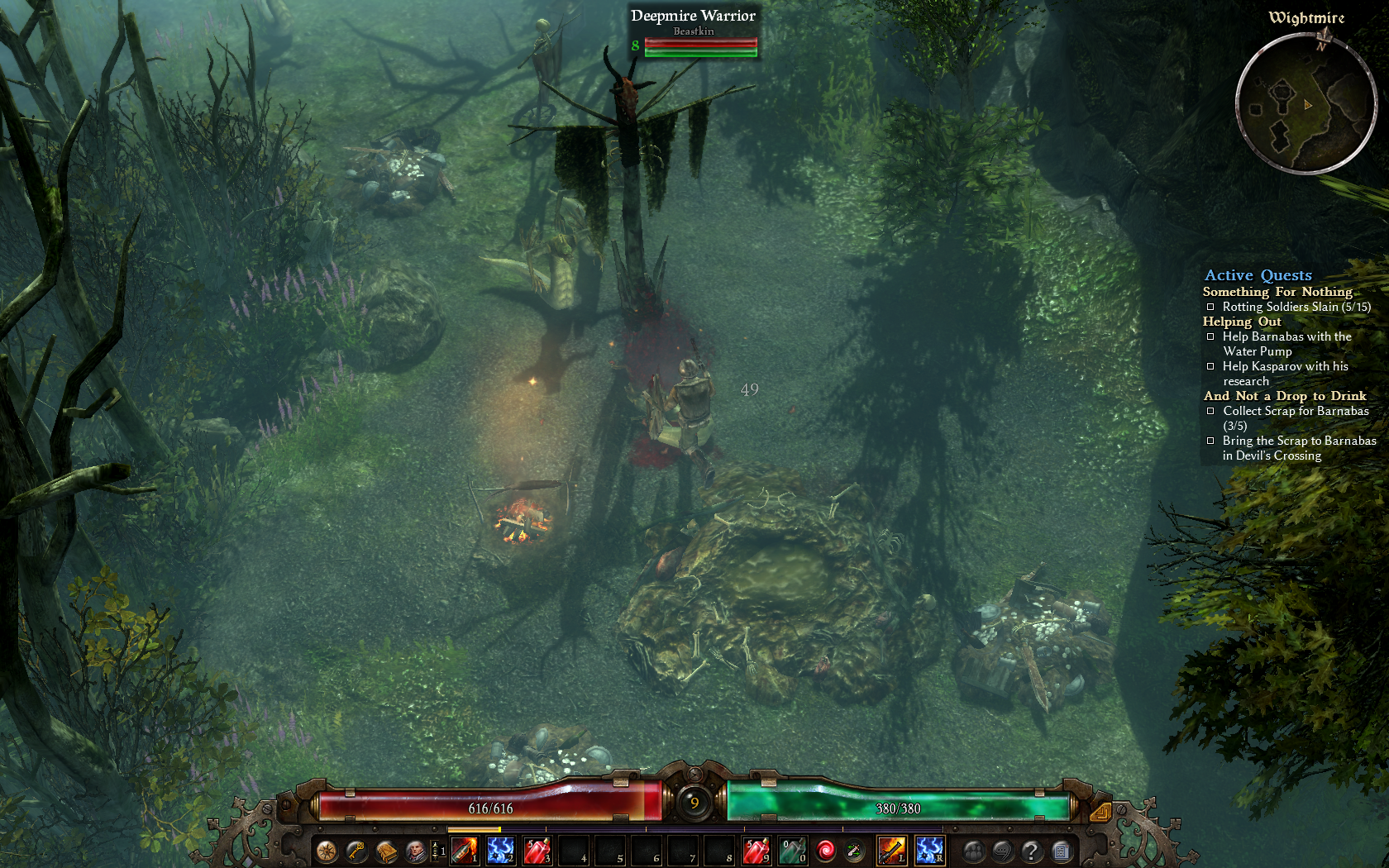

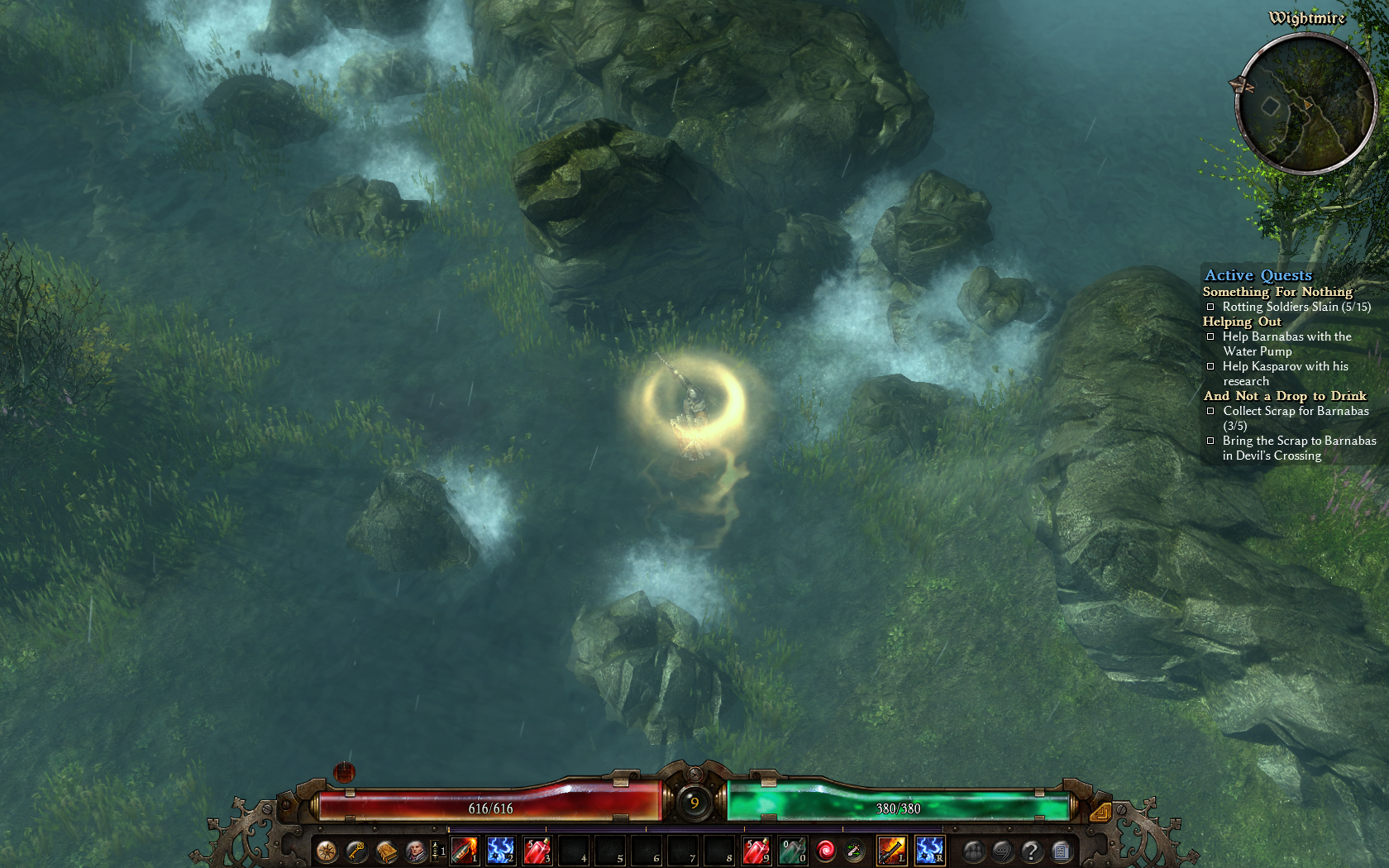

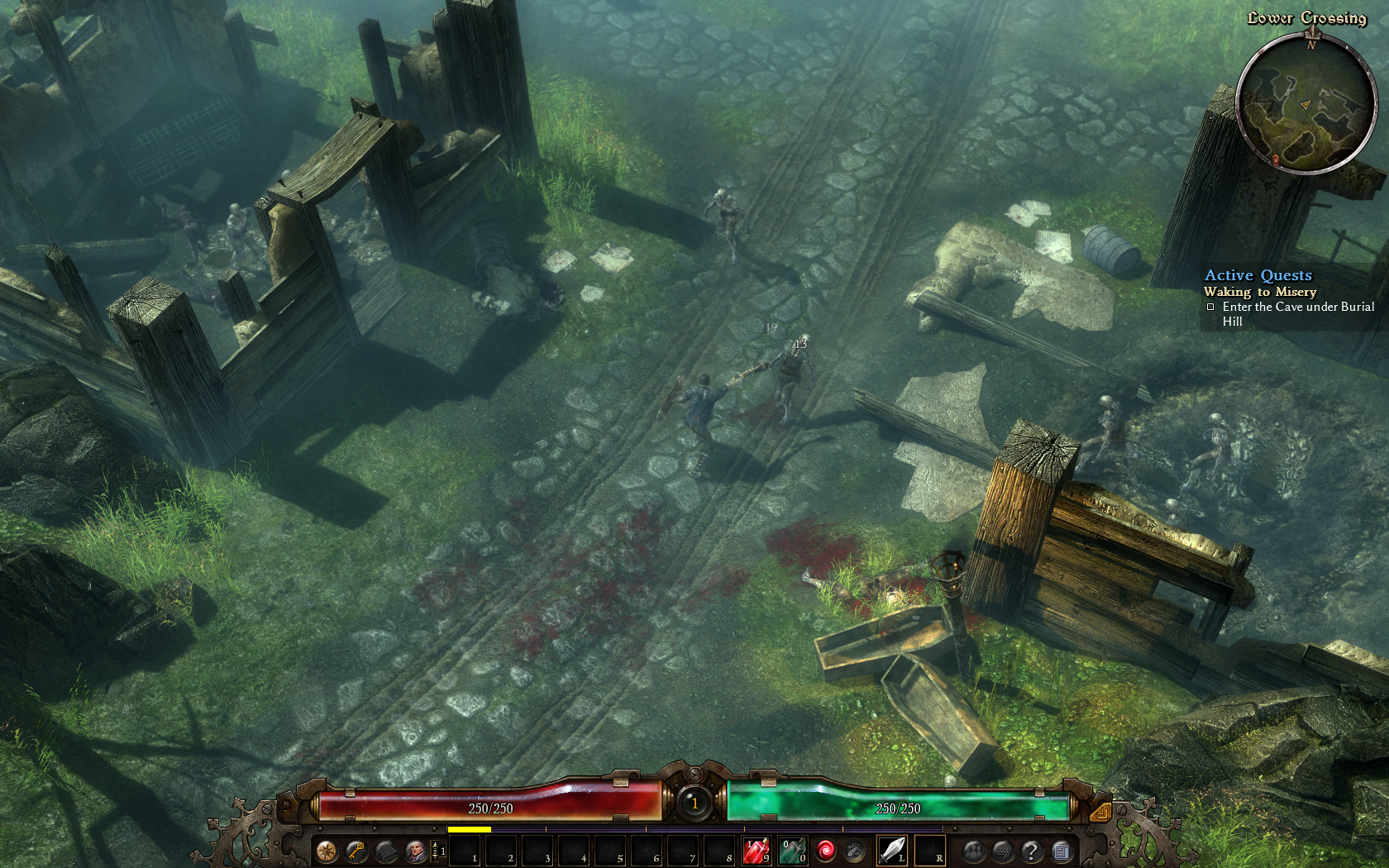

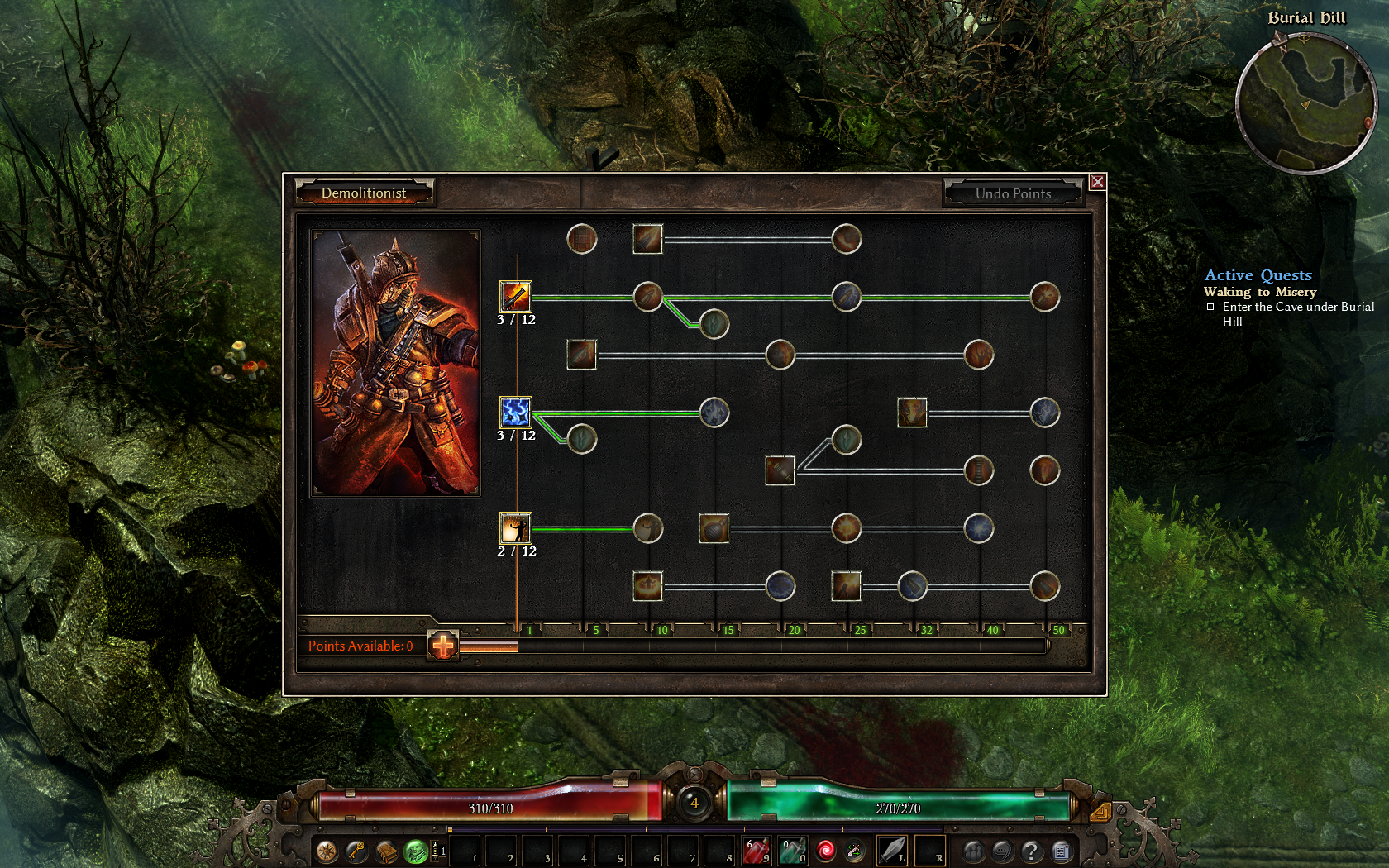

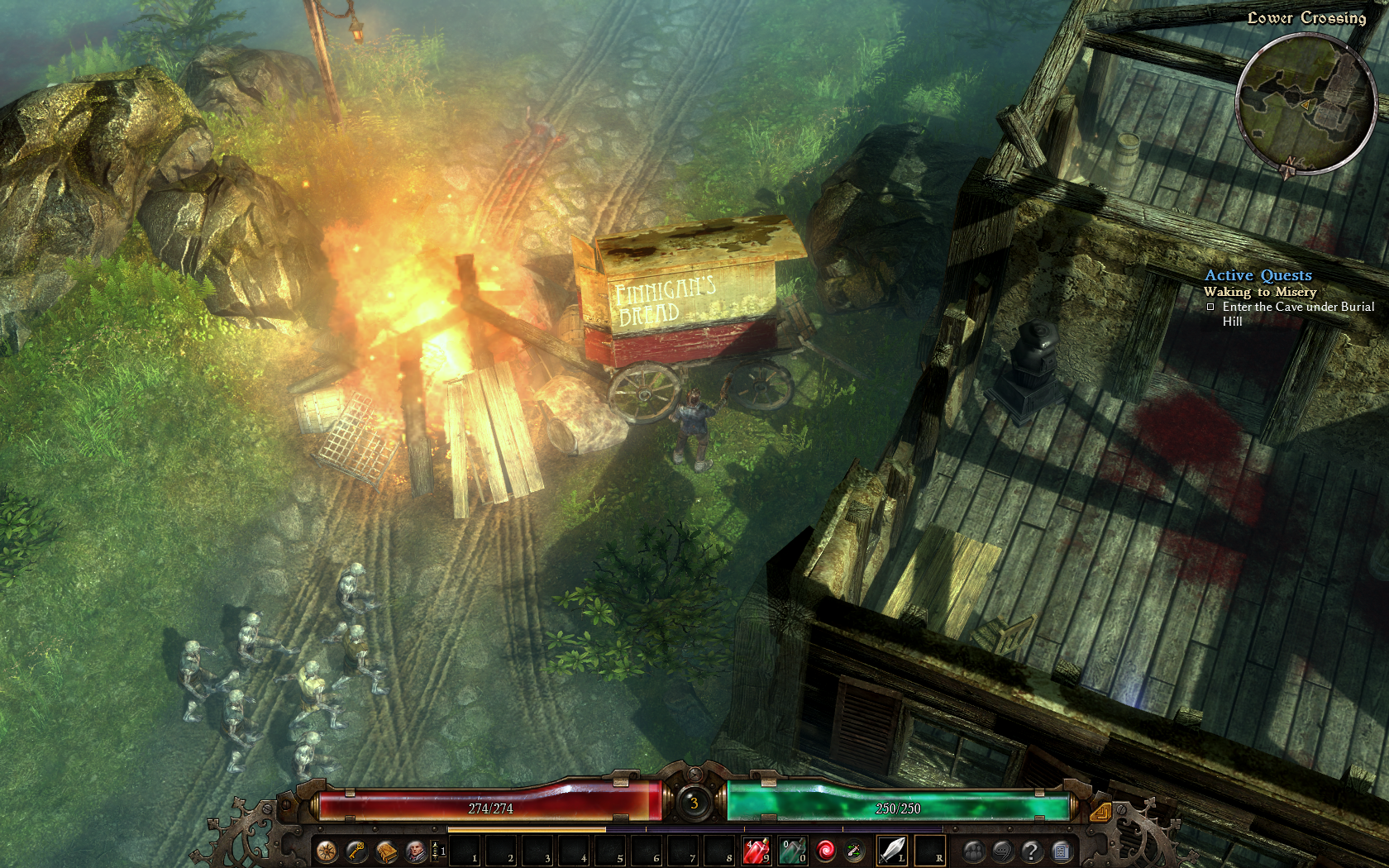

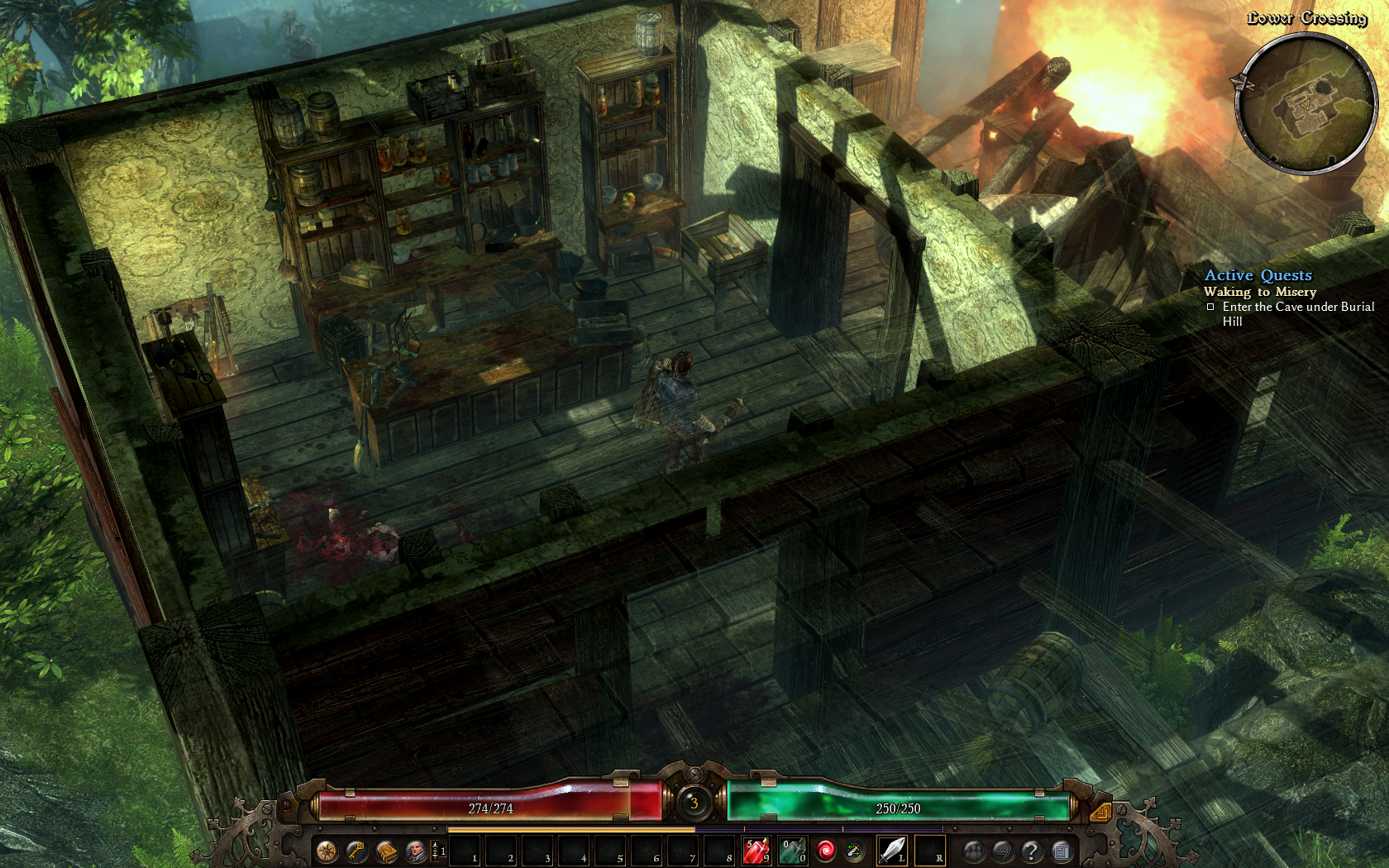

    Screenshots:
