    Halo Combat Evolved is the first installment of the Halo series developed by Gearbox and Bungie. Defend earth as Master Chief against an alien race called Covenant. Utilize an arsenal of weapons including alien guns and vehicles. Experience intense battles in many different environments from Earth to Covenant spaceships.


    Follow my step-by-step guide on installing, configuring and optimizing Halo Combat Evolved in Linux with PlayOnLinux.

    Note: This guide applies to the Retail version of Halo Combat Evolved. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.8
    Wine: 1.6.2

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"

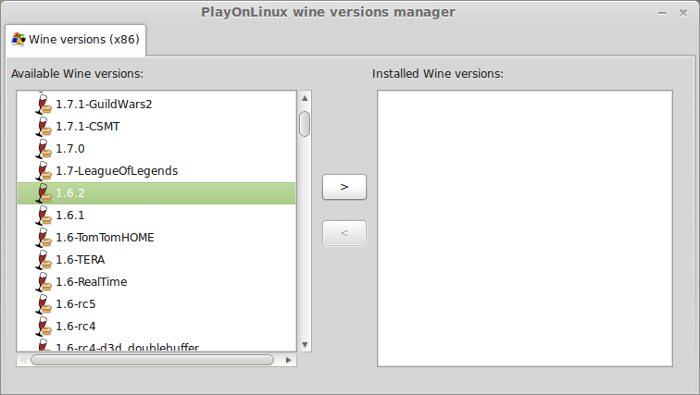

    Look for the Wine Version: 1.6.2
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

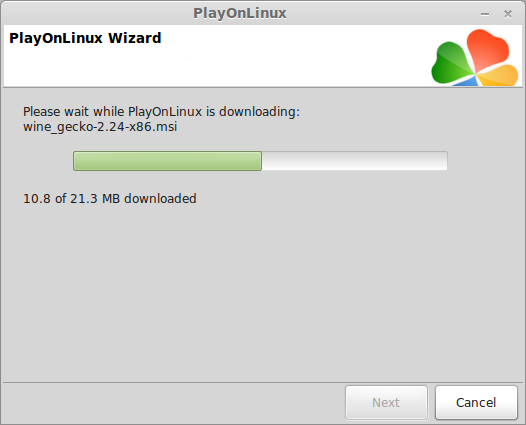

    Downloading Gecko

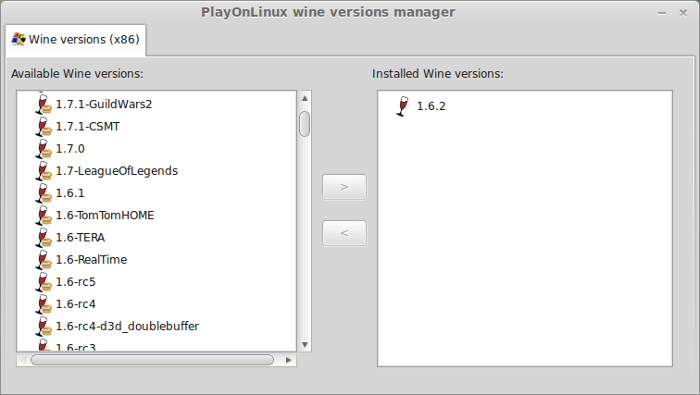

    Installed

    Wine 1.6.2 is installed and you can close this window

    PlayOnLinux Setup

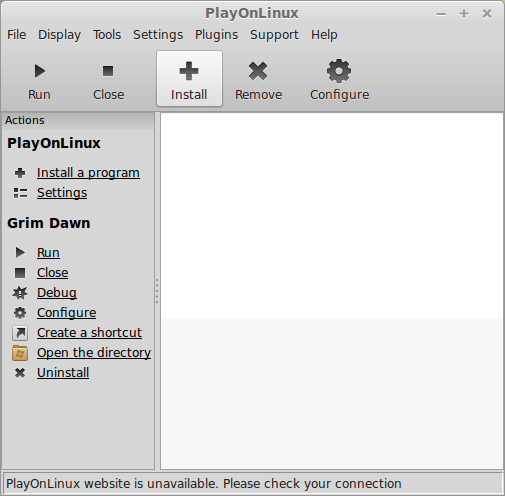

    Launch PlayOnLinux
    Click Install

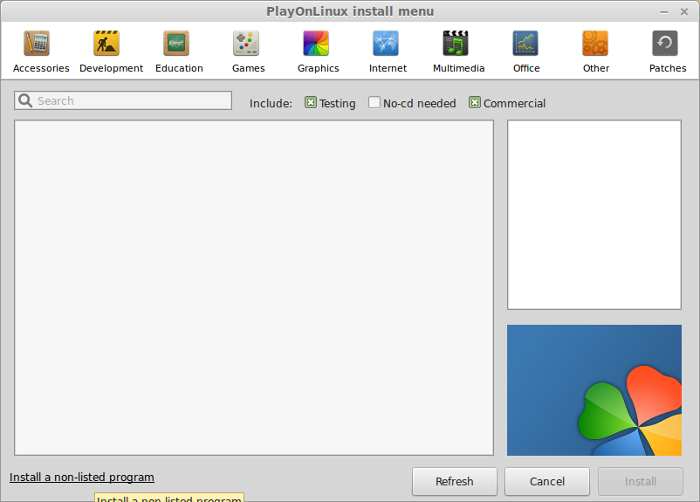

    Click "Install a non-listed program"

    Click Next

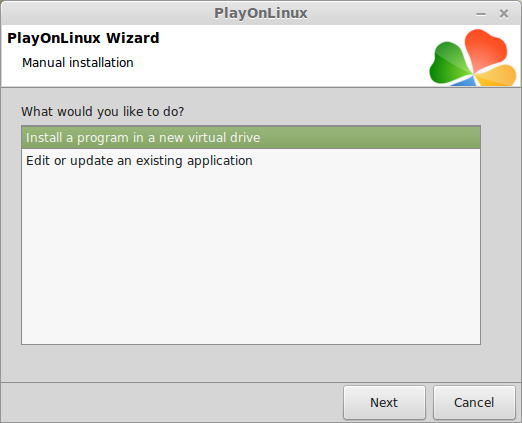

    Select "Install a program in a new virtual drive"
    Click Next

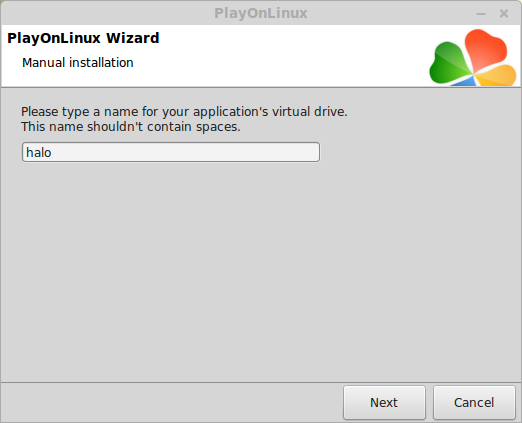

    Name your virtual drive: halo
    Click Next

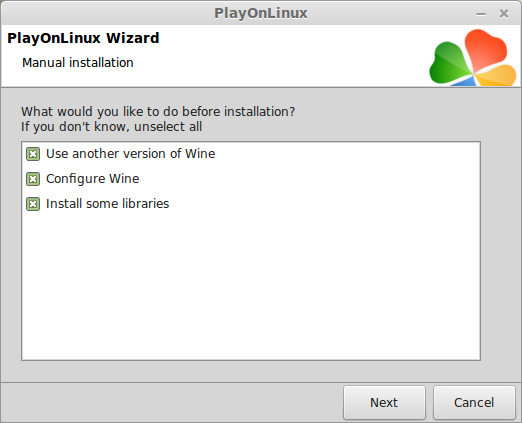

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

    Select Wine 1.6.2
    Click Next

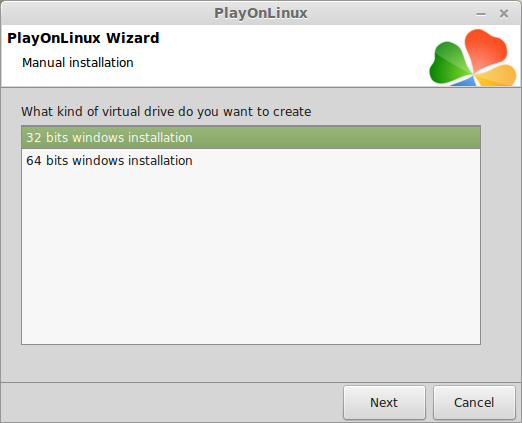

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

    Applications Tab
    Windows version: Windows 7
    Click Apply

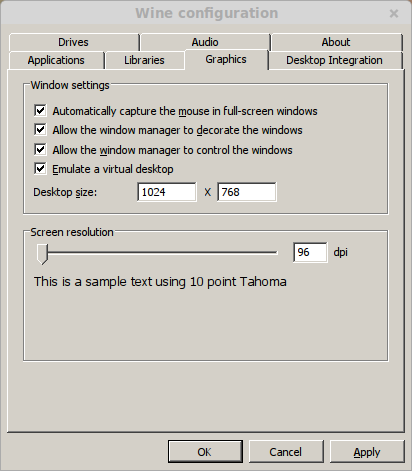

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop"
    Desktop size: 1024x768
    Click OK

    PlayOnLinux Packages (Components, Libraries, DLL's)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_mfc42
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Halo Combat Evolved

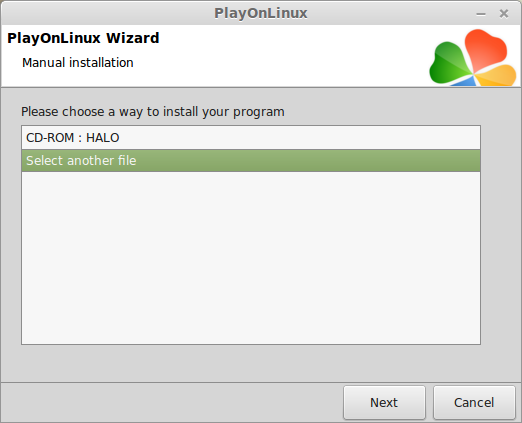

    Select "Select another file"
    Click Next

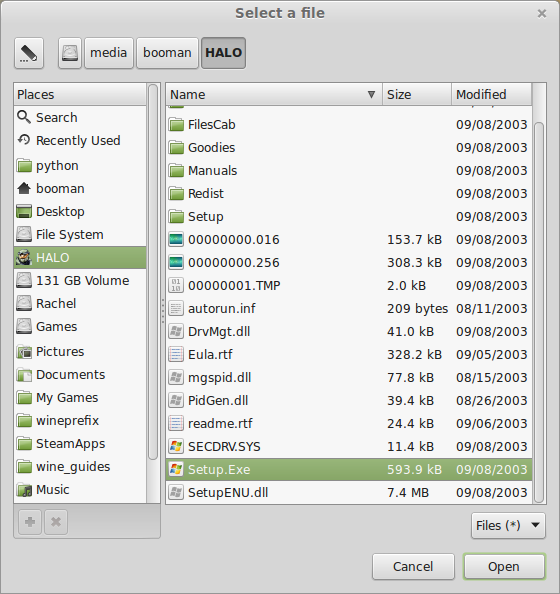

    Click Browse

    Navigate to your Halo CD ROM
    Select "Setup.Exe"
    Click Open

    Click Next

    Error

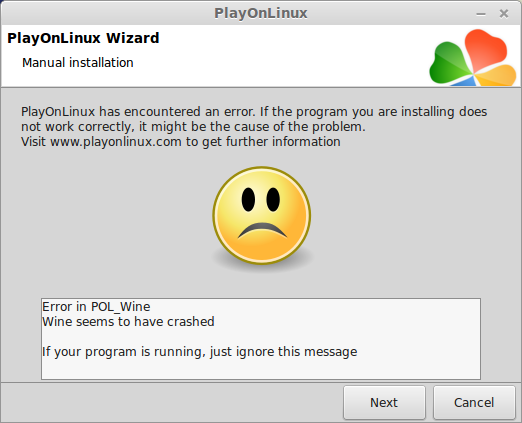

    You may get a "PlayOnLinux has encountered an error" pop-up
    Just click "Cancel"

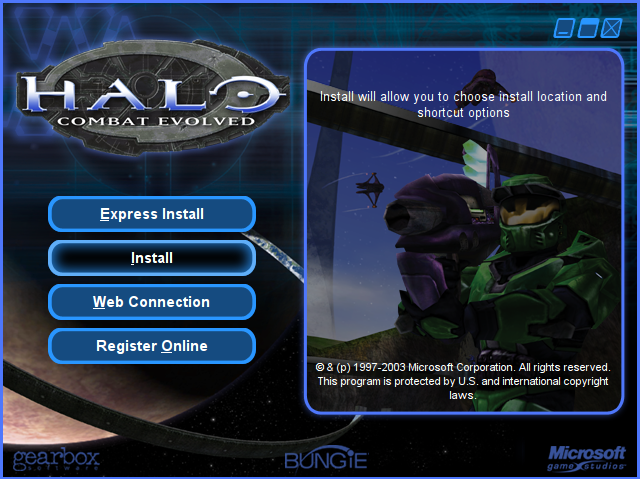

    Click Install

    Enter Key
    Click Next

    Click Next

    Uncheck:
    • Create Desktop Icon
    • Insall for All Users
    • Install GameSpy Arcade
    click Install

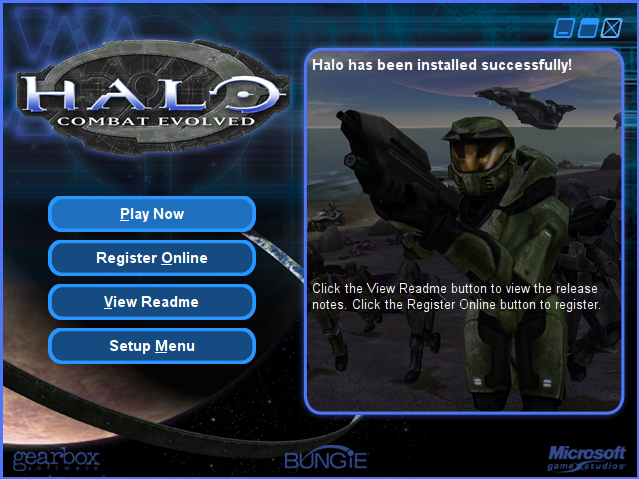

    When the installation is finished, click the "X"

    PlayOnLinux Shortcut

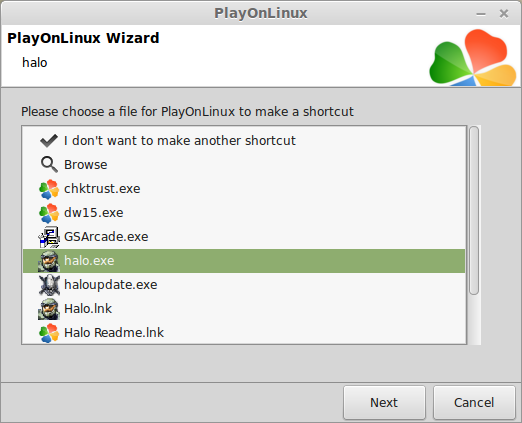

    Select "halo.exe"
    Click Next

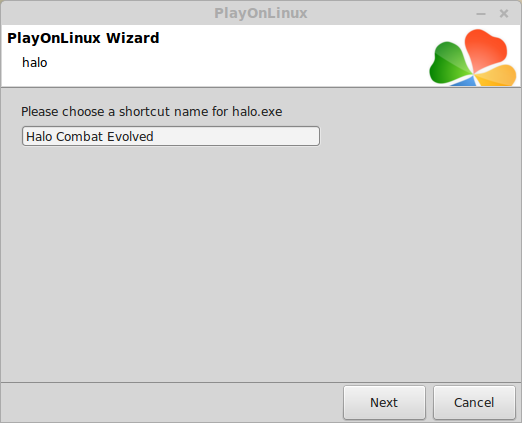

    Name your shortcut: Halo Combat Evolved
    Click Next

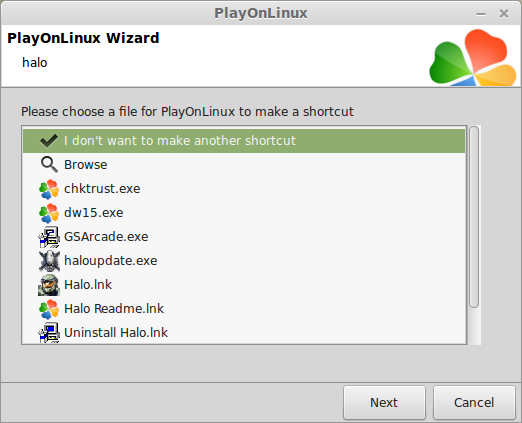

    Select "I don't want to make another shortcut"
    Click Next

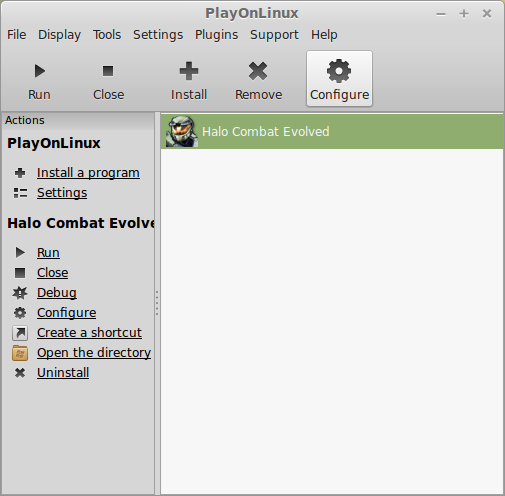

    PlayOnLinux Configuration

    Select "Halo Combat Evolved"
    Click Configure

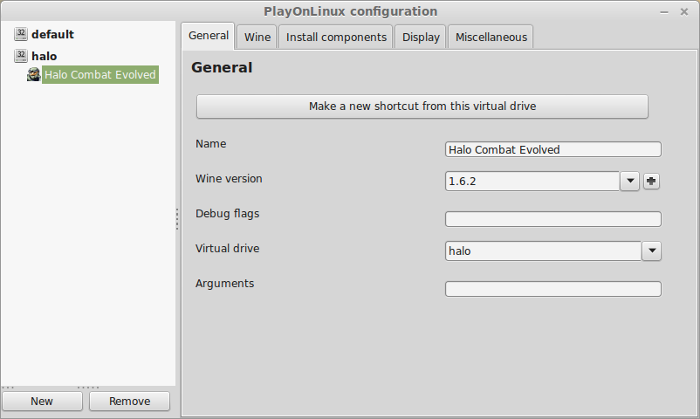

    General Tab
    Wine version: 1.6.2

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine.

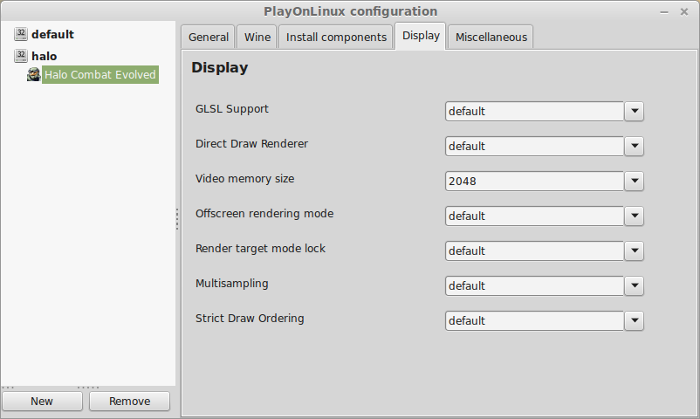

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

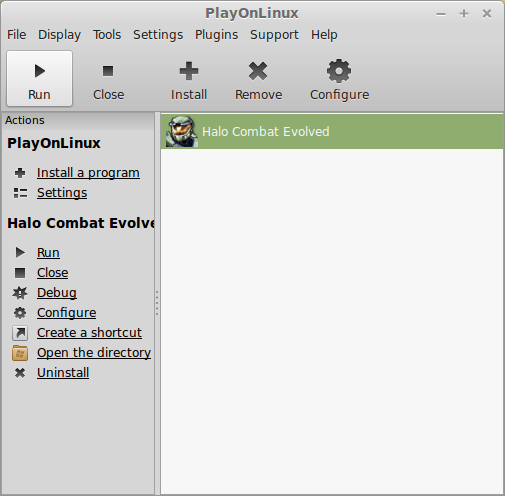

    Launching Halo Combat Evolved

    Select "Halo Combat Evolved"
    Click Run

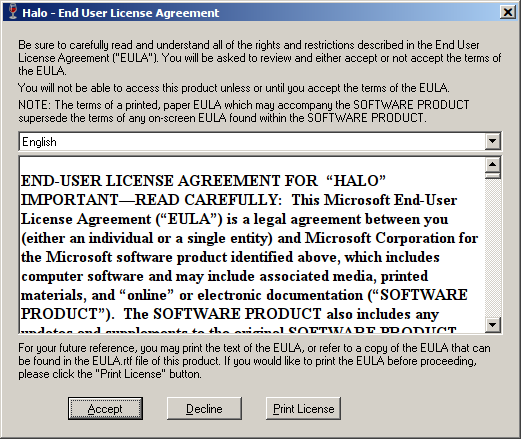

    Click "I Accept"

    Optimization

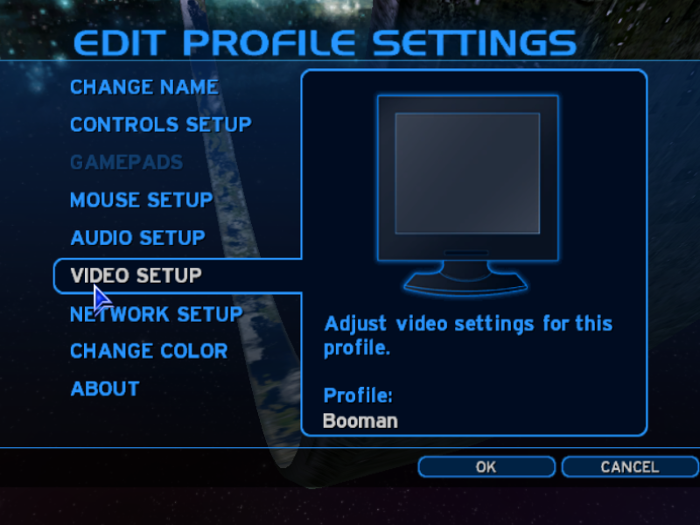

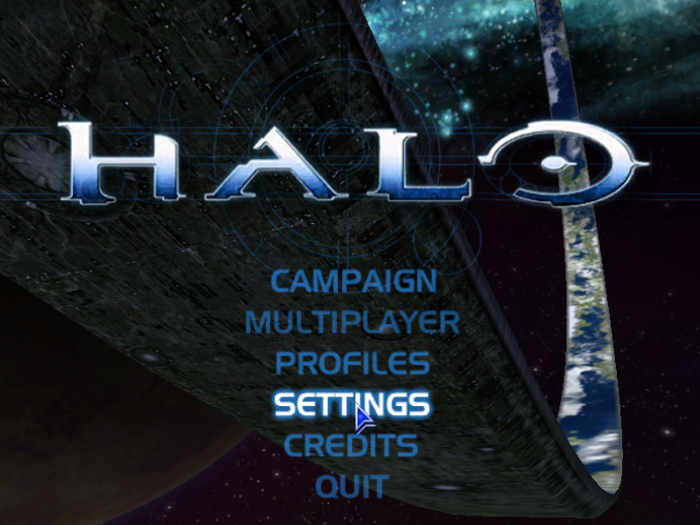

    Click Settings

    Create a name for your profile

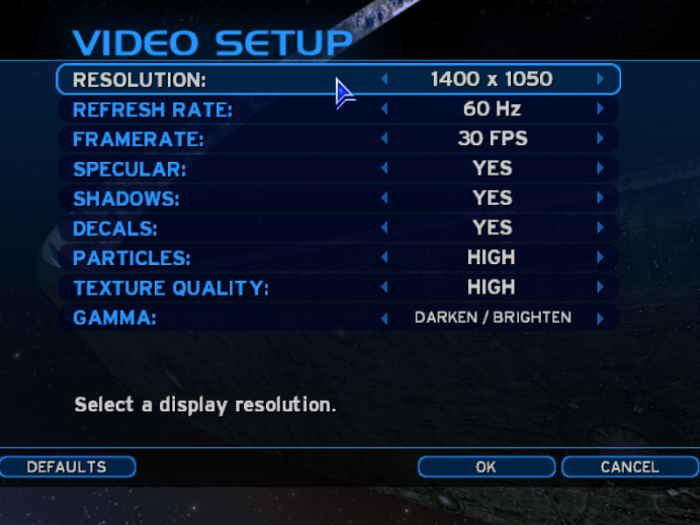

    Click Video Setup
    Click OK

    Adjust:
    • Resolution
    • Refresh Rate
    • Framerate
    • Specular
    • Shadows
    • Decals
    • Particles
    • Texture Quality
    • Gamma
    Click OK

    Rule of Thumb
    High settings = More detail, lower frame rate
    Low settings = Less detail, higher frame rates

    No CD Patch

    Search online for: halo 1.09 patch
    I found it on GamersHell.com
    http://www.gamershell.com/download_53008.shtml

    Download the patch
    Save it to a folder on the desktop

    Back to PlayOnLinux
    Click "Halo Combat Evolved"
    Click Configure

    Miscellaneous Tab
    Click "run a .exe file in this virtual drive"

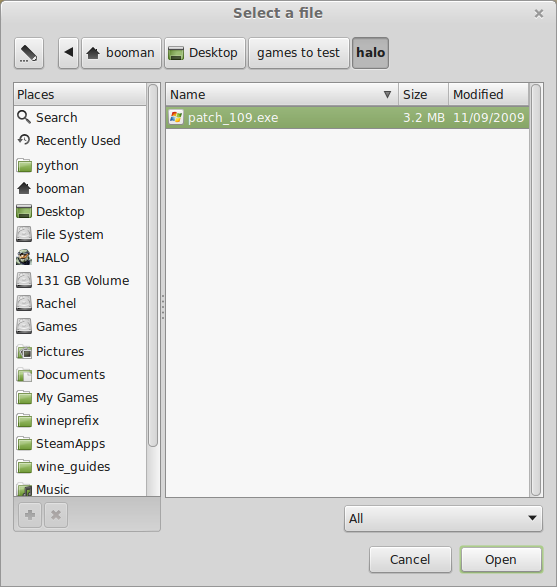

    Go to the folder on your desktop
    Select "patch_109.exe"
    Click Open

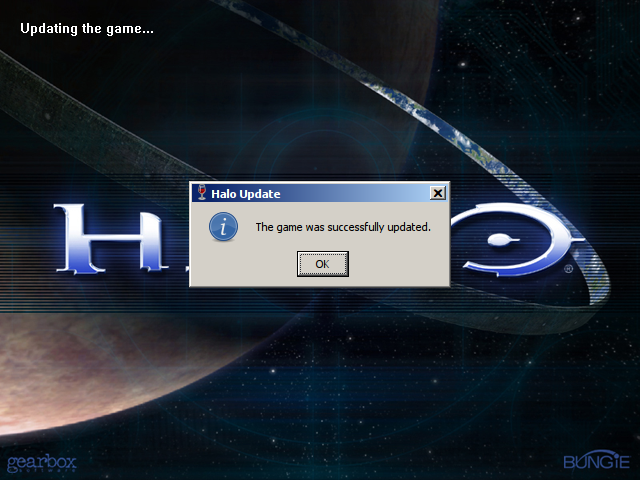

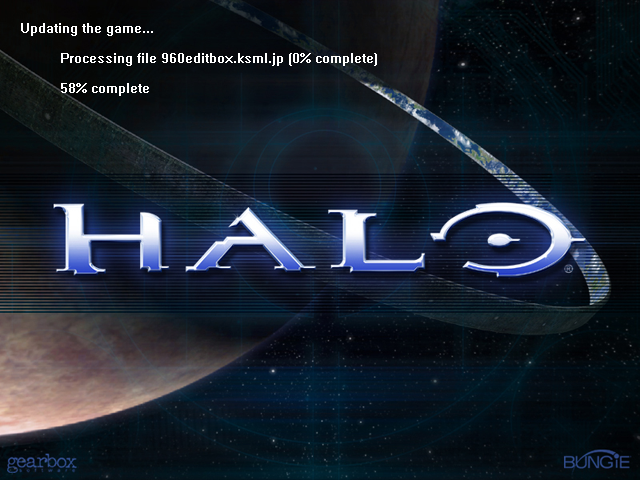

    Updating

    Confirmation
    Click OK

    Close Configure
    Now you can remove the CD ROM from the drive and play Halo Combat Evolved without it.


    Conclusion:
    Halo Combat Evolved runs perfectly in PlayOnLinux on my GeForce 550 Ti. I'm actually quite impressed with the quality and resolution. Everything works smoothly from saving and loading to controls and interaction.

    Gameplay Video:

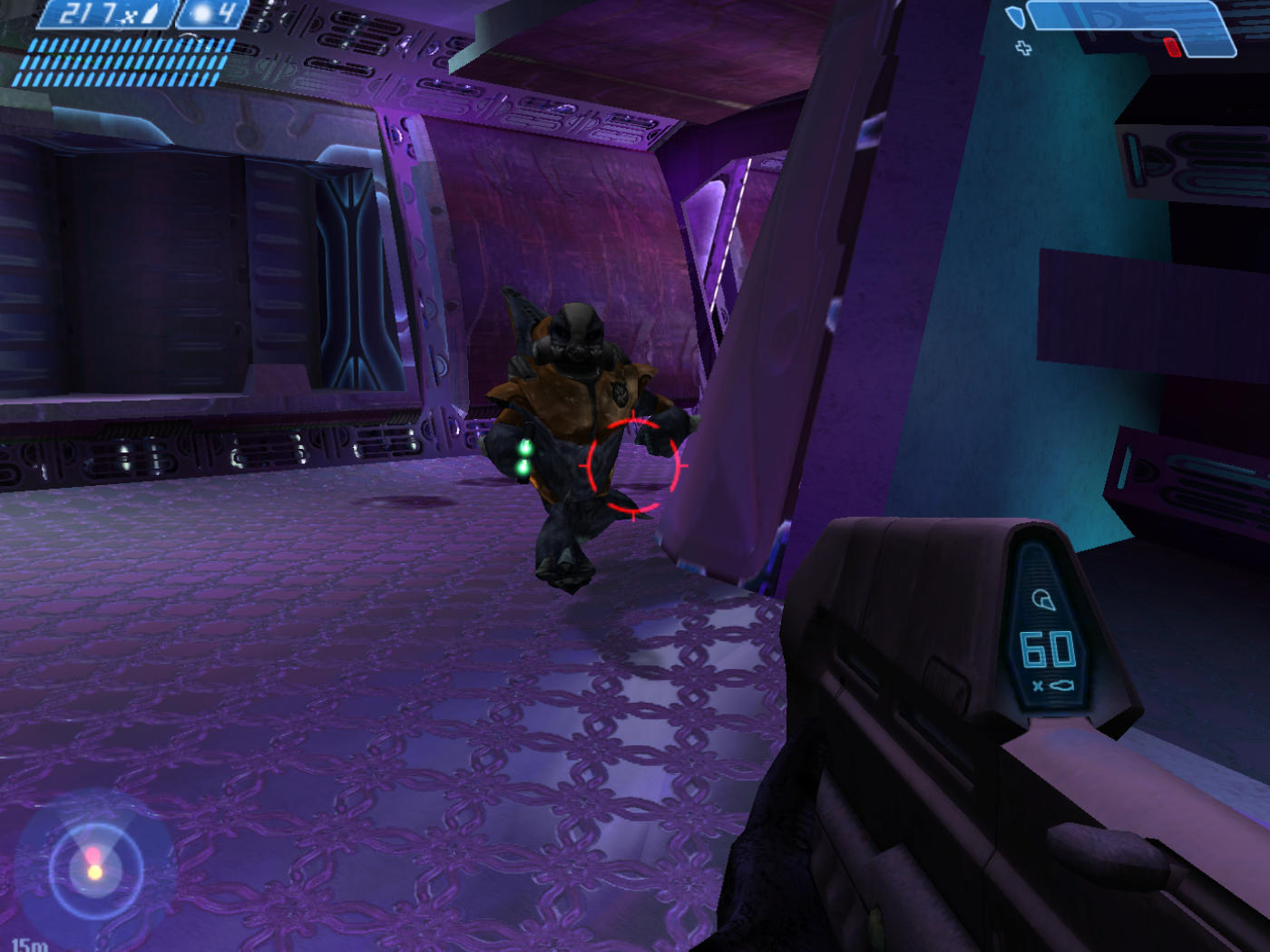

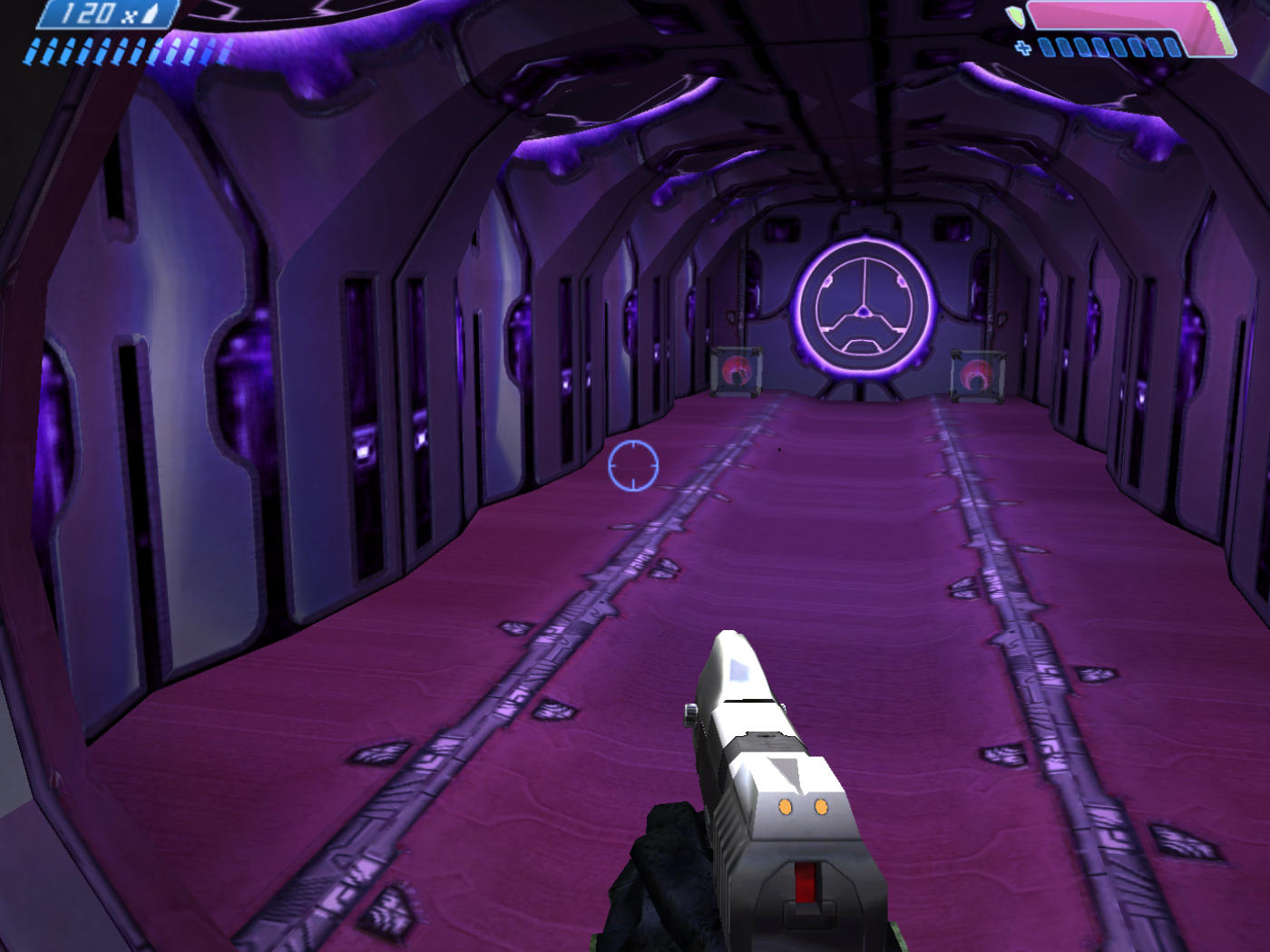

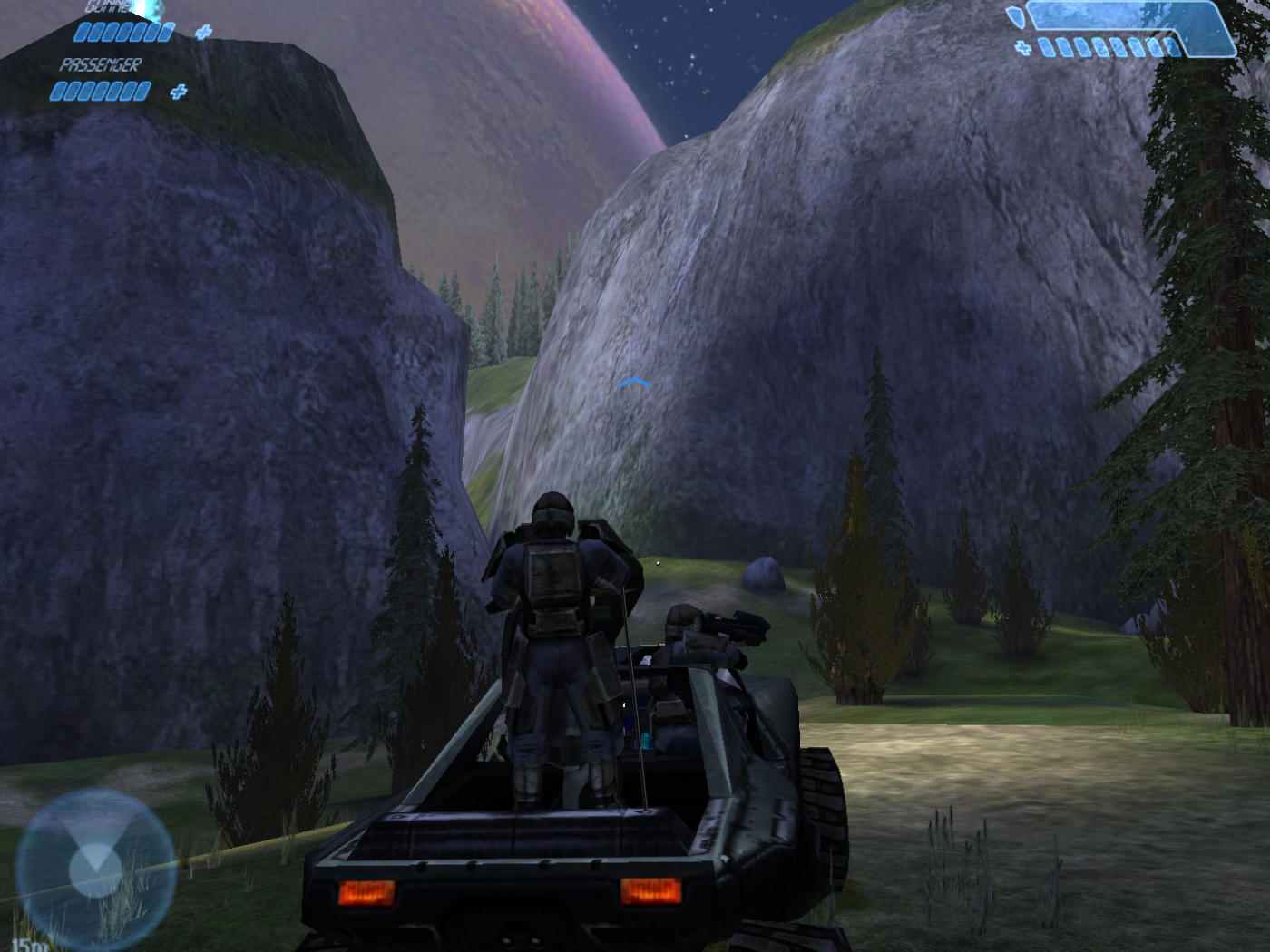

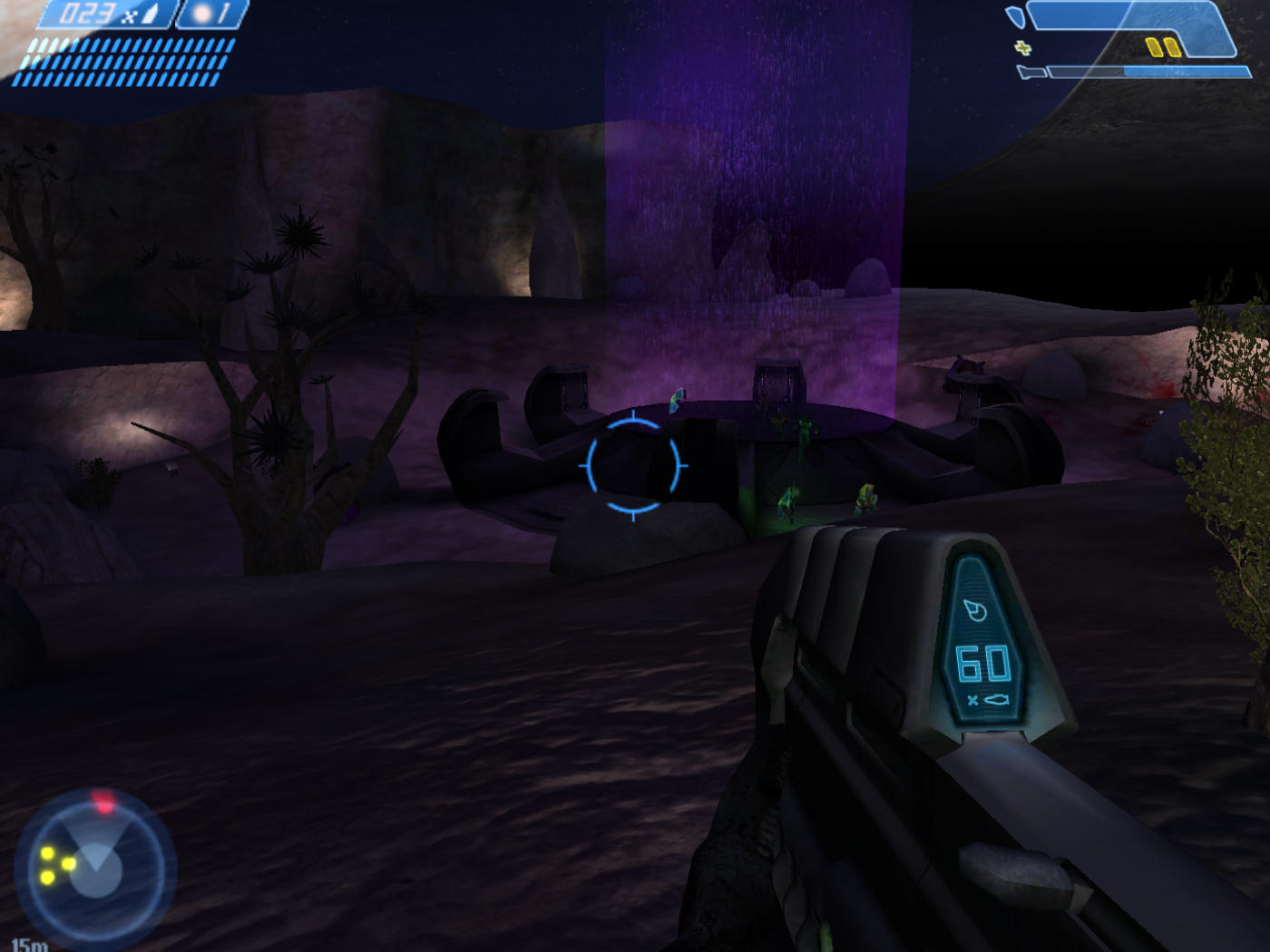

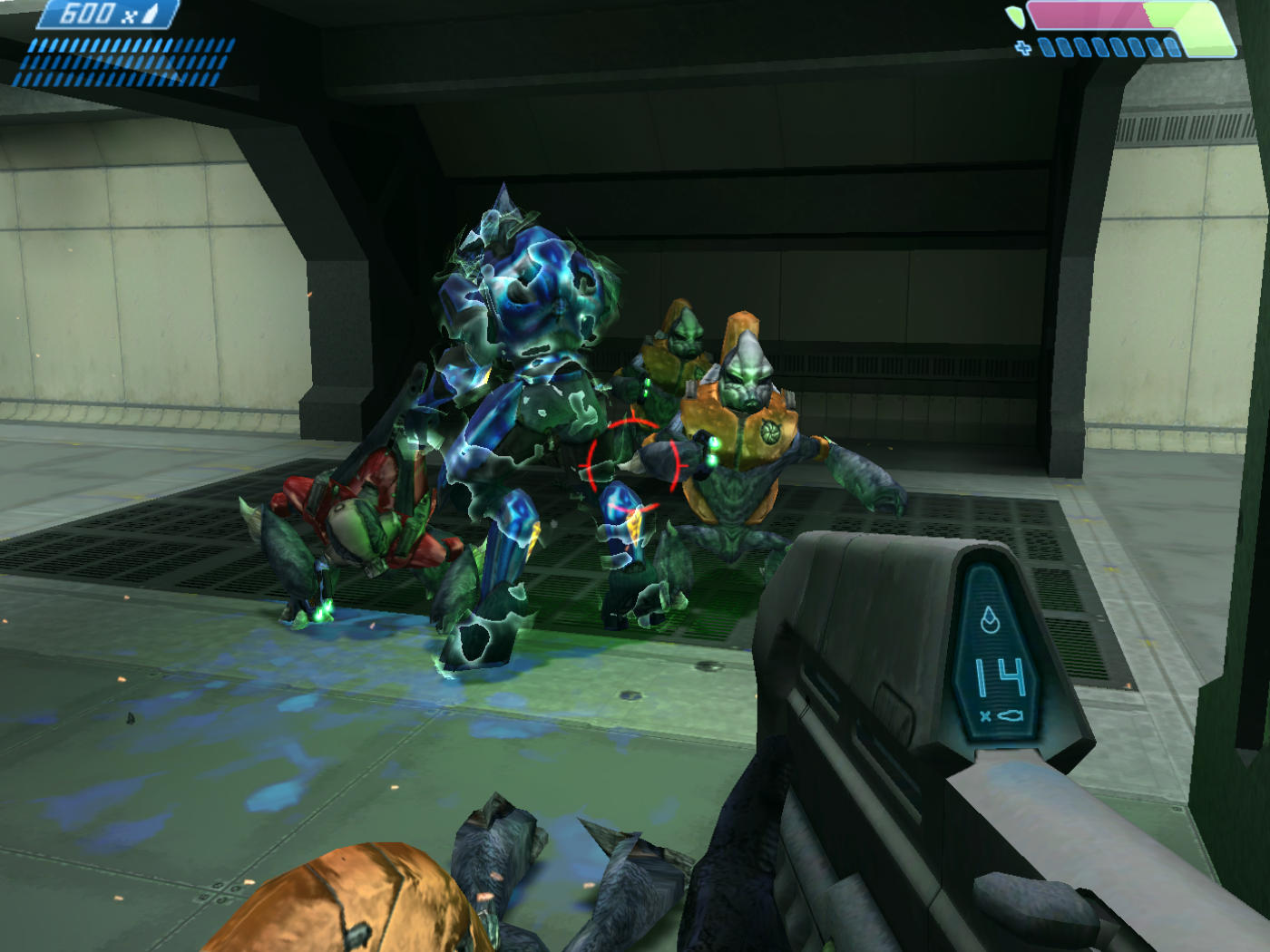

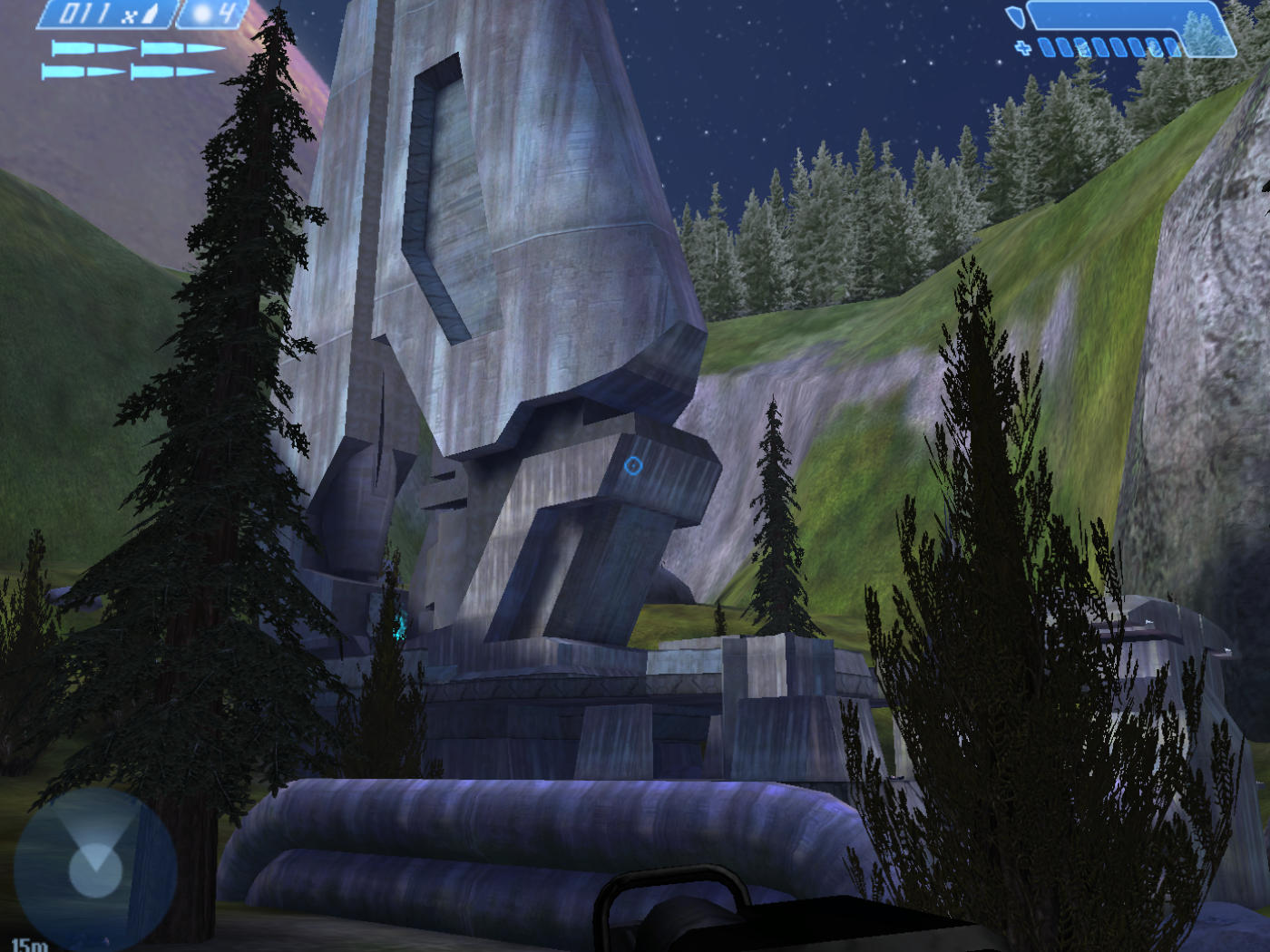

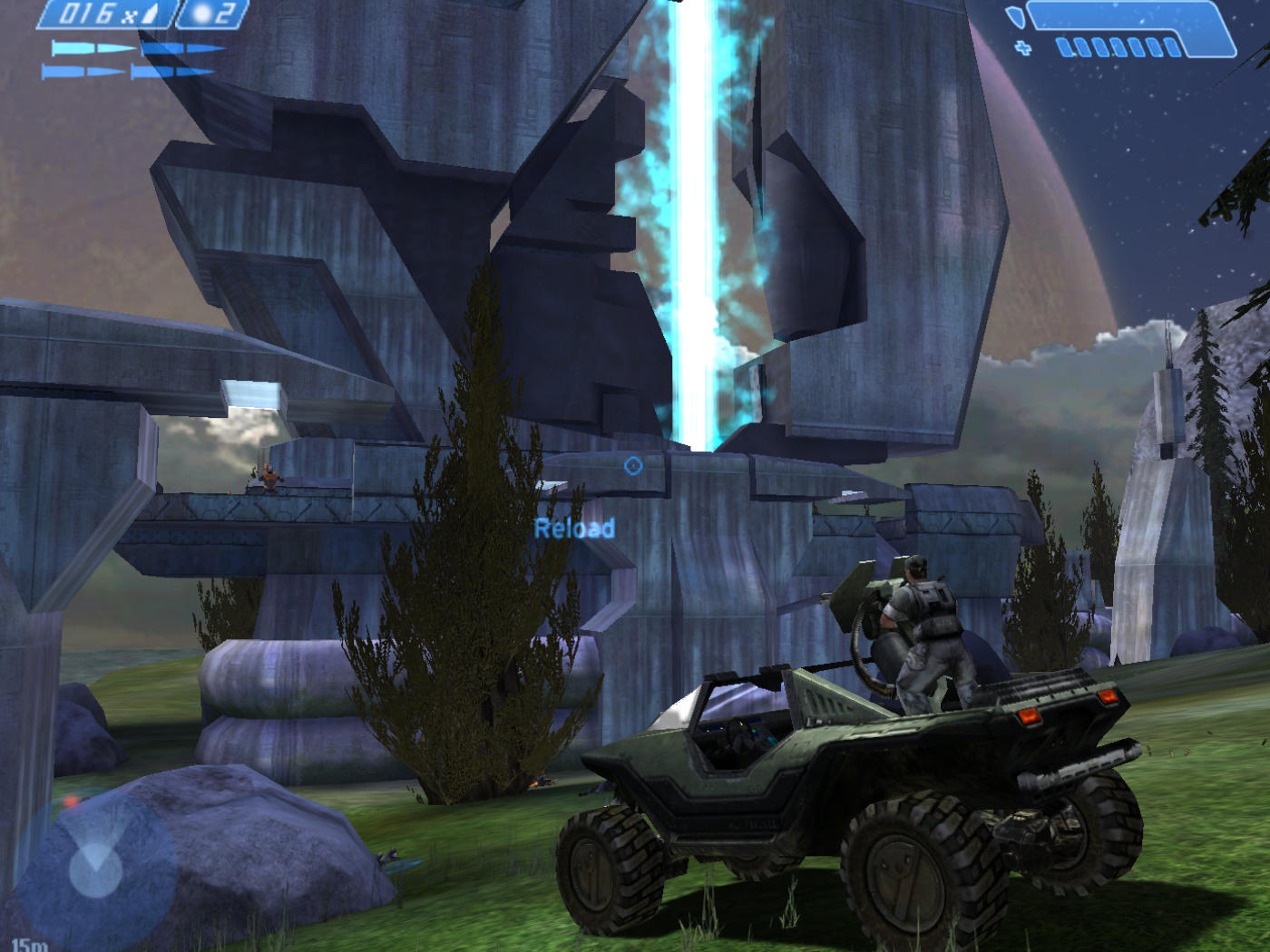

    Screenshots:






    Last edited: Jan 13, 2016
