    Survival is key to post apocalyptic Russia where bullets are currency and mutated creature aren't your only enemy. Travel and explore the underground Metro with with stealth or all out fire power, but be careful with each shot...


    Follow my step-by-step guide on installing, configuring and optimizing Metro 2033 Redux in Linux with PlayOnLinux and DXVK

    Note: This guide applies to the GOG version of Metro 2033 Redux. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 3.21
    DXVK: 0.93

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"

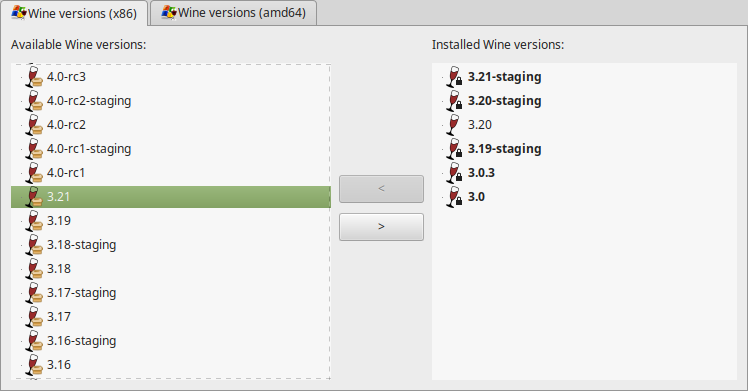

    Look for the Wine Version: 3.21
    Select it
    Click the arrow pointing to the right


    Click Next

    Downloading Wine


    Extracting

    Installed

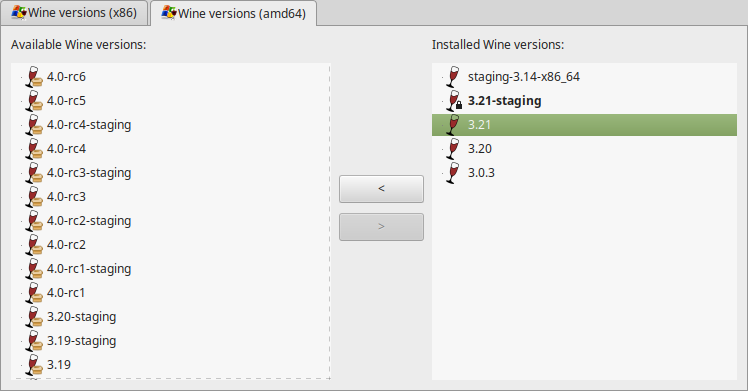

    Click (amd64) Tab
    Select "3.21"
    Click the arrow pointing to the right

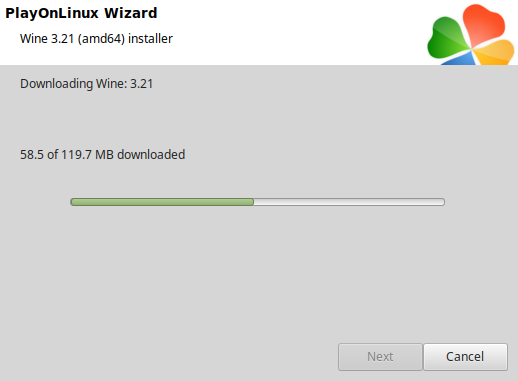

    Downloading Wine 64-bit


    Installed


    Wine 3.21 32-bit and 64-bit is installed, you can close this window

    PlayOnLinux Setup

    Launch PlayOnLinux
    Click Install


    Click "Install a non-listed program"

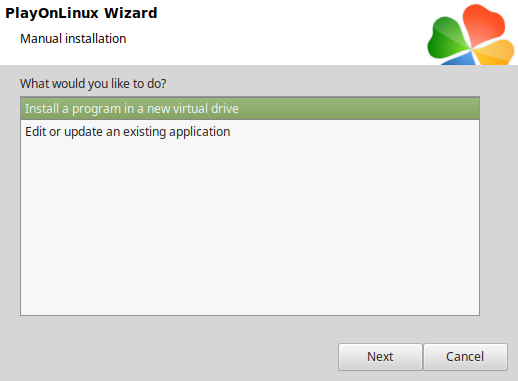

    Select "Install a program in a virtual drive"
    Click Next

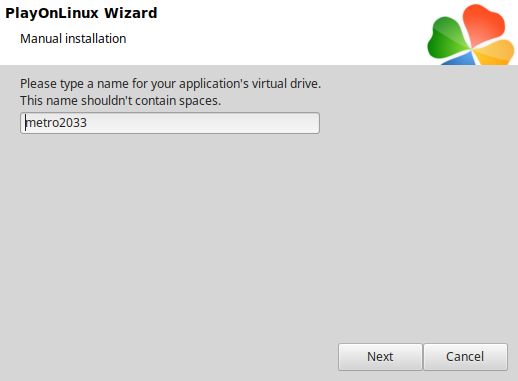

    Name the virtual drive: metro2033
    Click Next

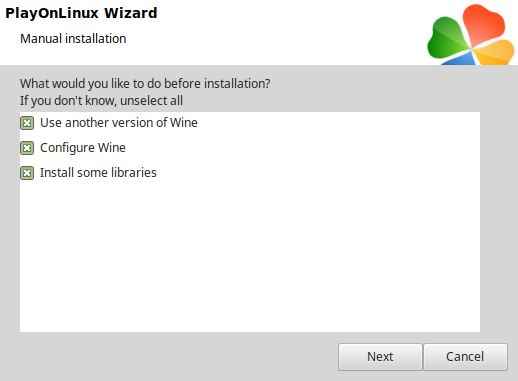

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

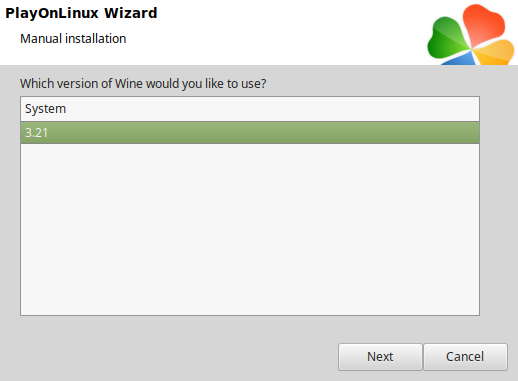

    Select Wine 3.21
    Click Next

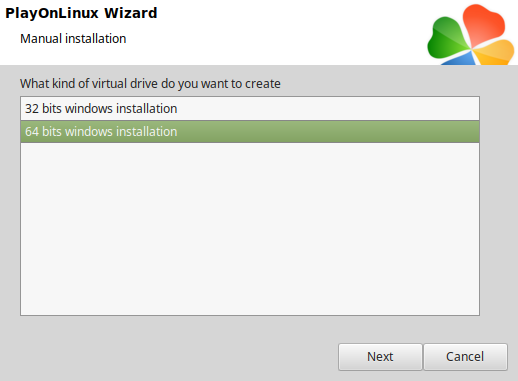

    Select "64 bits windows installation"
    Click Next


    Wine Configuration

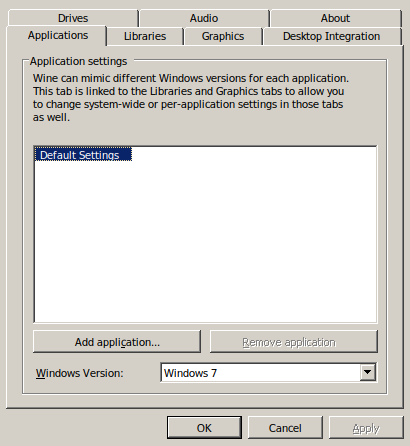

    Applications Tab
    Windows version: Windows 7


    Libraries Tab
    Enter the following:
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    • xaudio2_7
    Select one at a time
    Click Edit
    Select: Native (Windows)
    Click Apply

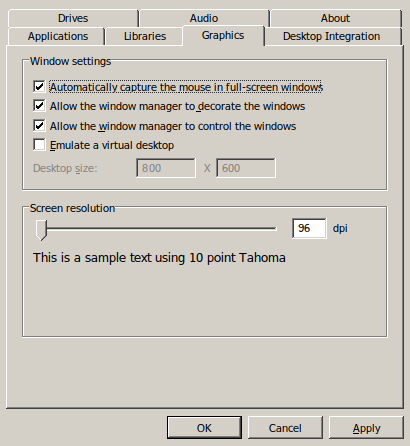

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK

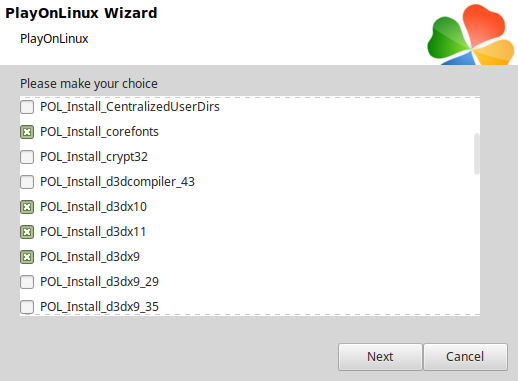

    PlayOnLinux Packages

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next


    Note: All packages should automatically download and install

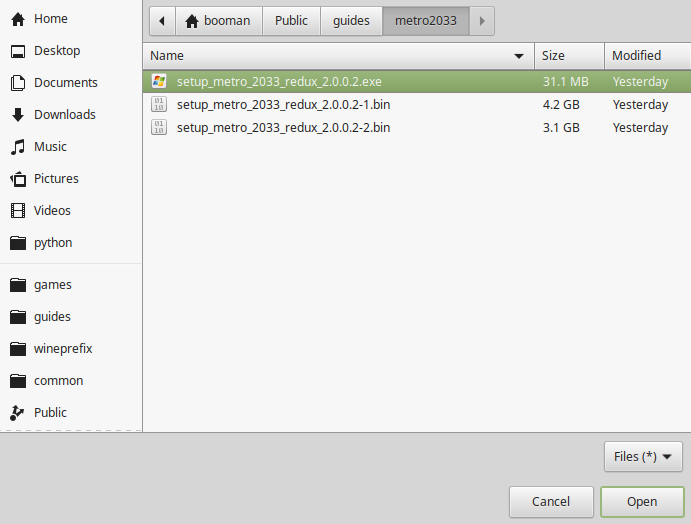

    Click Browse

    Select "setup_metro_2033_redux_2.0.0.2.exe"
    Click Open


    Click Next again

    Click OK

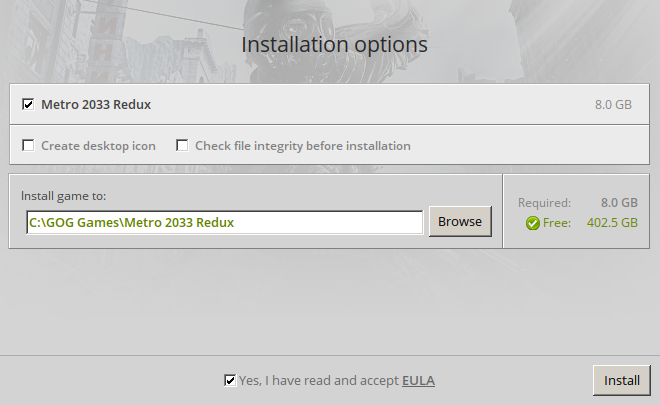

    Click Options
    Check "Yes, I have read and accept EULA"
    Uncheck "Created desktop icons"
    Click Install


    Click OK on all errors


    Click Exit


    PlayOnLinux Shortcut

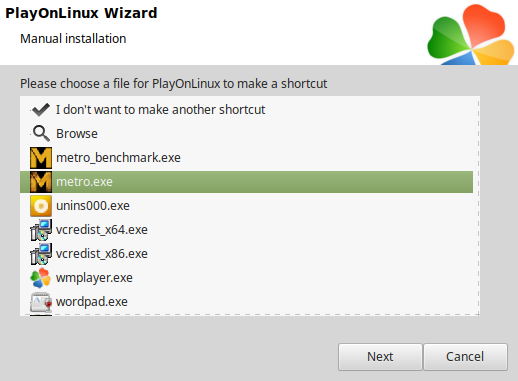

    Select "metro.exe"
    Click Next

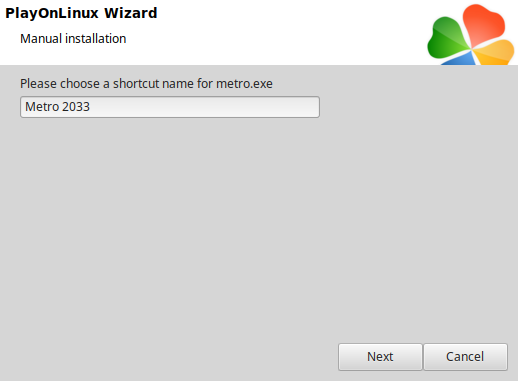

    Name the shortcut: Metro 2033
    Click Next


    Select "I don't want to make another shortcut"
    Click Next


    Installing DXVK

    Setting up DXVK in Mint with Nvidia

    Goto: https://github.com/doitsujin/dxvk/releases/tag/v0.93
    Download dxvk-0.93.tar.gz to your Desktop
    Extract to your Desktop

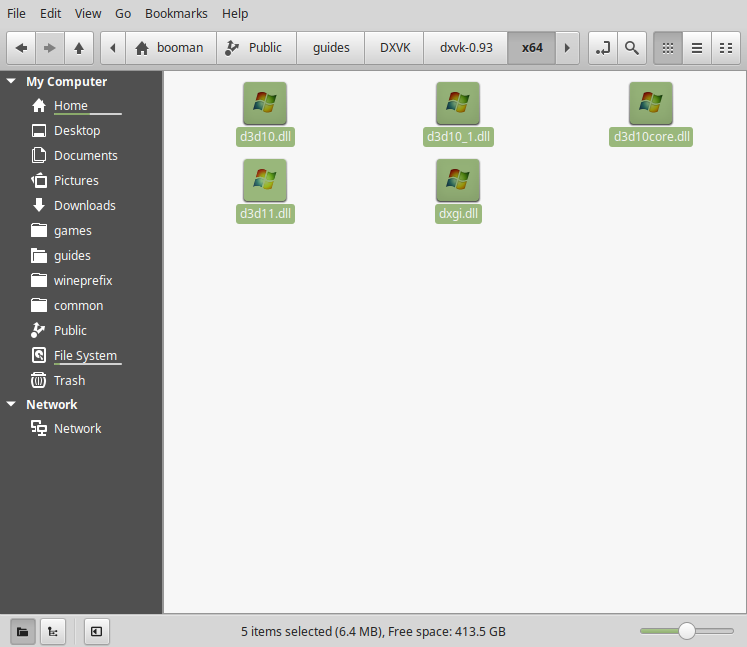

    Open x64 Directory
    Copy all the DLLs

    Paste all the DLLs in the metro.exe Directory
    Full Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/metro2033/drive_c/GOG Games/Metro 2033 Redux

    Note: Feel free to try newer DXVK versions

    PlayOnLinux Configure & DirectX Runtime

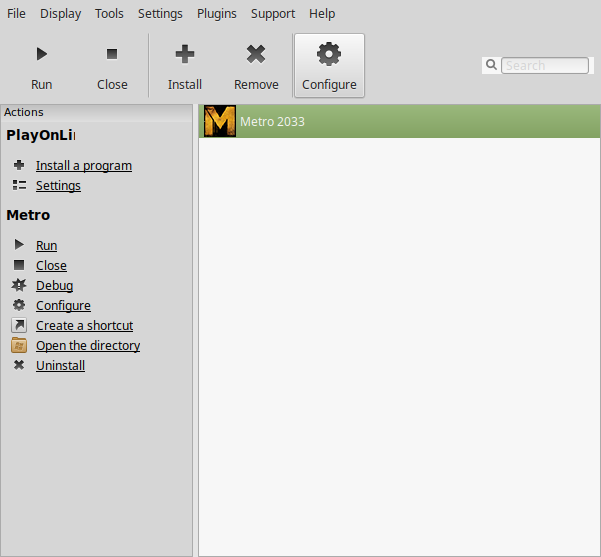

    Back to PlayOnLinux
    Select "Metro 2033"
    Click Configure

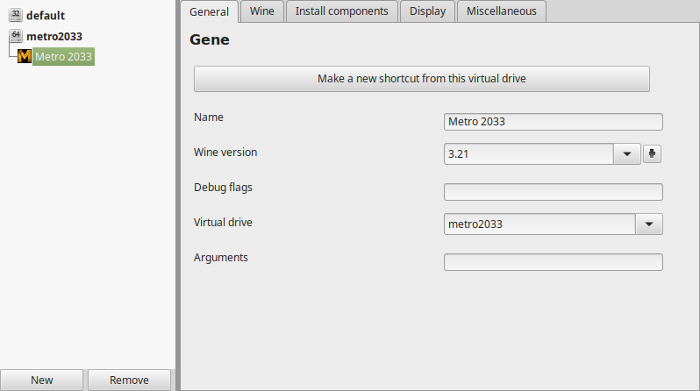

    General Tab
    Wine version: 3.21


    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine

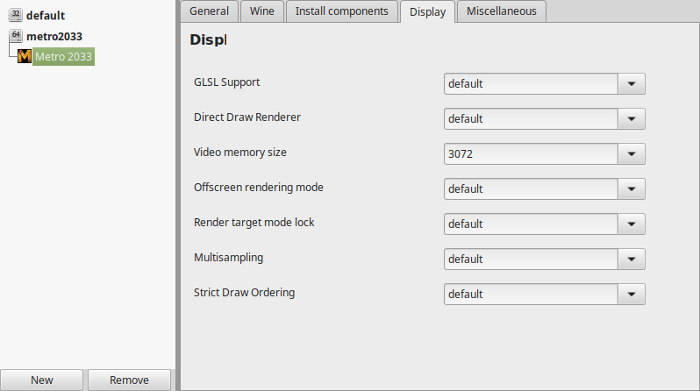

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses


    Download DirectX 2010 Runtime
    https://www.microsoft.com/en-us/download/confirmation.aspx?id=8109
    Save to your Desktop

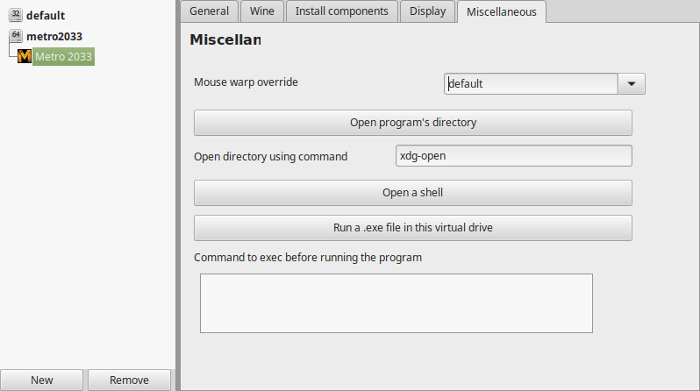

    Miscellaneous Tab
    Click "Run a .exe file in this virtual drive"

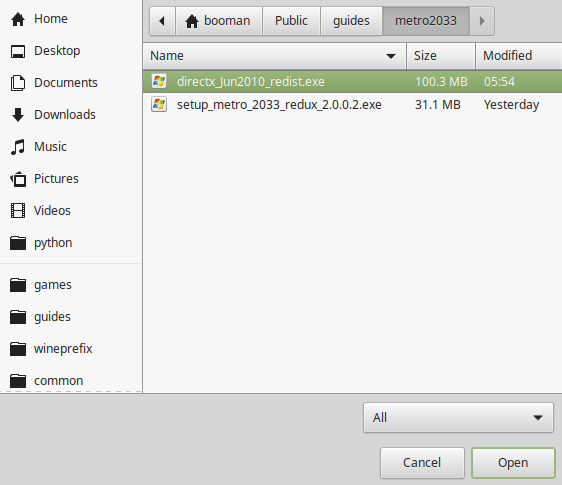

    Navigate to your Desktop
    Select "directx_jun2010_redist.exe"
    Click Open


    Click Yes


    Type C:\
    Click OK


    Back to Miscellaneous Tab
    Click "Run a .exe file in this virtual drive" again

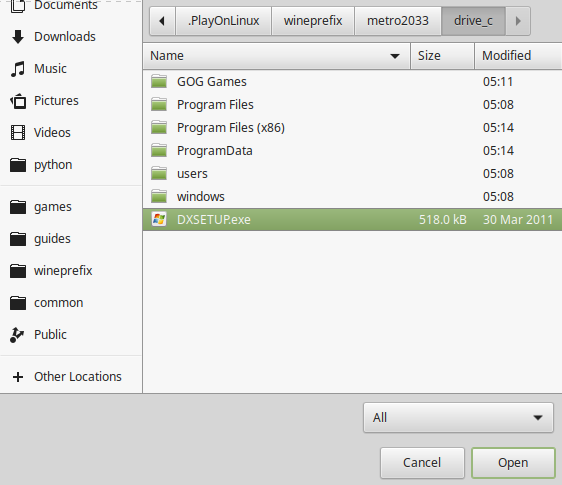

    Go to your virtual drive drive_c
    Select "DXSETUP.exe"
    Click Open

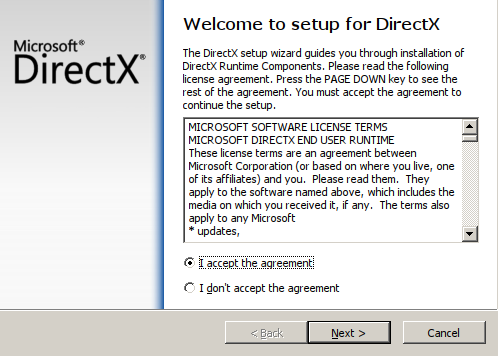

    Check "I accept the agreement"
    Click Next


    Click Next

    When finished installing
    Click Finish


    Close Configure

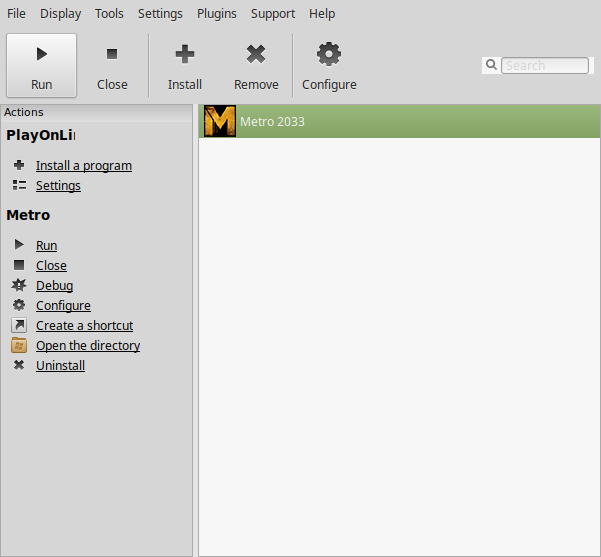

    Launch Metro 2033

    Select Metro 2033
    Click Run


    Note: Click debug to see errors and bugs

    Optimization

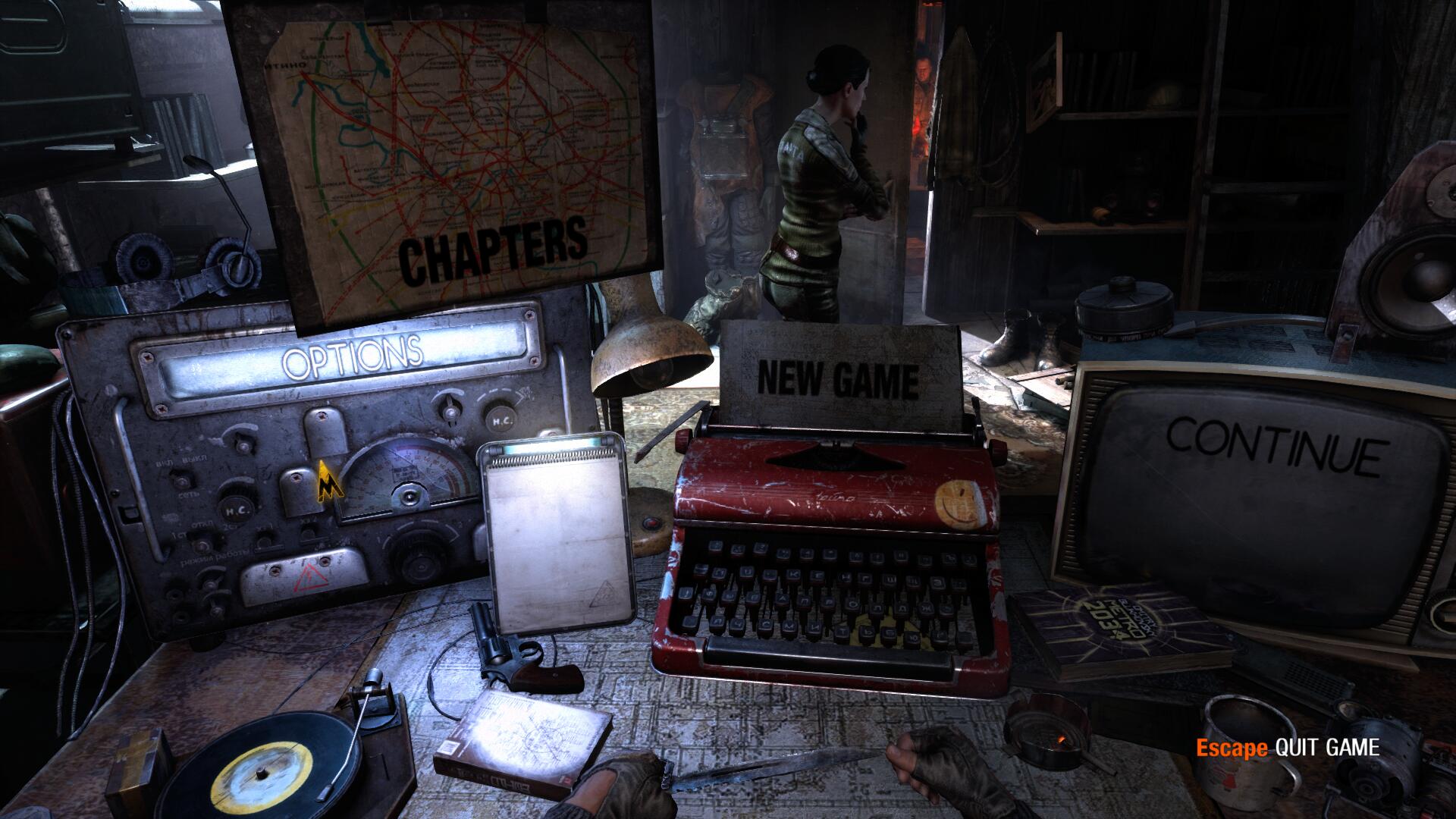

    Click Options

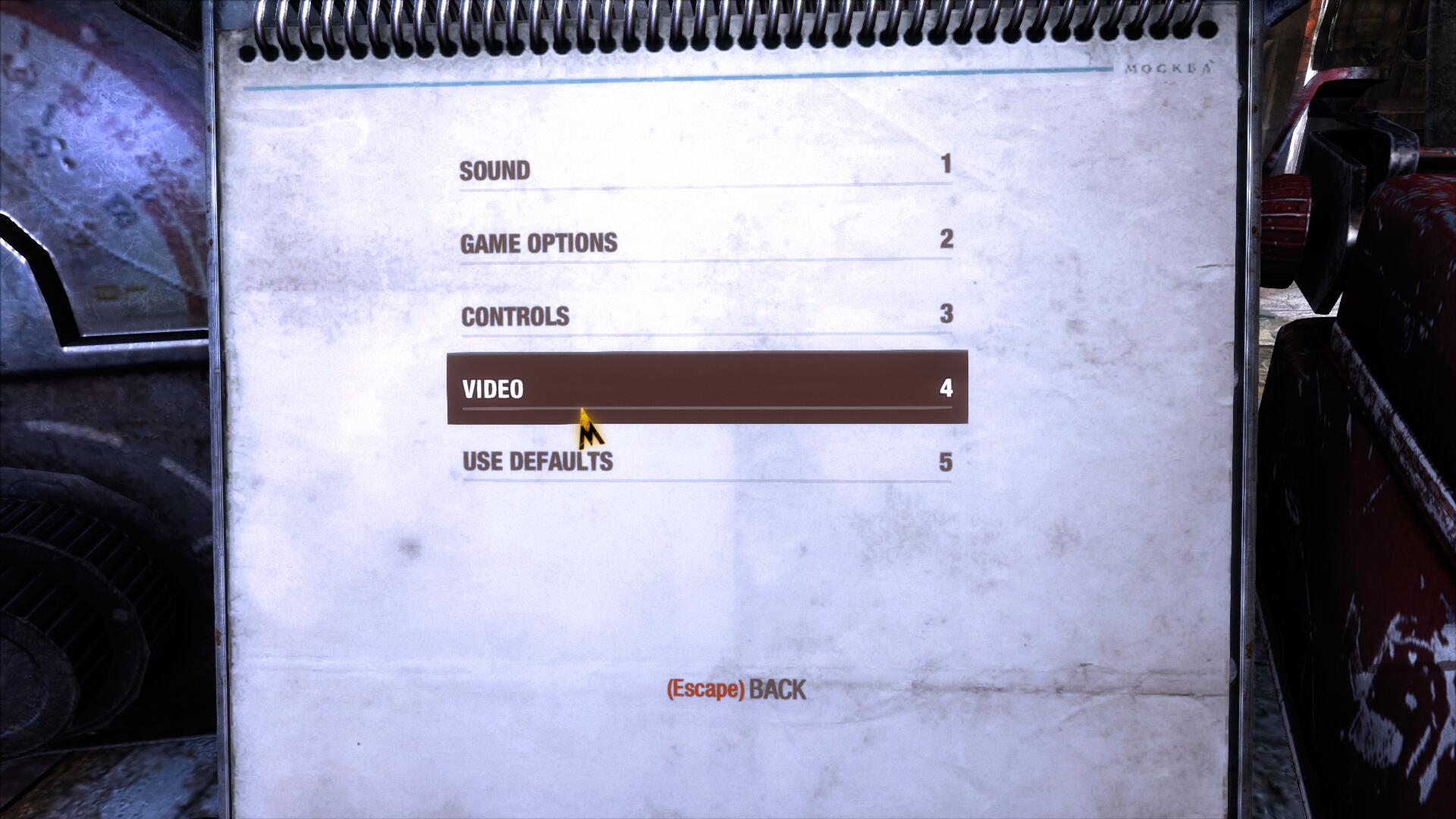

    Click Video

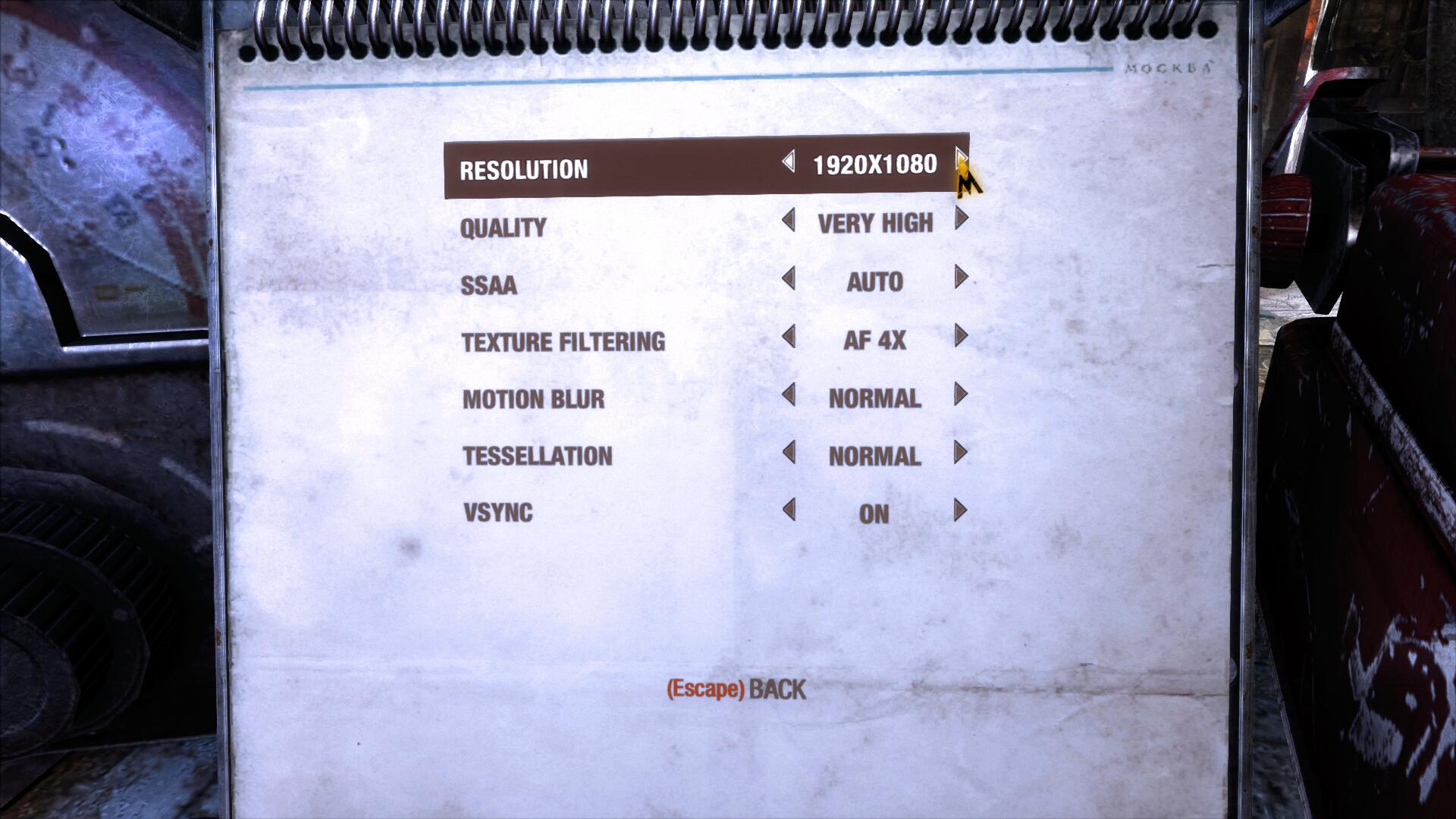

    Adjust:
    • Resolution
    • Quality
    • SSAA
    • Texture Filtering
    • Motion Blur
    • Tessellation
    • Vsync
    Press Escape to save settings


    Conclusion:
    Metro 2033 runs great with DXVK installed and all the settings on high. There are a few flickering textures or objects here and there, but its not consistent. The DirectX Runtime fixes the crackly audio as long as you add the xaudio2_7 library. Finally we can play the Metro series from GOG even though Steam has the native versions.

    Gameplay Video:

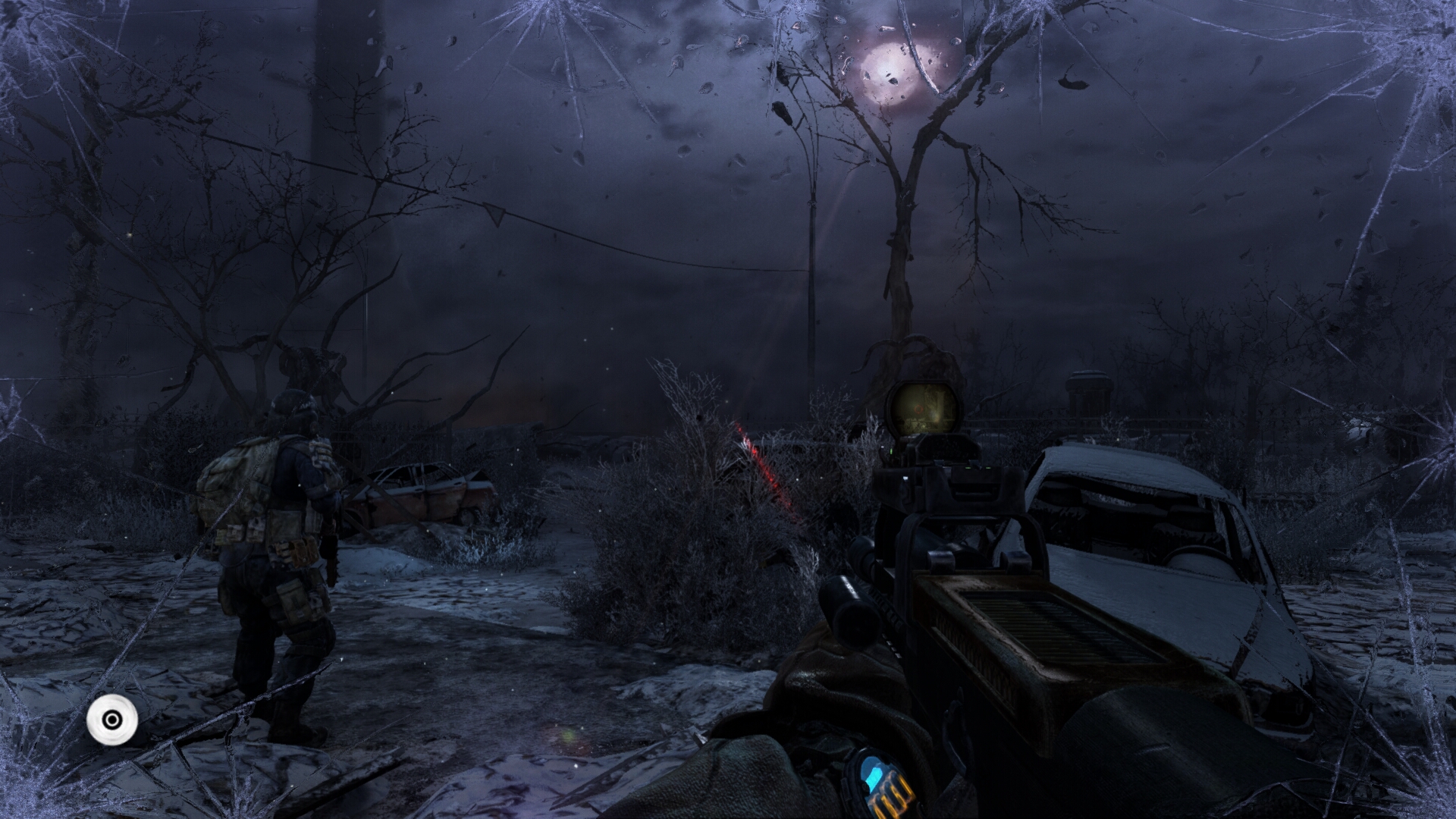

    Screenshots:




    Last edited: Jan 7, 2020

Comments

Discussion in 'Guides' started by booman, Jan 26, 2019.

  1. Kaitain
    I have to admit, I just installed the Linux version...
    booman likes this.
  2. booman
    With Steam?
    How did it run for you?

    I only have Metro 2033 in Steam, but I don't have Last Light. I have both on GOG, but they don't have the Linux version yet.
  3. Kaitain
    I got the Metro 2033 Redux/Last Light bundle for Linux on Steam about a year ago now, when they were doing a flash sale. Only cost the equivalent of $10 or so.

    Bearing in mind I'm running it on an AMD Raven Ridge-based laptop, I've had some teething troubles, due to the relative immaturity of that driver, but since about kernel 4.19 paired with the October 2018 firmware it's been great.

    That said, again due to choice of chip, I've backed off the gfx settings a couple of notches as otherwise it does judder a bit during action scenes.

    Gameplay-wise, during the actual game, it's just fine - I'd imagine it's roughly the same as Windows. During the loading scenes (the talky bits over the metro map) I get long pauses and hangups while it loads the various textures etc.. Again, that might be the result of using a distinctly mid-range APU.

    When I next get a day off, I'll see if I can take some screenshots and turn on the frame rate indicator for some informal benchmarks...
    booman likes this.
  4. booman
    Thanks for the details Kaitain!
    One thing all of our guides fall-short is different Graphics Cards.
    All of my tests are based on Nvidia GeForce video cards. So its hard to tell what the performance is for AMD cards and Intel chips.

    Its nice that the updated kernel fixed your issues and now the native port runs great. I've read comments and posts about native ports of games running really poorly. With DXVK now some of those games run much better in Wine. Of course this only means DX10 & DX11 games. Direct X 9 games like Guide Wars 2 just won't run well on any hardware.

    By the way, one thing I noticed with Metro and Wine is the loading screens are super fast. I'm talking less than 15 seconds. maybe its my 6-Core AMD processor?
