Myst III: Exile Guide

Discussion in 'Guides' started by booman, Apr 17, 2015.

  • by booman, Apr 17, 2015 at 1:23 PM
  • booman

    booman Grand High Exalted Mystic Emperor of Linux Gaming Staff Member

    Joined:
    Dec 17, 2012
    Messages:
    7,394
    Likes Received:
    535
    Trophy Points:
    113
    Location:
    Linux, Arizona
    Home page:
    Myst III: Exile is a breathtaking point-n-click adventure at a whole new level, of course back in its day. Every step you take in the world of Exile is a seamless 360 degree interactive picture. Explore Amateria (a mechanical Age), Edanna (a world of nature and vegetation) and Voltaic (an island canyons filled with man-made constructions).



    Follow my step-by-step guide on installing, configuring and optimizing Myst 3: Exile in Linux with PlayOnLinux.

    Note: This guide applies to the Retail version of Myst 3: Exile. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.6
    Wine: 1.6.2

    Wine Installation

    Click Tools

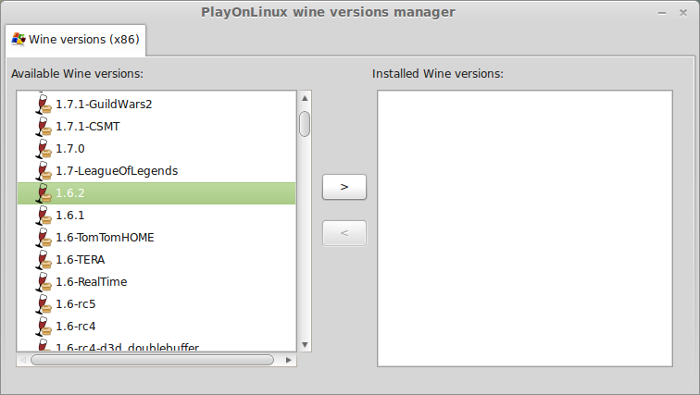

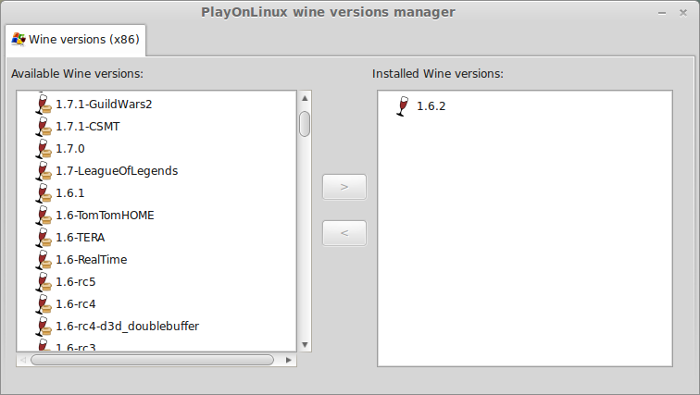

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.6.2
    Note: Try using stable Wine 1.8 and 1.8-staging

    Select it
    Click the arrow pointing to the right

    Click Next

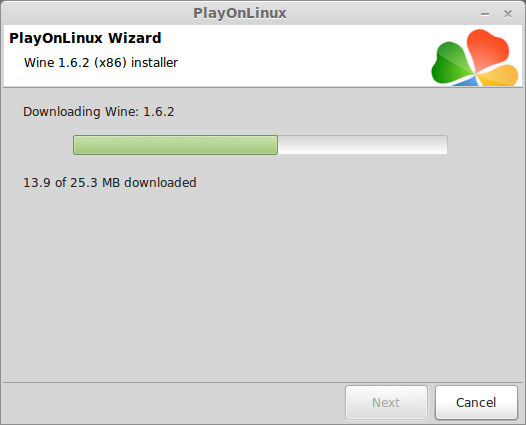

    Downloading Wine

    Extracting

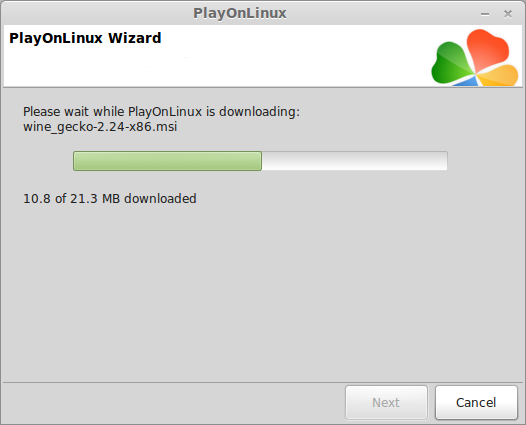

    Downloading Gecko

    Installed

    Wine 1.6.2 is installed and you can close this window

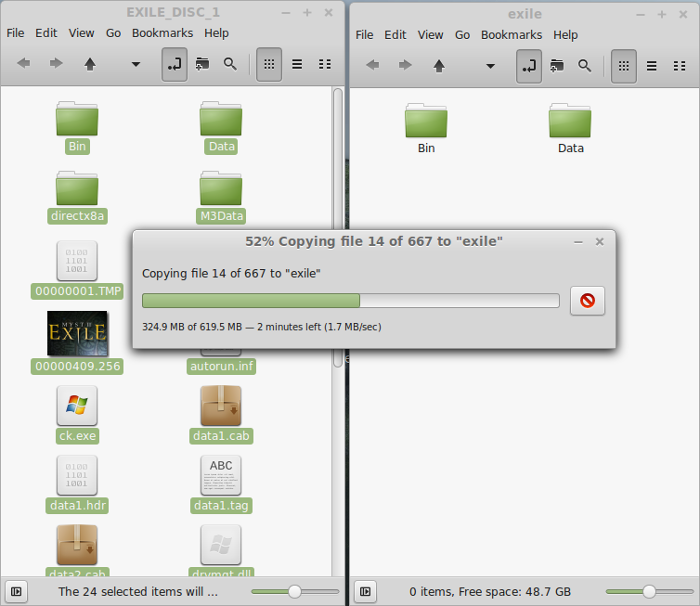

    Copying the CD ROMS

    Create a new folder on your desktop
    Name it "exile"
    Insert Disk1
    Copy all of the data from Disk1 to your "exile" folder

    Insert Disk2
    Copy all of the data to your "exile" folder

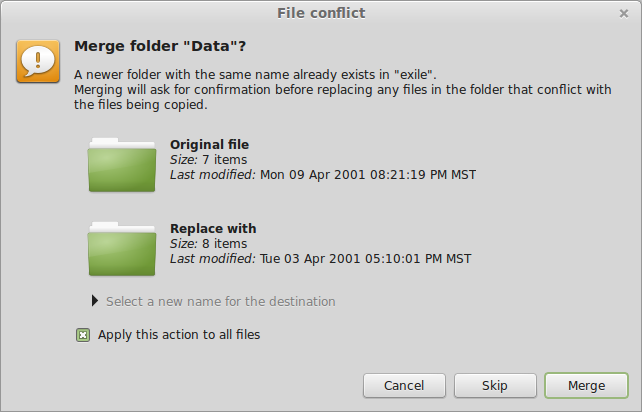

    When a pop-up asks you to Merge
    Check "Apply this action to all files"
    Click Merge

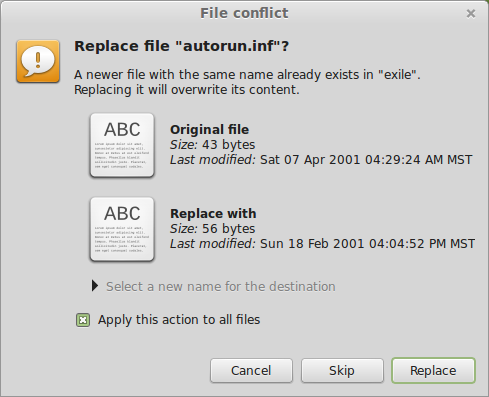

    If a pop-up asks you to Replace
    Click "apply this action to all files"
    Click Replace

    Continue this process will all disks

    PlayOnLinux Setup

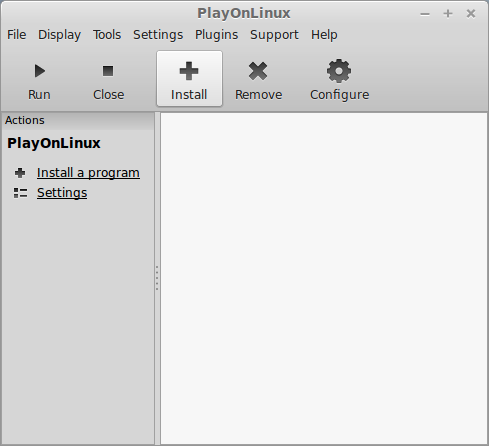

    Launch PlayOnLinux
    Click Install

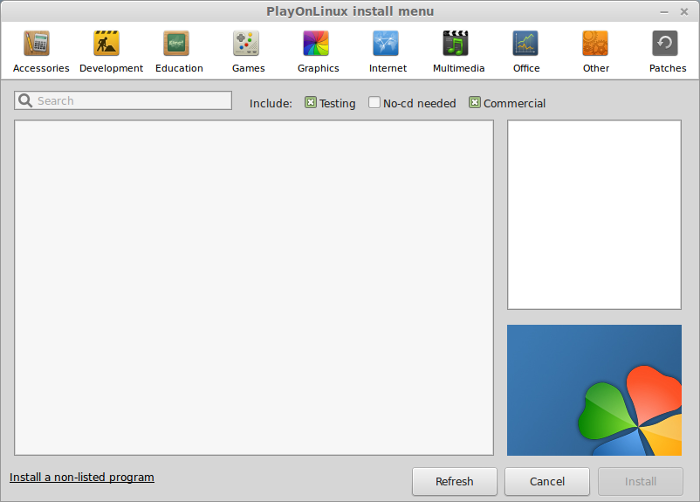

    Click "Install a non-listed program"

    Click Next

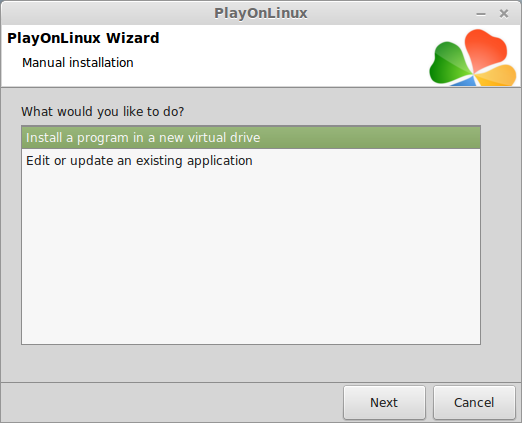

    Select "Install a program in a new virtual drive"
    Click Next

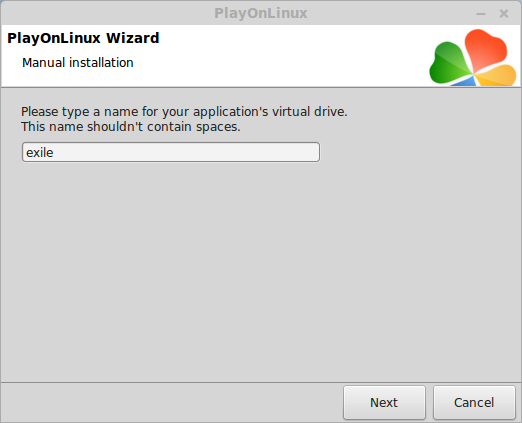

    Name your virtual drive: exile
    Click Next

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries

    Click Next

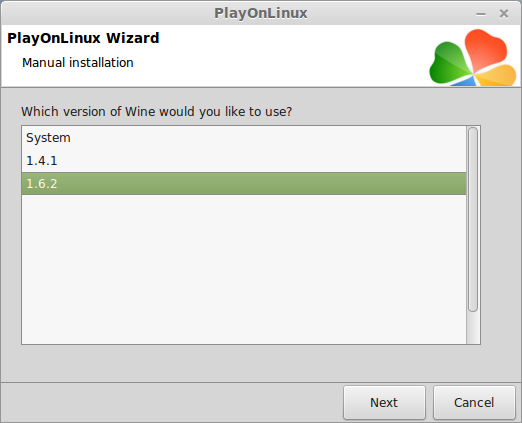

    Select Wine 1.6.2
    Click Next

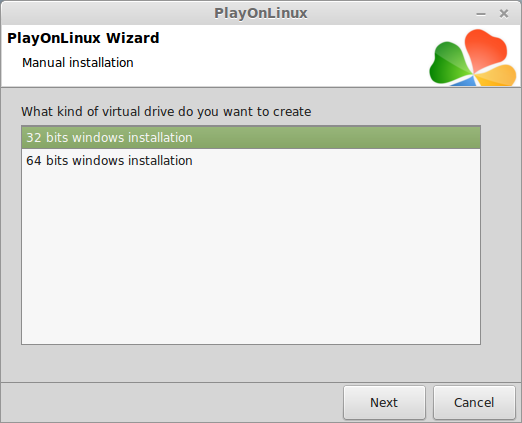

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

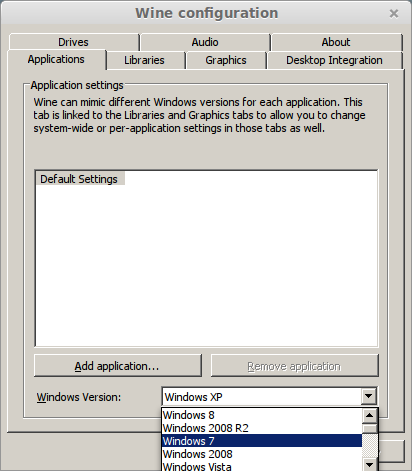

    Applications Tab
    Windows Version: Windows 7
    Click Apply

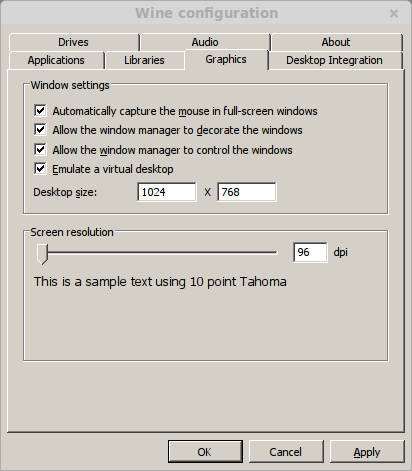

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Check "Emulate a virtual desktop"
    Desktop size: 1024x768
    Click OK

    Installing Packages (Components, Libraries, DLL's)

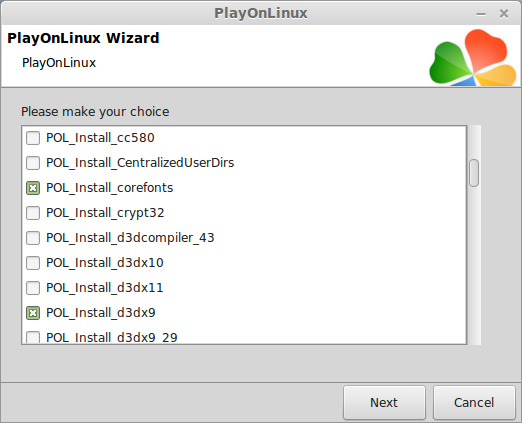

    Check The following Packages:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Exile

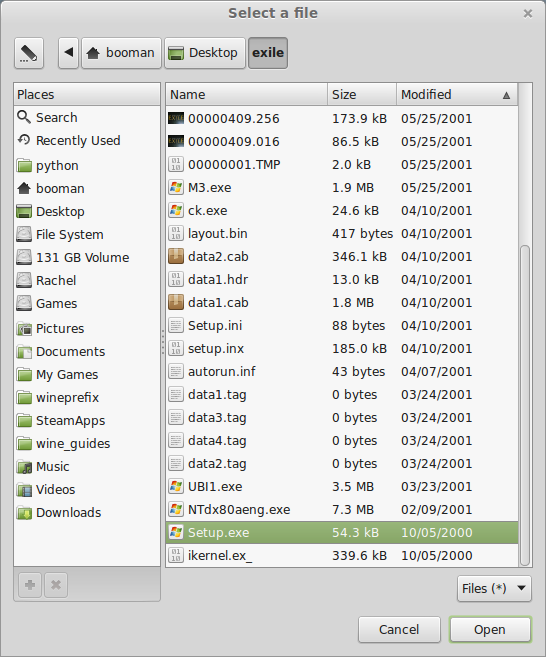

    Click Browse

    Navigate to your "exile" folder on the desktop
    Select "Setup.exe"
    Click Open

    Click Next

    Click Next

    Click Yes

    Click Next

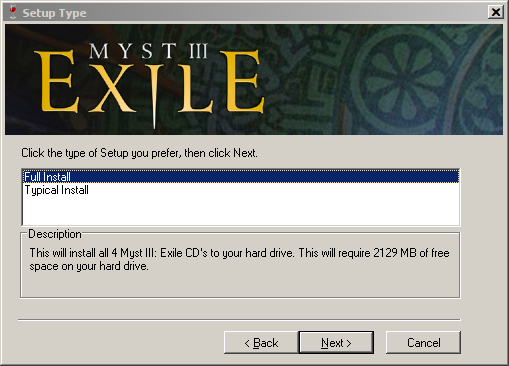

    Select "Full Install"
    Click Next

    When the installer asks for Disk 2

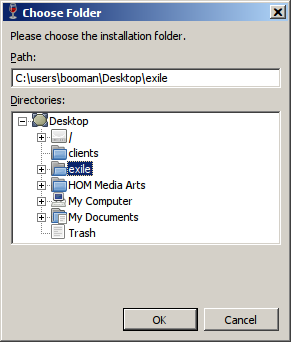

    Click Browse

    Click the "exile" folder under Desktop
    C:\users\username\Desktop\exile
    Click OK

    Continue this process as the installer asks for Disks

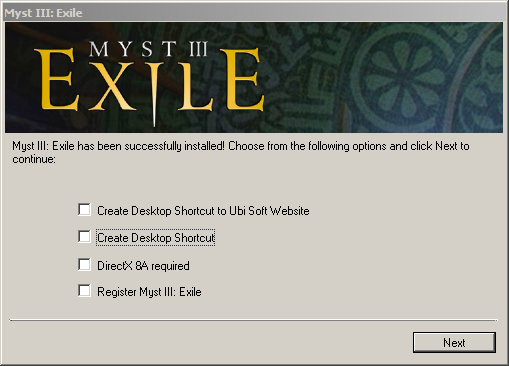

    Uncheck all options
    Click Next

    PlayOnLinux Shortcut

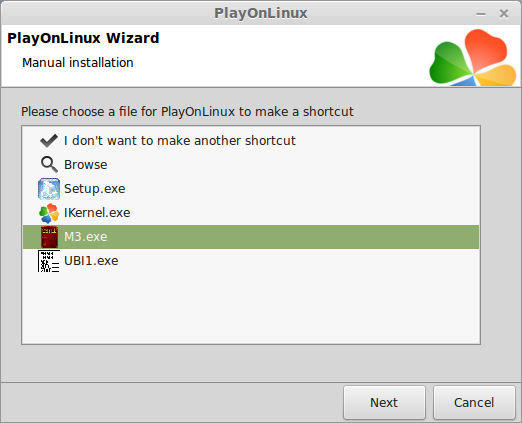

    Select "M3.exe"
    Click Next

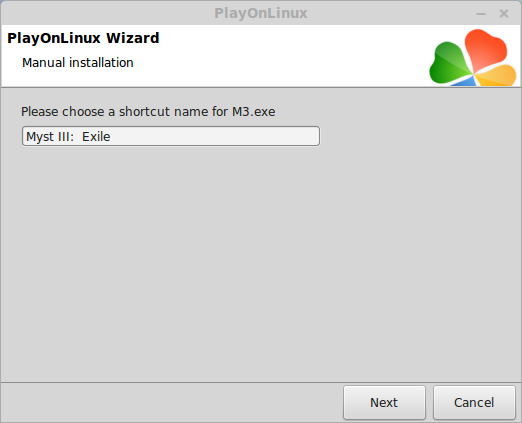

    Name your shortcut "Myst III: Exile"
    Click Next

    Click Next again

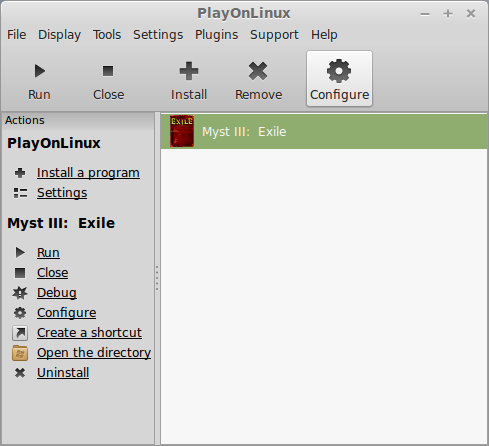

    PlayOnLinux Configure

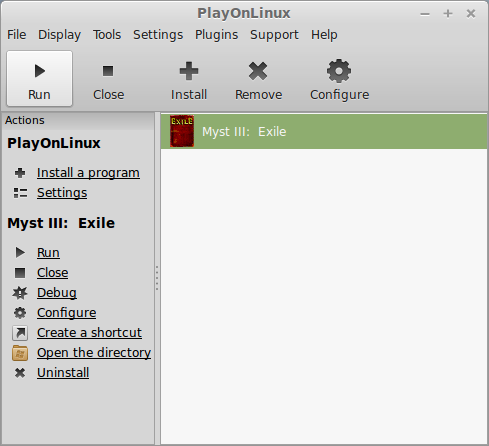

    Select "Myst III: Exile"
    Click Configure

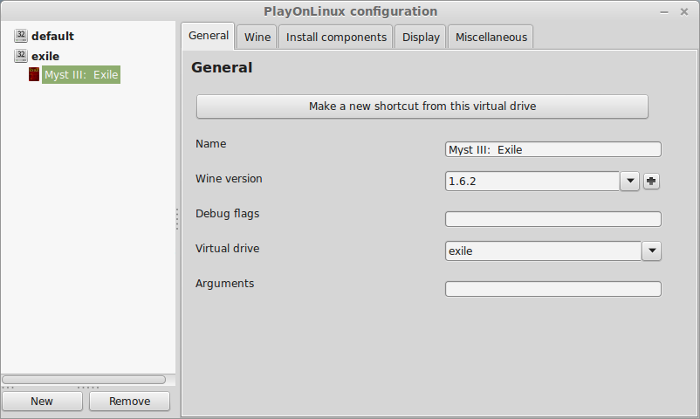

    General Tab
    Wine version: 1.6.2

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine.

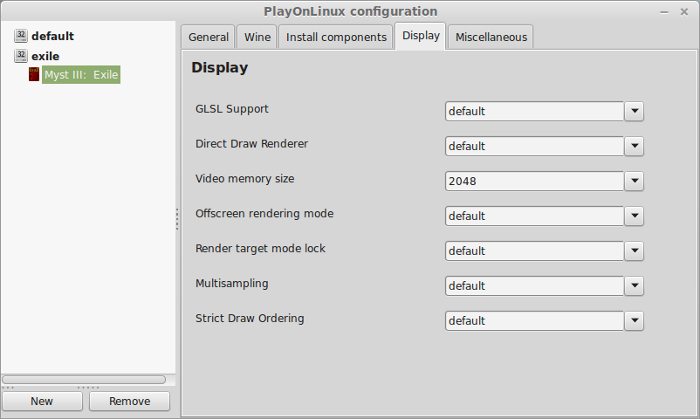

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

    Launching Myst III: Exile

    Before launching Exile
    Insert Disk1 in your drive

    It is a good idea to set your Linux Desktop resolution to something smaller:
    • 1024x768
    • 800x600

    Exile is rendered in 640x480 so in order to appear fullscreen your desktop need to be at least 800x600 resolution.
    You can also go back to Wine Configuration and uncheck "virtual desktop"

    Select "Myst III: Exile"
    Click Run

    Note: Click Debug to see bugs and errors

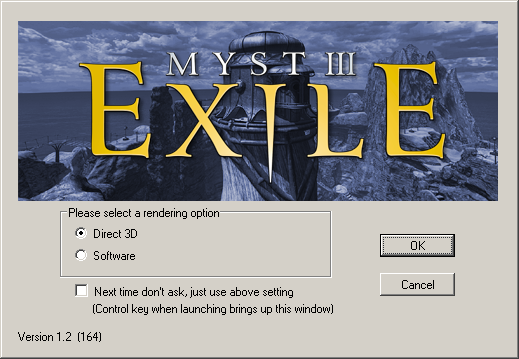

    Rendering option
    Check Direct 3D
    Click OK

    Conclusion:
    Exile ran perfectly in fullscreen after I messed around with the virtual desktop and Linux desktop resolutions. Too bad we can't get a high resolution widescreen version of Exile.
    All puzzles and animations ran perfectly! Exile is still a very innovative game and it can suck you in.

    Gameplay Video:

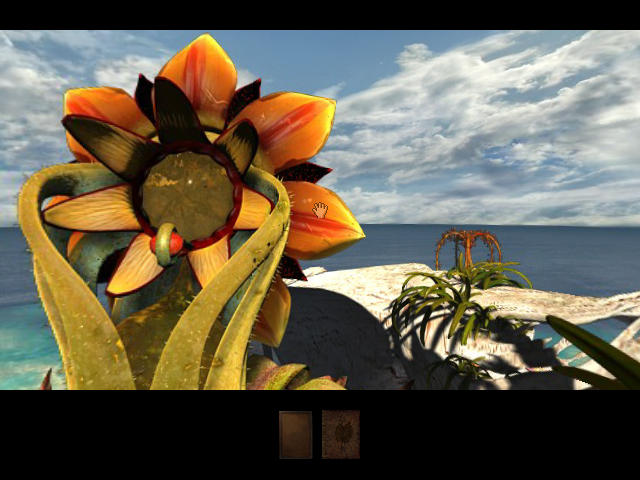

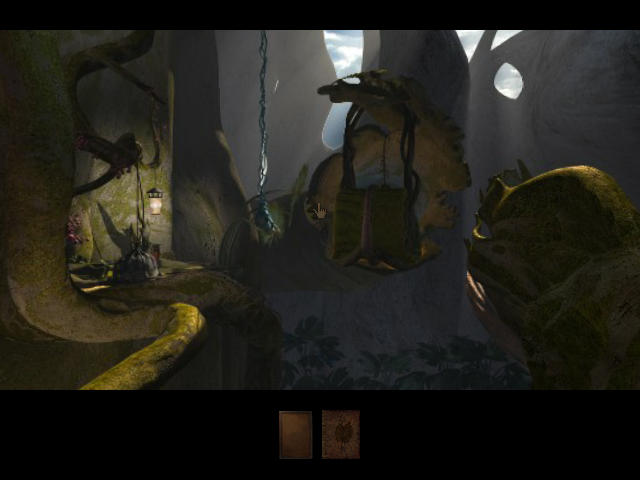

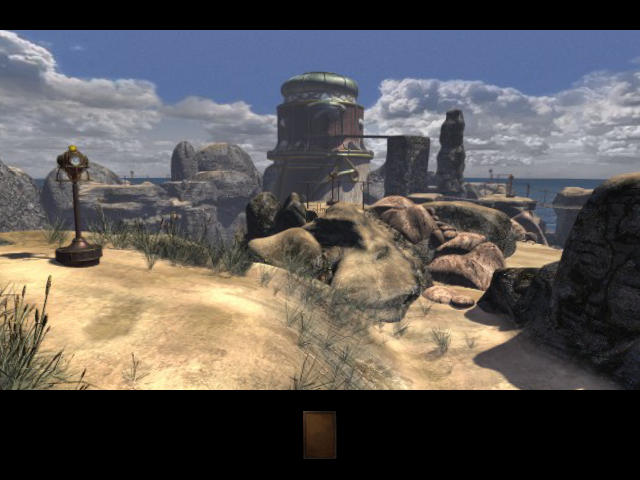

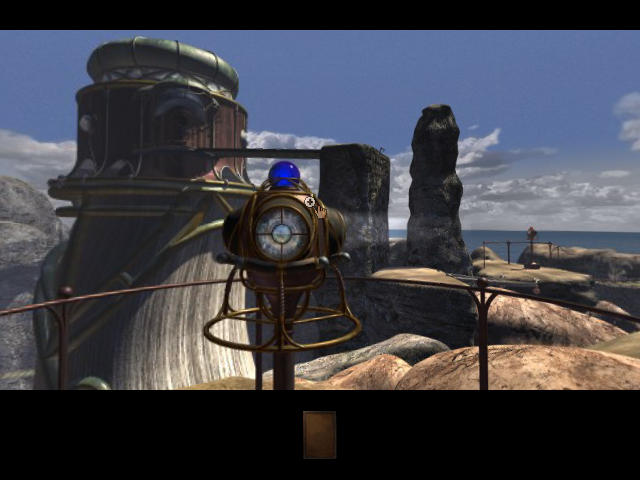

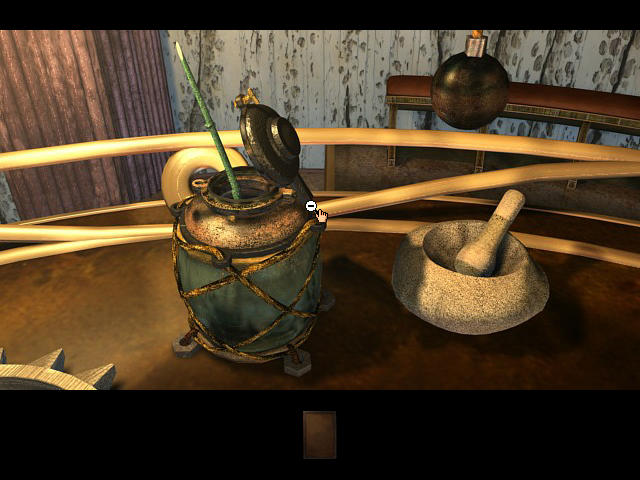

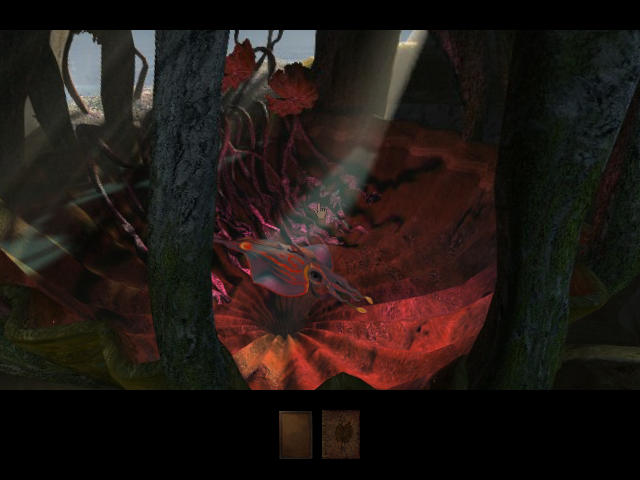

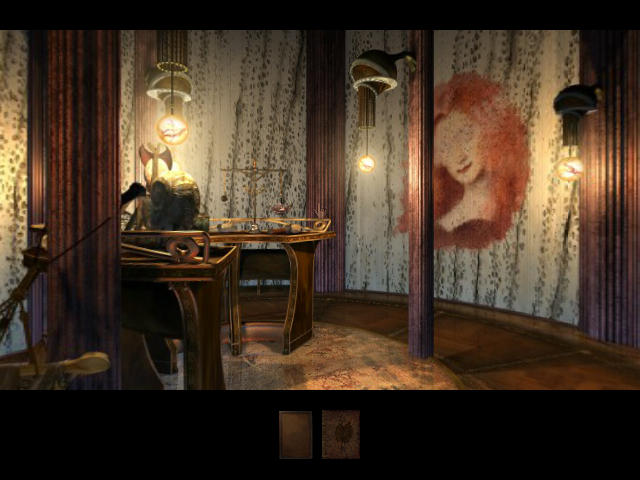

    Screenshots:







    Last edited: Jan 13, 2016
    mrdeathjr28 likes this.

Comments

Discussion in 'Guides' started by booman, Apr 17, 2015.

  1. mrdeathjr28
    Excelent guide and very detailed steps like merge folders

    :)
  2. booman
    I always hesitate when "merging" folders or overwriting files. You never know what its going to do.
    The technical way would be to copy the Disk folder only, but I wanted to make the guide as easy-as-possible.
    So merging and replacing worked.
    Unfortunately there was no way to play without the install disk. Of course if you have the GOG version, that would work fine.
