    Star Wars: Kights of the Old Republic is the first installment of the series developed by Bioware released in 2003. Lead your party in skirmishes against the Sith, Travel to planets across the Galaxy, follow an epic story as you encounter many characters and alien races.



    Follow my step-by-step guide on installing, configuring and optimizing Star Wars: Knights of the Old Republic in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Star Wars: Knights of the Old Republic. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17 64-bit
    PlayOnLinux: 4.2.5
    Wine: 1.6.2

    Wine Installation

    Note: Versions of Wine older than 2.0.2 and Wine 2.12-staging no longer work with Steam

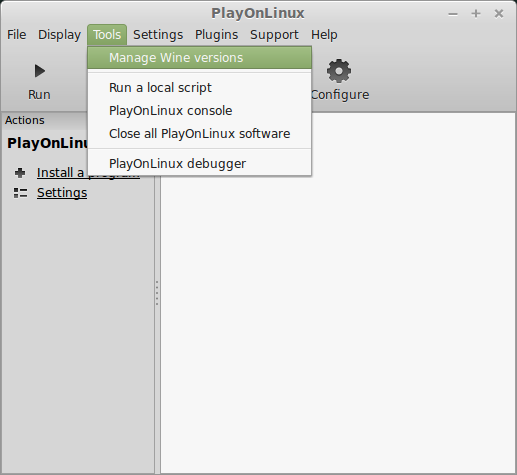

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 1.6.2

    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

    Downloading Gecko

    Installed

    Wine 1.6.2 is installed and you can close this window

    Downloading Steam

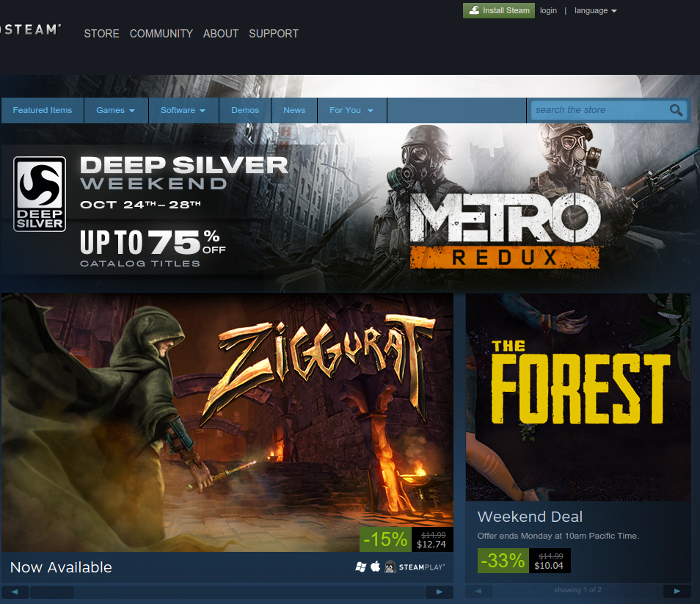

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam
    Select Windows Steam instead
    click "Windows" under the green button

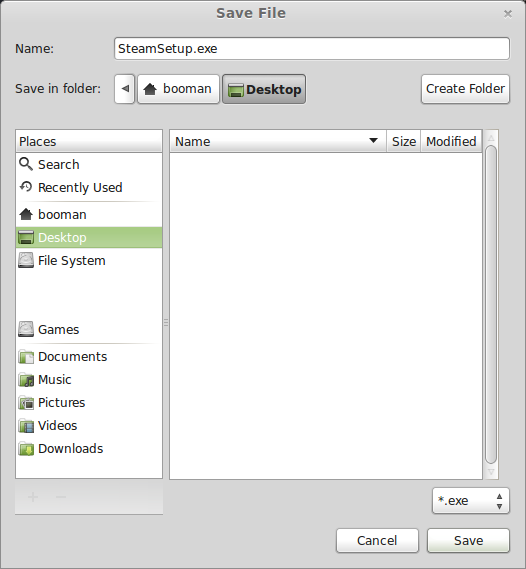

    Navigate to your desktop
    Click Save

    Setup PlayOnLinux

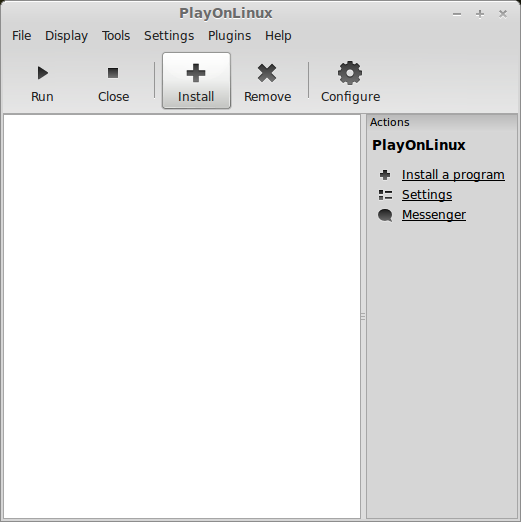

    Launch PlayOnLinux

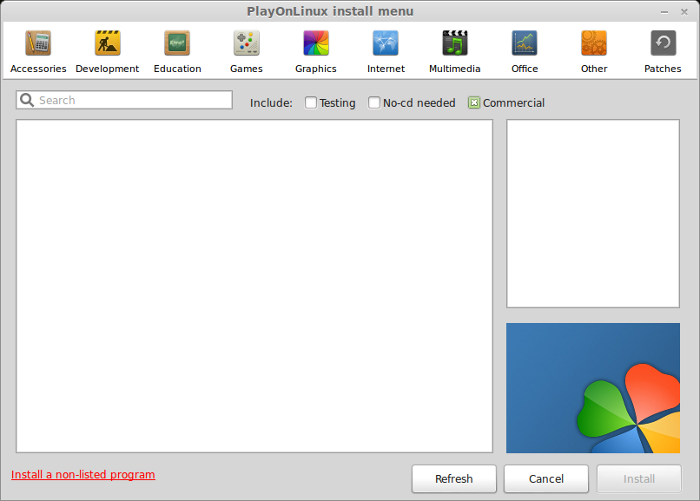

    Click Install

    Click "install a non-listed program"

    Click Next

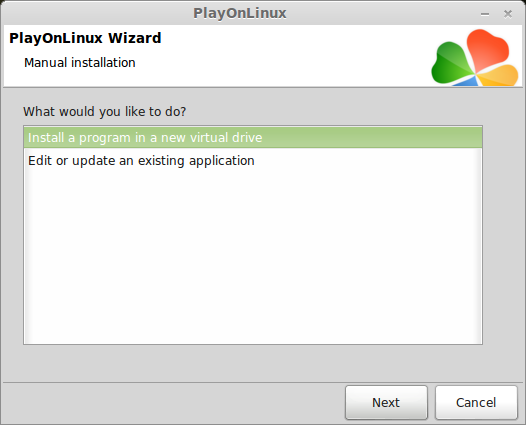

    Select "Install a program in a new virtual drive"
    Click Next

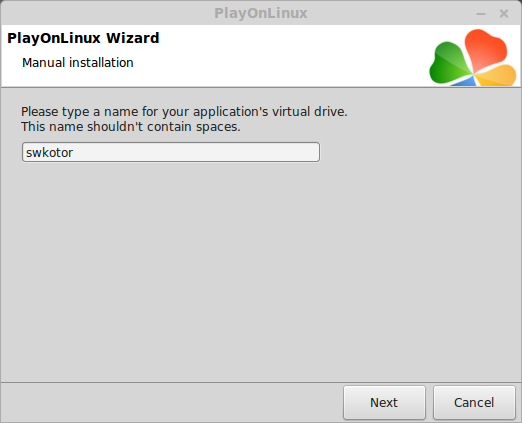

    Name you virtual drive: swkotor

    Click Next

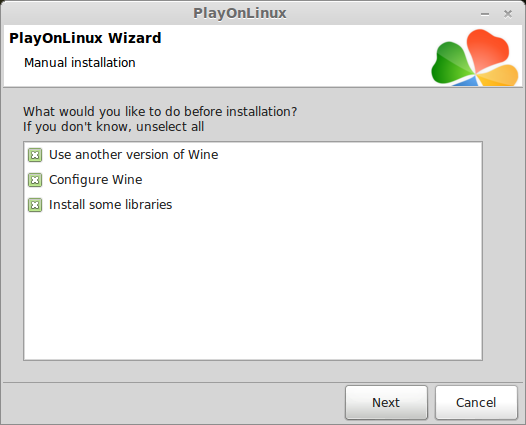

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries

    Click Next

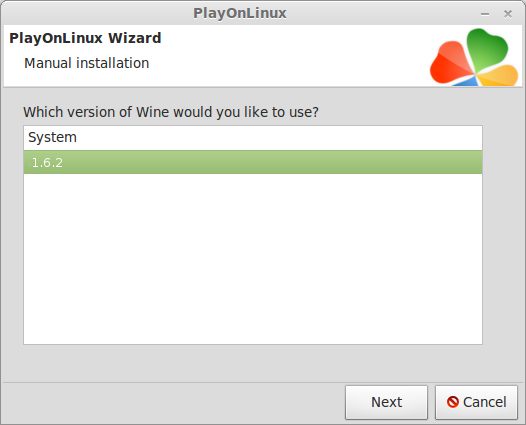

    Select Wine 1.6.2
    Click Next

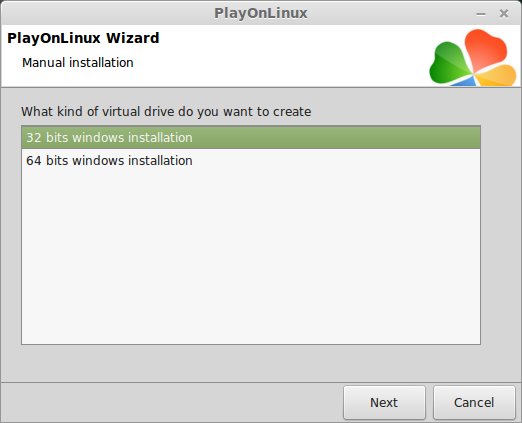

    Select "32 bits windows installation"
    Click Next

    Configure Wine

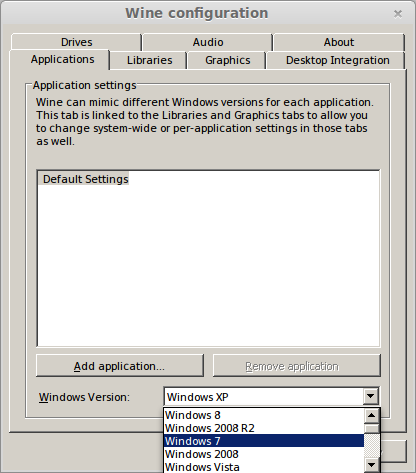

    Applications Tab
    Windows Version: Windows 7
    Click Apply

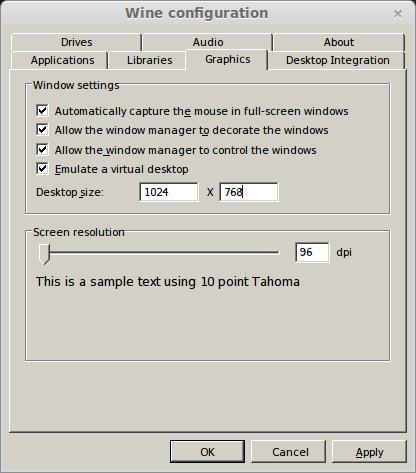

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

    Install Libraries

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next

    Installing Steam

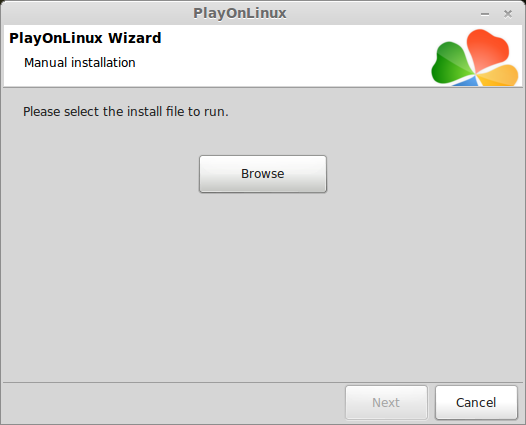

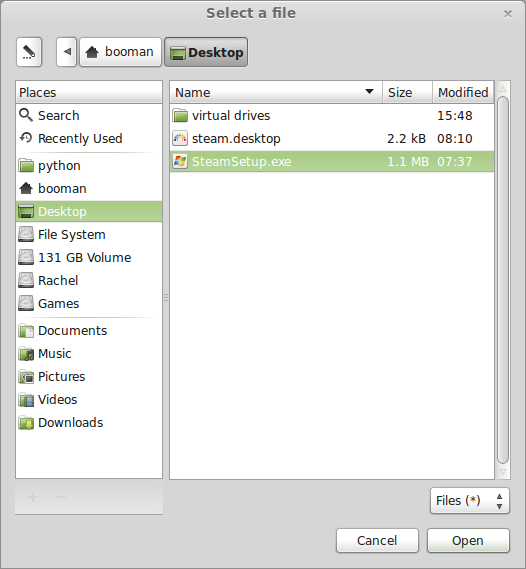

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

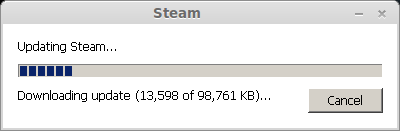

    Updating Steam

    More updating, extracting and installing

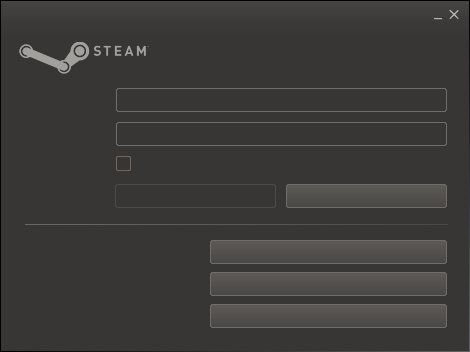

    When Steam is done installing the login screen will pop up. You probably won't see any text because there is a font bug.
    Click the "X" to close Steam login

    PlayOnLinux Shortcut

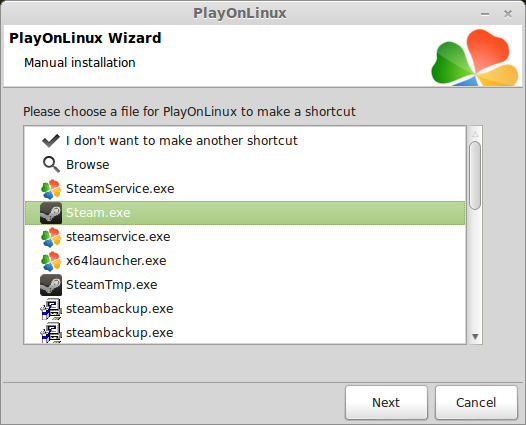

    Select Steam.exe
    Click Next

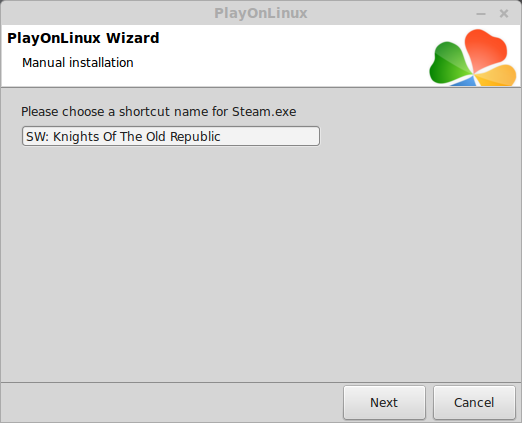

    Name your shortcut: SW: Knights of the Old Republic
    Click Next

    Click Next

    PlayOnLinux Configure

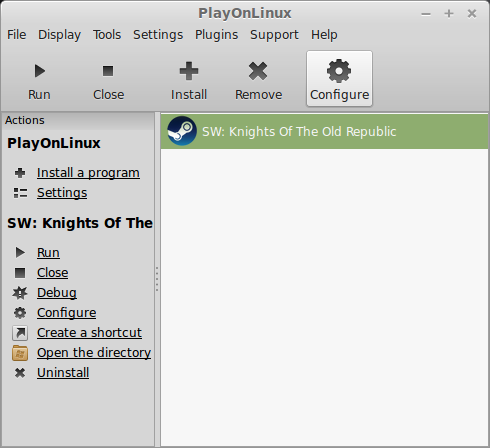

    Back to PlayOnLinux
    Click Configure

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes the missing font and store problem

    Note: Click the + to download other versions of Wine. Click the Down-Arrow to select other versions of wine.

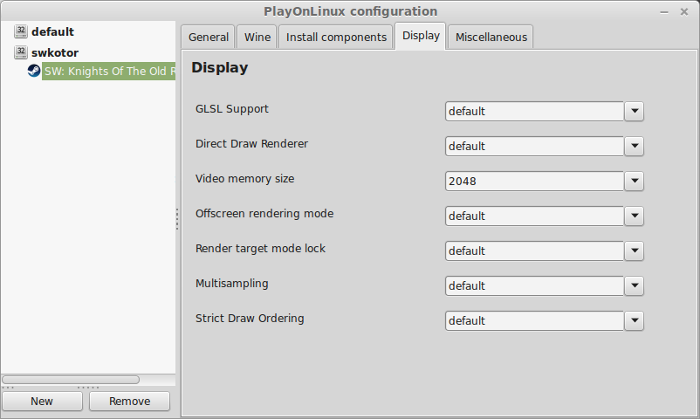

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

    Launching Steam

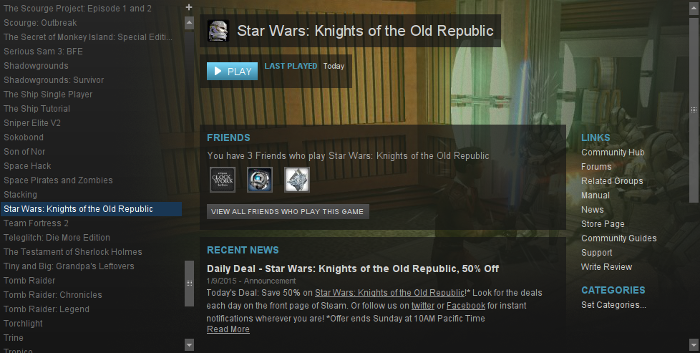

    Select "Star Wars: Knights of the Old Republic"
    Click Run

    Note: Click Debug to see errors and bugs.

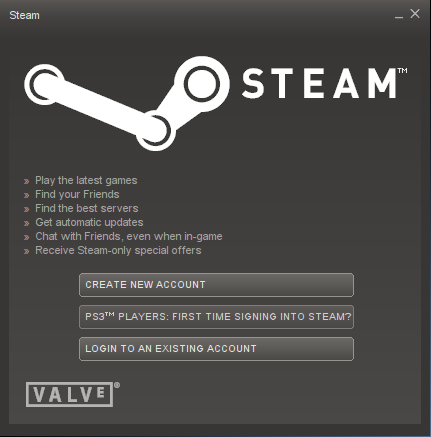

    Click "Login to existing account"

    Login

    Steam Overlay

    Steam overlay has been known to cause problems launching games.
    Click Steam menu
    Click Settings

    Select "In-game"
    Uncheck "Enable Steam Commuinty In-Game"
    Click OK

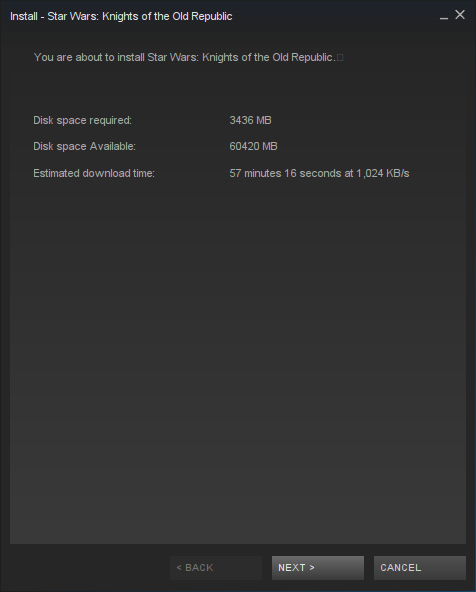

    Installing Star Wars: Knights of the Old Republic

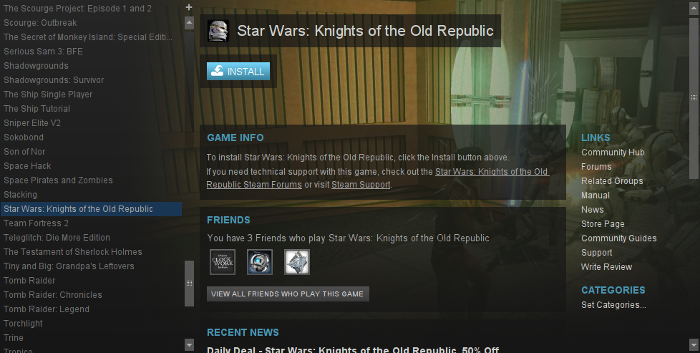

    Select Star Wars: Knights of the Old Republic

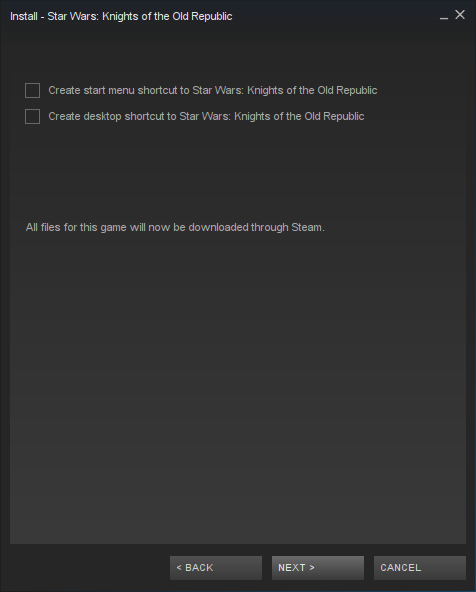

    Click Install

    Click Next

    Click Next

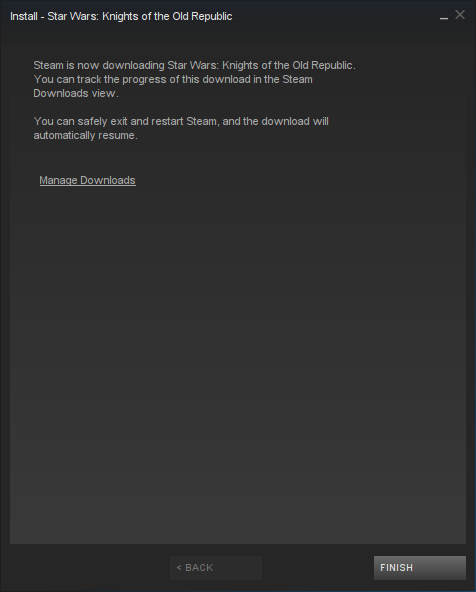

    Click Finish

    Wait as the game downloads
    When its finished
    Click Play

    Optmization

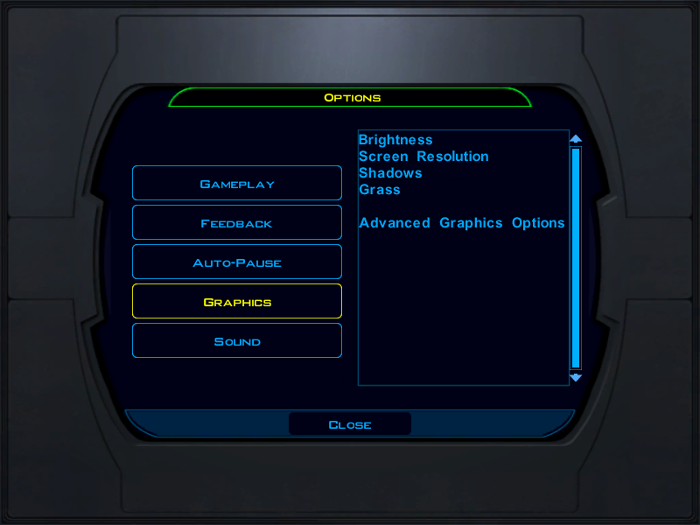

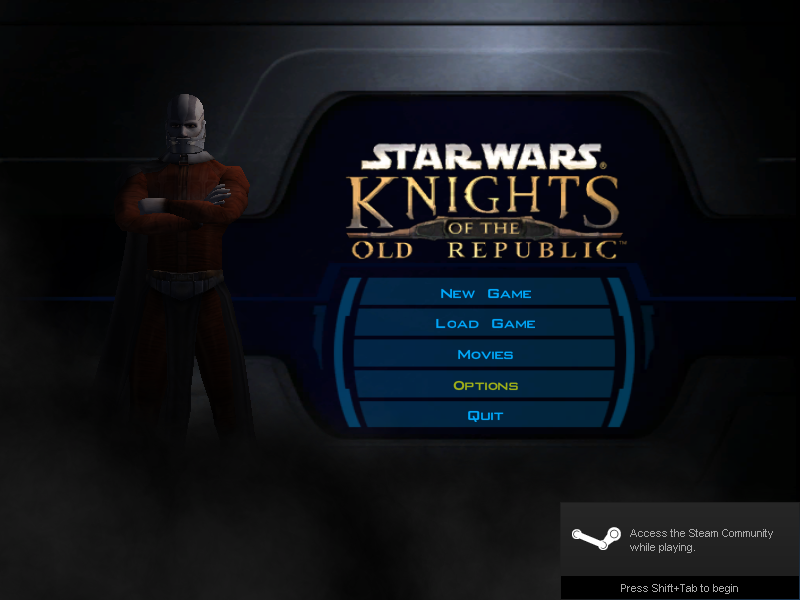

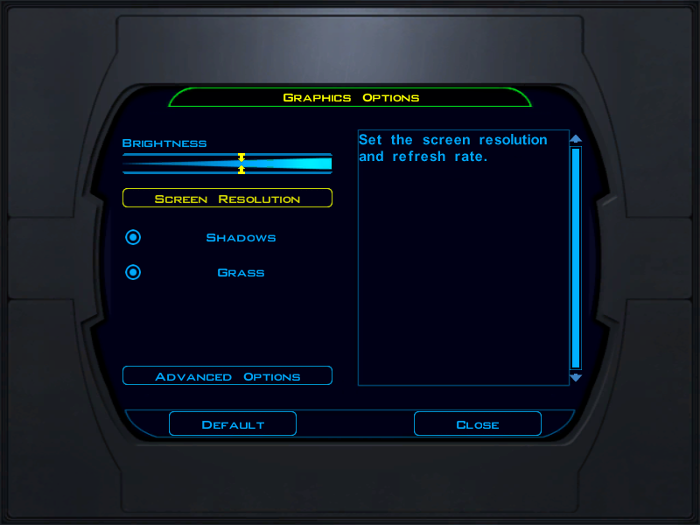

    Click Options

    Click Graphics

    Select Resolution
    • 800x600
    • 1024x768
    • 2048x1024
    Enable/Disable:
    • Shadows
    • Grass

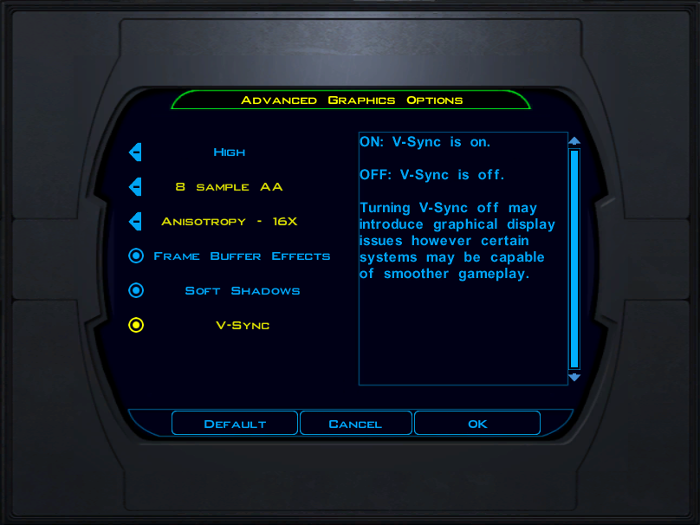

    Click Advanced Options

    Adjust:
    • Overall Quality
    • AntiAlias
    • Anistropy
    • Frame buffer effects
    • Soft shadows
    • V-Sync

    Rule of Thumb:
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Custom Resolution

    Unfortunately the game does not support high resolutions or widescreen resolutions.
    You can force it to run as high as 1600x1200

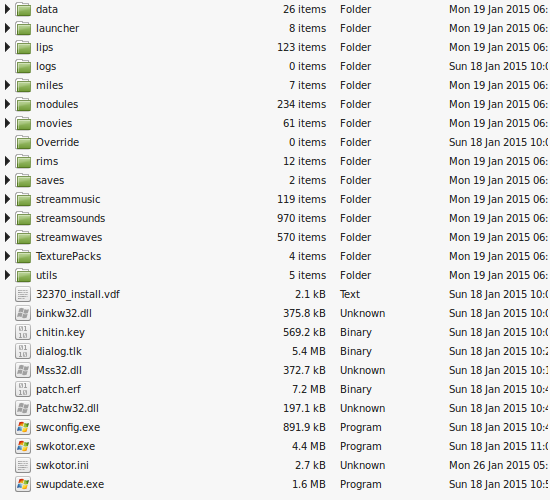

    Navigate to the swotor directory:
    Code:
    /home/username/.PlayOnLinux/wineprefix/swkotor/drive_c/Program Files/Steam/SteamApps/Common/swotor
    Note: Username is where you put your Linux login

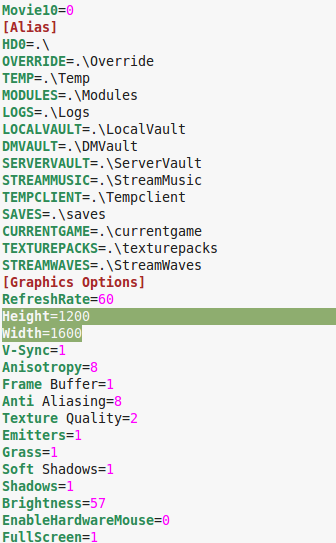

    Open swkotor.ini with a text editor
    Enter:
    High=1200
    Width=1600

    Click Save

    Set your Linux desktop for 1600x1200 and then launch Star Wars: Knights of the Old Republic
    Now it should appear fullscreen in a high resolution

    Conclusion:
    Knights of the Old Republic should run well on just about any computer with Linux. Since its a 2003 game, the spec are really low and even laptops should be able to run it.
    It ran very nicely on my GeForce 550 Ti and was able to crank all the video settings to High and run on a fairly high resolution.
    I tested Flawless Widescreen in PlayOnLinux, but it would crash the game when loading. So I had to resort to 3:4 ratio resollution.

    Gameplay video:

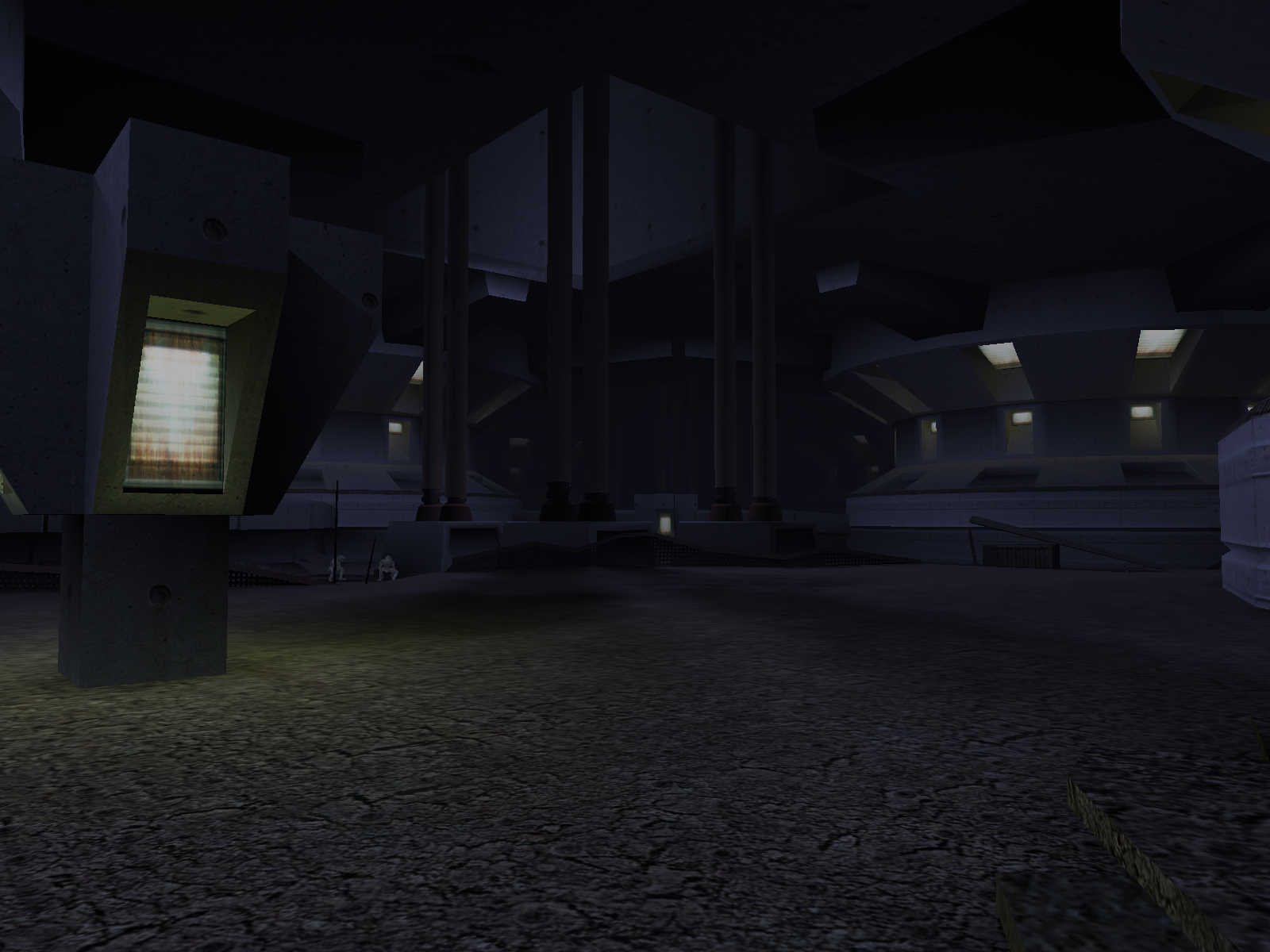

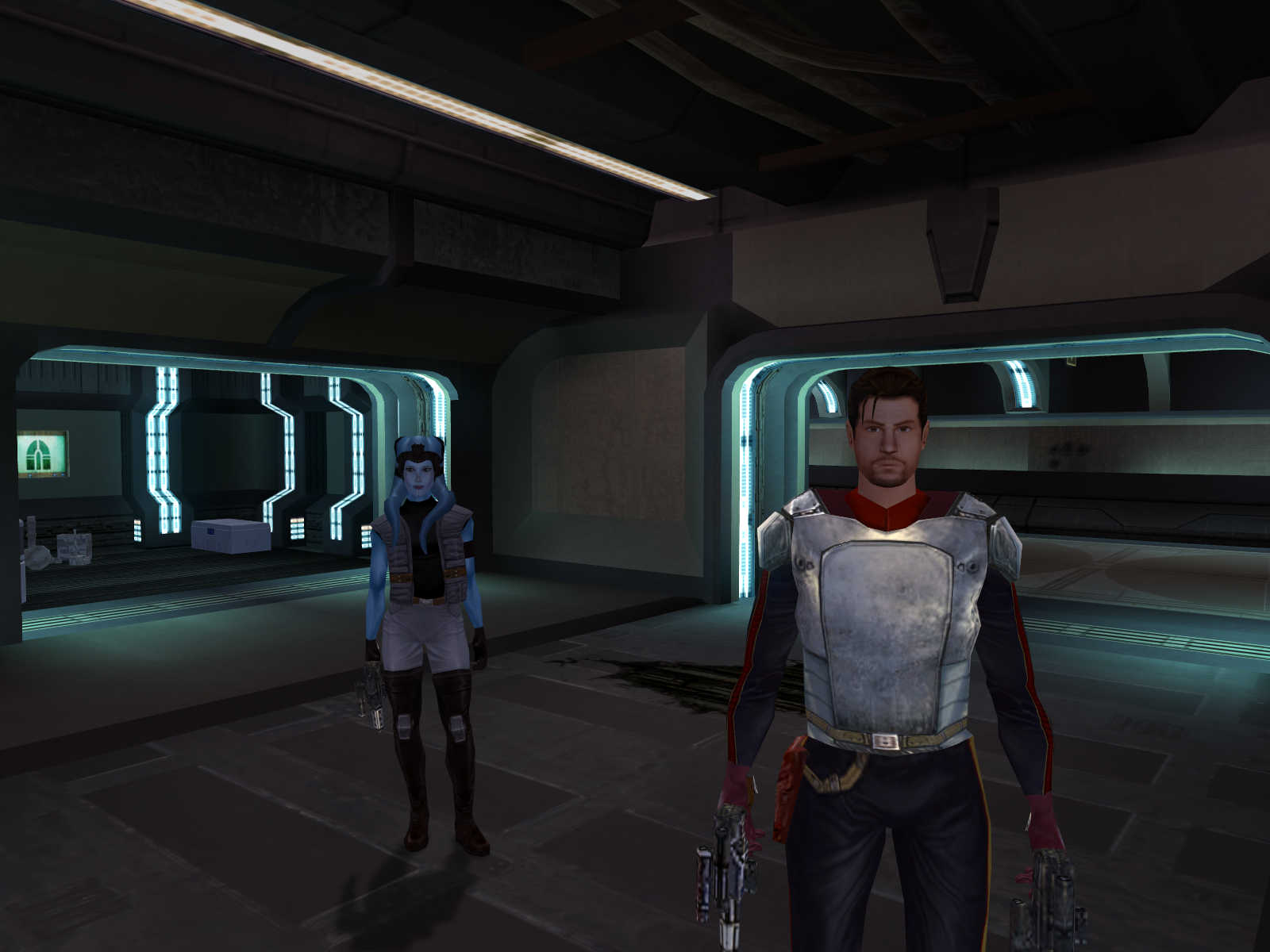

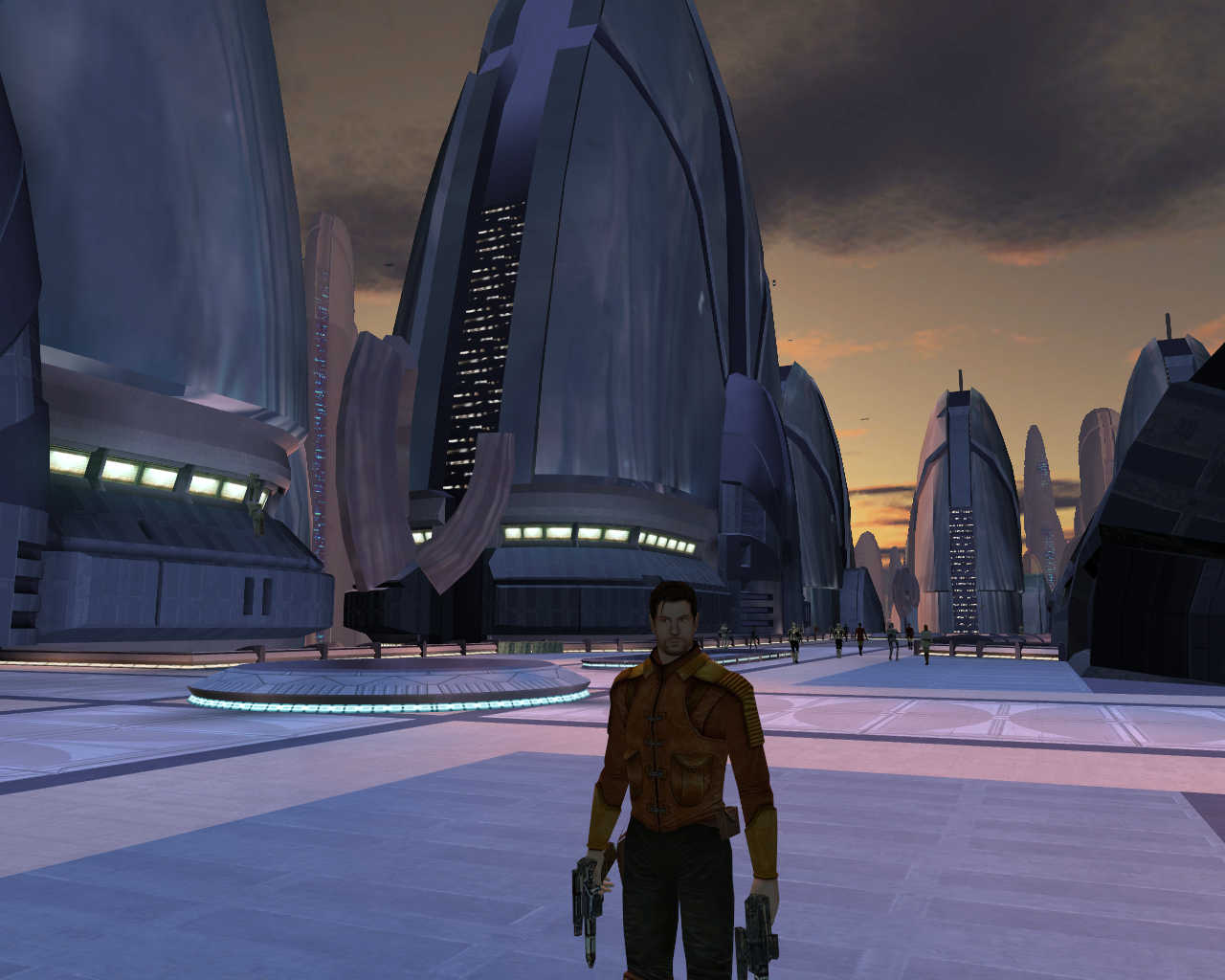

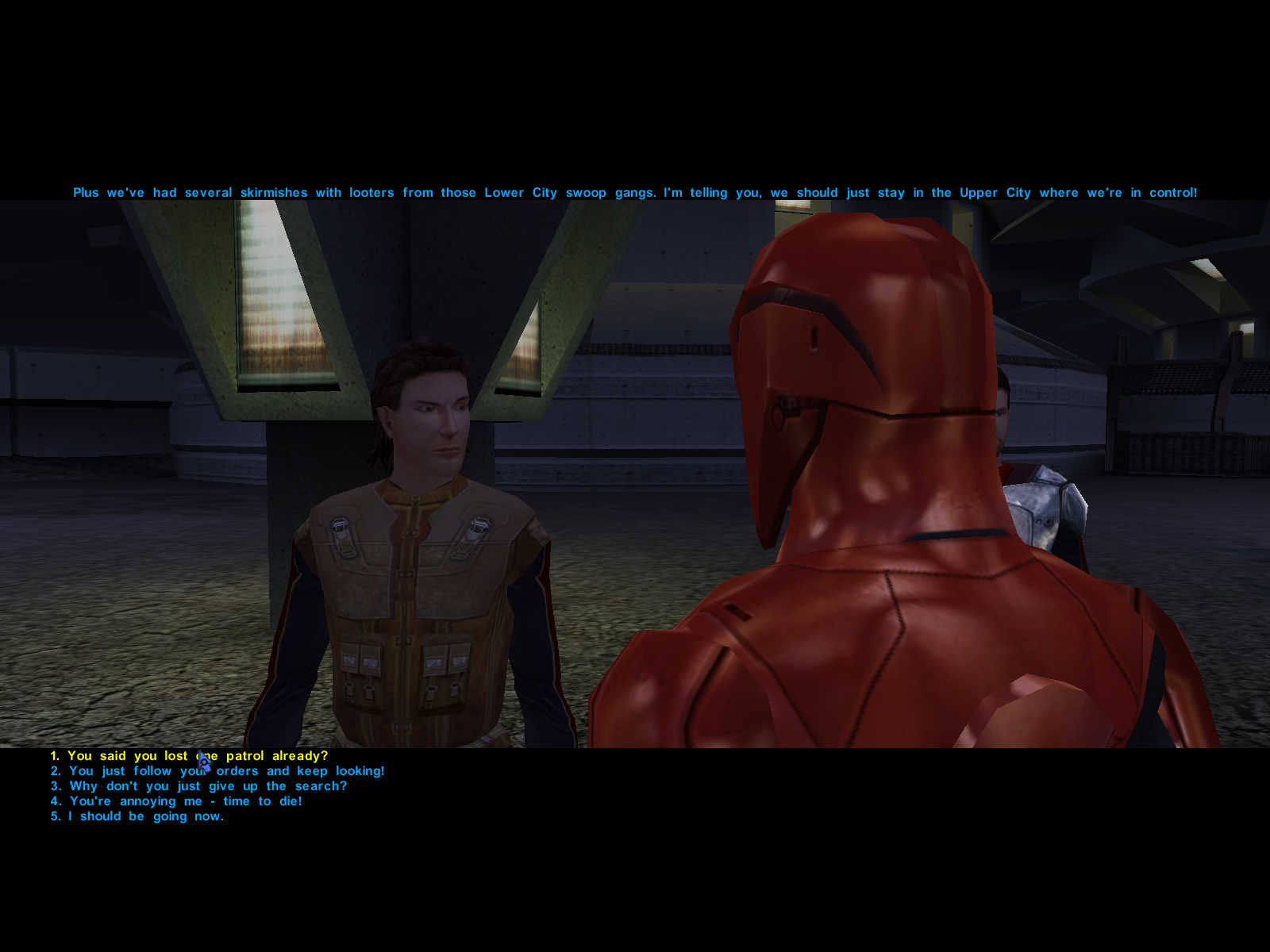

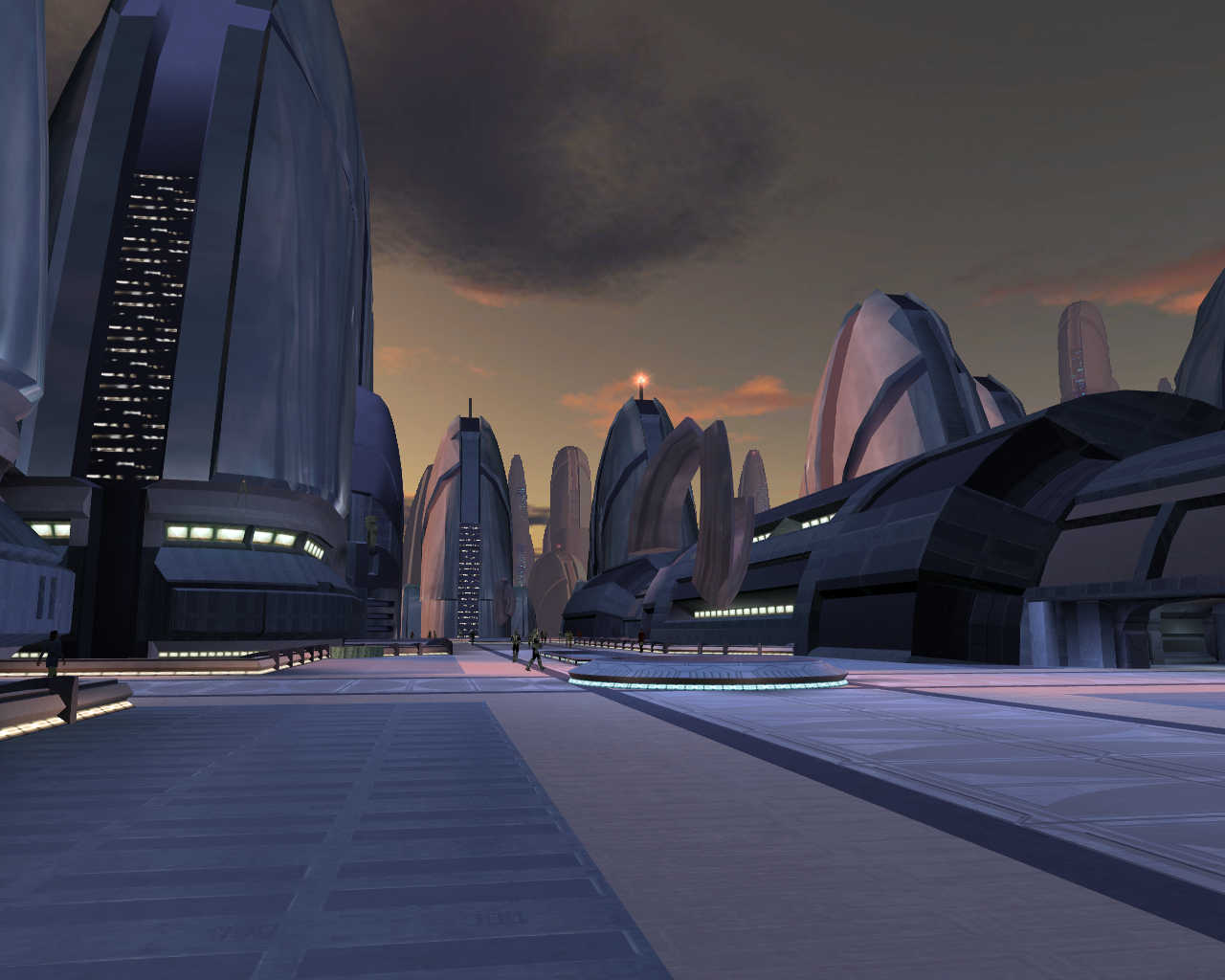

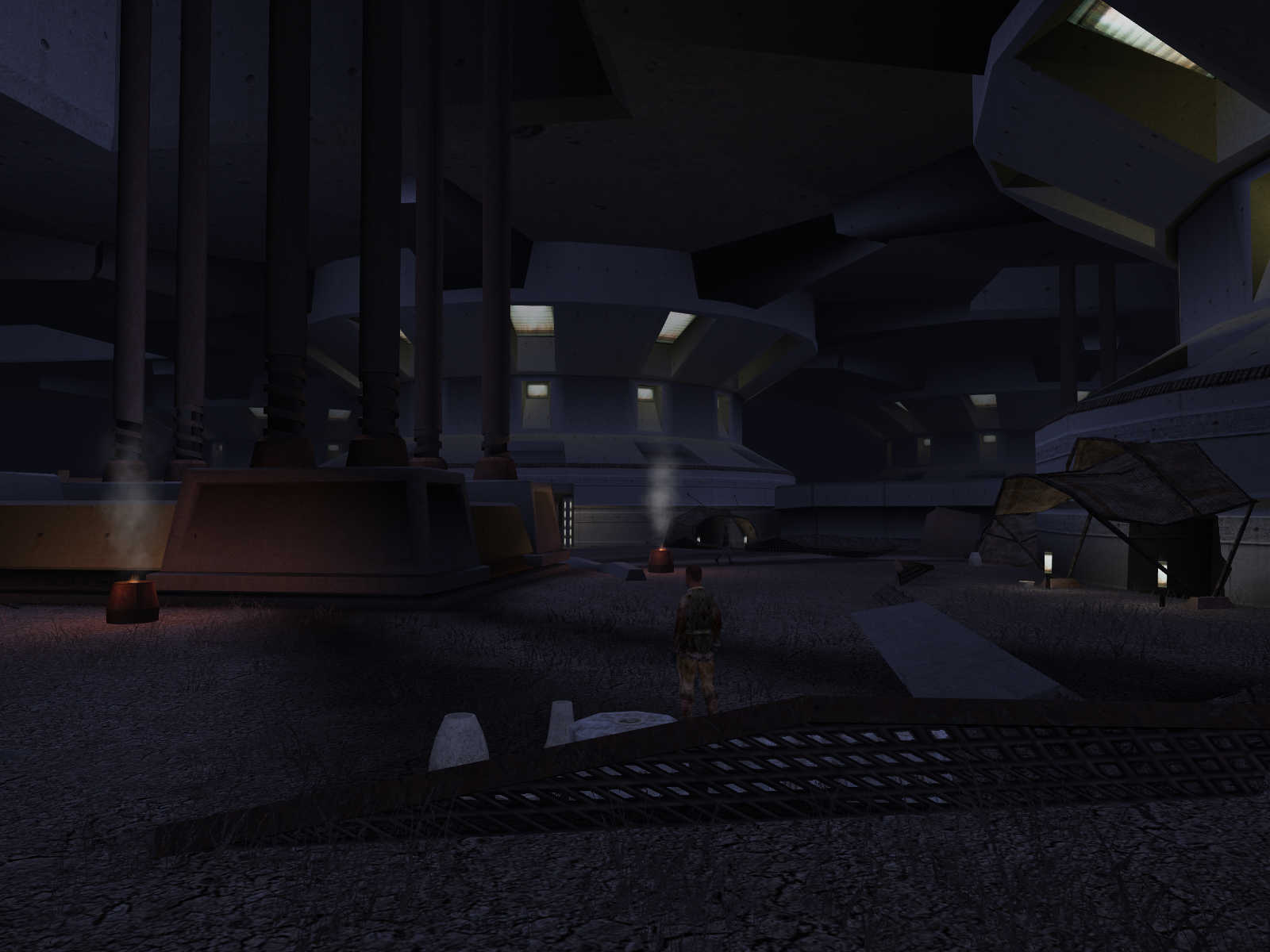

    Screenshots:




    Last edited: Aug 22, 2017

Comments

Discussion in 'Guides' started by booman, Feb 6, 2015.

  1. mrdeathjr28
    Good game and very good guide as always

    :)
  2. booman
    Thanks MrDeathJr!
    I hope some day you might do some guides for us as well.
    You have plenty of experience and knowlege. It would be easy for you
  3. graywolf.theheathen
    Wanted to add this in here.
    I installed just as stated here, except I went ahead and used Wine 2.8
    Made sure the game was working fine at 1024x768 and then used the below linked suggestion to do widescreen. I did this one because I also couldn't get flawless widescreen to work.
    This one is working great so far for me.

    http://www.wsgf.org/article/star-wars-knights-old-republic
  4. booman
    Thanks Graywolf.theheathen!

    What was the problem with widescreen before you tried wsgf.org?
  5. graywolf.theheathen
    I didn't have any crashes like some people have reported. Flawless Widescreen ran fine actually. It just wouldn't "grab" the game when launched.
    If you have used Flawless Widescreen then you know that with it running when you launch the game it says "injecting" and then detcets the running game and does the modify. Well it never went past "Injecting", it wouldn't ever "grab" the game if that makes sense.
  6. booman
    Oh, I didn't realize you were using Flawless Widescreen. I played it in 3:4 ratio because that was the only option I had too. If you mean "grab" as in the mouse wasn't working in the fullscreen game, then I think I understand.
    Could you at least see the game?
  7. graywolf.theheathen
    No the game ran fine. Mouse was fine. By "grab" I meant the process of Flawless Widescreen doing its DLL injection. It would just sit there. It would never do the injection letting the display get changed to widescreen.
  8. booman
    That kinda makes sense since we are not really using Windows. Widescreen application probably has some dependencies to initiate.
