    Gabriel is on a quest to defeat the Titan Bosses with his combat cross, 50 combos and special moves. Slaying minions such as werewolves, vampires, trolls and gian spiders is not going to stop him from his ultimate goal: Lords of Shadow


    Follow my step-by-step guide on installing, configuring and optimizing Castlevainia Lords of Shadow in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Castlevainia Lords of Shadow. Other versions may require additional steps.

    Tips & Specs:

    Try SteamPlay before using this guide as Valve now uses a fork of Wine called Proton and should run most Windows games.


    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.2 64-bit
    PlayOnLinux: 4.2.12
    Wine: 2.0.3

    Wine Installation

    Click Tools

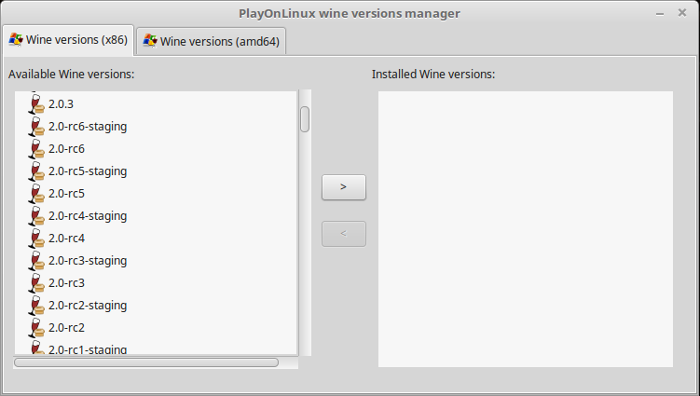

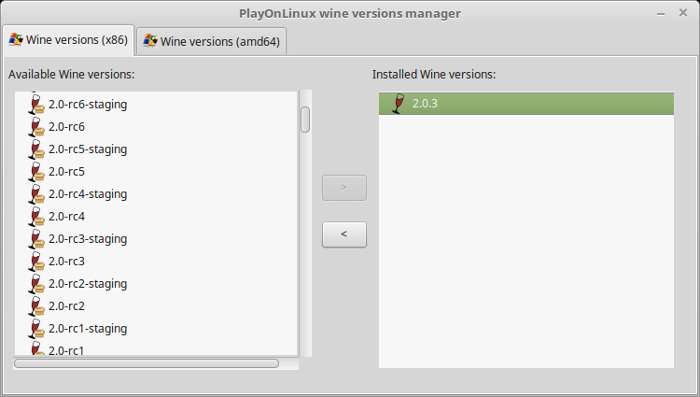

    Select "Manage Wine Versions"

    Look for the Wine Version: 2.0.3
    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

    Downloading Gecko

    Installed

    Wine 2.0.3 is installed and you can close this window

    Downloading Steam

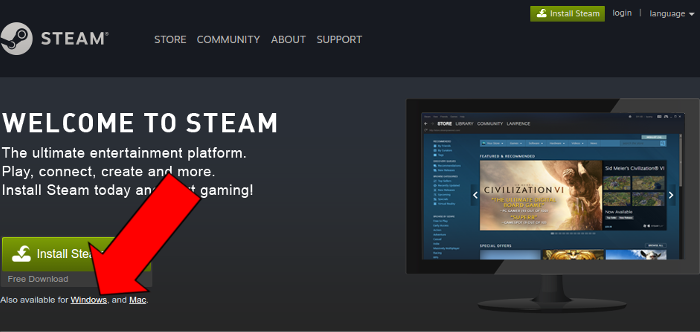

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam
    Select Windows Steam instead
    click "Windows" under the green button

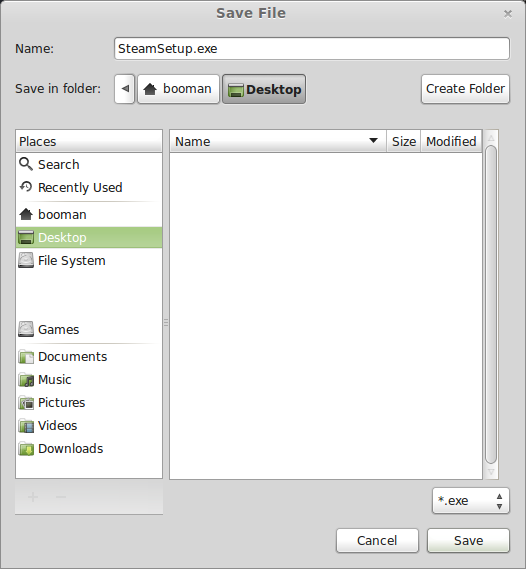

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

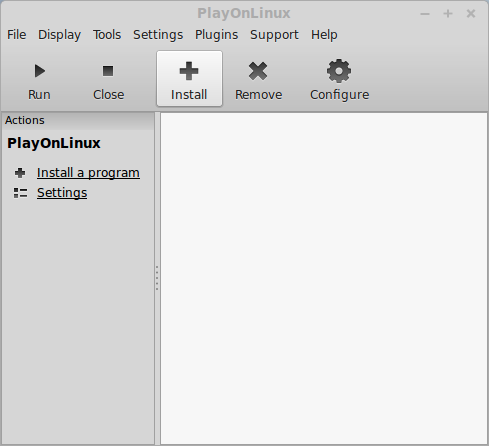

    Launch PlayOnLinux
    Click Install

    Click "install a non-listed program"

    Click Next

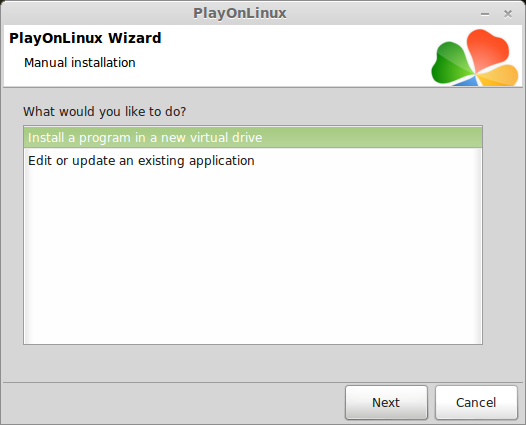

    Select "Install a program in a new virtual drive"
    Click Next

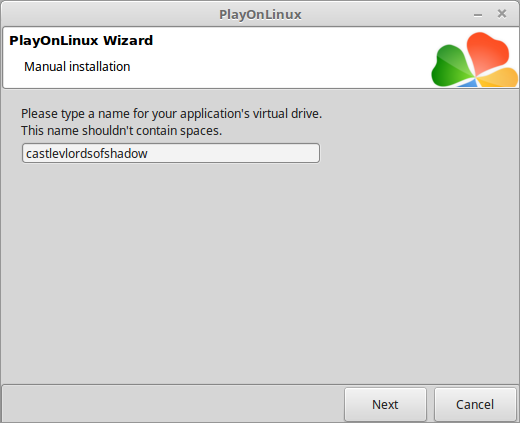

    Name your virtual drive: castlevlordsofshadow
    No spaces
    Click Next

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

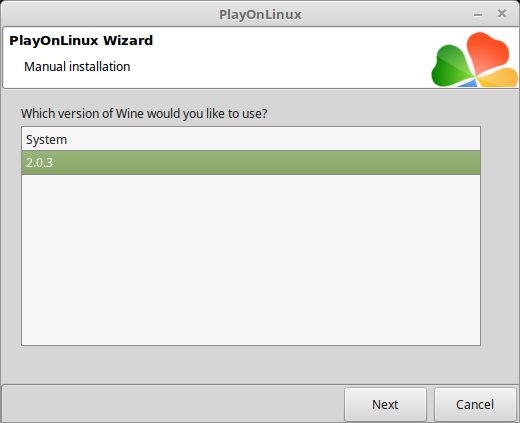

    Select Wine 2.0.3
    Click Next

    Select "32 bits windows installation"
    Click Next

    Configure Wine

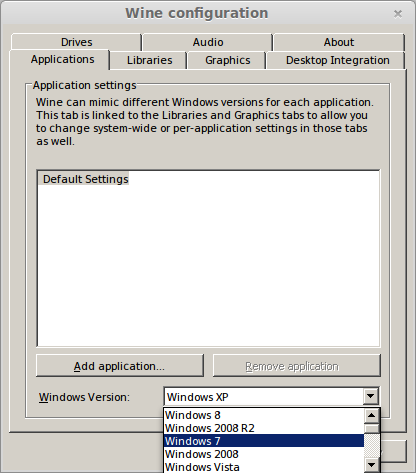

    Applications Tab
    Windows Version: Windows 7
    Click Apply

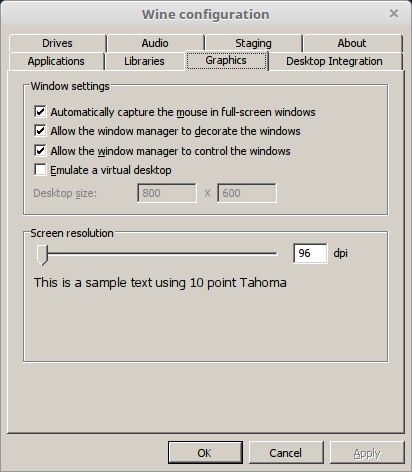

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Check: Emulate a virtual desktop
    Desktop size: 1024x768
    Click Ok

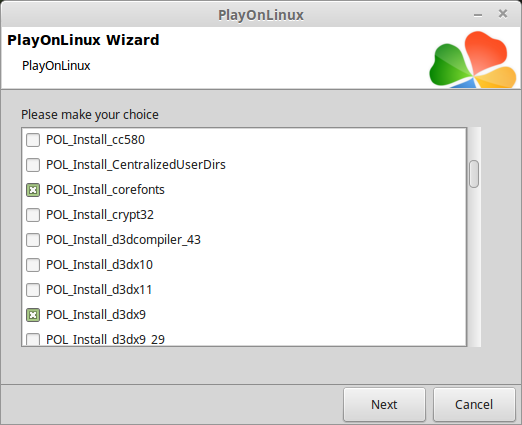

    PlayOnLinux Packages (Libraries, Components, DLL's)

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_Physx
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

    Installing Steam

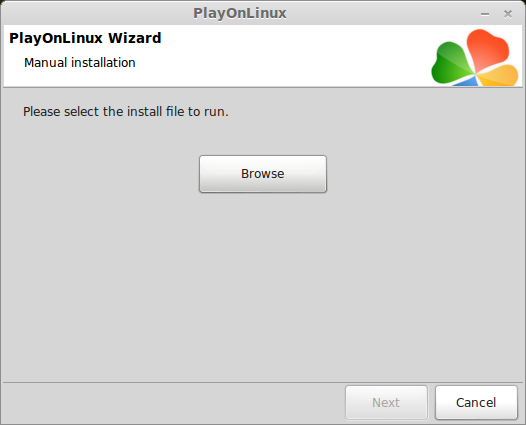

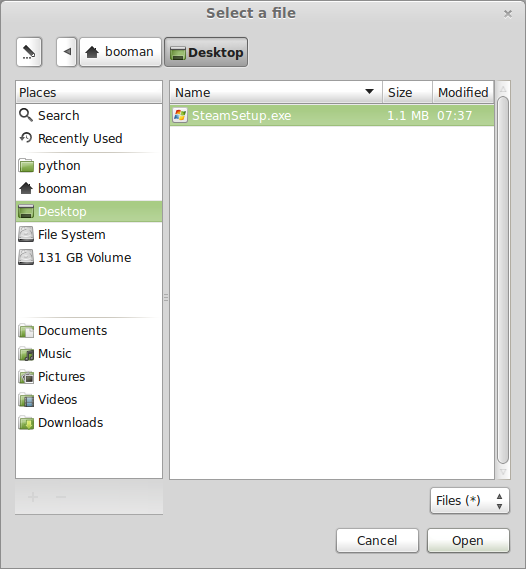

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

    Updating Steam

    Click the "X" to close Steam login

    PlayOnLinux Shortcut

    Select Steam.exe
    Click Next

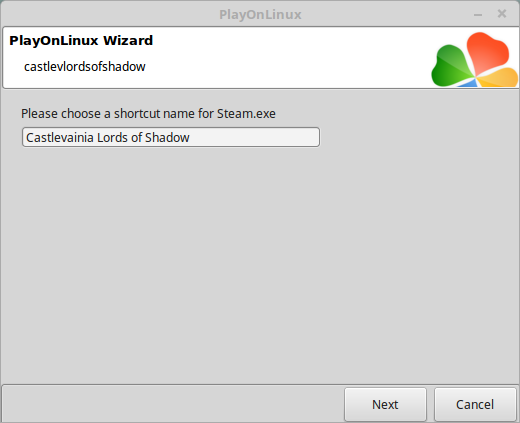

    Name your shortcut: castlvlordsofshadow
    Click Next

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

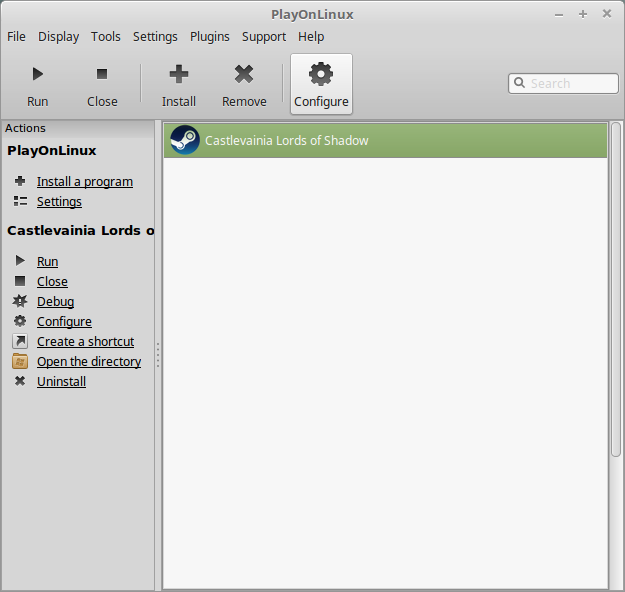

    Back to PlayOnLinux
    Click Configure

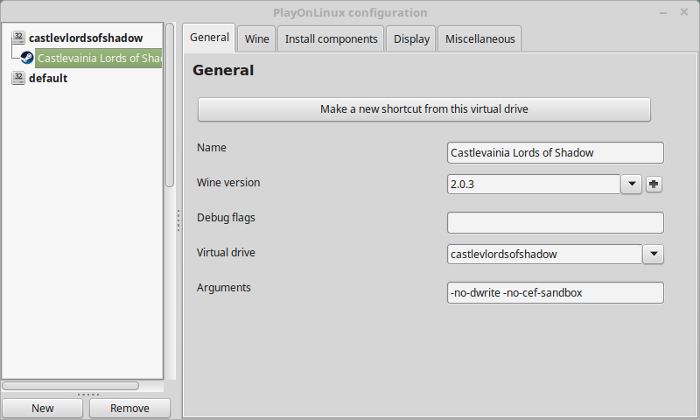

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes any missing font problems and the Store problem (Windows needs to be set as Windows XP)

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

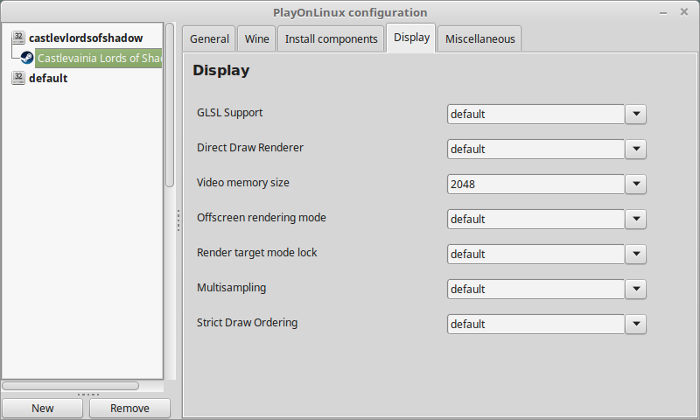

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses

    Close Configure

    Launching Steam

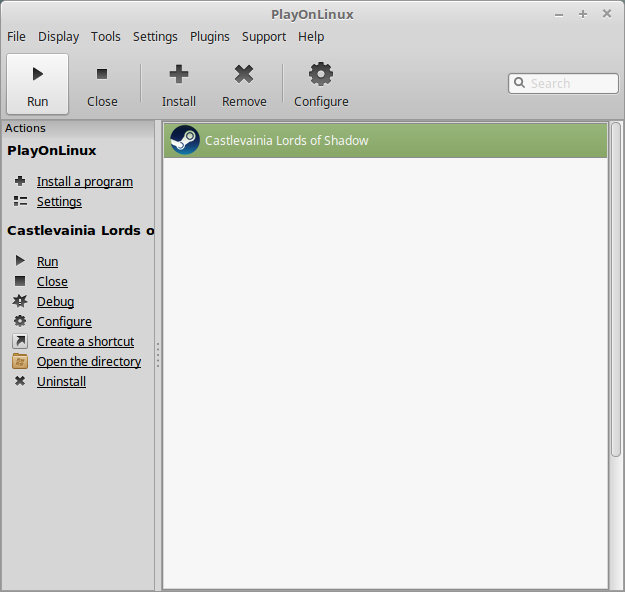

    Select Castlevainia Lords of Shadow
    Click Run

    Note: Click debug to see errors and bugs

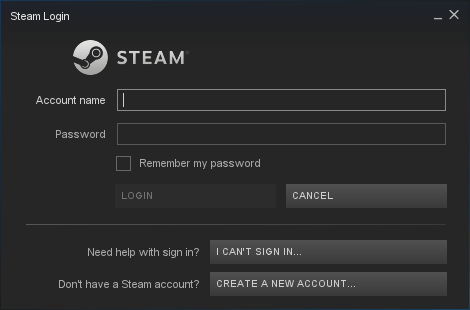

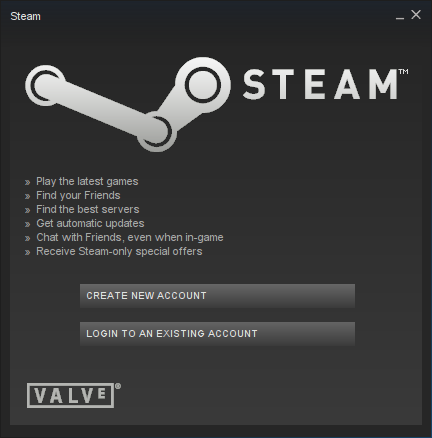

    Click "Login to existing account"

    Login

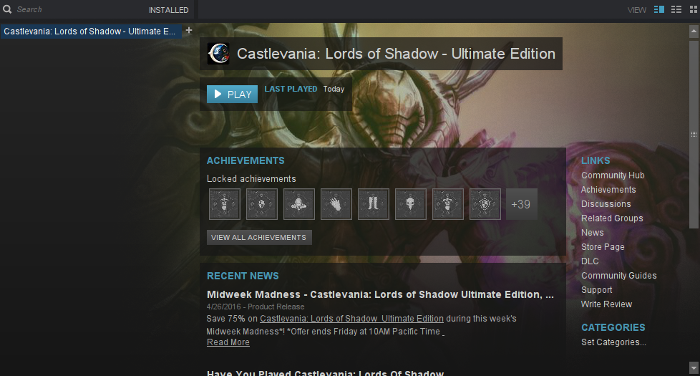

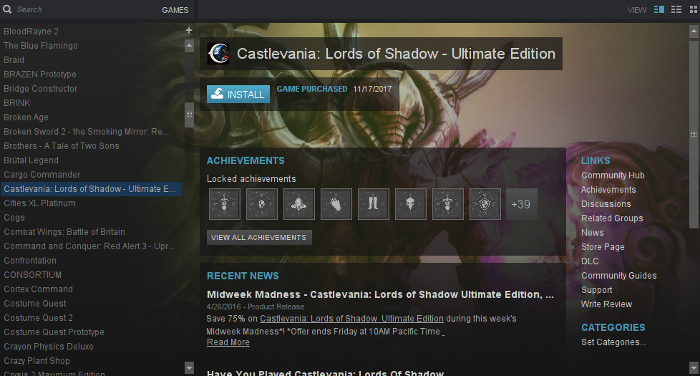

    Find Castlevainia Lords of Shadow in your Library

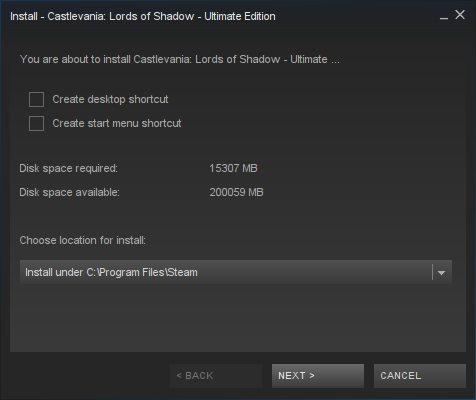

    Click Install

    Uncheck "Create desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

    Click Finish
    Wait for Castlevainia to download

    Click Play

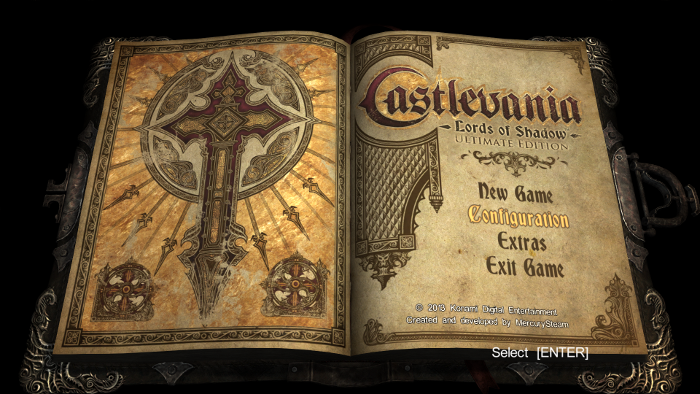

    Optimization

    Click Configuration

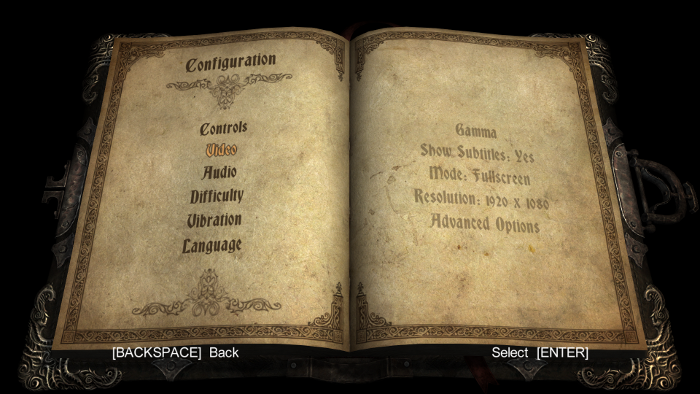

    Click Video

    Adjust:
    • Gamma
    • Subtitles
    • Mode
    • Resolution

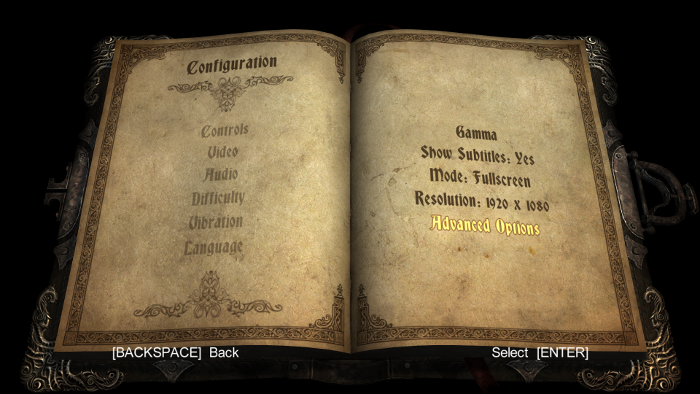

    Click Advanced

    Adjust:
    • Shadows
    • Vertical Sync
    • Antialiasing
    • Anisotropic
    • Ambient Occlusion

    Rule of Thumb
    High settings = More detail, lower frame rates
    Low settings = Less detail, higher frame rates

    Conclusion:
    I had a hard time with Castlevainia Lords of Shadow because the game ran smooth and looked beautiful graphically, but there is a bug with the keyboard input that causes a lag/cache over time. This eventually forces your character to start moving by himself into danger, across the map and you have no control over him. This is a bug in Windows as well. The only resolution is to use an Xbox controller which I don't have.

    Gameplay Video:

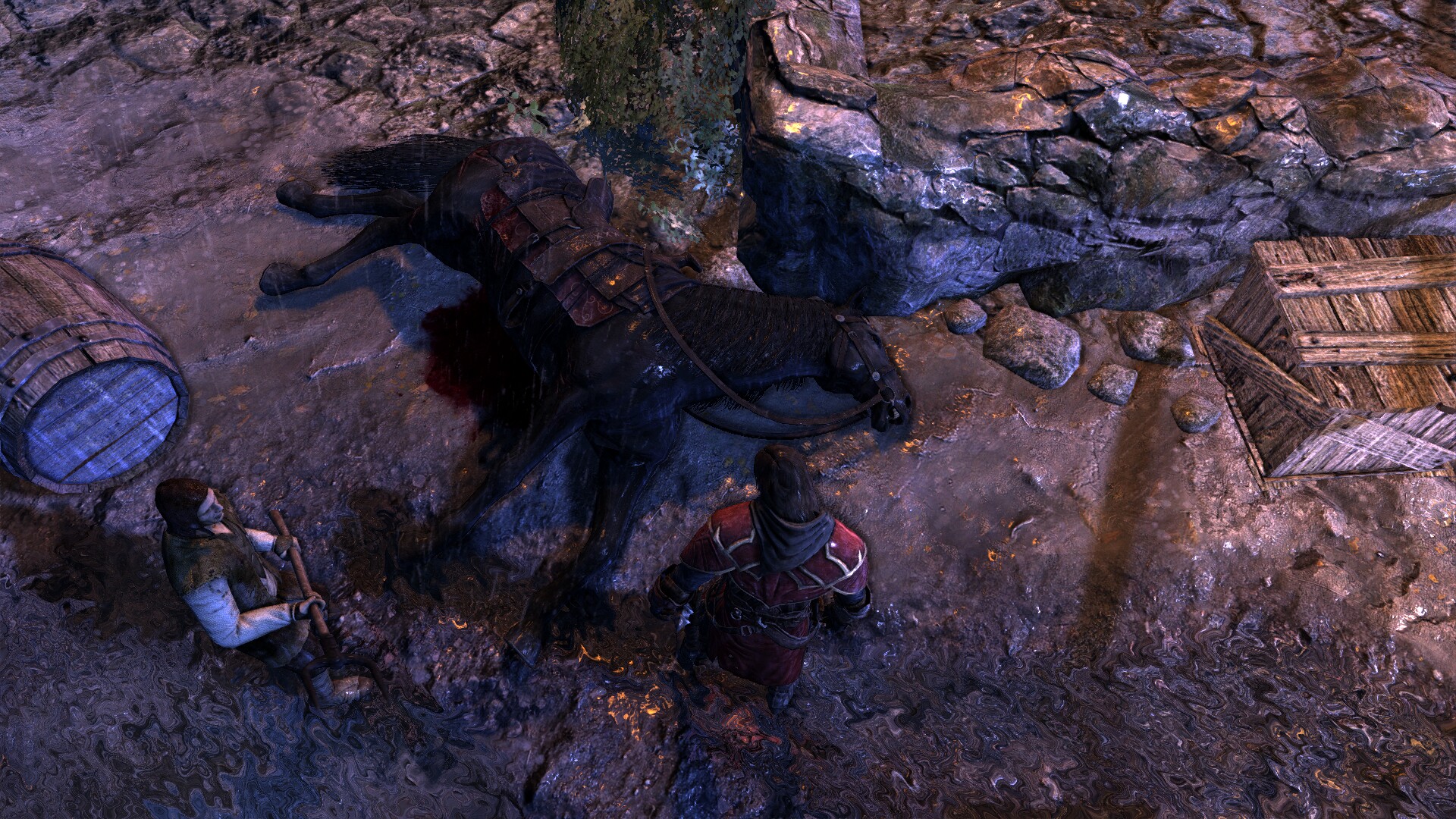

    Screenshots:






    Last edited: Dec 12, 2019
