    he original 8-bit Action Role Playing game from Bethedsa Softworks. Before any of the famous Skyrim and Elder Scrolls Online, it started with Arena. Cast spells, complete quests, explore cities and wilderness with weather effects and day/night cycle and lots of NPC dialog.


    Follow my step-by-step guide on installing, configuring and optimizing Elder Scrolls Arena in Linux with PlayOnLinux.

    Note: This guide applies to the GOG version of Elder Scrolls Arena. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.3
    Wine: 3.0.3

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"

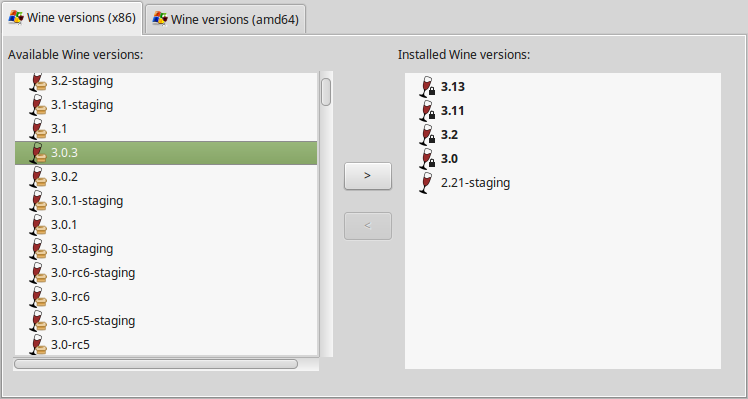

    Look for the Wine Version: 3.0.3
    Select it
    Click the arrow pointing to the right

    Click Next

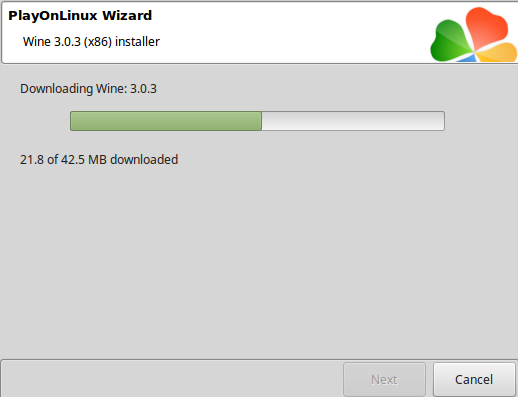

    Downloading Wine

    Extracting

    Downloading Gecko

    Installed

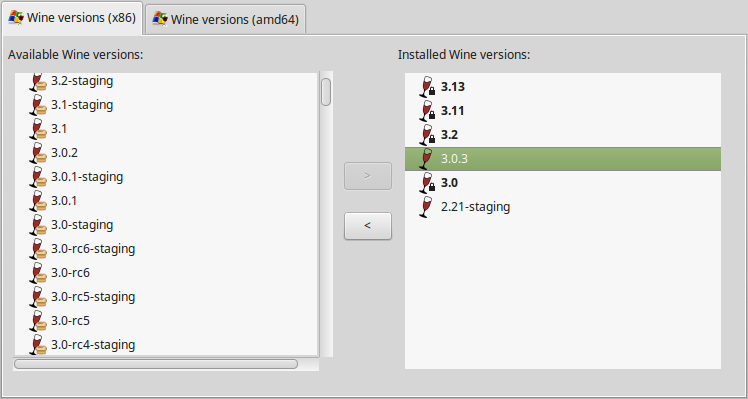

    Wine 3.0.3 is installed and you can close this window

    We are using PlayOnLinux to install Arena initially, but later we will have an optional step using Linux DOSbox to play the game.

    PlayOnLinux Setup

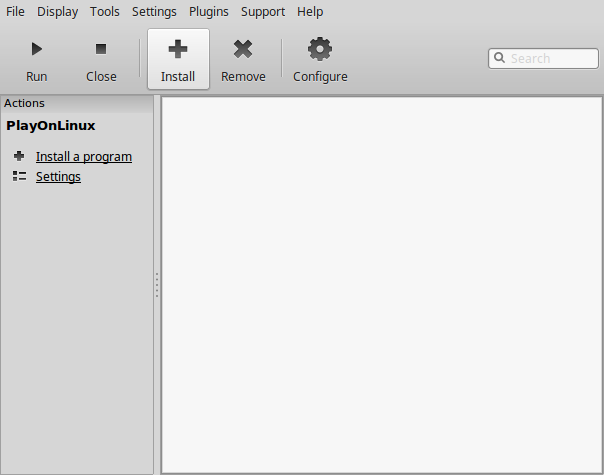

    Launch PlayOnLinux

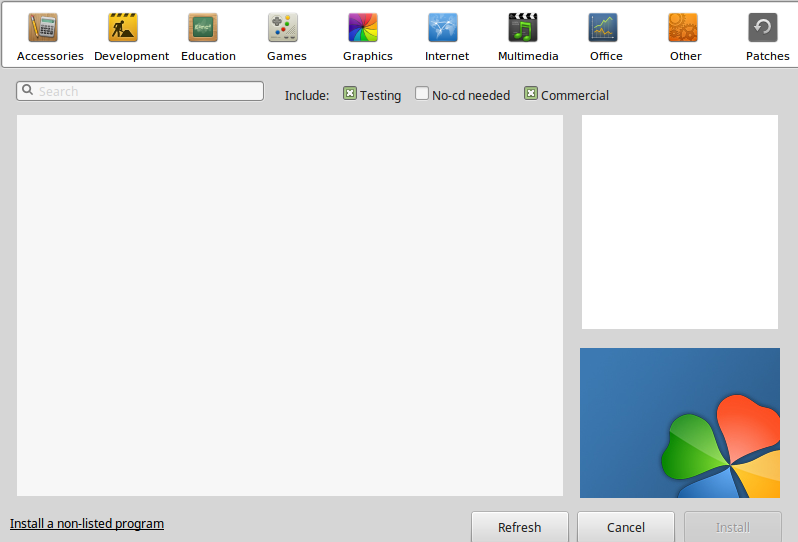

    Click Install

    Click "Install a non-listed program"

    Select "Install a program in a new virtual drive"
    Click Next

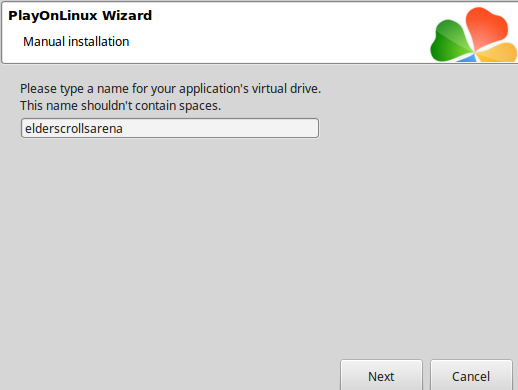

    Name the virtual drive: elderscrollsarena
    Click Next

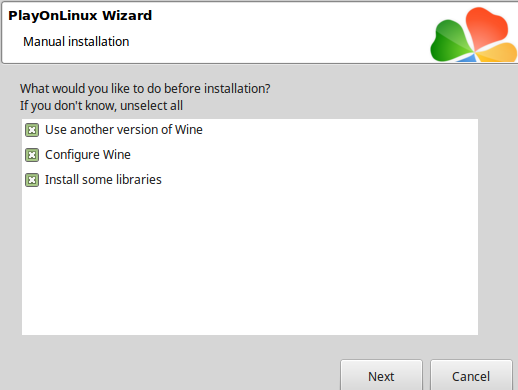

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

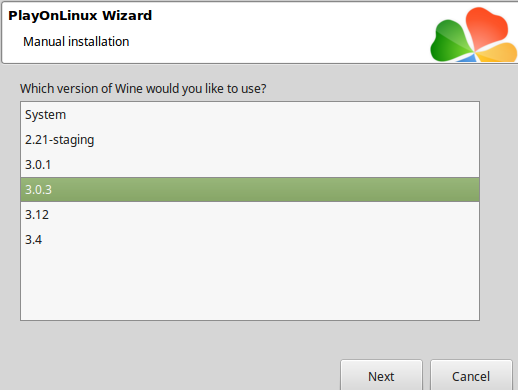

    Select Wine 3.0.3
    Click Next

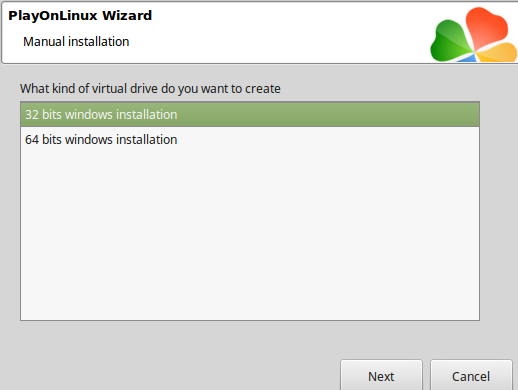

    Select "32 bits windows installation"
    Click Next

    Wine Configuration

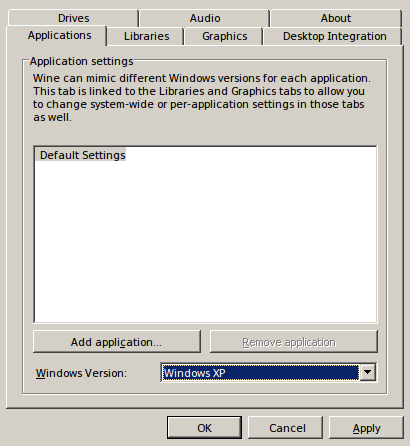

    Applications Tab
    Windows Version: Windows XP
    Click Apply

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK

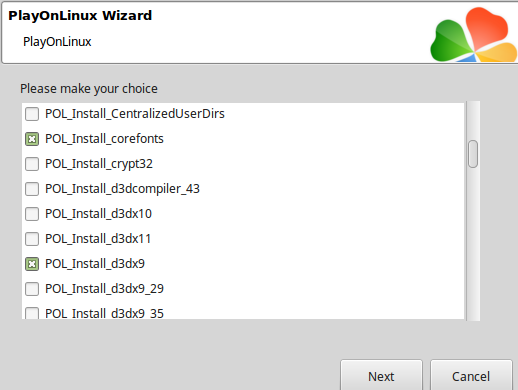

    PlayOnLinux Packages

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next

    Note: We probably don't need any of these packages since Arena is a DOS game, but I install them anyways. Each package should automatically download and install.

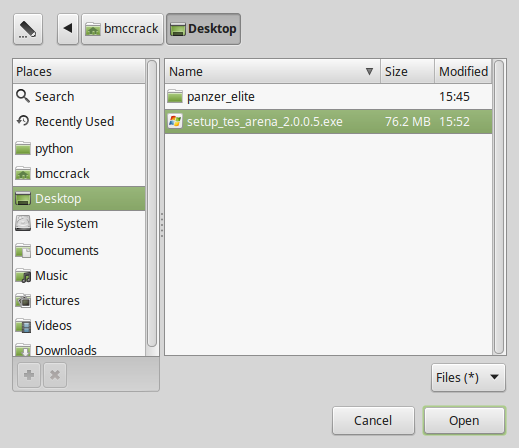

    Click Browse

    Select "setup_tes_arena_2.0.0.5.exe"
    Click Open

    Click Next again...

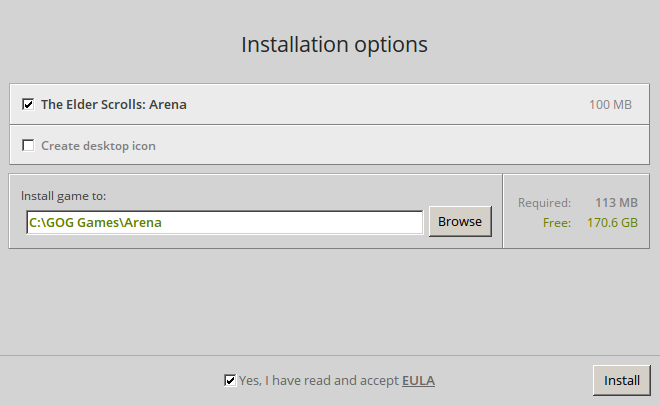

    Click Options
    Check "Yes, I have read and accept EULA"
    Uncheck "Create desktop icon"
    Click Install

    Click OK on all errors

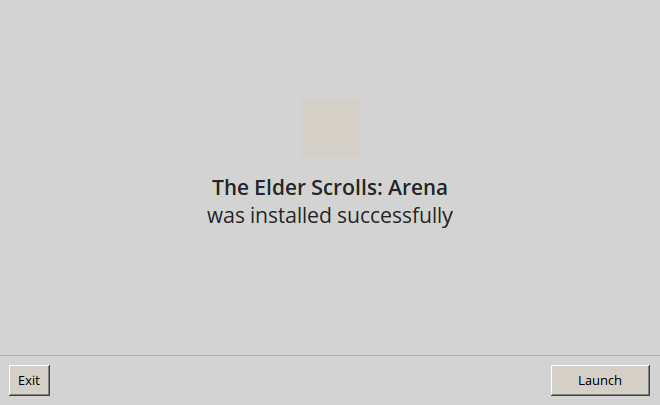

    Click Exit

    PlayOnLinux Shortcut

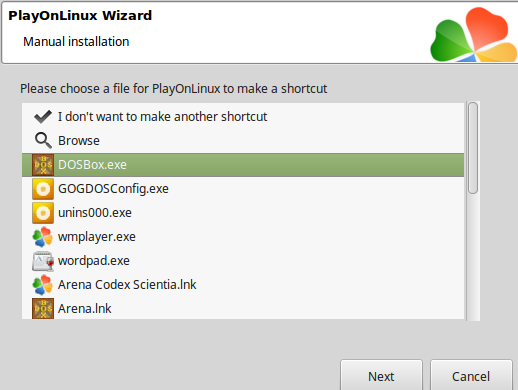

    Select "DOSBox.exe"
    Click Next

    Select "I don't want to make another shortcut"

    Go back to PlayOnLinux and click Run to play Arena

    Linux DOSBox option

    Install DOSBox in your software manager or package manager

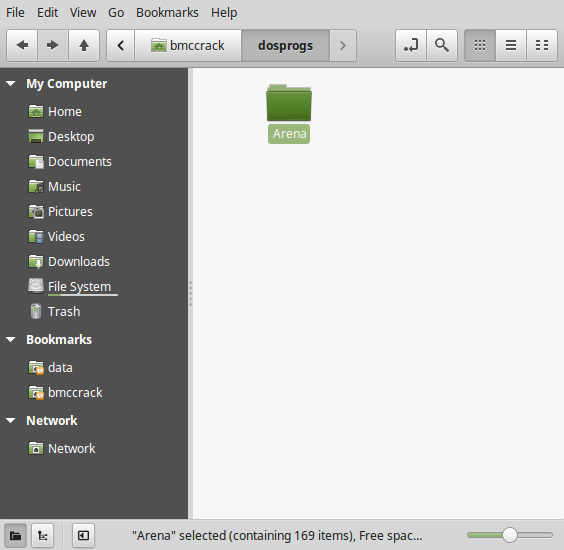

    Create a folder in your /home/username
    Name it dosgames
    Copy the Arena game folder into dosgams
    Full path:
    Arena:
    Code:
    /home/username/.PlayOnLinux/wineprefix/elderscrollsarena/Program Files/GOG Games/Arena
    dosgames:
    Code:
    /home/username/dosgames

    DOSBox Install

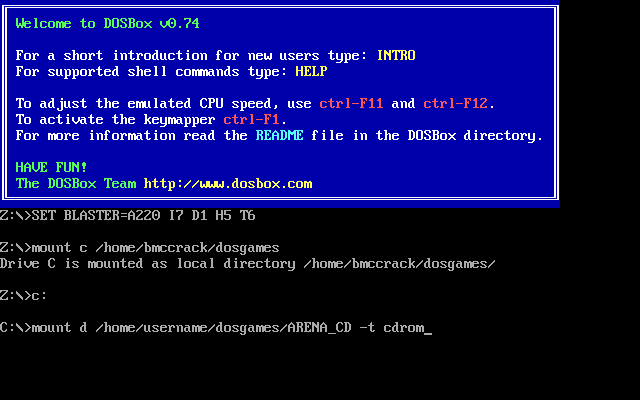

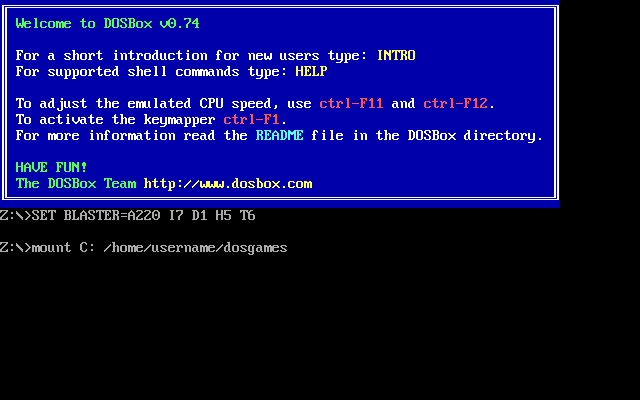

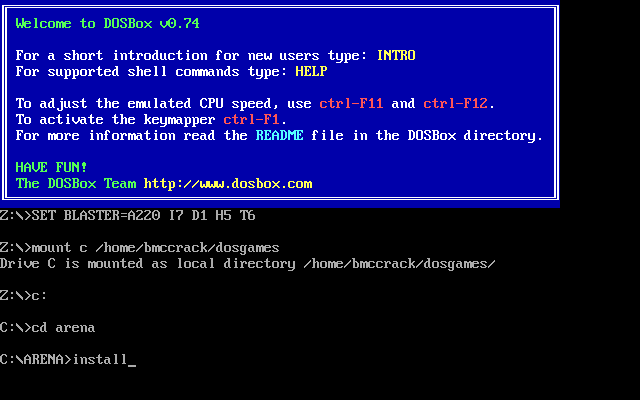

    Launch DOSBox
    type:
    Code:
    mount C: /home/username/dosgames

    Note: In place of "username" use your Linux login
    Code:
    Type:  c:
    Type:  cd arena

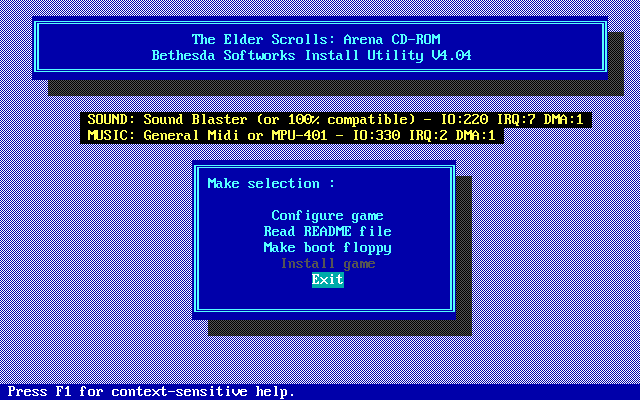

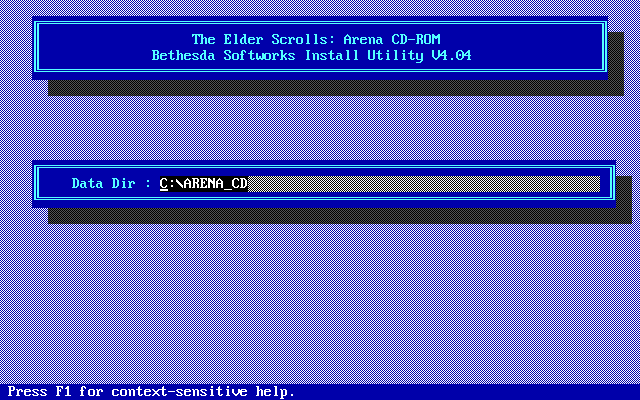

    Type:  Install


    Press Enter

    Go to Exit
    Press Enter

    Note: No need to configure game or audio. We'll add that later in the launcher

    Now you will see two folder in dosgames
    • Arena
    • ARENA_CD

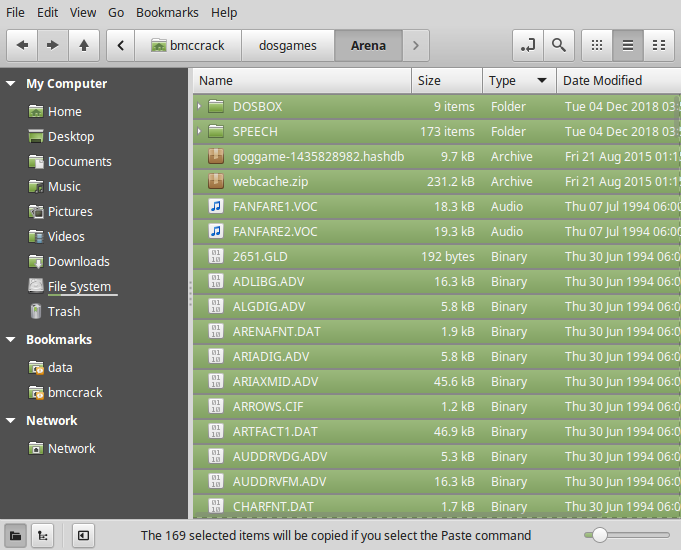

    Open Arena, copy all the files

    Paste all the files in ARENA_CD

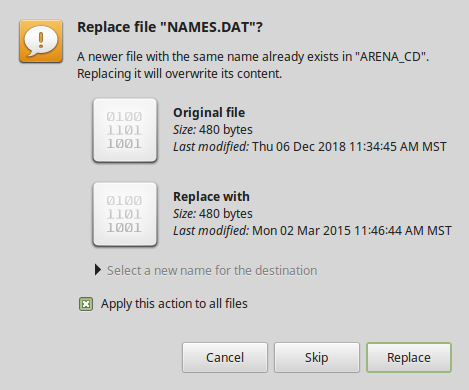

    Click Skip on duplicates

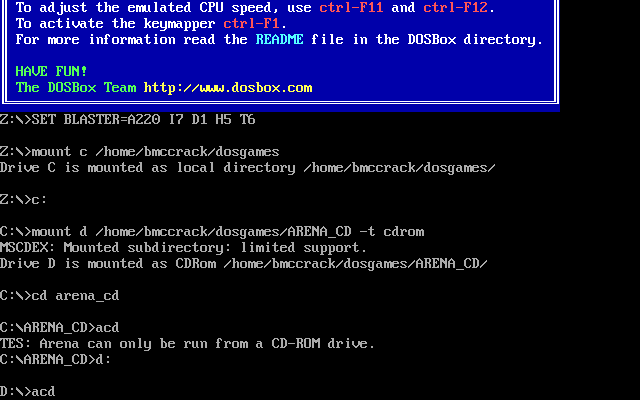

    Back to DOSBox
    Type: mount d /home/username/dosgames/AREANA_CD -t cdrom

    Code:
    Type:  cd arena_cd
    type:  d:
    type:  acd

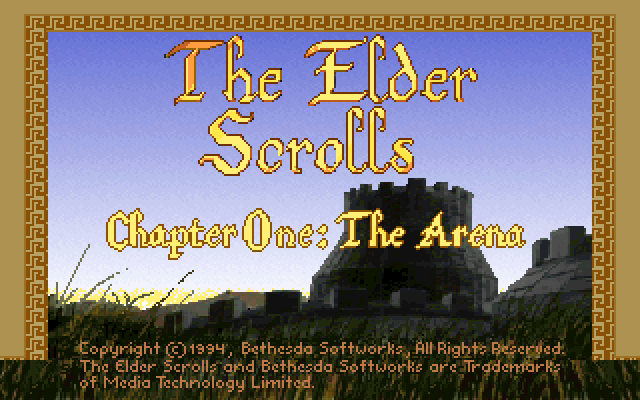

    Elder Scrolls Arena should now run without audio
    You can skip the prompts and exit the game

    DOSBox Shortcut (Linux Mint)

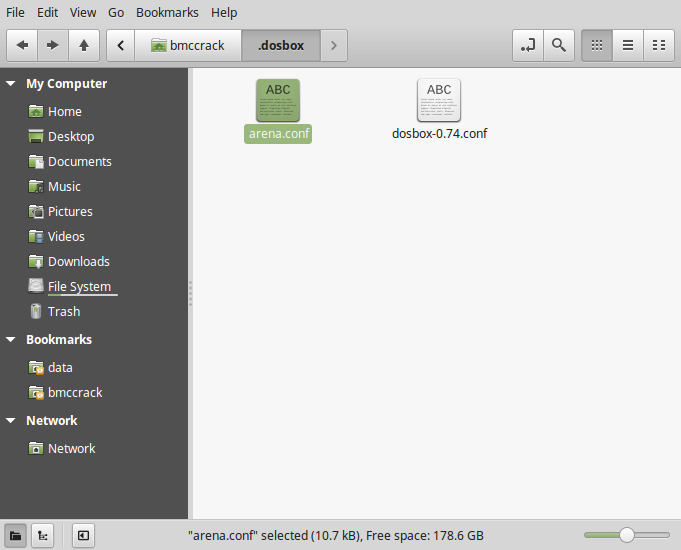

    Go to the .dosbox directory
    Full path:
    Code:
    /home/username/.dosbox
    Copy dosbox-0.74.conf
    Rename it to: arena.conf

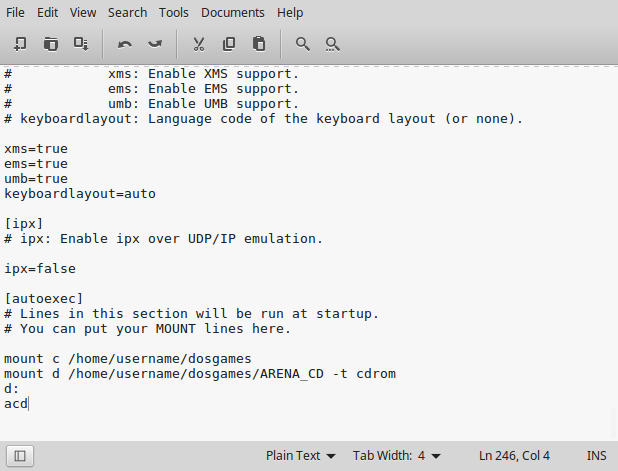

    Open arena.conf
    Scroll down to the very bottom
    Enter the following commands:
    Code:
    mount c ~/dosgames -freesize 1000
    c:
    mount d ~/dosgames/ARENA_CD -t cdrom
    d:
    acd -Ssbpdig.adv -IOS220 -IRQS7 -DMAS1 -Msbp1fm.adv -IOM220 -IRQM7 -DMAM1


    Note: These commands mount the C: drive, add extra hard drive space, mount the D: drive and add the audio options. Without -freesize 1000, you would get a hard drive error and the game gets buggy.

    You can also scroll up to the top and set fullscreen to "true"

    Right-Click Menu
    Click Configure

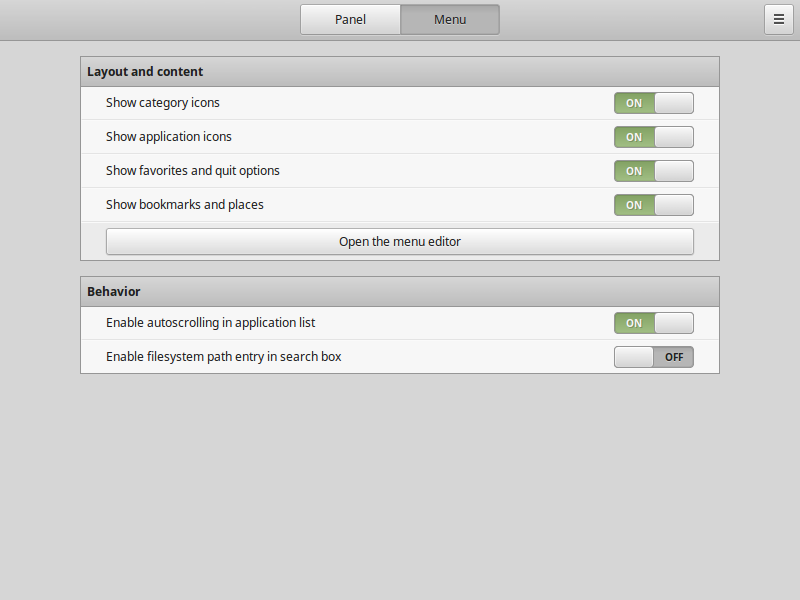

    Click Menu Tab

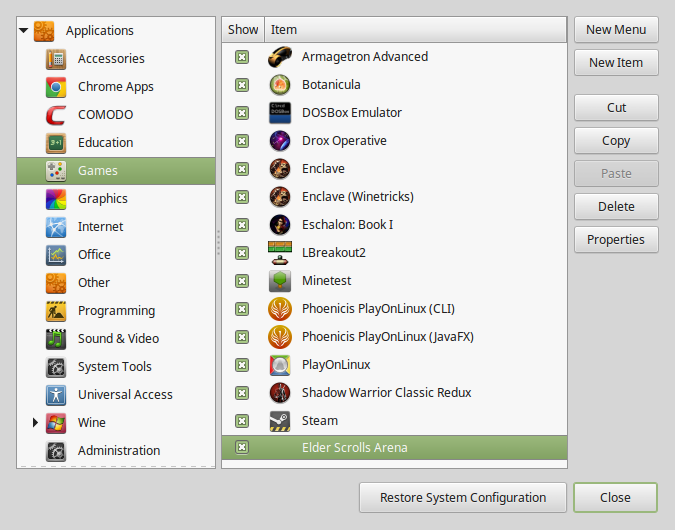

    Click "Open the menu editor"

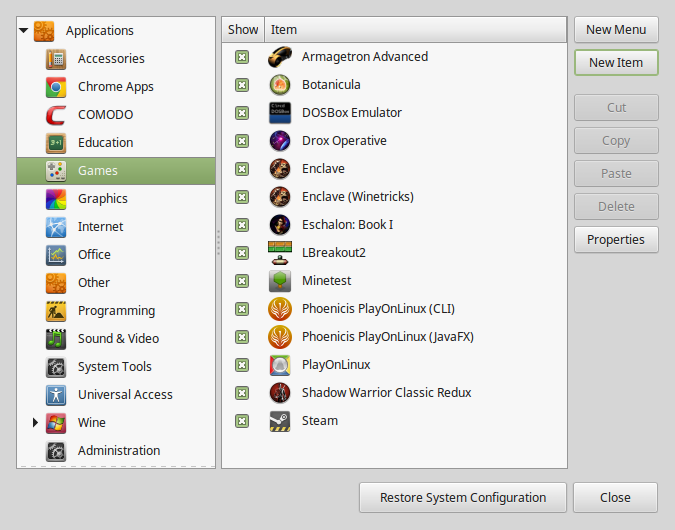

    Click Games
    Click "New Item"

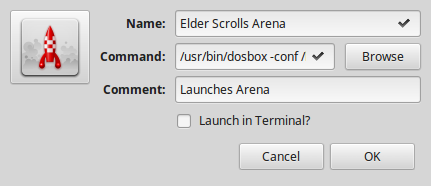

    Name: Elder Scrolls Arena
    Command: /user/bin/dosbox -conf /home/username/.doxbox/arena.conf
    Comment: whatever you want to add
    Click the Icon to set the games icon
    Click OK

    Click Close

    Now click Elder Scrolls Arena in your Menu under Games
    This will automatically launch DOSBox and start Arena
    You should also hear the MIDI audio

    Also, use Ctrl+F12 to speed up the CPU for a better frame rate

    Conclusion:
    Also all DOS games can be installed and run in this way using PlayOnLinux and DOSBox. I initially had a problem with a "hard drive space" warning and the game had graphical artifacts and was unplayable. But the switch -freesize 1000 fixed it. Now I can play fullscreen in 640x480, but the game will run really slow. Use Ctrl+F12 to speed up the CPU usage and it will run really well.

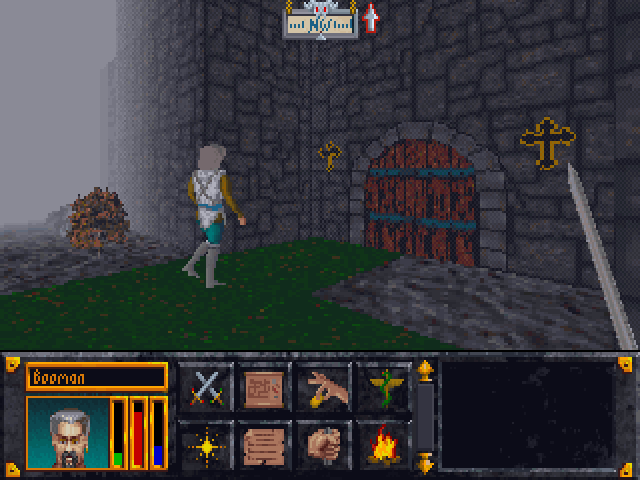

    Gameplay Video:

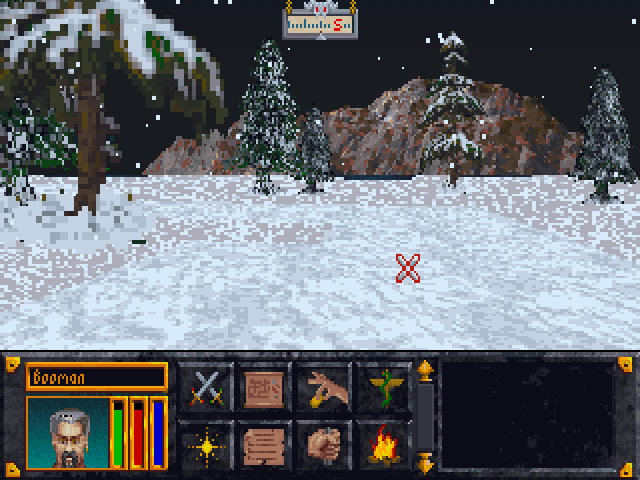

    Screenshots:
