    Its 1920 in a remote English village. You play as a Priest who is demonized by lies and fear... Enjoy high resolution and explore detailed environments. Solve surreal puzzles to prove your own innocence in this epic horror adventure.


    Follow my step-by-step guide on installing, configuring and optimizing Gray Dawn in Linux with PlayOnLinux.

    Note: This guide applies to the itch.io demo version of Gray Dawn. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 4.0
    DXVK 1.0.1

    Wine Installation

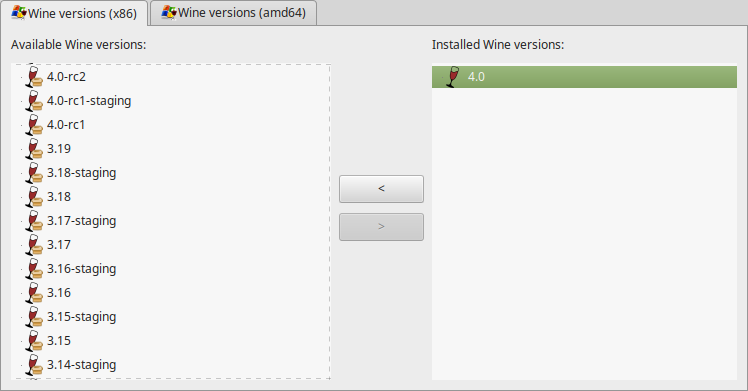

    Click Tools
    Select "Manage Wine Versions"


    Look for the Wine Version: 4.0
    Select it
    Click the arrow pointing to the right


    Click Next

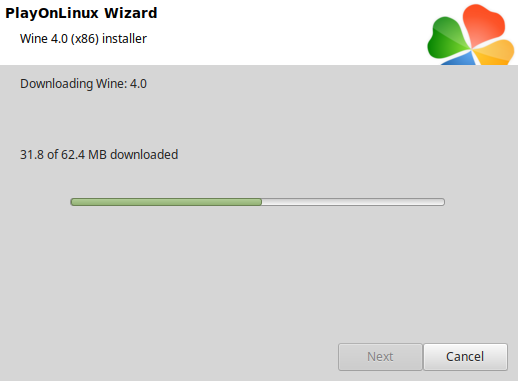

    Downloading Wine


    Extracting

    Installed

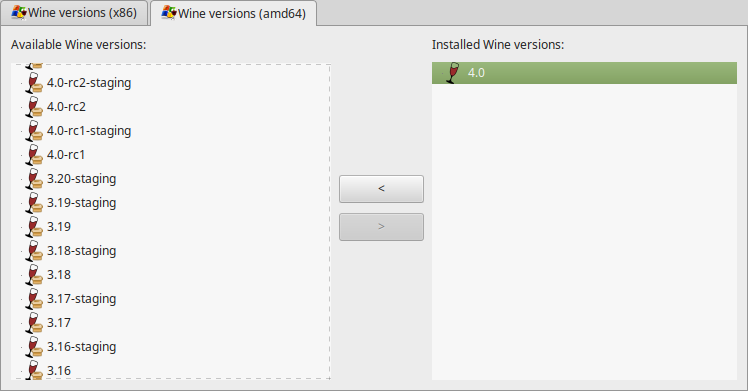

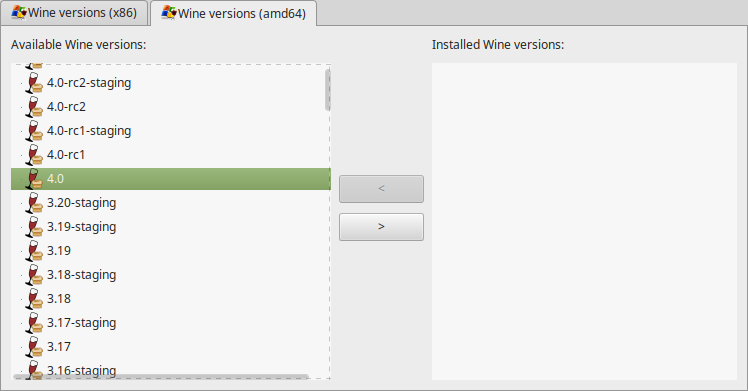

    Click (amd64) Tab
    Select 4.0
    Click the arrow pointing to the right


    Downloading Wine 64-bit


    Installed


    Wine 4.0 32-bit and 64-bit is installed, you can close this window

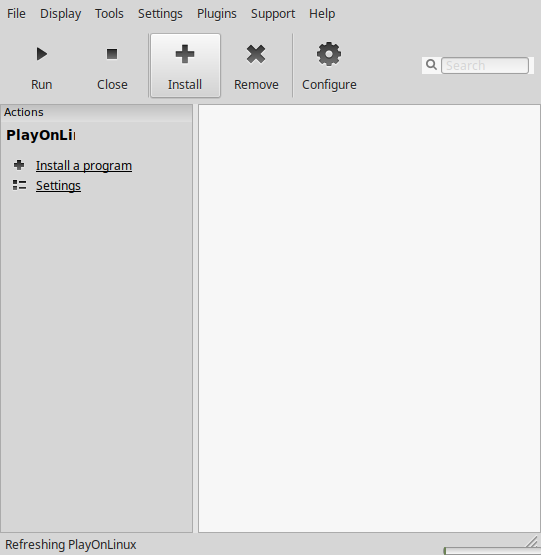

    Launch PlayOnLinux
    Click Install

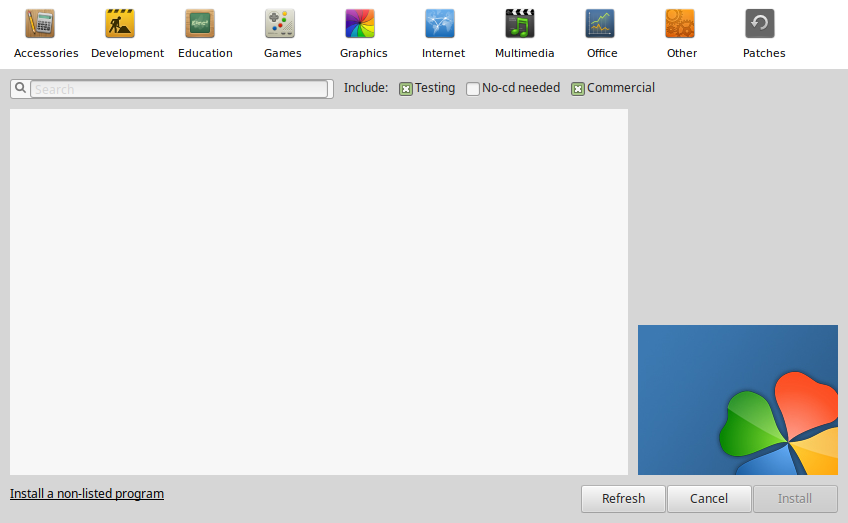

    Click "Install a non-listed program"

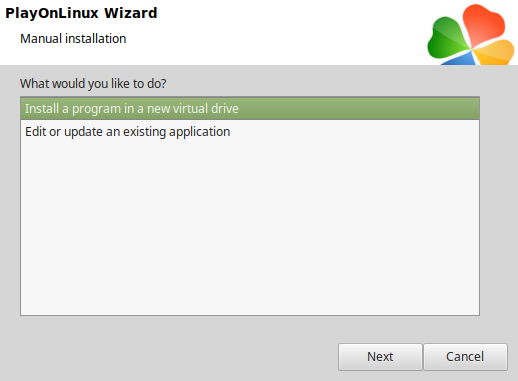

    Click "Install a program in a new virtual drive"
    Click Next

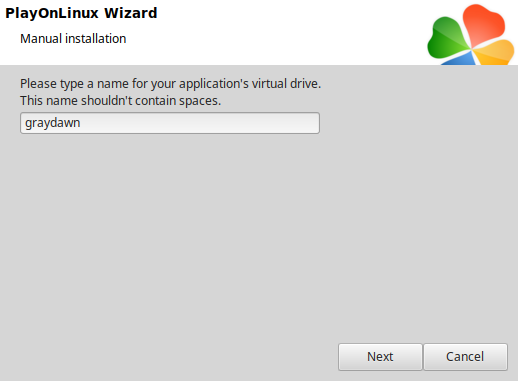

    Name the virtual drive: graydawn
    Click Next

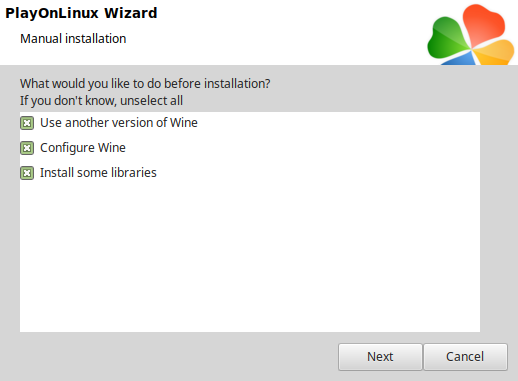

    Click all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

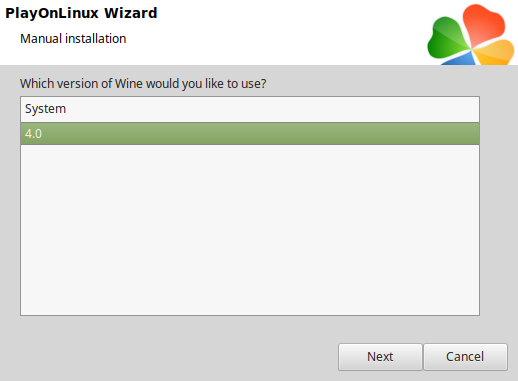

    Select Wine 4.0
    Click Next


    Select "64 bits windows installation"
    Click Next


    Wine Configuration

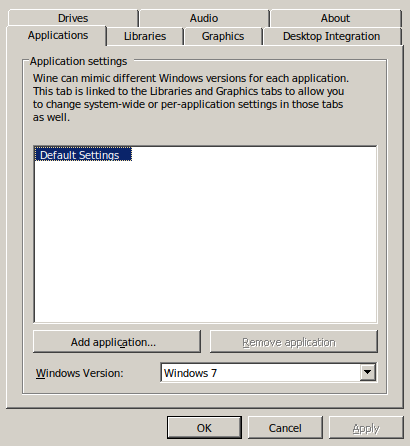

    Applications Tab
    Windows version: Windows 7


    Libraries Tab
    Enter the following libraries:
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    Select each one and click Edit
    Select "Windows (Native)" for each library
    Click OK on each one
    Click Apply

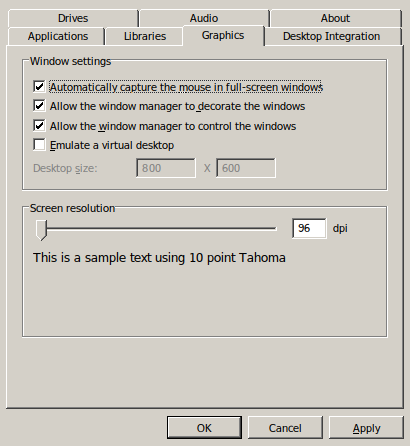

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"
    Click OK


    PlayOnLinux Packages (DLLs, Libraries, Components)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_physx
    • POL_Install_tahoma
    • POL_Install_xact
    Click Next


    Note: All packages should automatically download and install

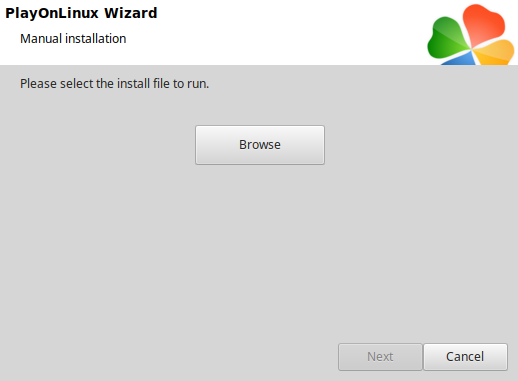

    Do not click "Browse"
    Click Cancel because Gray Dawn does not have an installer


    Download Gray Dawn demo from itch.io
    https://interactivestone.itch.io/gray-dawn
    Save it to your Desktop

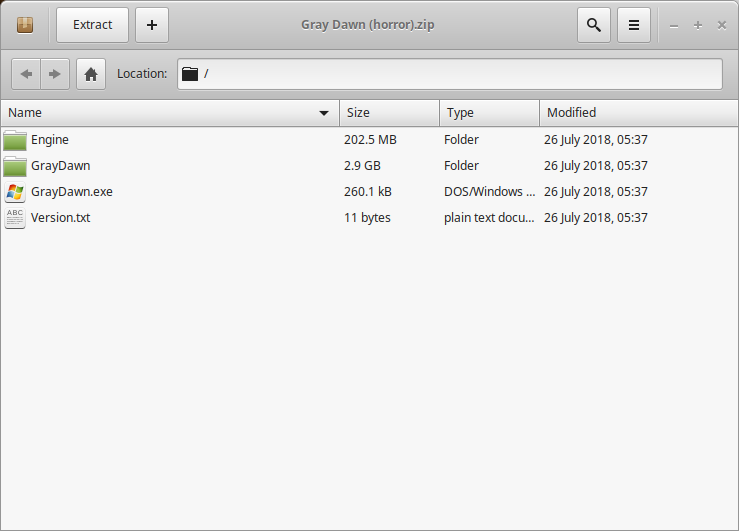

    Open with your Archive Manager
    Click Extract

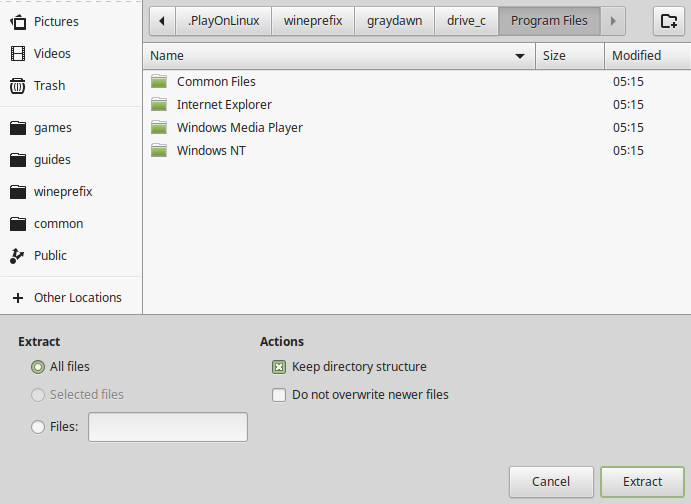

    Navigate to Program Files
    Full path: /home/username/.PlayOnLinux/wineprefix/graydawn/drive_c/Program Files
    Click New Folder
    Name it Gray Dawn
    Open it
    Click Extract


    Click "Show the Files"


    Installing DXVK

    More information: Setting up DXVK

    Download DXVK 1.0.1
    https://github.com/doitsujin/dxvk/releases/tag/v1.0.1

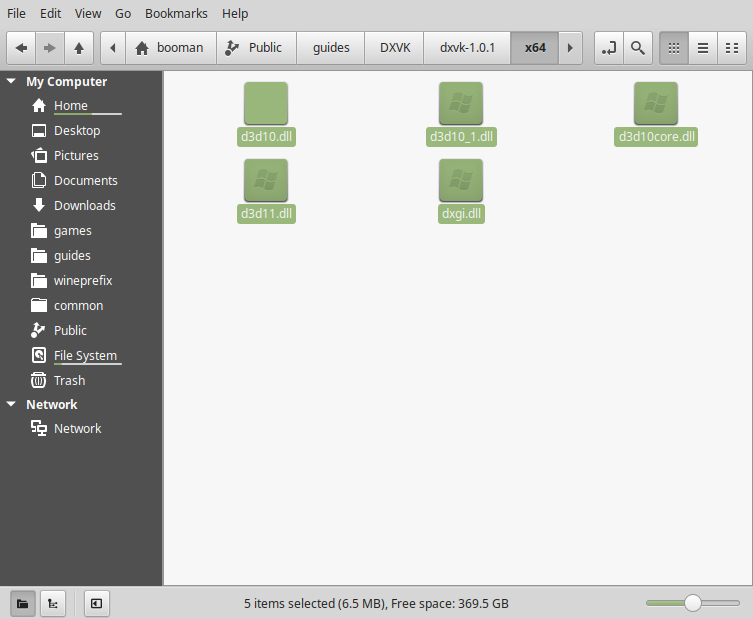

    Open the 64-bit directory
    Copy all DLLs


    Paste them in the GrayDawn-Win64-Shipping.exe Folder
    Full Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/graydawn/drive_c/Program Files/GrayDawn/GrayDawn/Binaries/Win64/

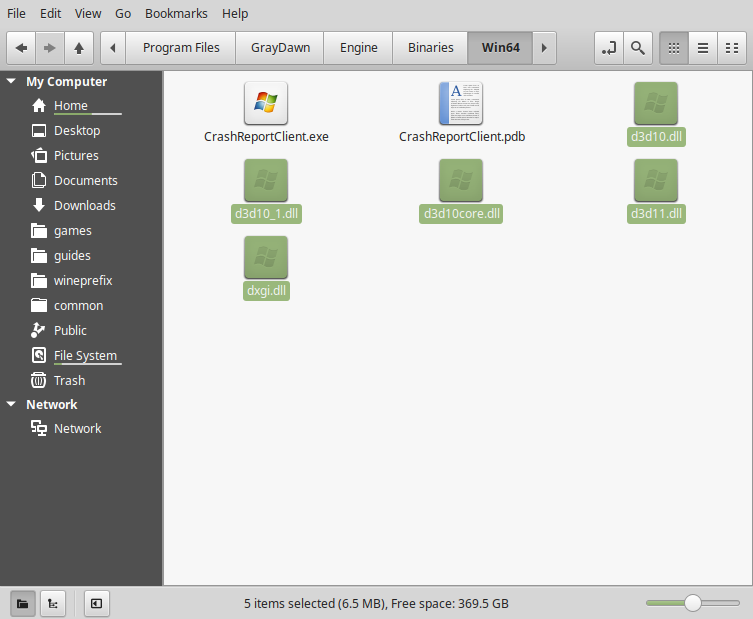

    Also paste them in the CrashReportClient.exe Folder as well
    Full Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/graydawn/drive_c/Program Files/GrayDawn/Engine/Binaries/Win64/

    PlayOnLinux Shortcut

    Back to PlayOnLinux
    Click Configure


    General Tab

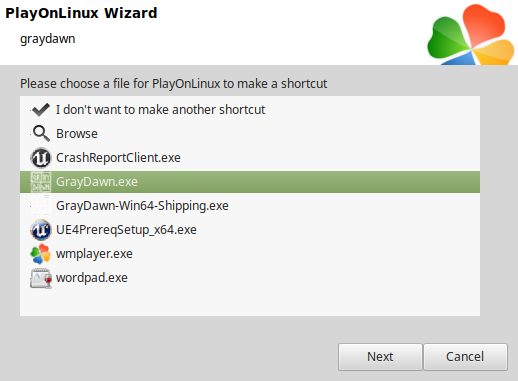

    Click "Make a new shortcut from this virtual drive"


    Select "GrayDawn.exe"
    Click Next


    Name the shortcut: Gray Dawn
    Click Next

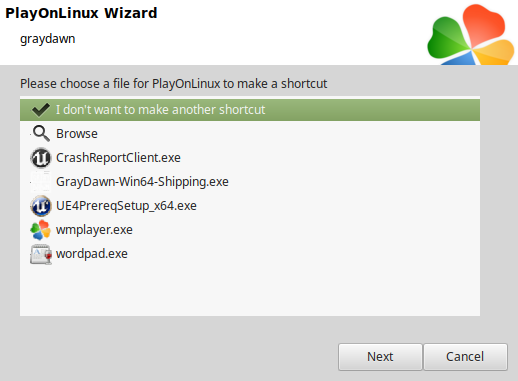

    Select "I don't want to make another shortcut"
    Click Next

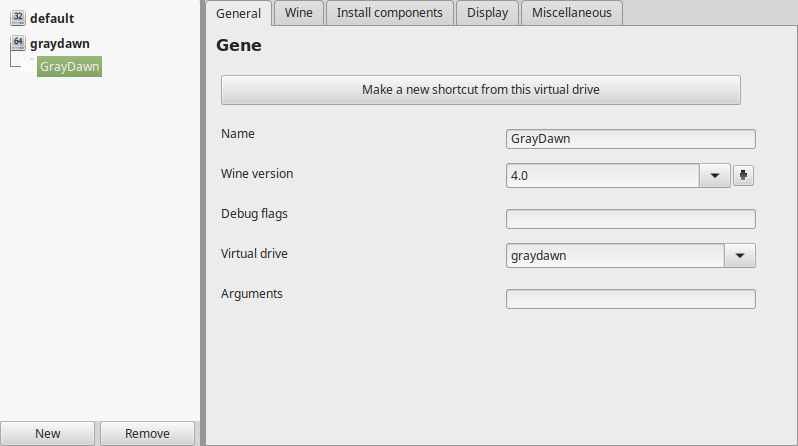

    Back to Configure

    General Tab
    Wine version: 4.0


    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of Wine

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses


    Close Configure

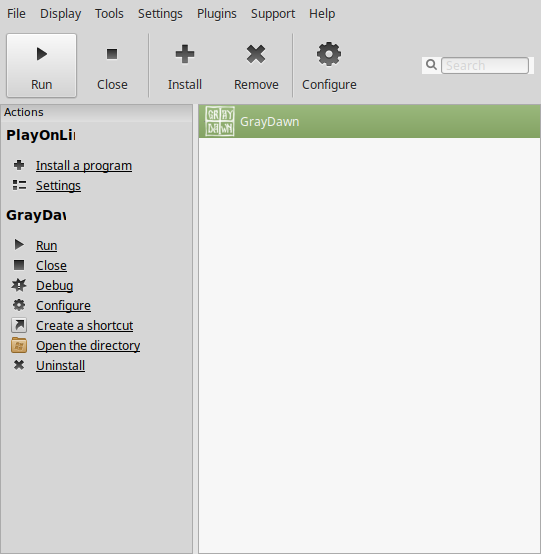

    Select "Gray Dawn"
    Click Run


    Note: Click debug to see bugs and errors

    Warning, Gray Dawn may crash the first time. Try launching it again and it should work.

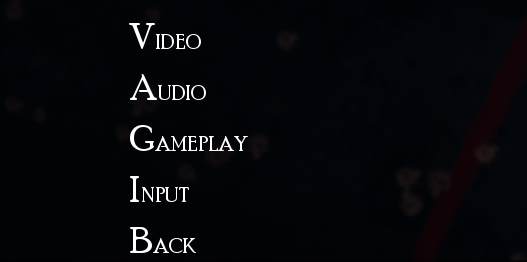

    Optimization

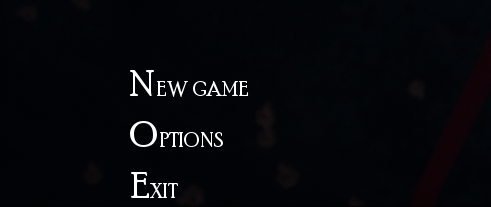

    Click Options

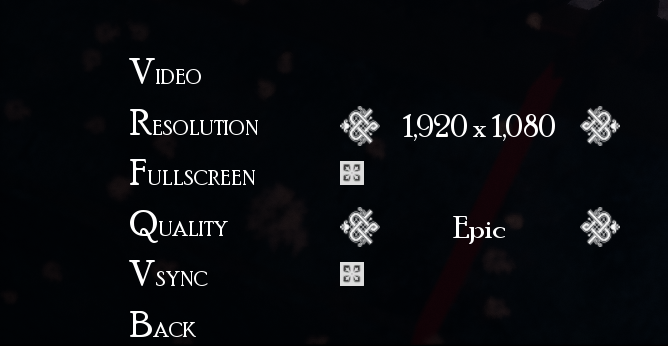

    Click Video


    Adjust:
    • Resolution
    • Fullscreen
    • Quality
    • Vsync
    Click Apply


    Conclusion:
    At first launch the game crashed with out any serious errors... so after running it again the game launched perfectly. It also ran a bit slow on my GeForce GTX 1060, so I turned off Vsync in the video options. Then it ran much smoother.

    Turns out, as I kept playing the demo, there are some outside areas that do not run very smoothly. Adjusting video settings in-game doesn't help much as it doesn't adjust properly.
    Working on a solution...

    Gameplay Video:

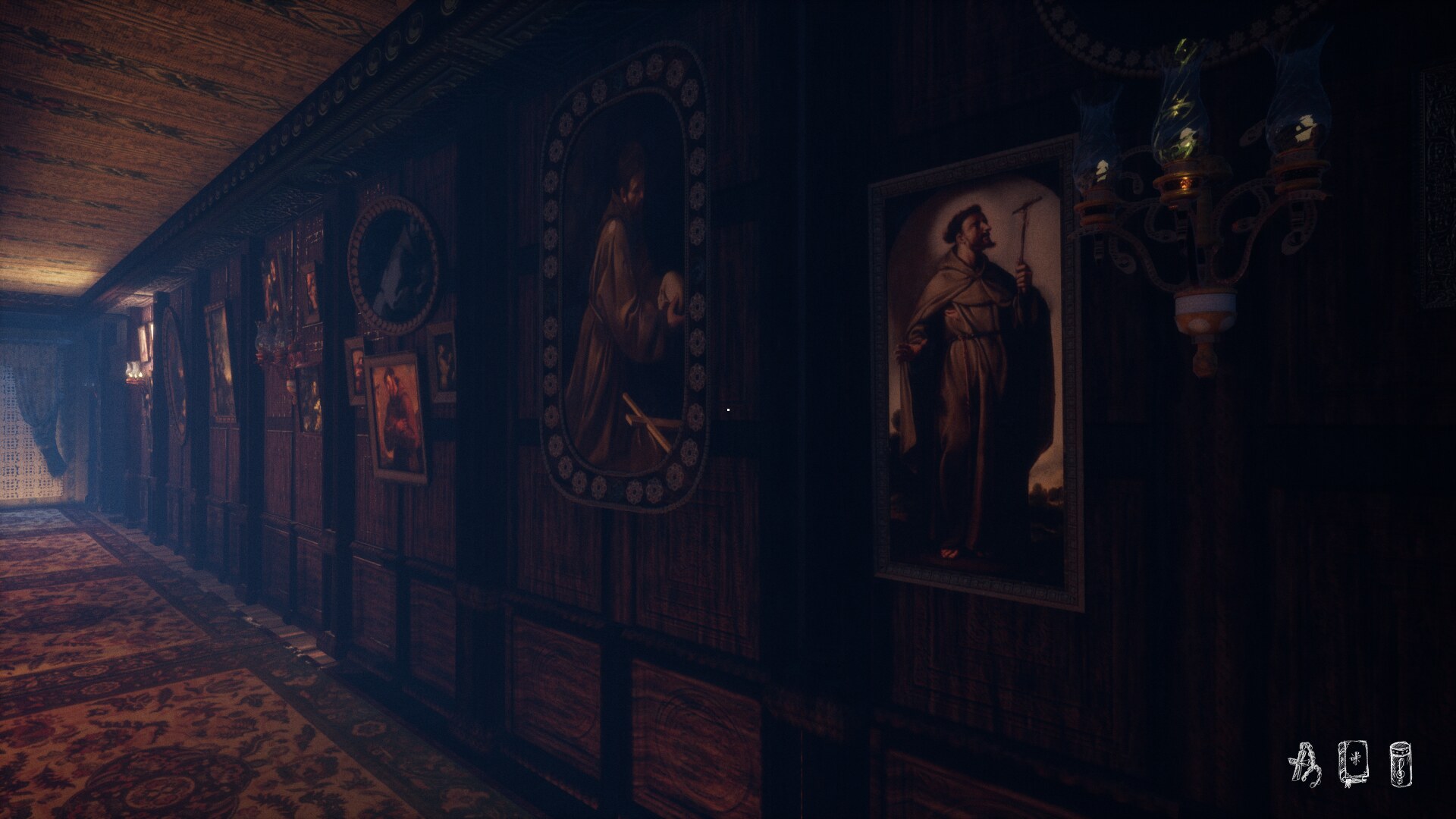

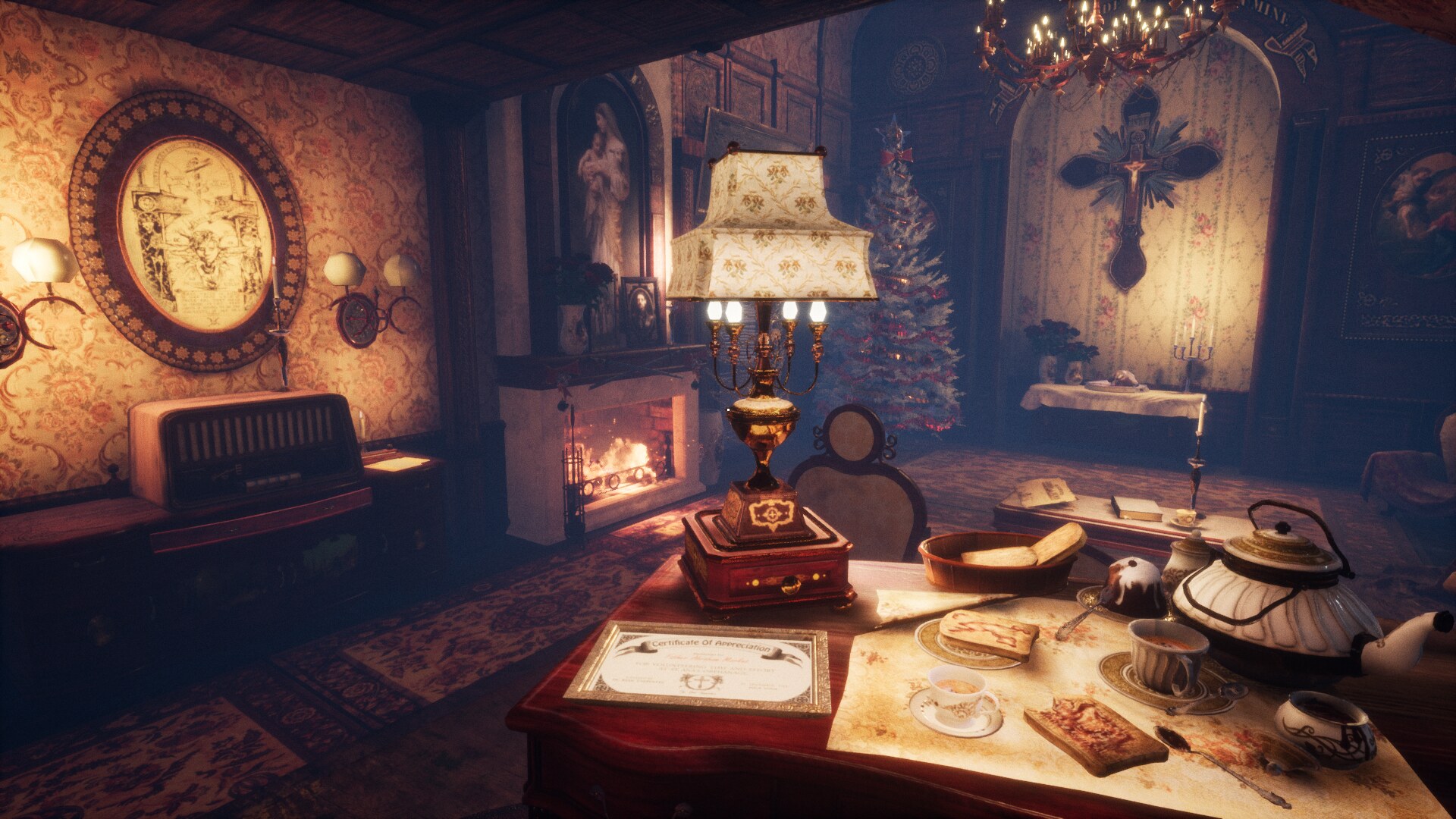

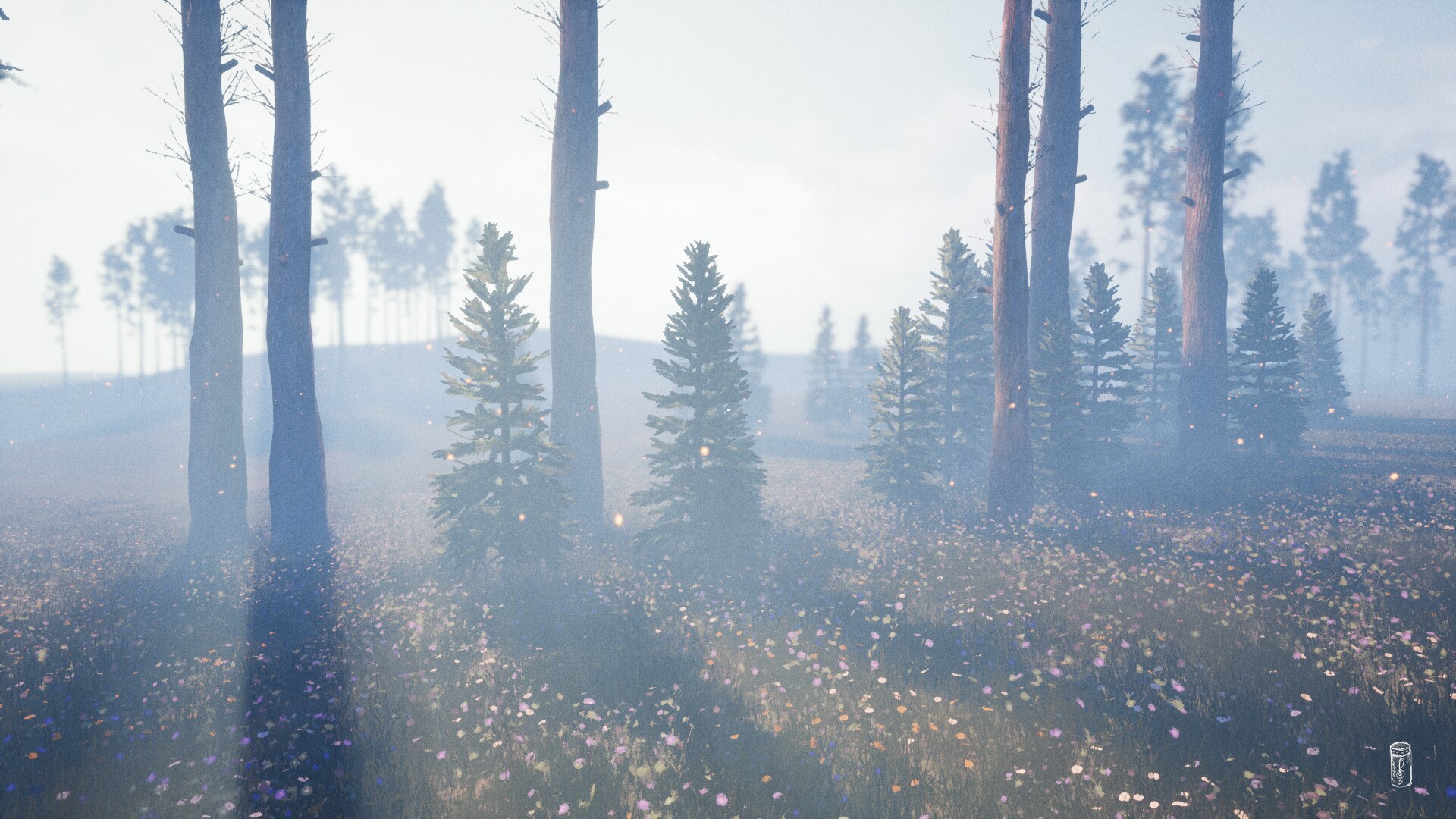

    Screenshots:






    Last edited: Jan 7, 2020

Comments

Discussion in 'Guides' started by booman, Apr 6, 2019.

  1. booman
    I'm experiencing some problems with the outdoor area and performance.
    The frame rate goes way down in the second outdoor area with the water and pipes.
    Working on a solution by manually adjusting video settings with config files.
