    Prototype is an open-world action sandbox game where you play as Alex Mercer, a shape shifter who's abilities come in many forms like claws, blades, super jump, sprint, climbing walls and many more. Battle against zombies, monsters, military soldiers and mutated creatures as you explore Mathattan rooftops, skyscrapers and crowded streets.


    Follow my step-by-step guide on installing, configuring and optimizing Prototype in Linux with PlayOnLinux.

    Note: This guide applies to the Steam version of Prototype. Other versions may require additional steps.

    Tips & Specs:

    Try SteamPlay before using this guide as Valve now uses a fork of Wine called Proton and should run most Windows games.


    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 17.3 64-bit
    PlayOnLinux: 4.2.10
    Wine: 1.8

    Wine Installation

    Note: Wine versions older than 2.0.2 and 2.12-staging no longer work with Steam.

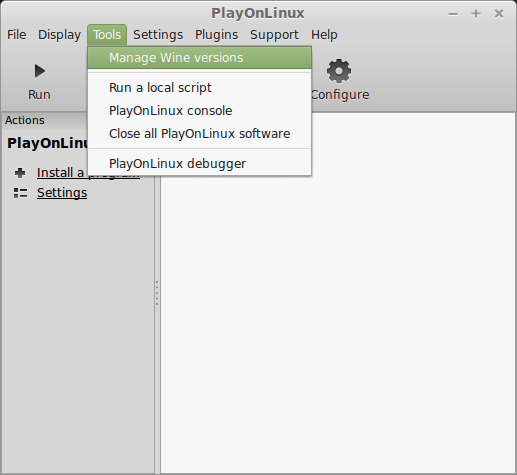

    Click Tools

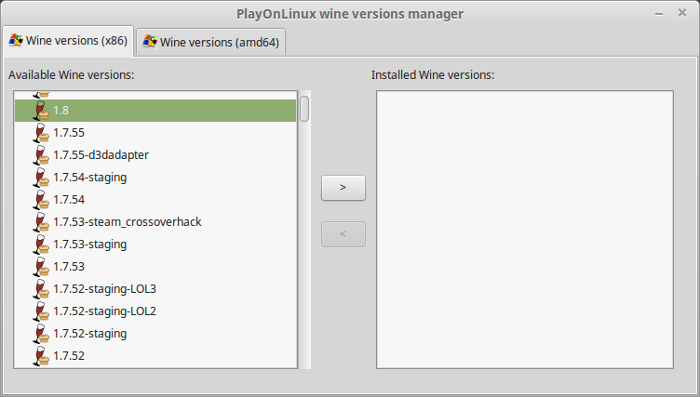

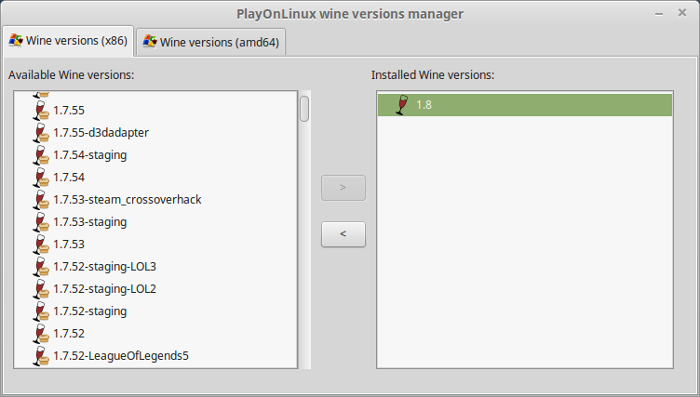

    Select "Manage Wine Versions"

    Look for the Wine Version: 1.8
    Select it
    Click the arrow pointing to the right

    Click Next

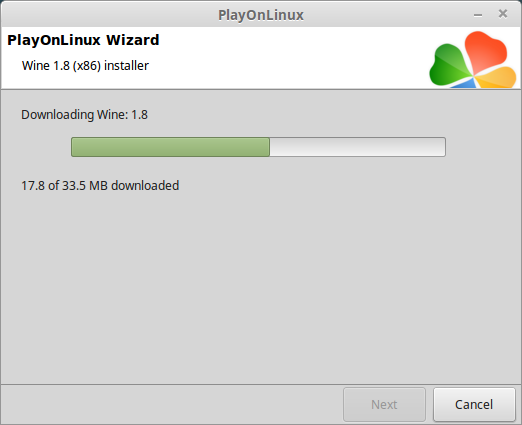

    Downloading Wine

    Extracting

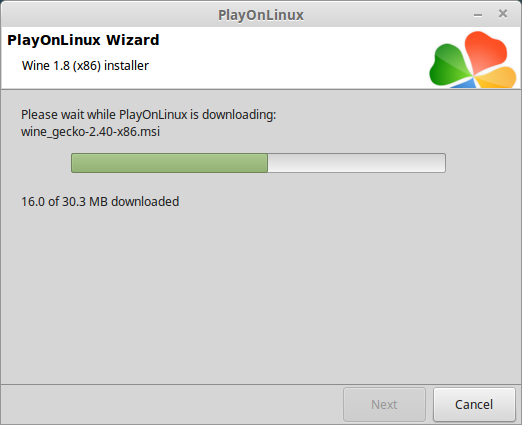

    Downloading Gecko

    Installed

    Wine 1.8 is installed and you can close this window

    Downloading Steam

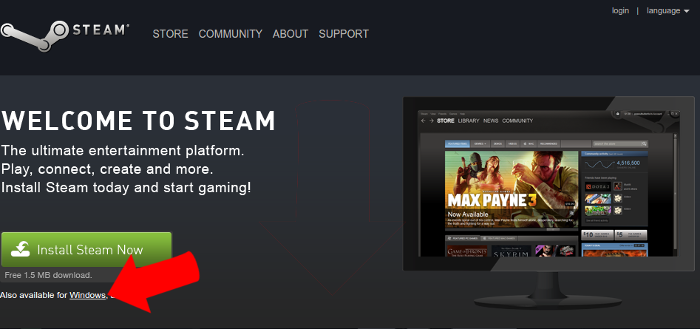

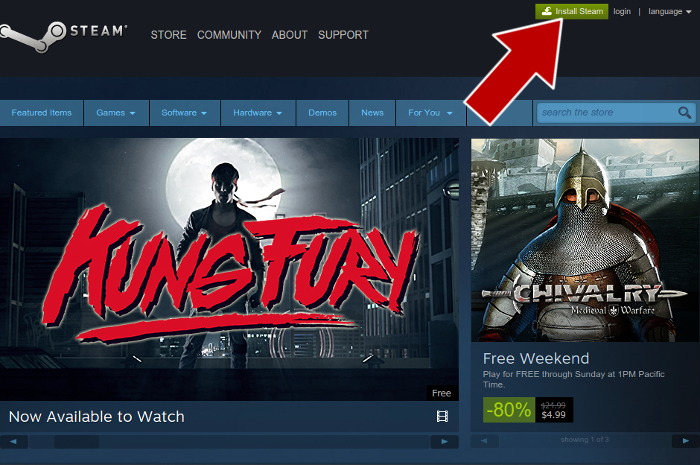

    Go To: http://www.steampowered.com
    Click Install Steam

    Do not click "Install Steam Now"
    It will automatically install Linux Steam
    Select Windows Steam instead
    click "Windows" under the green button

    Navigate to your desktop
    Click Save

    PlayOnLinux Setup

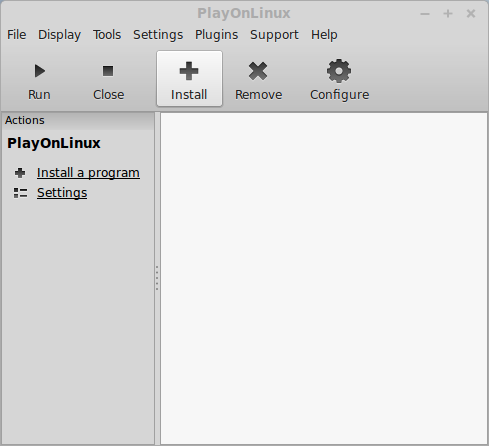

    Launch PlayOnLinux
    Click Install

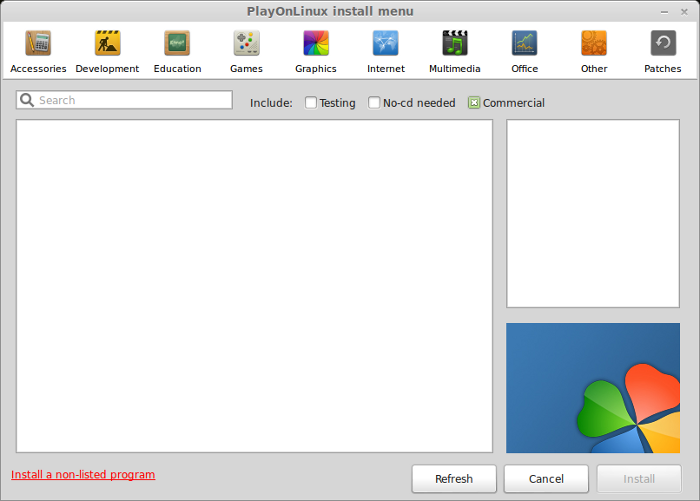

    Click "install a non-listed program"

    Click Next

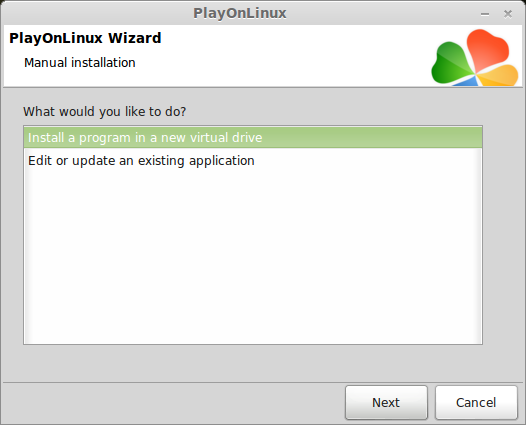

    Select "Install a program in a new virtual drive"
    Click Next

    Name your virtual drive: prototype
    Click Next

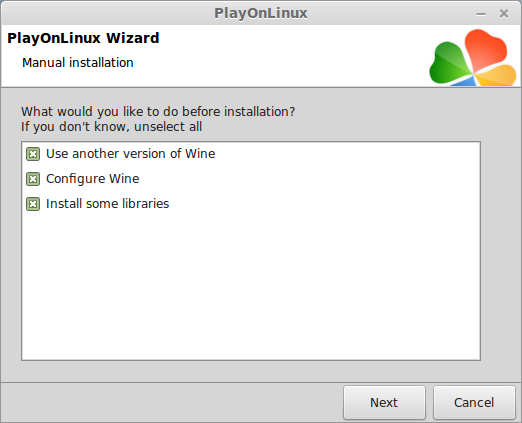

    Select all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

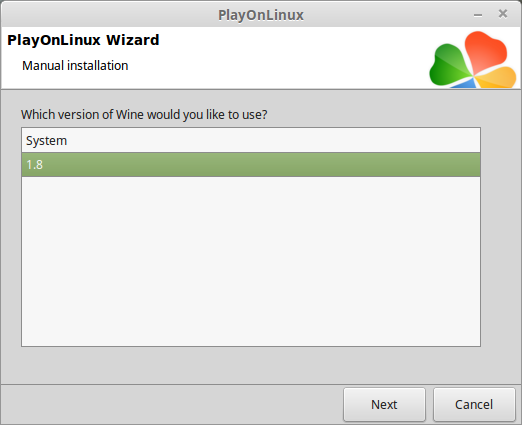

    Select Wine 1.8
    Click Next

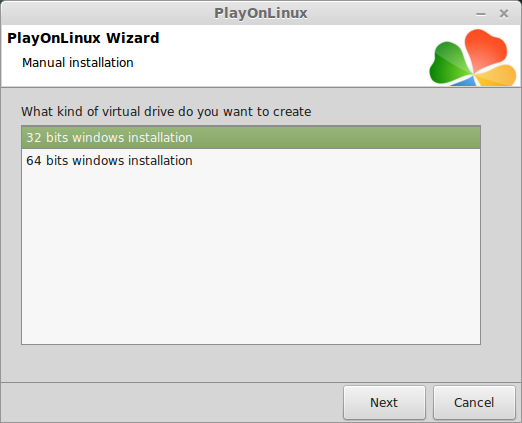

    Select "32 bits windows installation"
    Click Next

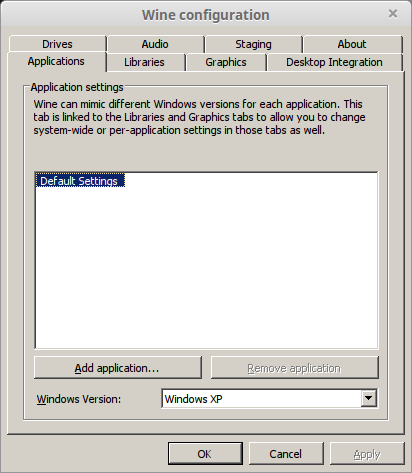

    Configure Wine

    Applications Tab
    Windows Version: Windows 7
    Click Apply

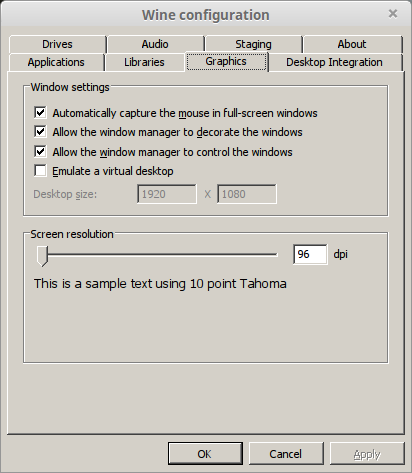

    Graphics Tab
    Check: Automatically capture the mouse in full-screen windows
    Leave virtual desktop unchecked
    Click Ok

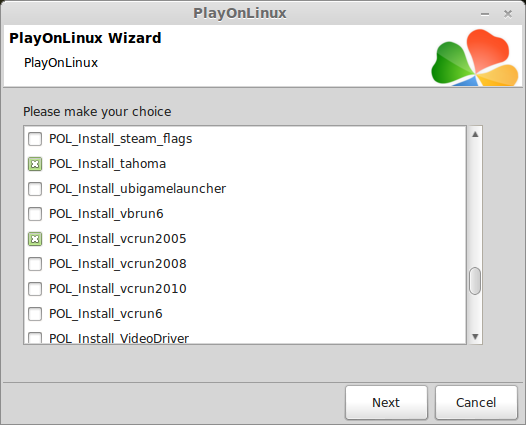

    PlayOnLinux Packages (Libraries, Components, DLL's)

    Check the following libraries:
    • POL_Install_corefonts
    • POL_Install_directx9
    • POL_Install_tahoma
    Click Next

    Note: All packages will automatically download and install

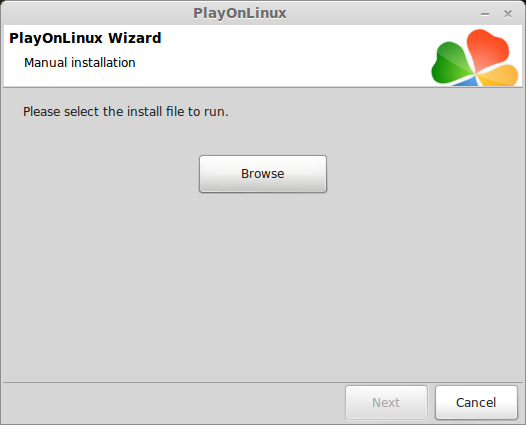

    Installing Steam

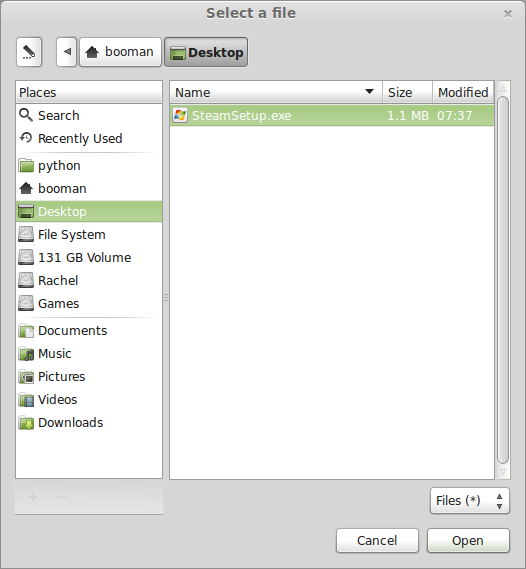

    Click Browse

    Navigate to your desktop
    Select: SteamSetup.exe
    Click Open

    Click Next

    Click Next

    Check: I accept the license...
    Click Next

    Click Next

    Click Next

    Click Install

    Click Finish

    Updating Steam

    Click the "X" to close Steam login

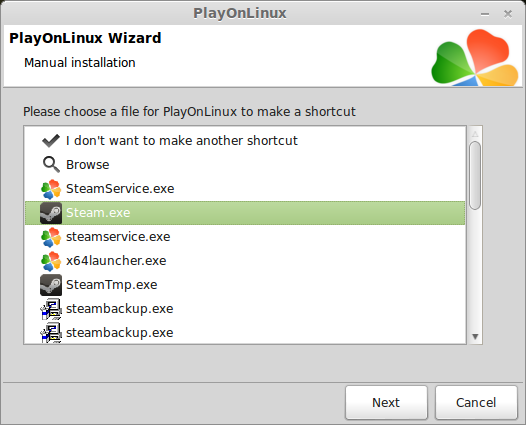

    PlayOnLinux Shortcut

    Select Steam.exe
    Click Next

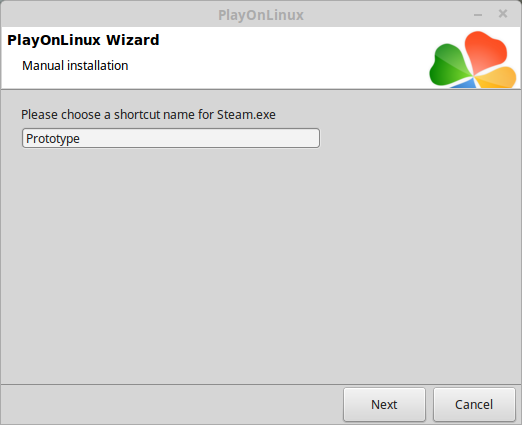

    Name your shortcut: Prototype
    Click Next

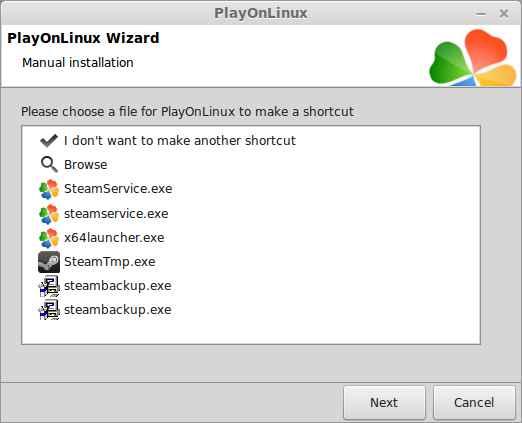

    Select "I don't want to make another shortcut"
    Click Next

    PlayOnLinux Configure

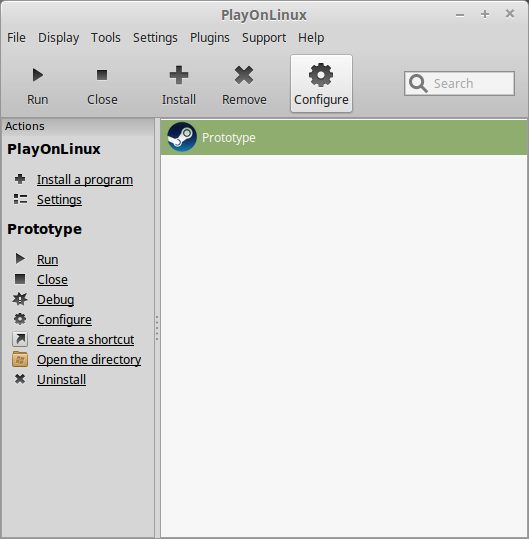

    Back to PlayOnLinux
    Click Configure

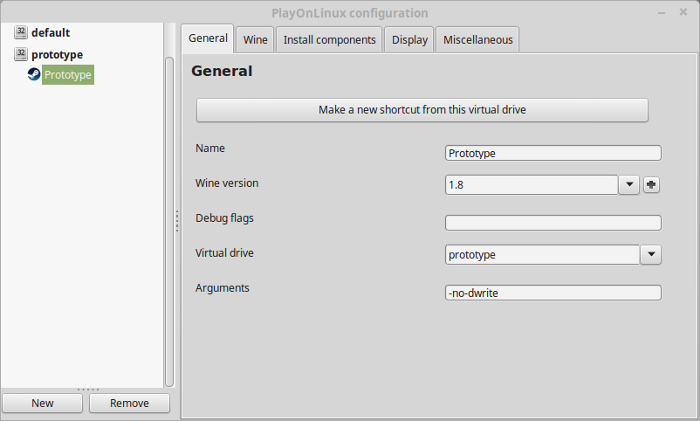

    General Tab
    Arguments: -no-dwrite -no-cef-sandbox
    This fixes the missing font and store problem

    Note: Click the + to download other versions of Wine. Click the down-arrow to select other versions of wine

    Display Tab
    Video Memory Size: Select the size of Memory your video card/chip uses
    Strict Draw Ordering: enabled

    Note: Enabling Strict Draw Ordering is very important because it fixes a bunch of graphical artifacts

    Close Configure

    Launching Steam

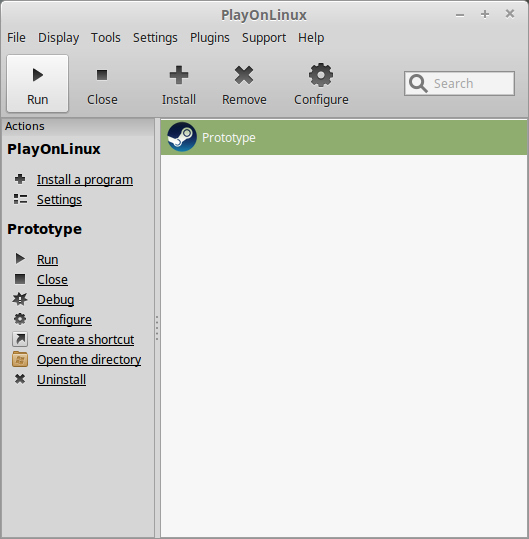

    Select Prototype
    Click Run

    Note: Click debug to see errors and bugs

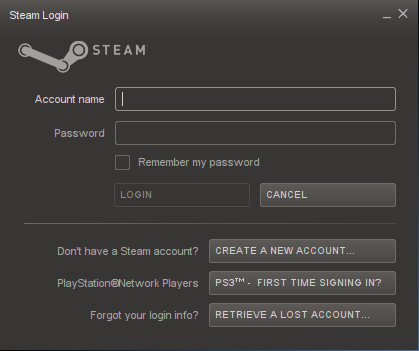

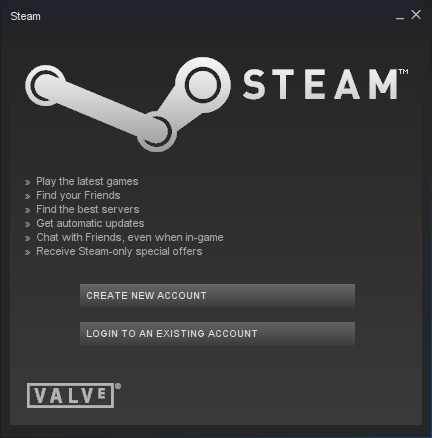

    Click "Login to existing account"

    Login

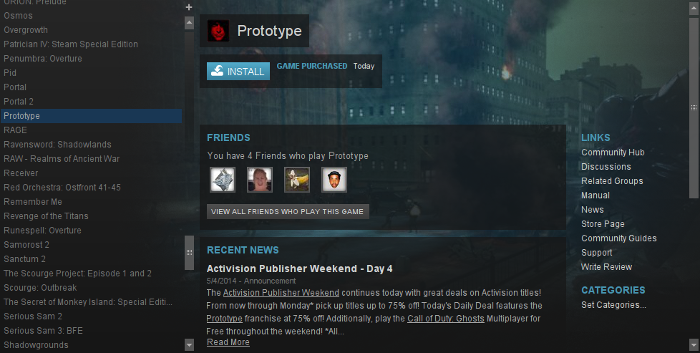

    Installing Prototype

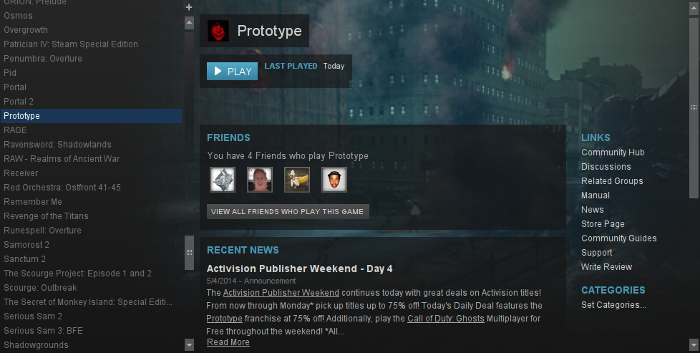

    Select Prototype in your Library
    Click Install

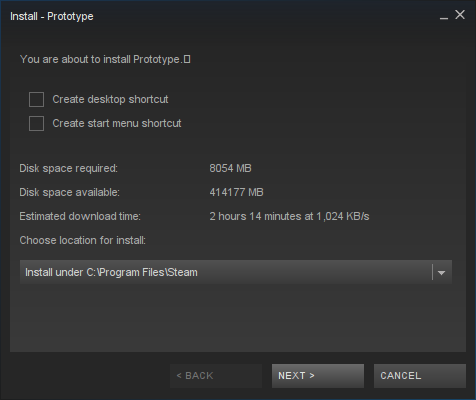

    Uncheck "Create desktop shortcut"
    Uncheck "Create start menu shortcut"
    Click Next

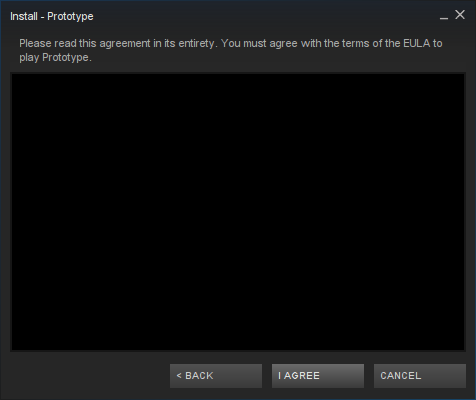

    Click "I Agree"

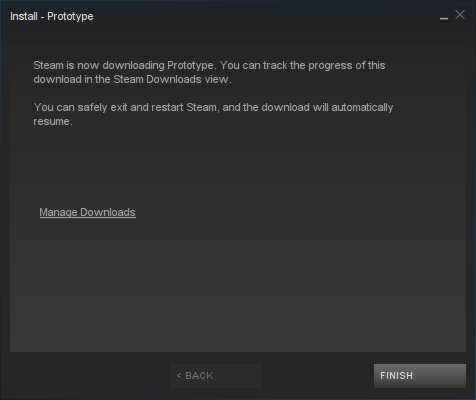

    Click Finish

    Screen Resolution Fix

    Go to: https://mega.nz/#!29MjlYRa!qt2ai0-ofJQgqbvnB1UXNjOhATlz4cPhR9FAXj4To7o
    Download Prototype_All_Res.zip

    Note: I kept a copy below as well

    Go to Prototype game files
    Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/prototype/drive_c/Program Files/Steam/SteamAppse/Common/Prototype

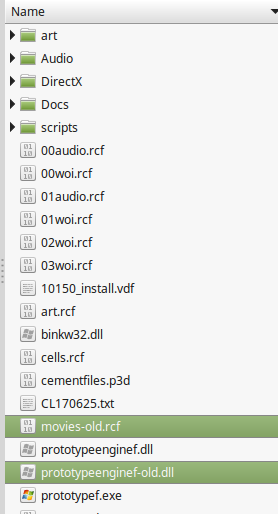

    Rename:
    Code:
    prototypeenginef.dll
    to
    Code:
    prototypeenginef-old.dll
    Rename:
    Code:
    movies.rcf
    to
    Code:
    movies-old.rcf
    Extract prototypeenginef.dll from the Prototye_All_Res.zip to the same directory

    Go back to Steam
    Click Play

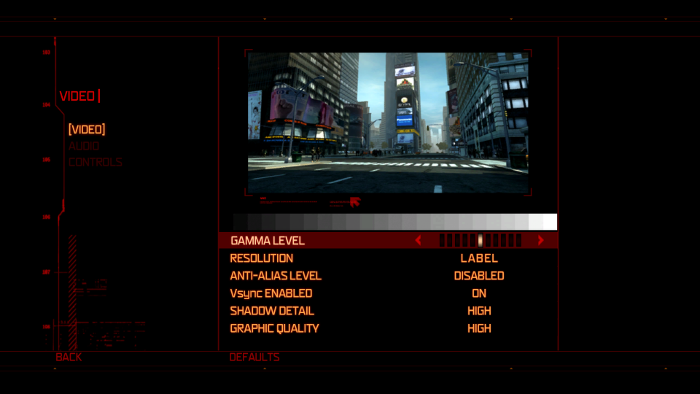

    Optimization

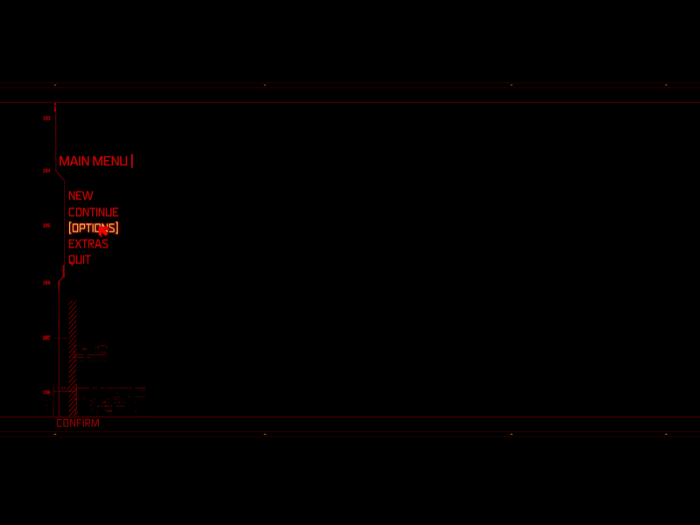

    Click Options

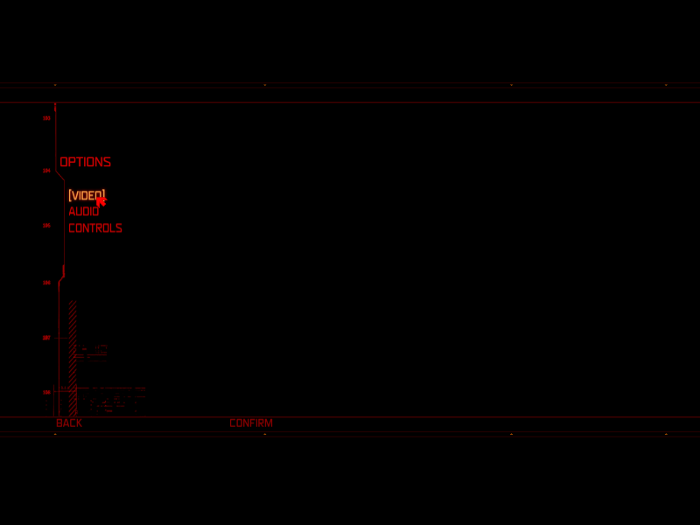

    Click video

    Prototype should already go fullscreen
    Resolution will show "Label"
    That is how you know the prototypeenginef.dll is working

    Adjust:
    • Anti-Alias Level
    • VSync
    • Shadow Detail
    • Graphic Quality

    Conclusion:
    Prototype ran really well on my GeForce 550 Ti once I disabled the videos, enabled Strict Draw Ordering and used the Prototype_All_Res patch. You may experience some crashing with videos and there is no way to predict which one's, but you can cancel cutscenes with Esc or Enter. The game will crash every time if you don't rename the video script file: movies.rcf
    But most of the cut-scenes played fine anyways. A few flickering textures, but still played.

    Gameplay video:

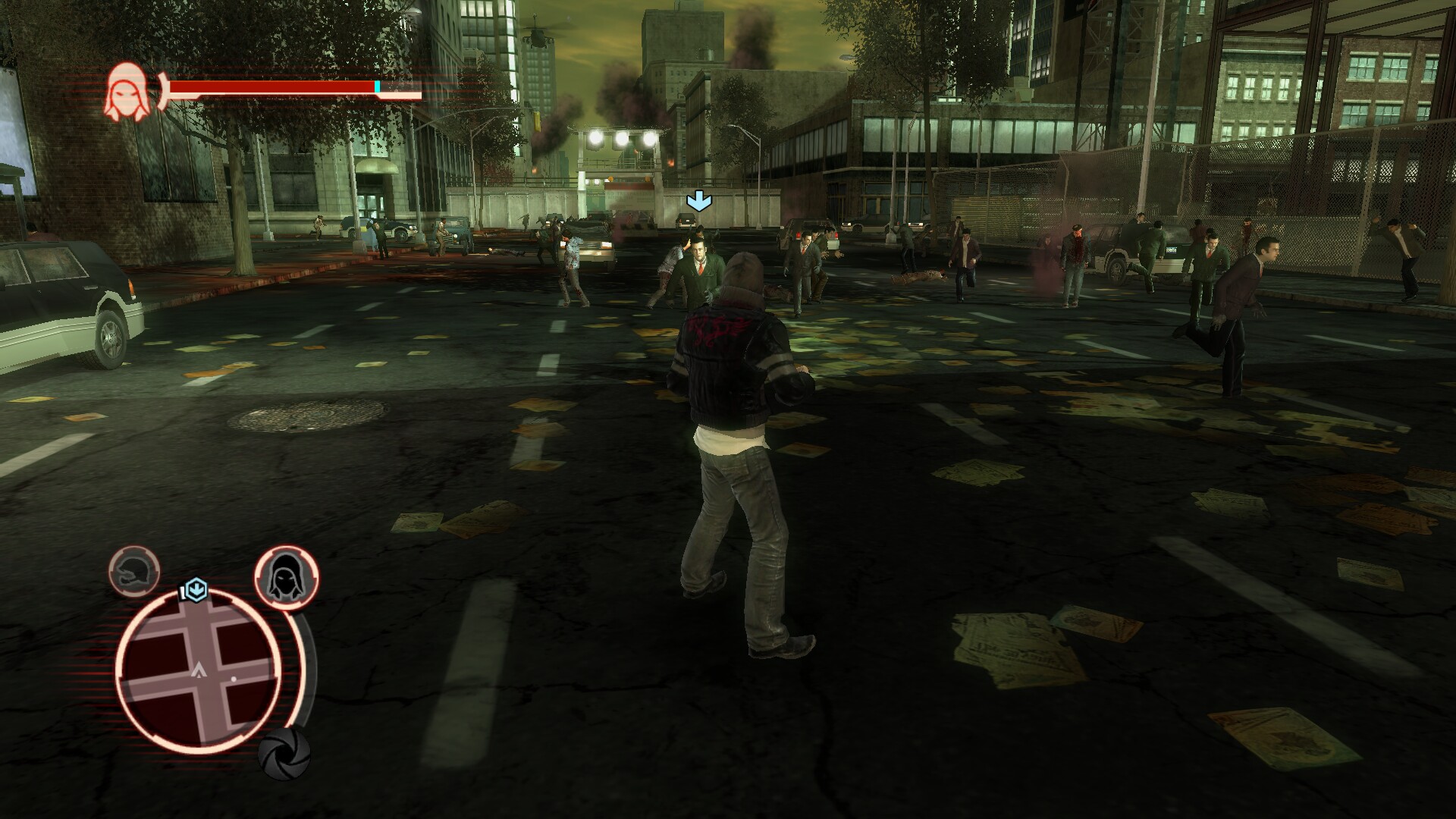

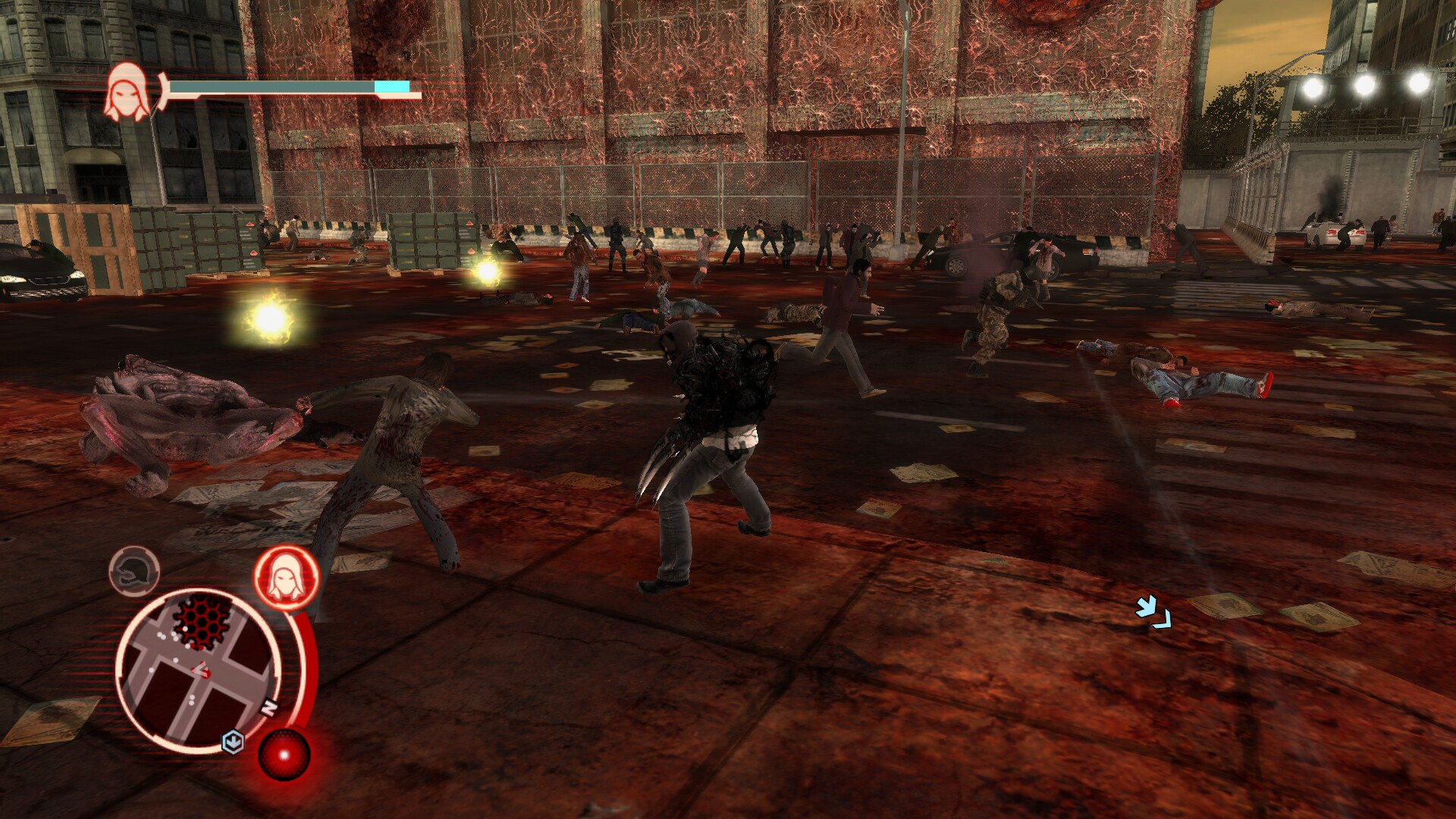

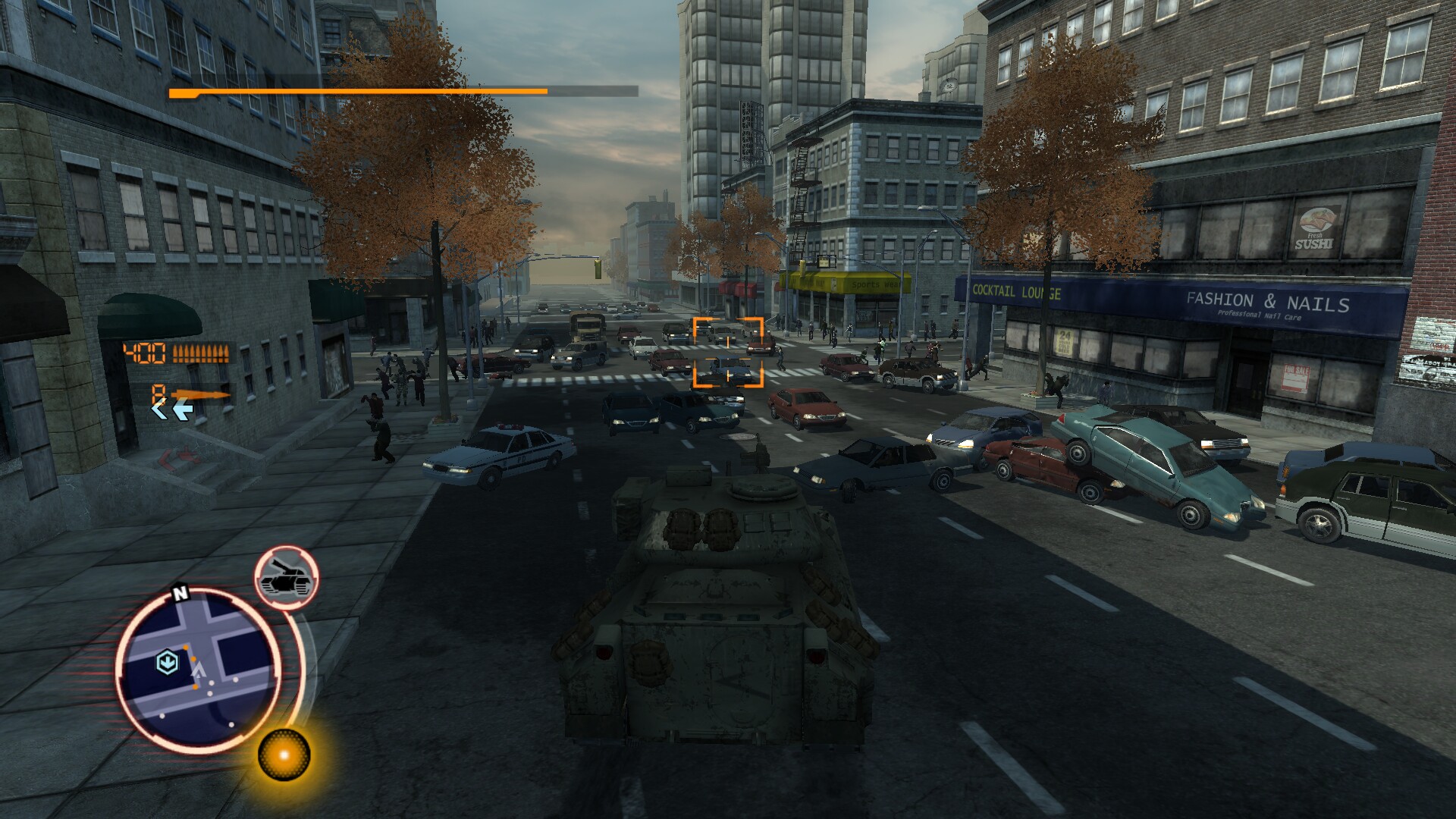

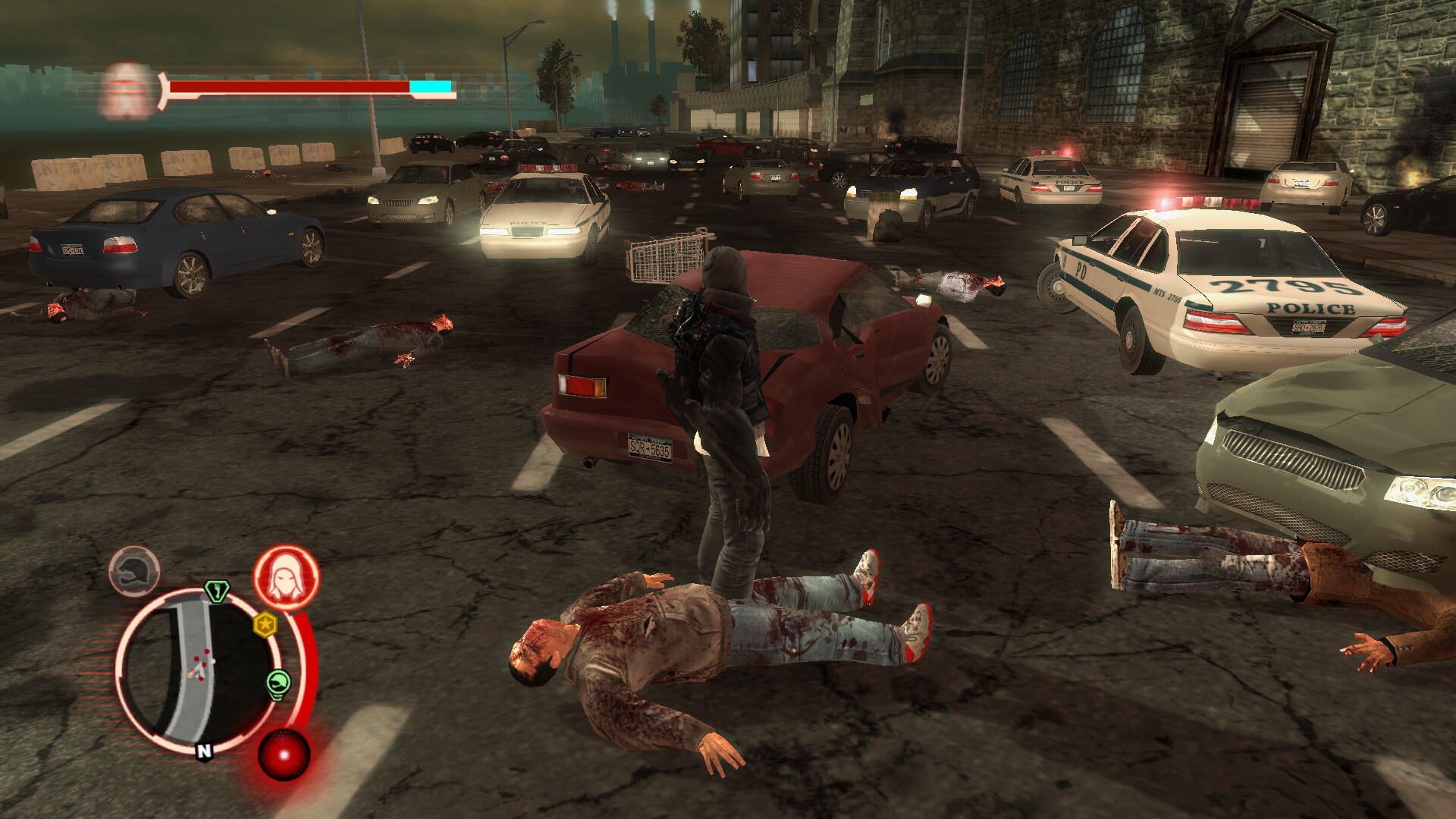

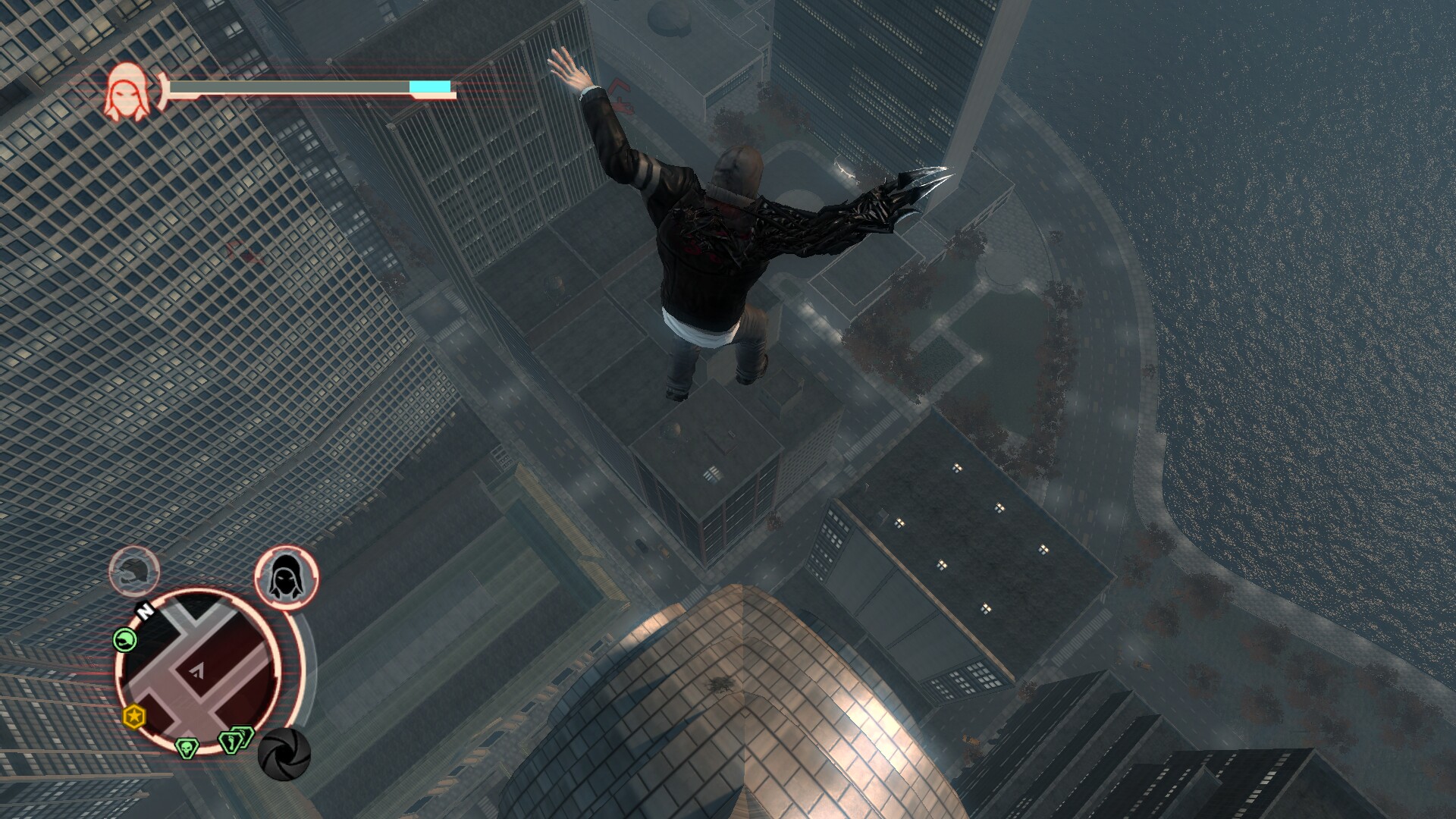

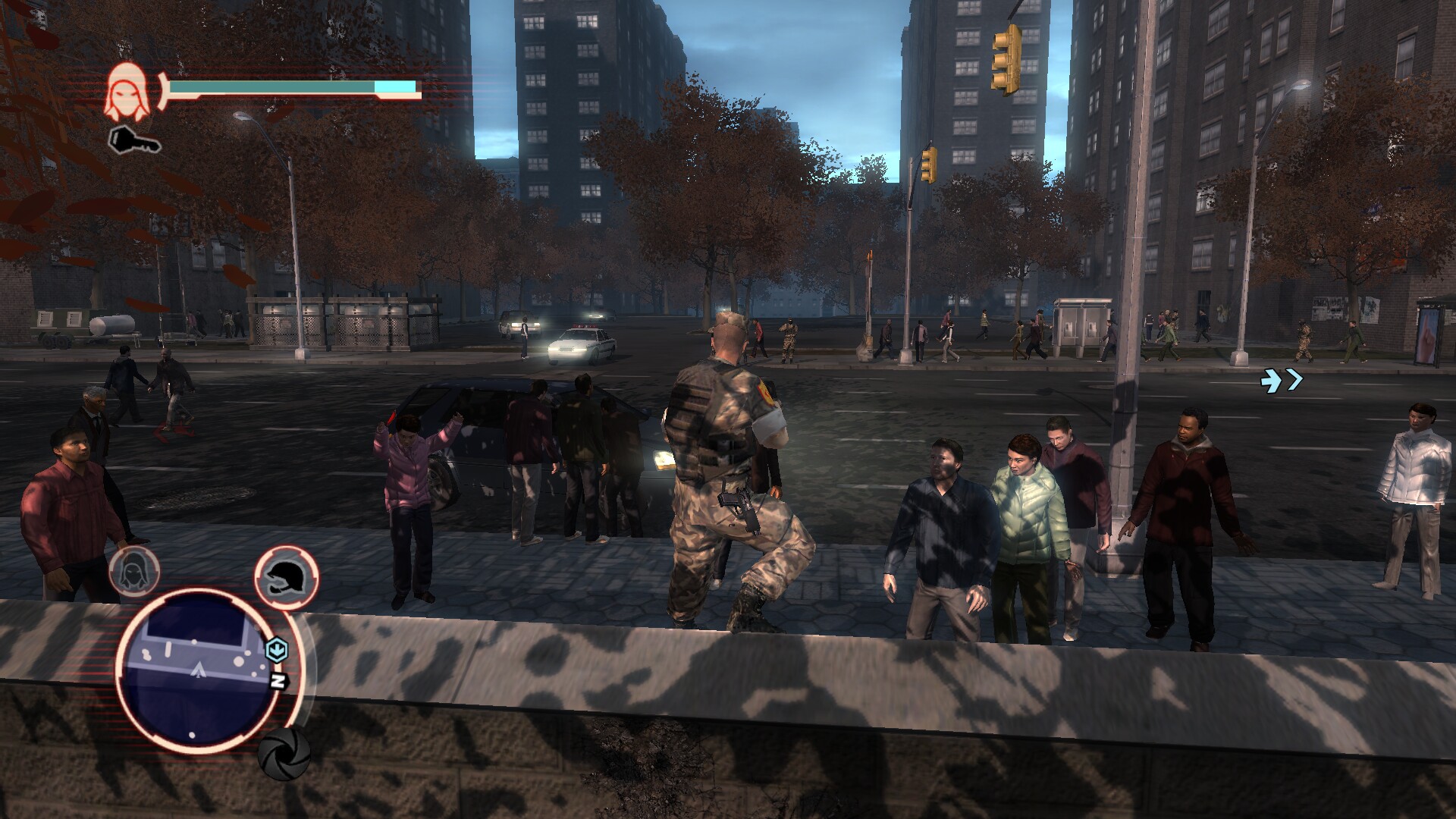

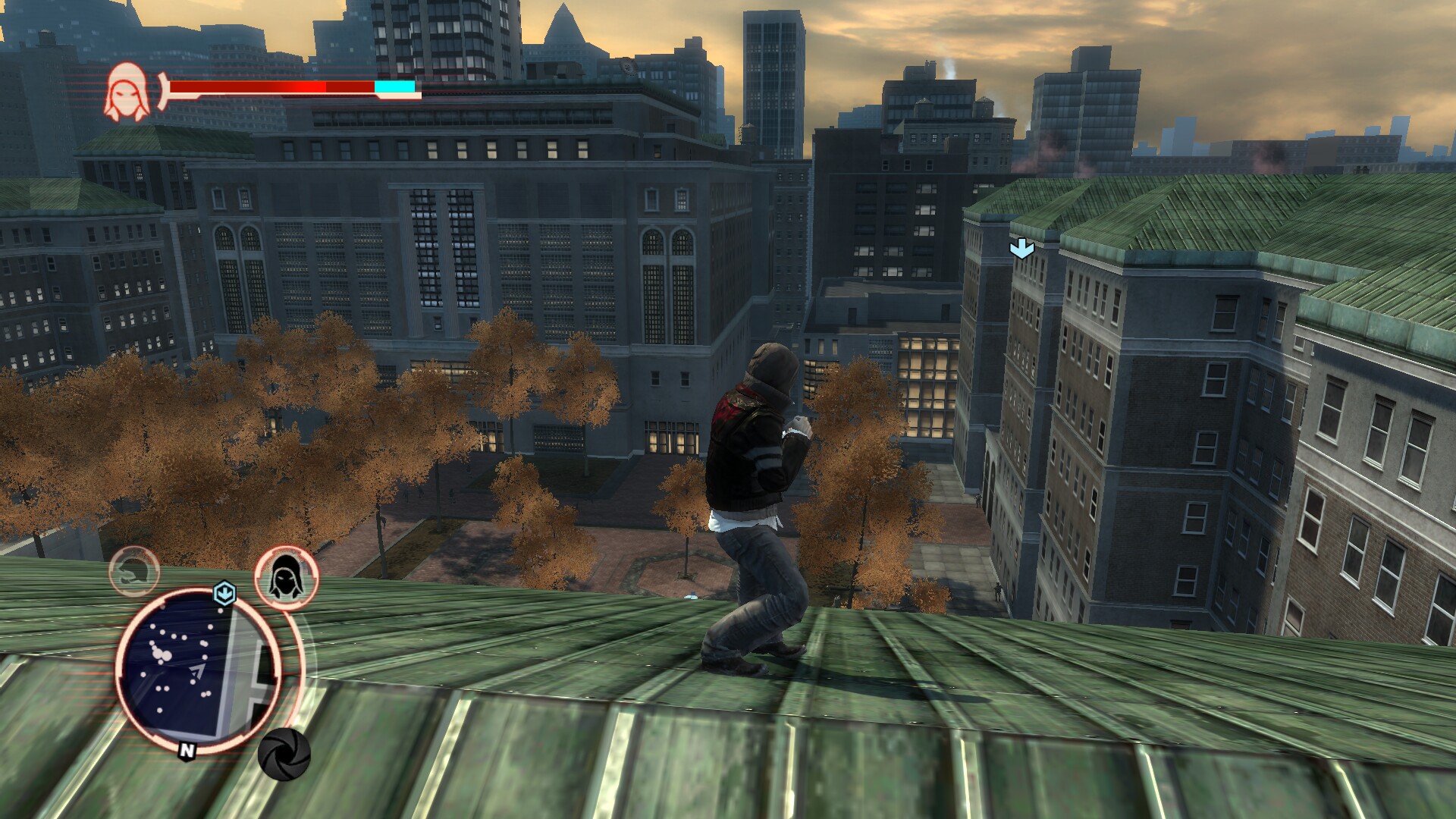

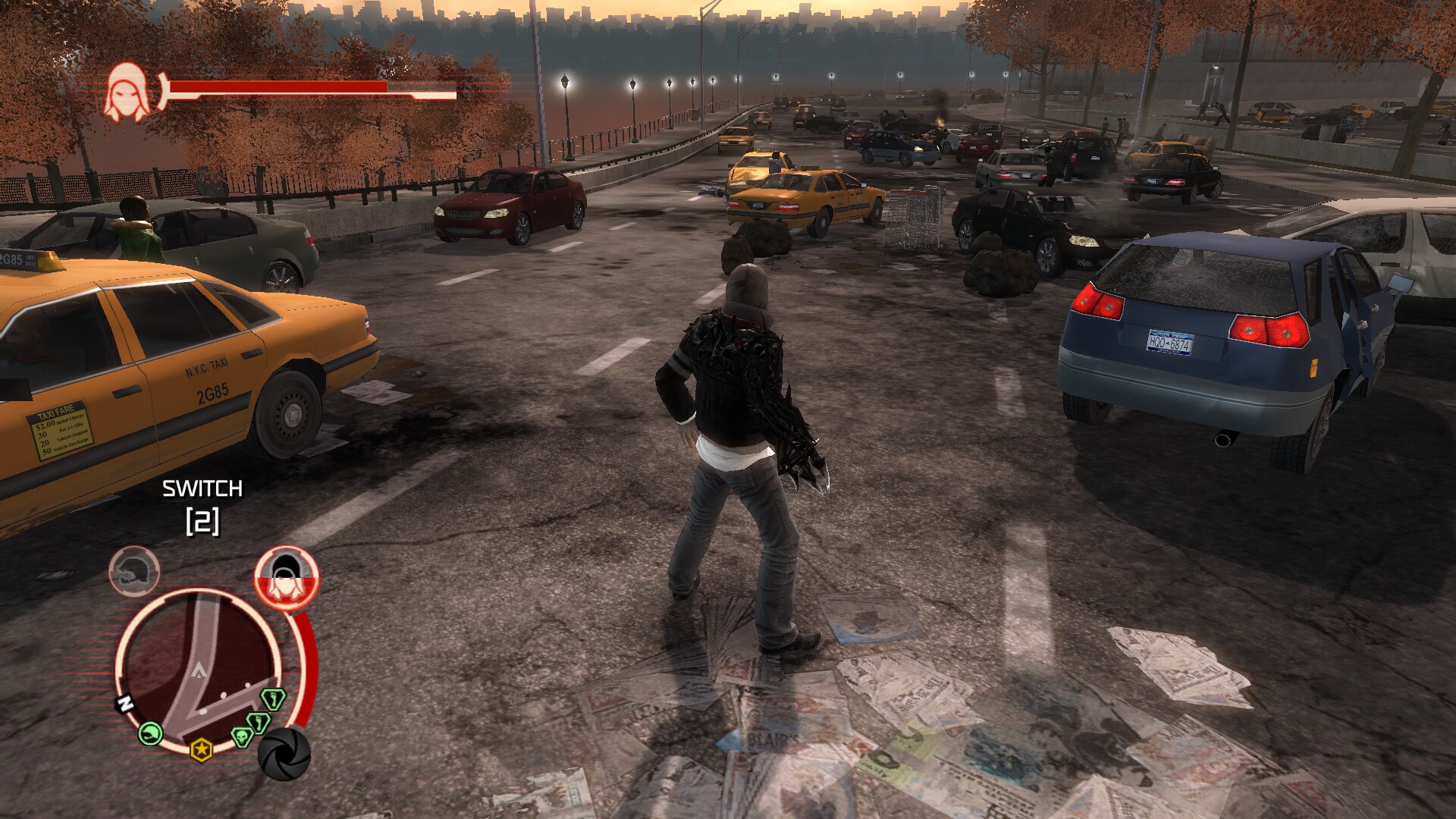

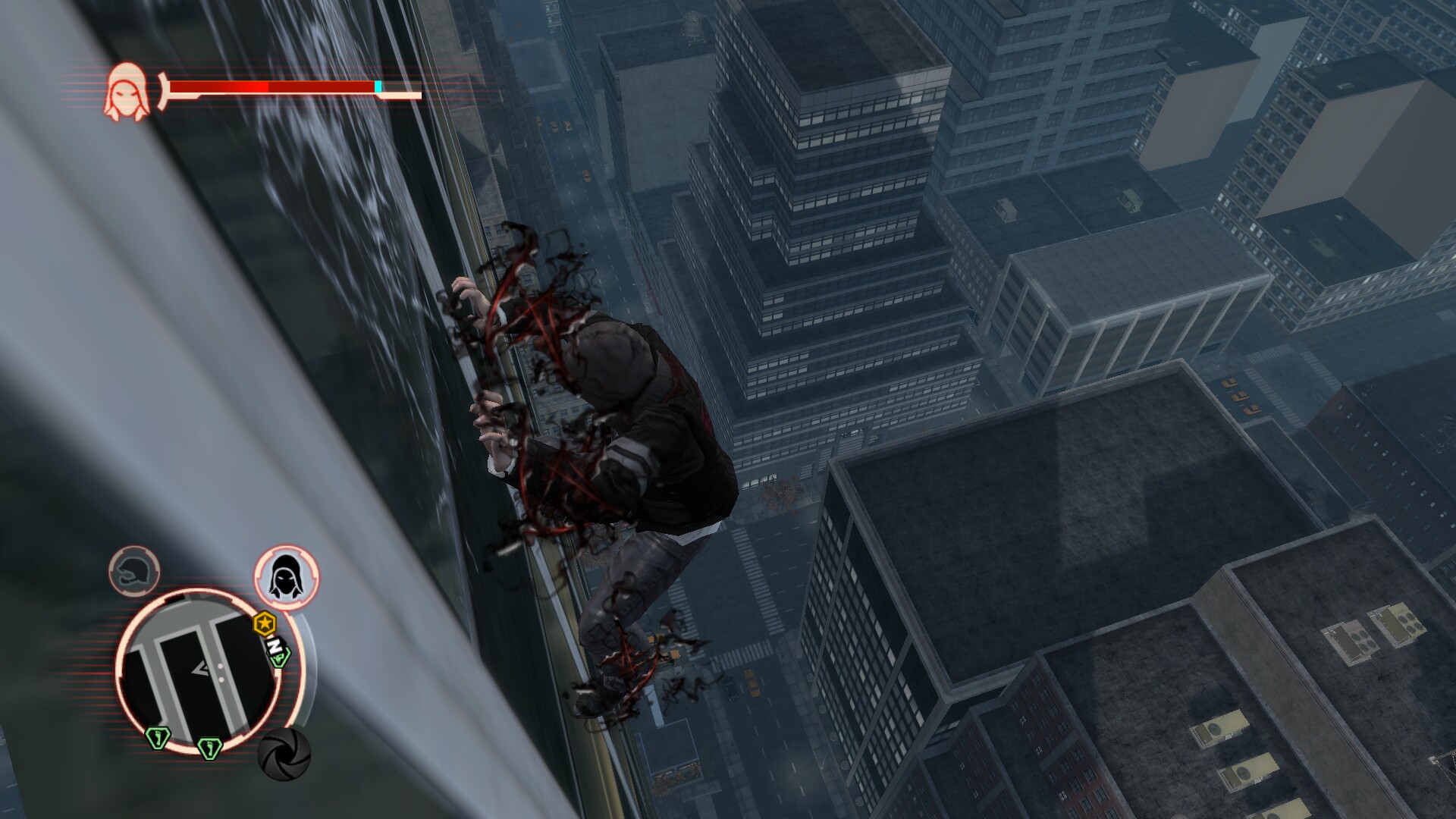

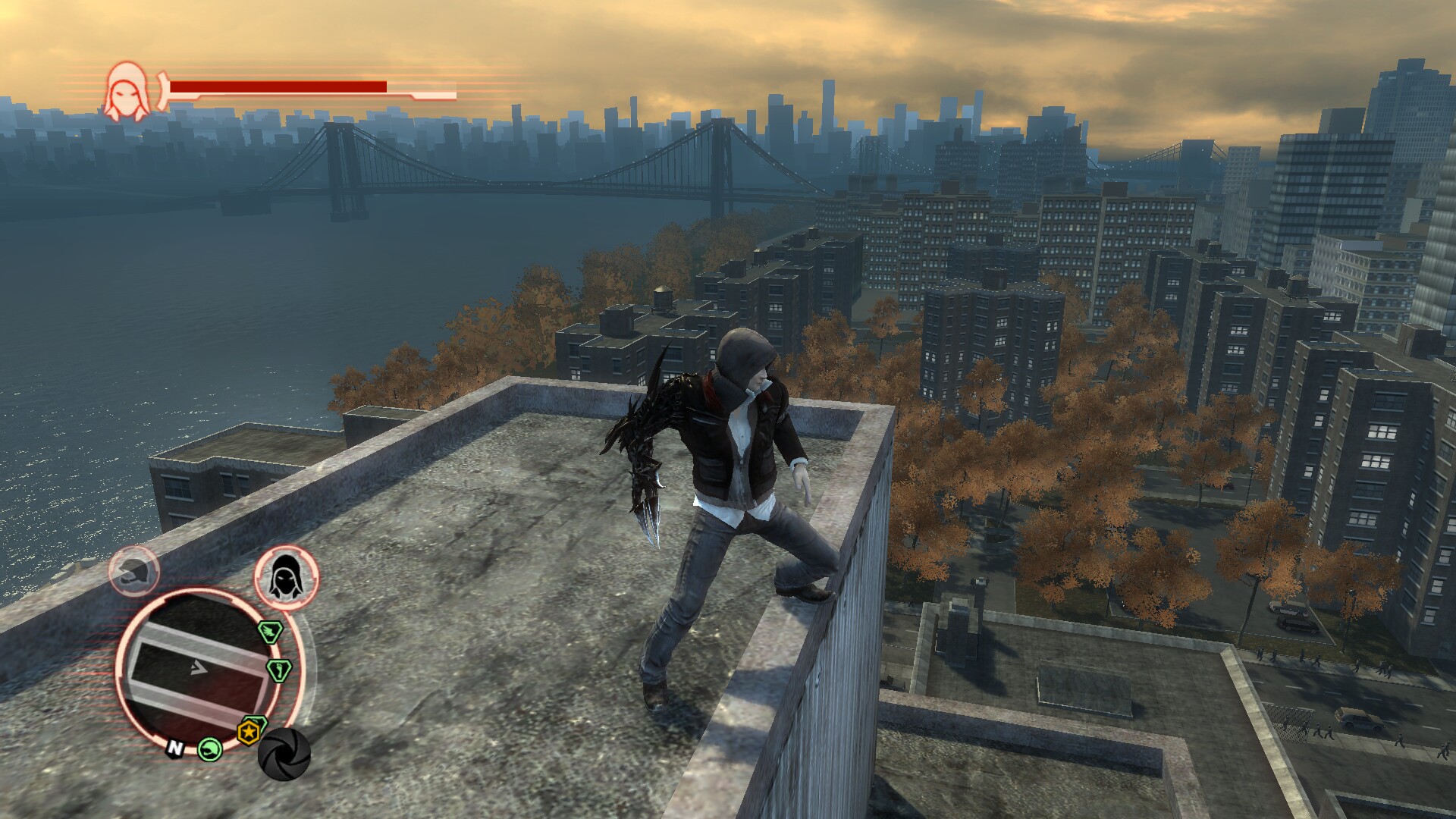

    Screenshots:







    Last edited: Dec 12, 2019 at 5:02 PM
