    Hemoglobin is a first person horror demo taking place in a hospital after something terrible has happened. The hospital is abandoned and you have to find the key to the front door, but you aren't alone...


    Follow my step-by-step guide on installing and configuring Hemoglobin in Linux with PlayOnLinux.

    Note: This guide applies to the itch.io demo version of Hemoglobin. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 4.0

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 4.0
    Select it
    Click the arrow pointing to the right

    Click Next

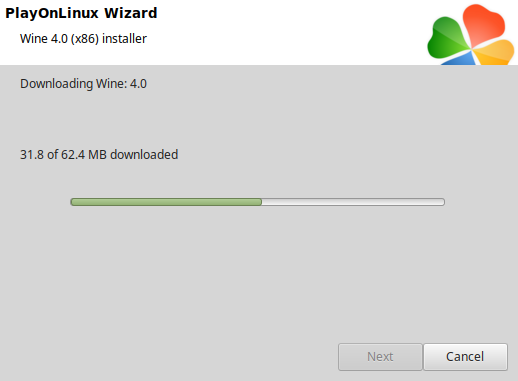

    Downloading Wine

    Extracting

    Installed

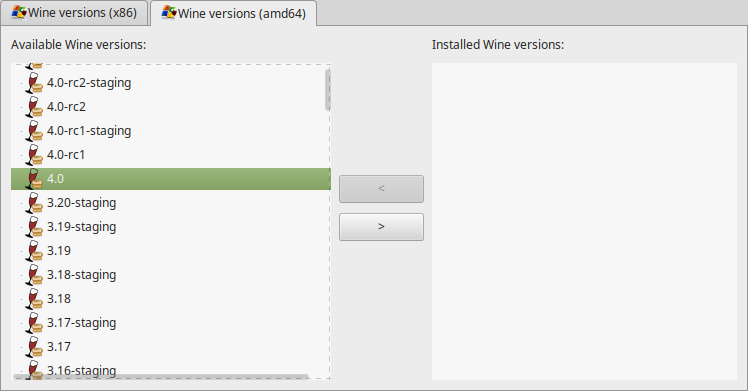

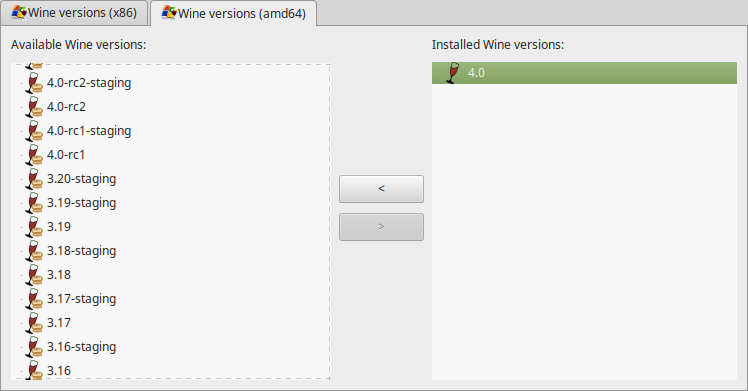

    Click (amd64) Tab
    Select 4.0
    Click the arrow pointing to the right

    Downloading Wine 64-bit

    Installed

    Wine 4.0 32-bit and 64-bit is installed, you can close this window

    PlayOnLinux Setup

    Launch PlayOnLinux
    Click Install

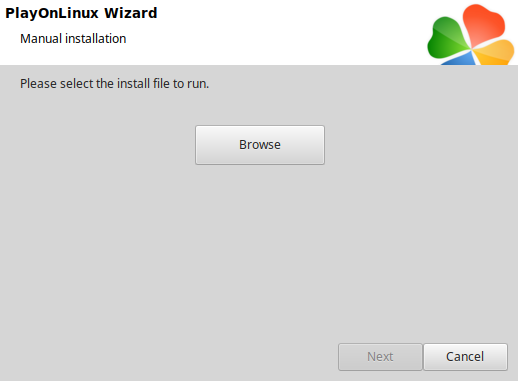

    Click "Install a non-listed program"

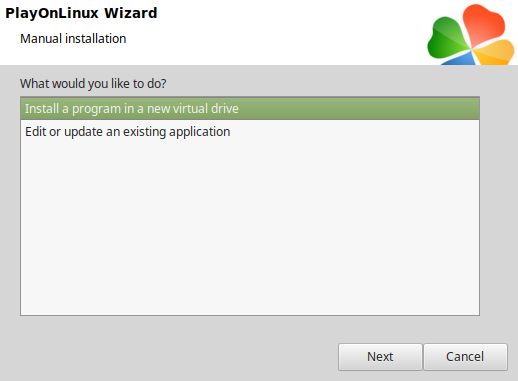

    Select "Install a program in a new virtual drive"
    Click Next

    Name the virtual drive: hemoglobin
    Click Next

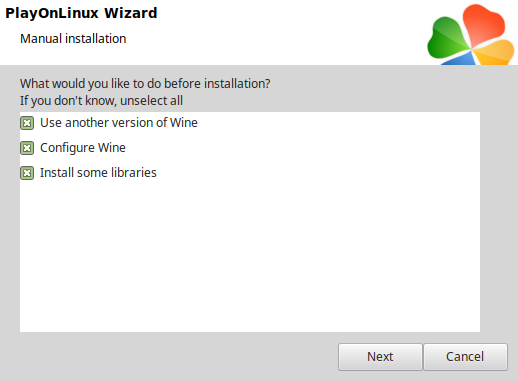

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

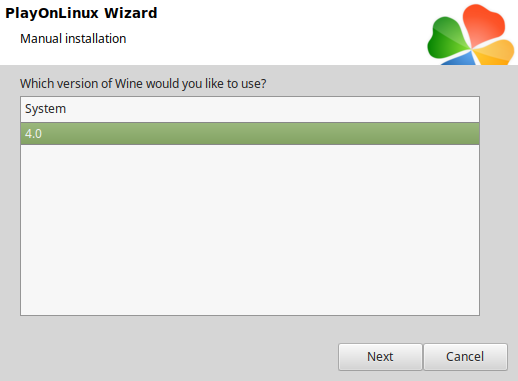

    Select Wine 4.0
    Click Next

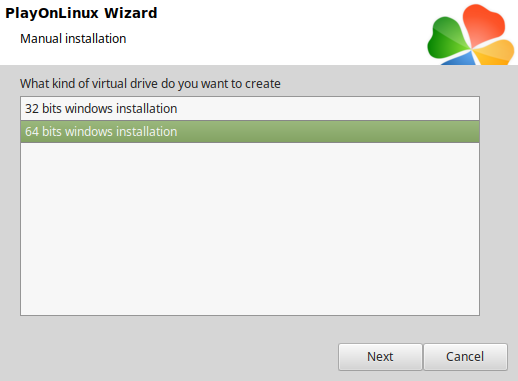

    Select "64 bits windows installation"
    Click Next

    Wine Configuration

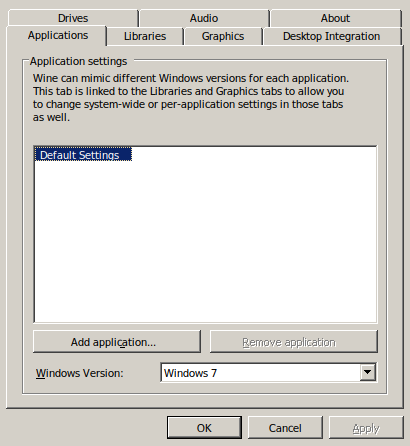

    Applications Tab
    Windows version: Windows 7

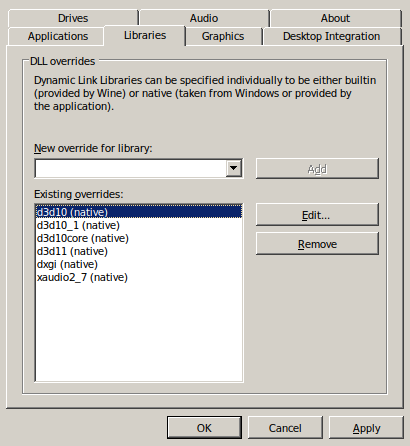

    Libraries Tab
    Type the following libraries
    • d3d10
    • d3d10_1
    • d3d10core
    • d3d11
    • dxgi
    • xaudio2_7
    Select one at a time and click Edit
    Select "Native (Windows)"
    Click Apply

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows
    Click OK

    PlayOnLinux Packages

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_d3dx9
    • POL_Install_tahoma
    Click Next

    Note: All packages should automatically download and install

    Click Cancel

    Download the Hemoblogin demo on itch.io
    https://jasozz.itch.io/hemoglobin-project-dd25
    Save to your Desktop

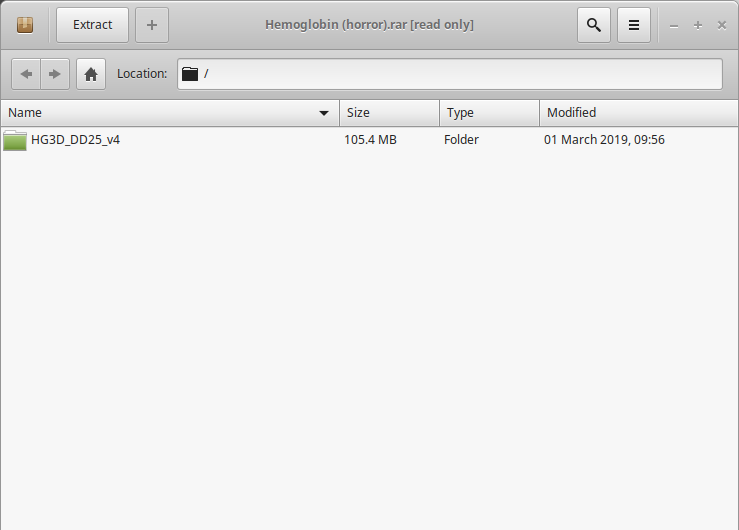

    Open HG3D_DD25_v5.zip with your archive manager
    Click Extract

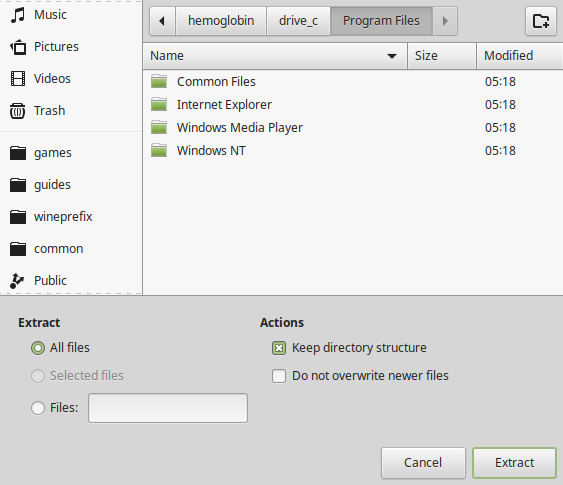

    Extract to Program Files in your hemoglobin virutal drive
    Full path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/hemoglobin/drive_c/Program Files/

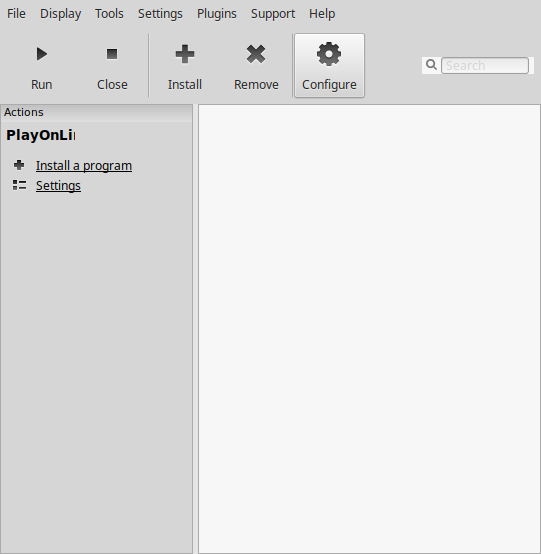

    Back to PlayOnLinux

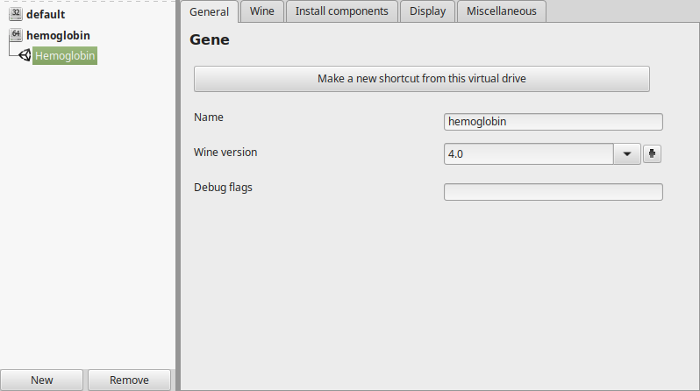

    Click Configure

    General Tab

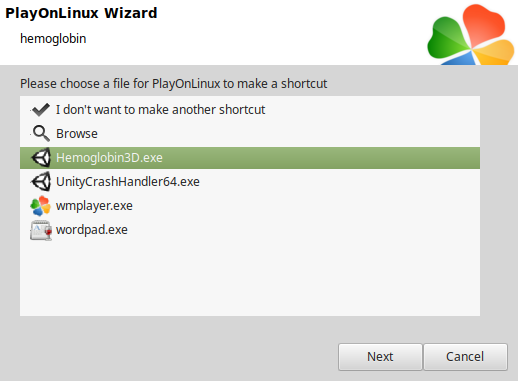

    Click "Make a new shortcut from this virtual drive"

    Select "Hemoglobin3D.exe"
    Click Next

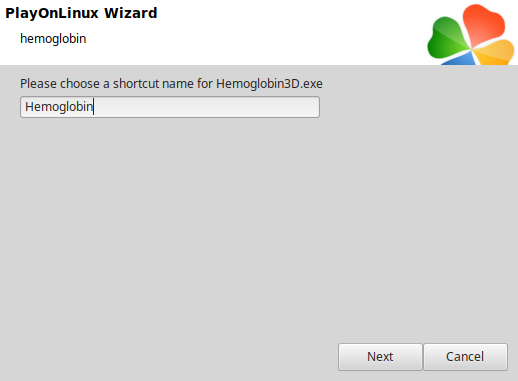

    Name the shortcut: Hemoglobin
    Click Next

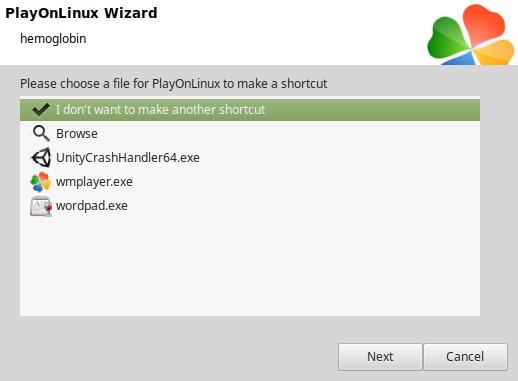

    Select "I don't want to make another shortcut"
    Click Next

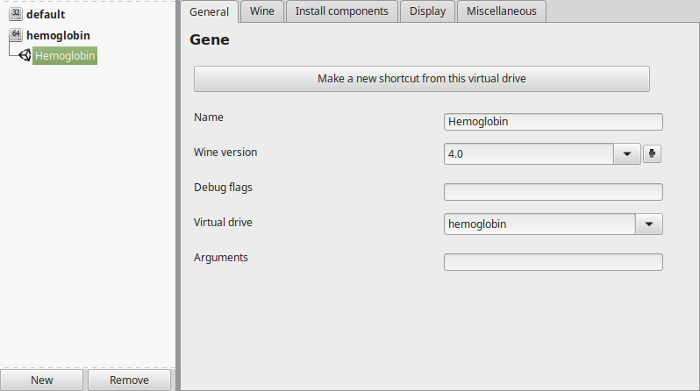

    General Tab
    Wine version: 4.0

    Note: Click the + to download other versions of Wine; Click the down-arrow to select other versions of Wine

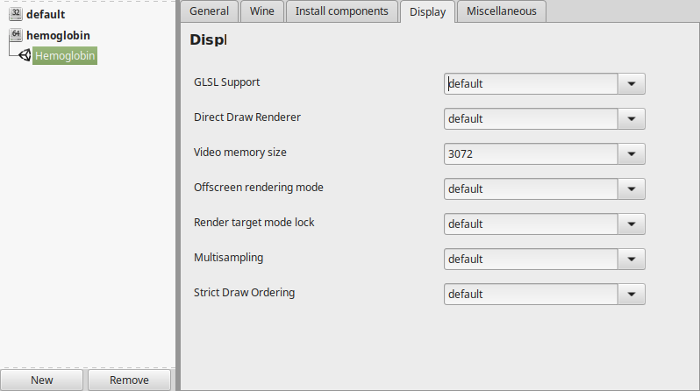

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses


    Setup DXVK
    More information on preparing Linux for DXVK
    http://www.gamersonlinux.com/forum/threads/dxvk-guide.2540/

    Go to DXVK on GitHub
    https://github.com/doitsujin/dxvk/releases/tag/v0.96
    1. Download version 0.96
    2. Save to your Desktop
    3. Extract to your Desktop

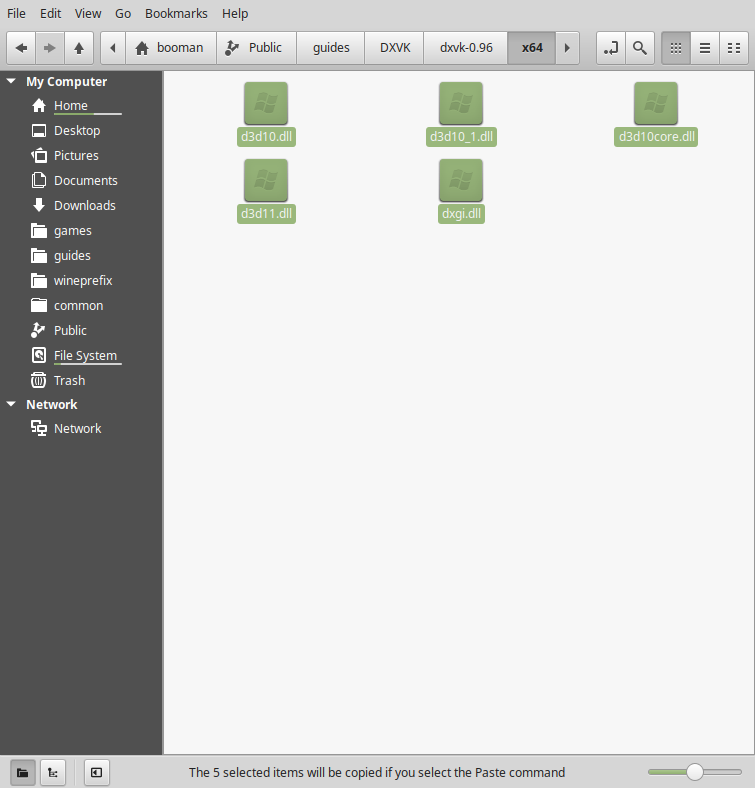

    4. Open the x64 directory
    5. Copy all of the dlls

    Paste in the HG3D_DD25_v4 directory
    Full Path: [/code]/home/username/.PlayOnLinux/wineprefix/hemoglobin/drive_c/Program Files/HG3D_DD25_v4/[/code]

    Back to PlayOnLinux
    Select Hemoglobin
    Click Run

    Note: Click debug to see bugs and errors

    This is a Unity Engine game, so you can select resolution, quality and input with the launcher
    Click Play

    Conclusion:
    There is one serious bug in Hemoglobin but it happens randomly... the game will load and you can't move at all. Since its only a 30-60 minute demo, its not a huge deal to just start over, but this can be frustrating. It only happened to me one time at the end of the demo. Besides that, it ran perfectly as everything is low quality and should run on just about any laptop or netbook.

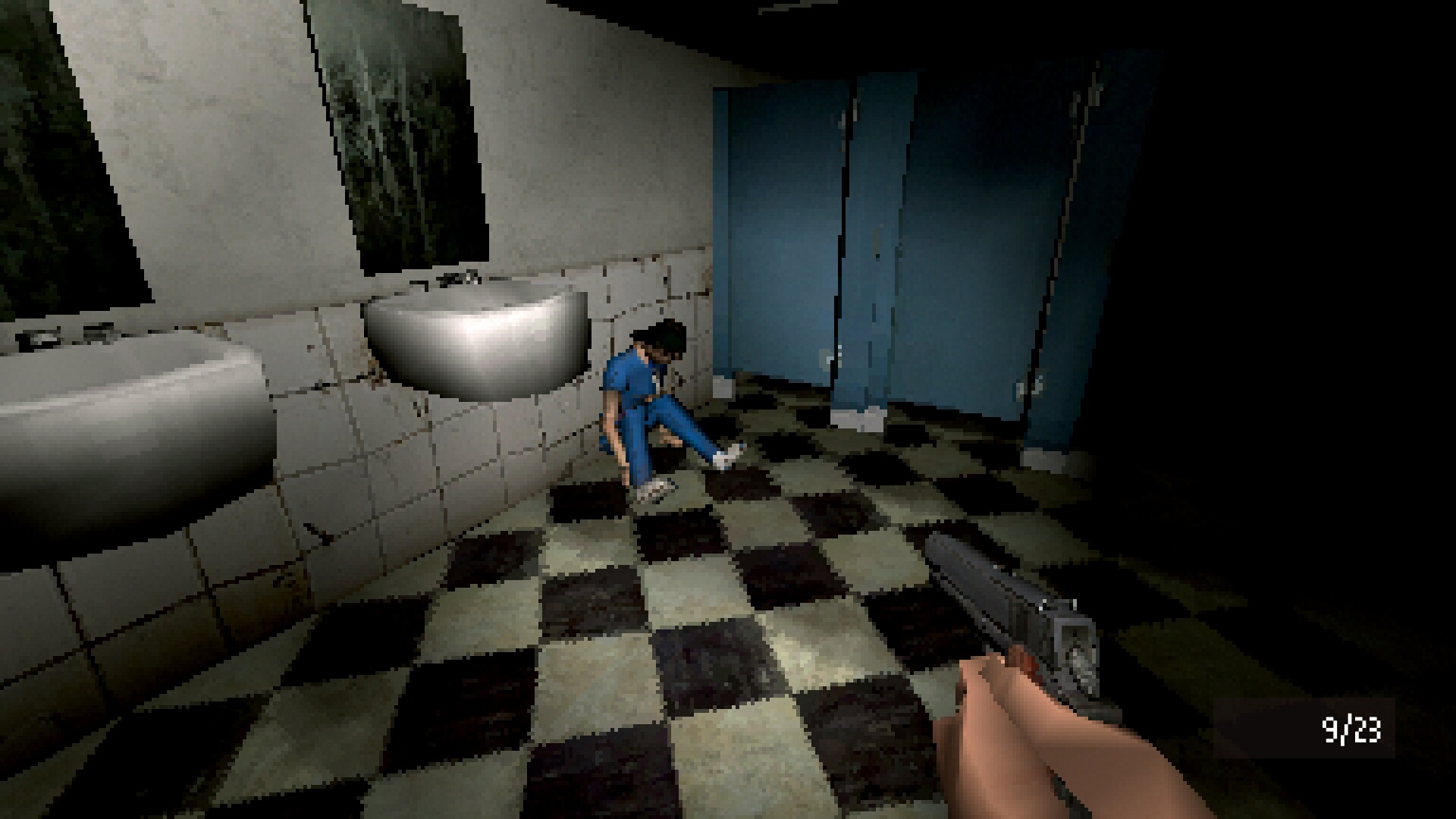

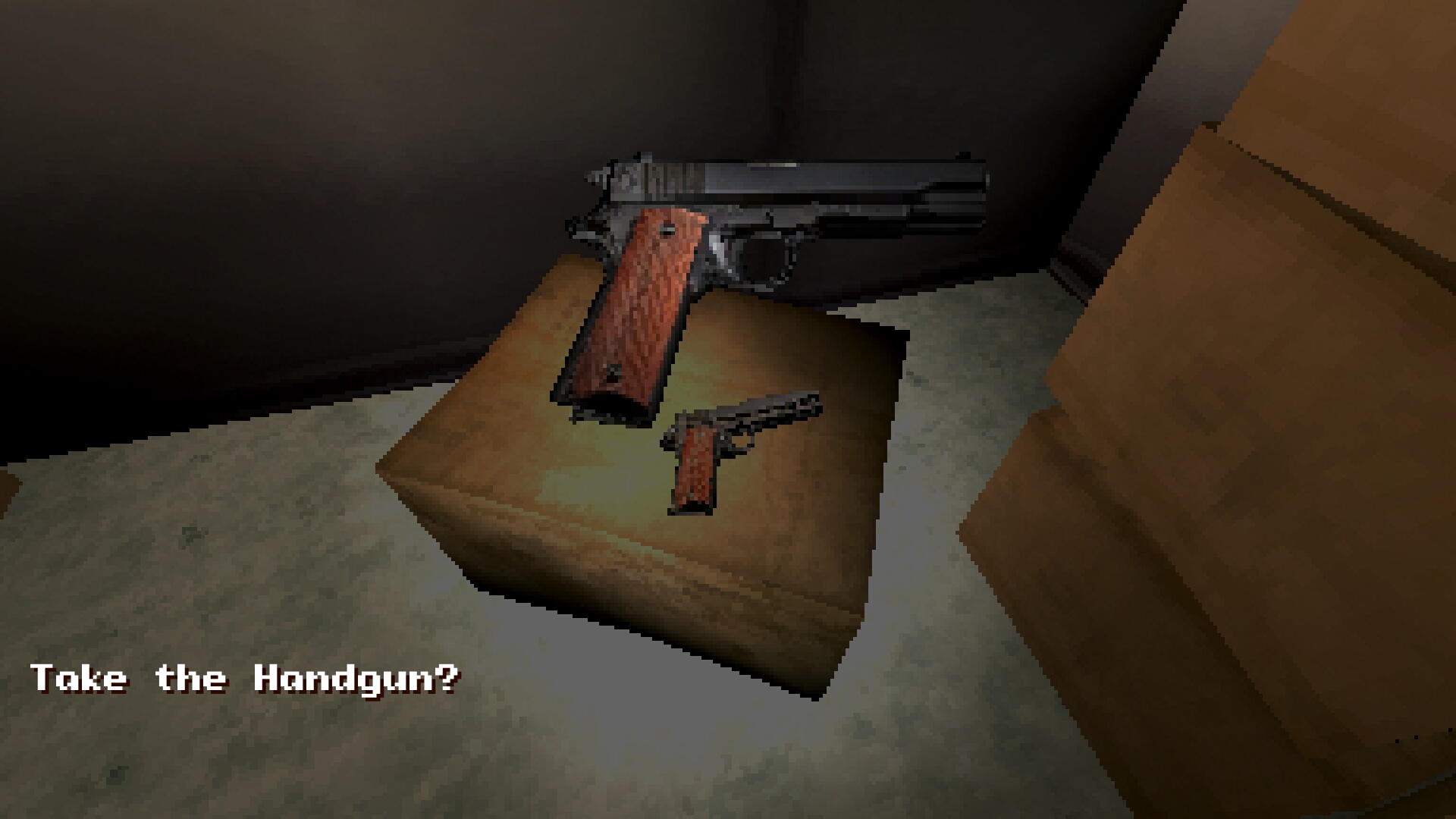

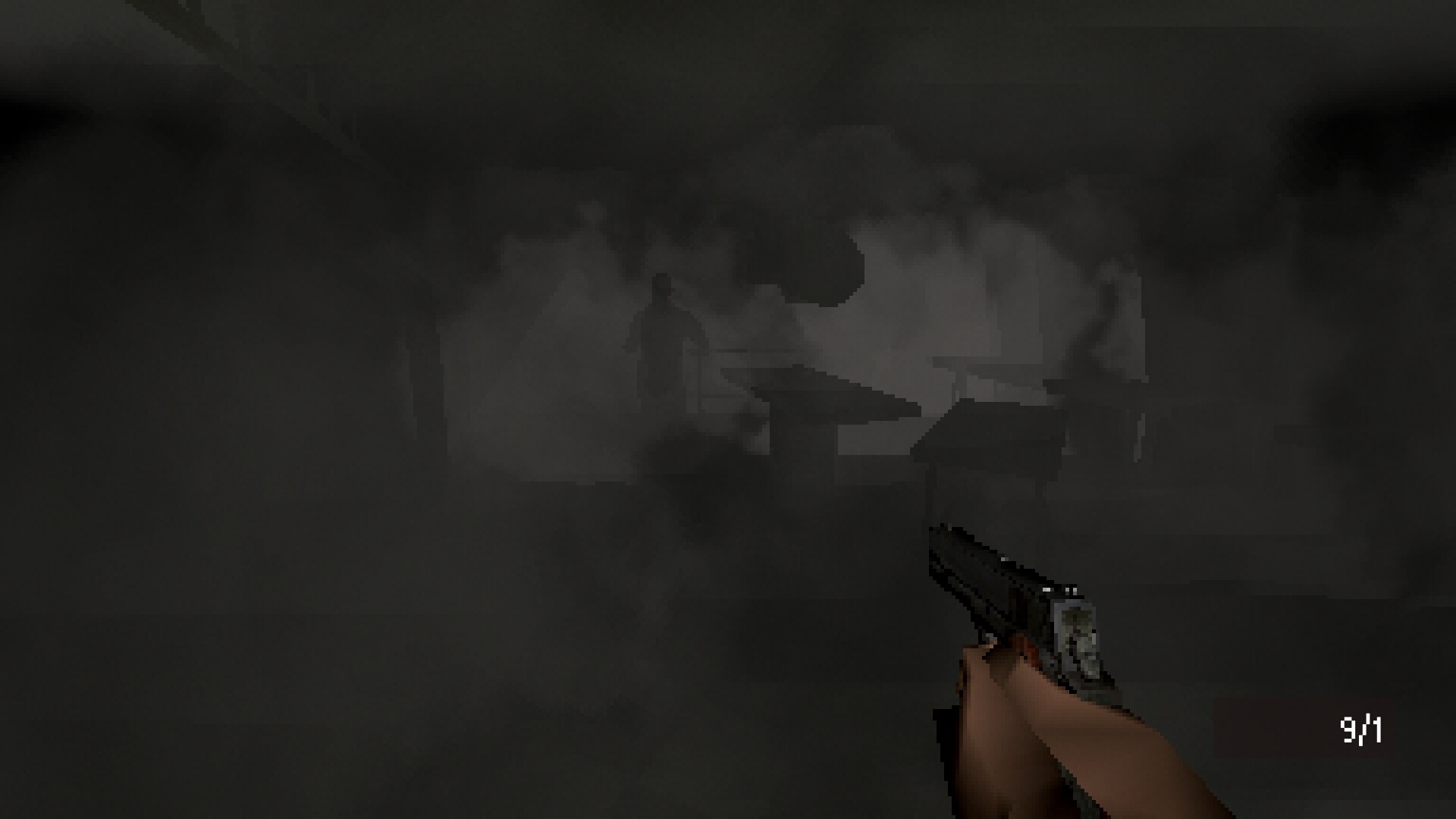

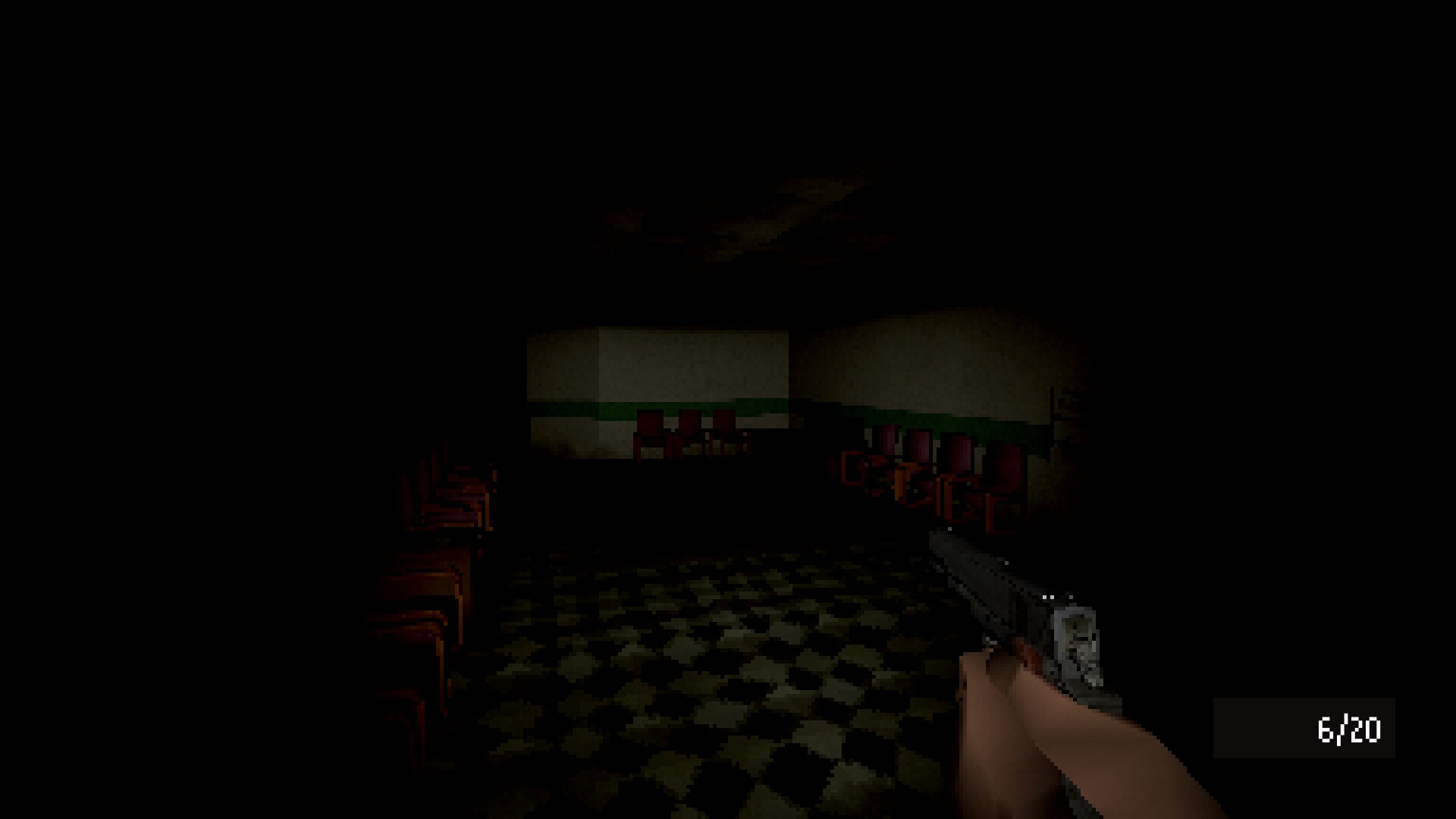

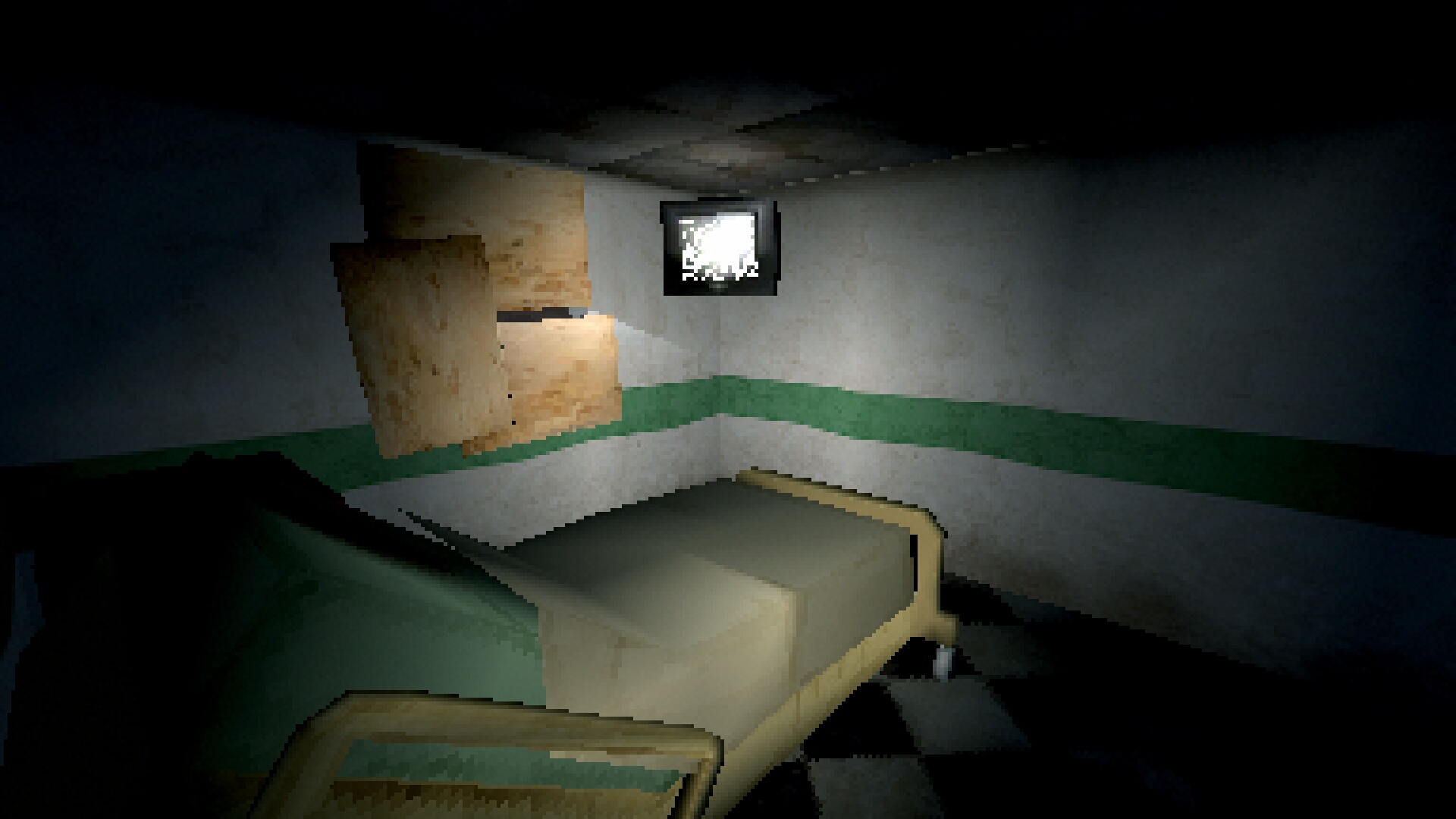

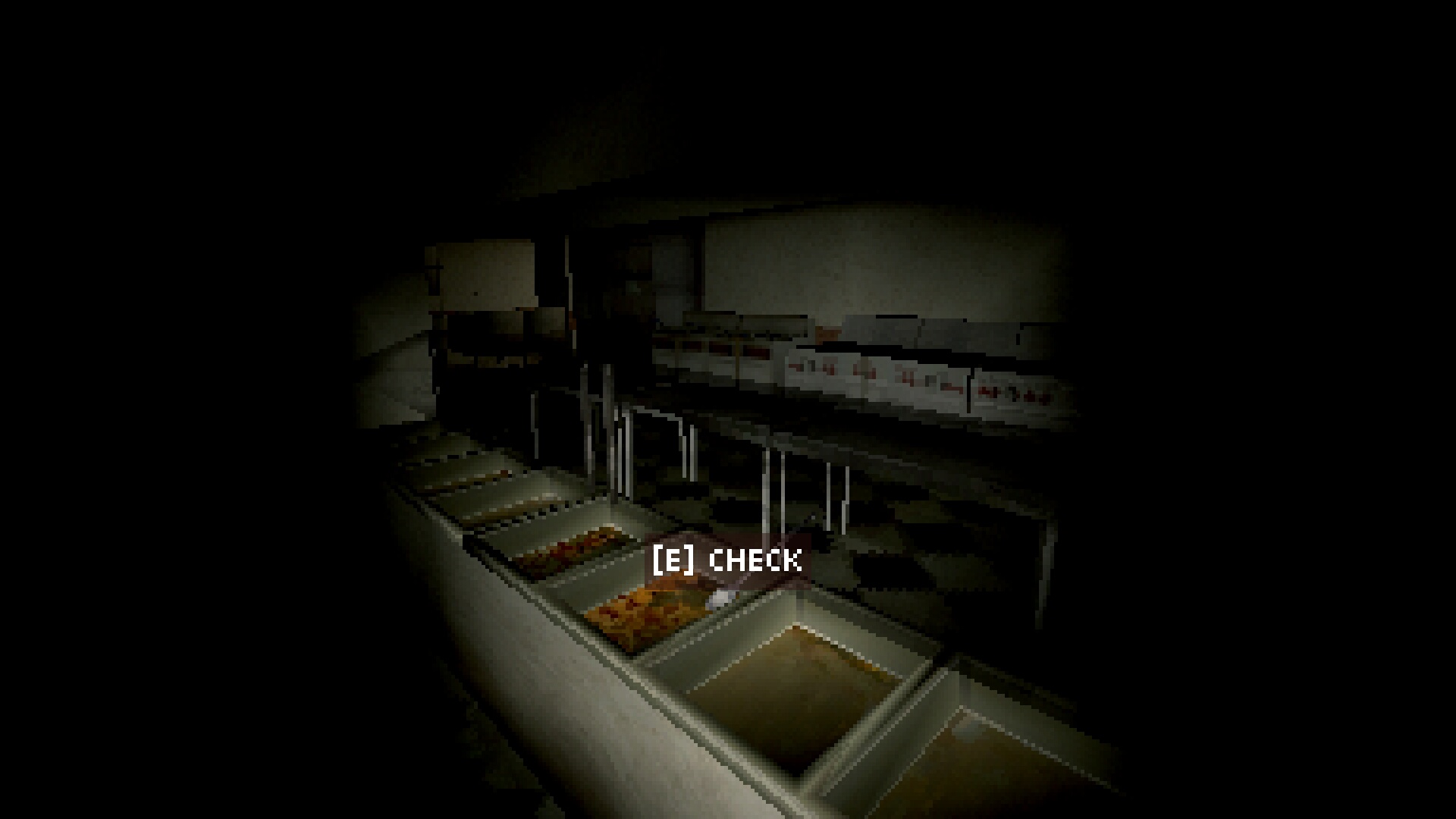

    Screenshots:
