    Play as a simple Mechanic thrown into an alien frenzy as all hell breaks loose! Shadowgrounds is a combat action game with a huge arsenal of weapons, upgrades, destructible environments and top-down action.


    Follow my step-by-step guide on installing, configuring and optimizing Shadowgrounds in Linux with PlayOnLinux.

    Note: This guide applies to the GOG version of Shadowgrounds. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 19 64-bit
    PlayOnLinux: 4.3.4
    Wine: 4.0

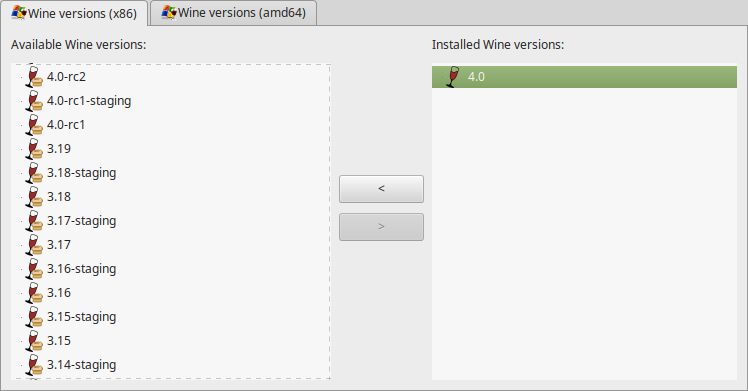

    Wine Installation

    Click Tools
    Select "Manage Wine Versions"

    Look for the Wine Version: 4.0
    Select it
    Click the arrow pointing to the right

    Click Next

    Downloading Wine

    Extracting

    Installed

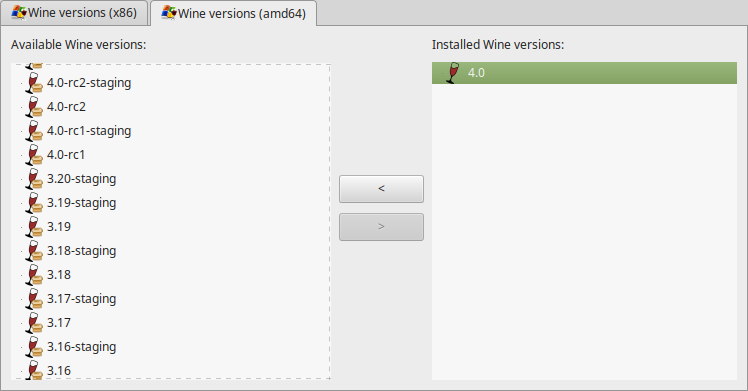

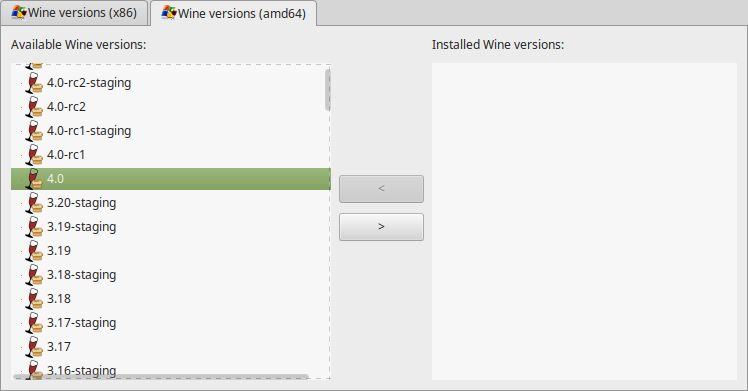

    Click (amd64) Tab
    Select 4.0
    Click the arrow pointing to the right

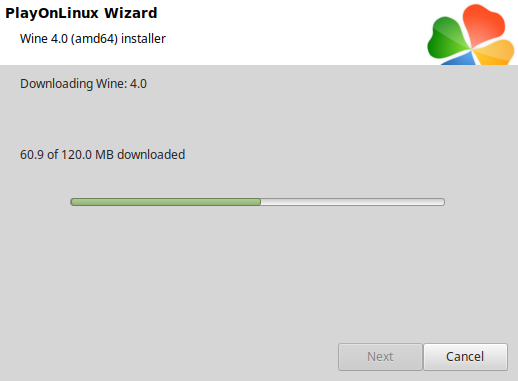

    Downloading Wine 64-bit

    Installed

    Wine 4.0 32-bit and 64-bit is installed, you can close this window

    PlayOnLinux Setup

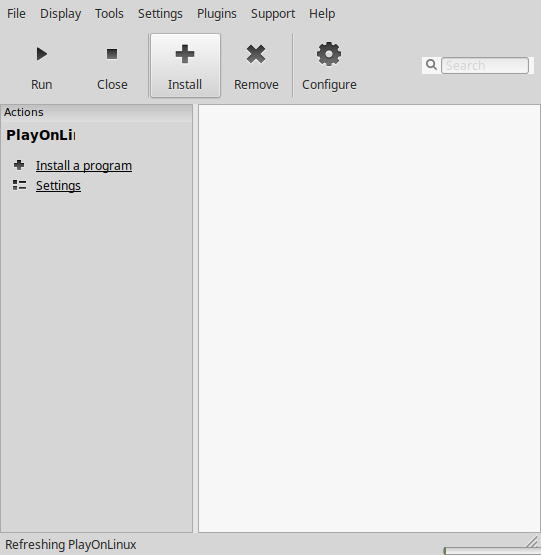

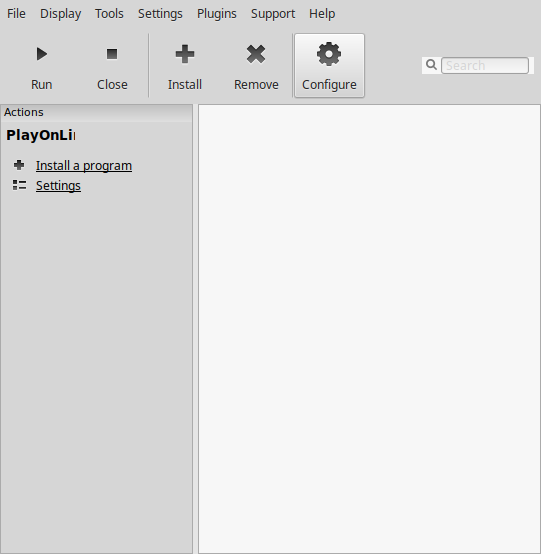

    Launch PlayOnLinux

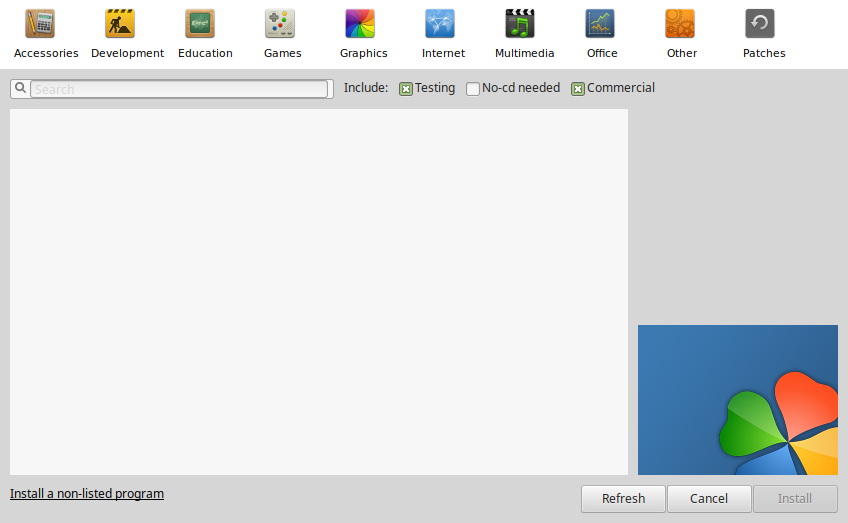

    Click "Install a non-listed program"

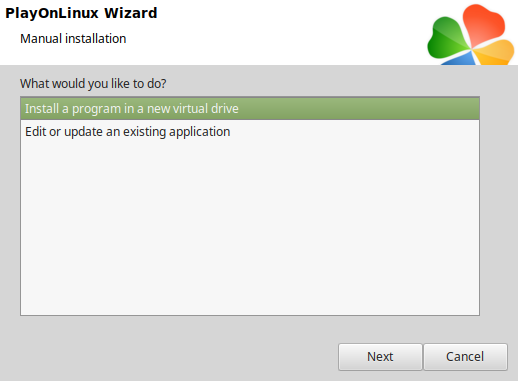

    Select "Install a program ina a new virtual drive"
    Click Next

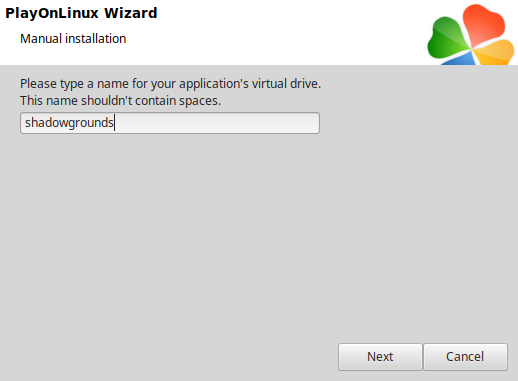

    Name the virtual drive: shadowgrounds
    Click Next

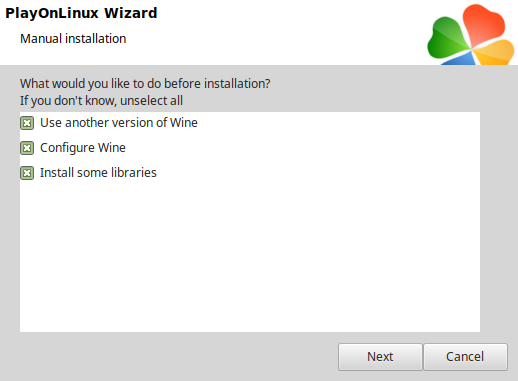

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

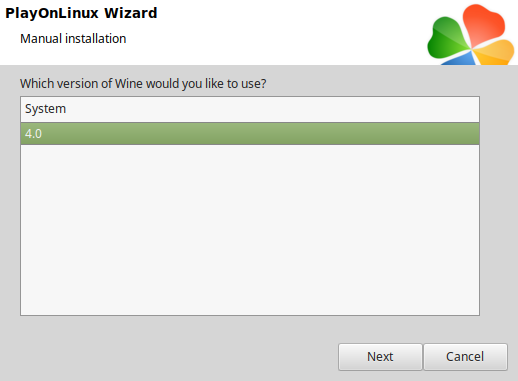

    Select Wine 4.0
    Click Next

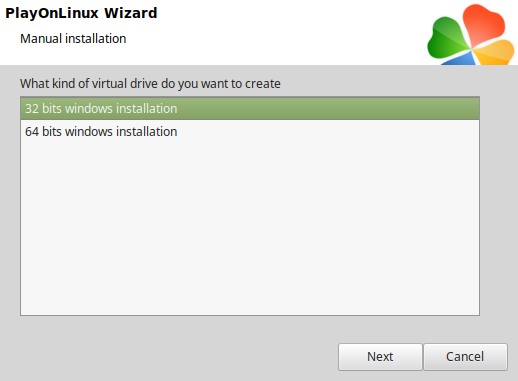

    Select "32 bits windows installation"
    Click Next

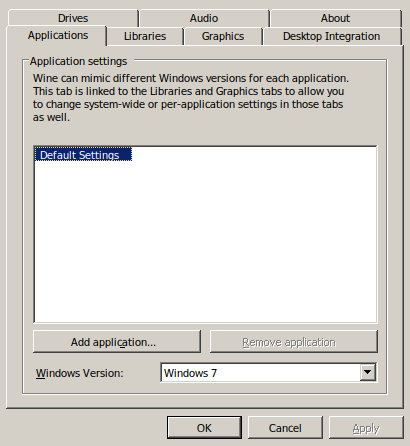

    Wine Configuration

    Applications Tab
    Windows version: Windows 7

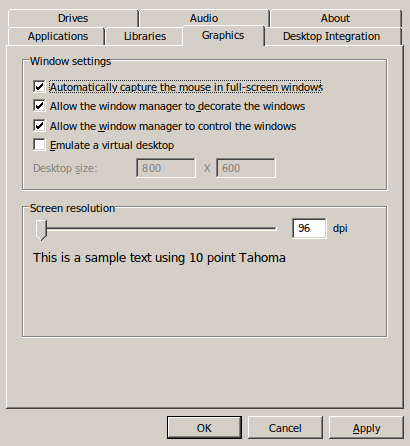

    Graphics Tab
    Check "Automaticaly capture the mouse in full-screen windows"
    Click OK

    PlayOnLinux Packages (DLLs, Libraries, Components)

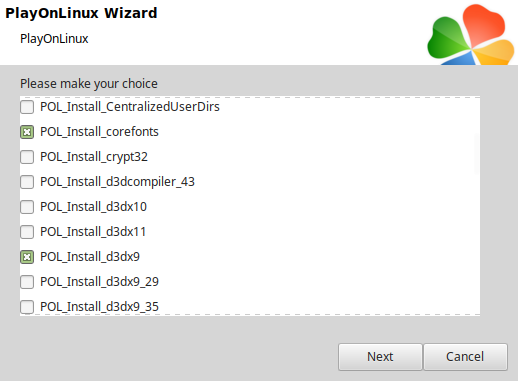

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_tahoma
    • POL_Install_vcrun2005
    Click Next

    Note: All packages should automatically download and install

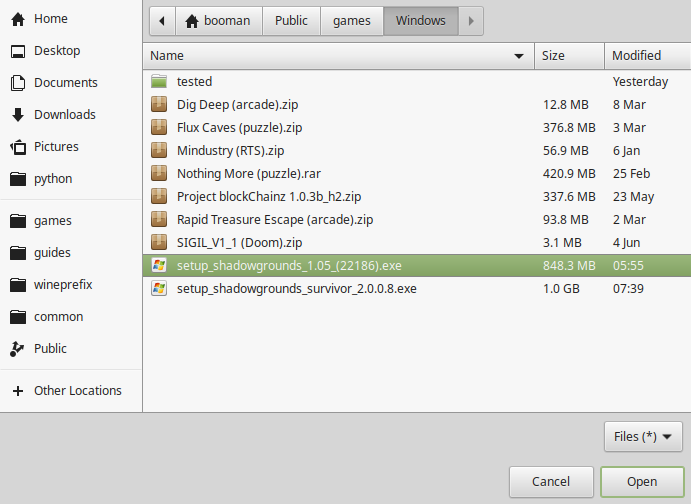

    Click Browse

    Select "setup_shadowgrounds_1.05_(22186).exe"
    Click Open

    Click Next again...

    Click OK

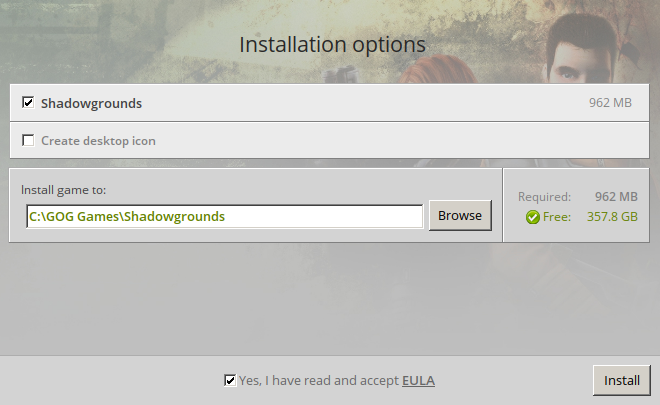

    Click Options
    Uncheck "Create desktop icon"
    Click "Yes I have read and accept EULA"
    Click Install

    Click OK on all errors

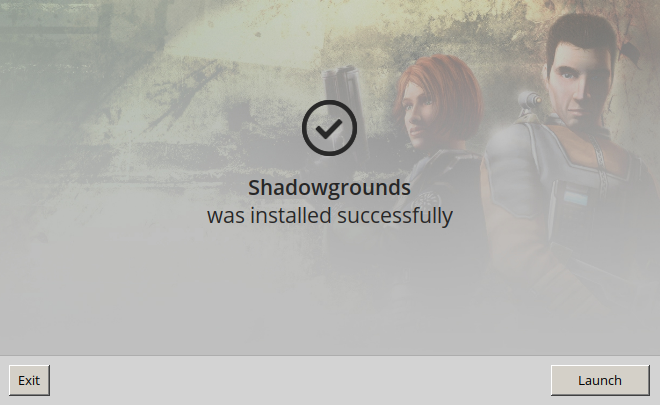

    Click Exit

    After the Installer exits, it may hang for a long time without completing

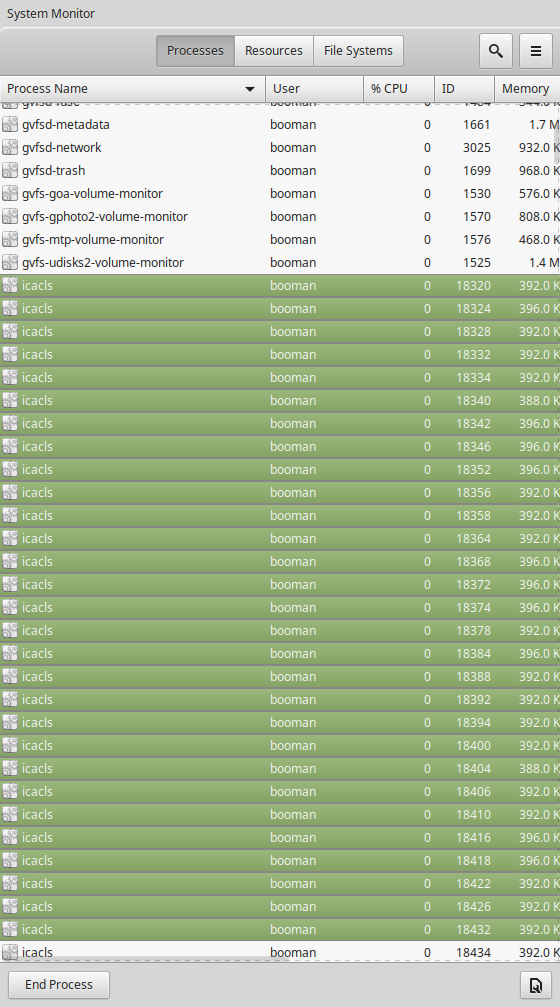

    Check Your System Monitor
    If you see many icacls processes running

    Alt+Tab back to PlayOnLinux
    Click Configure

    Make sure shadowgrounds is selected on the left side

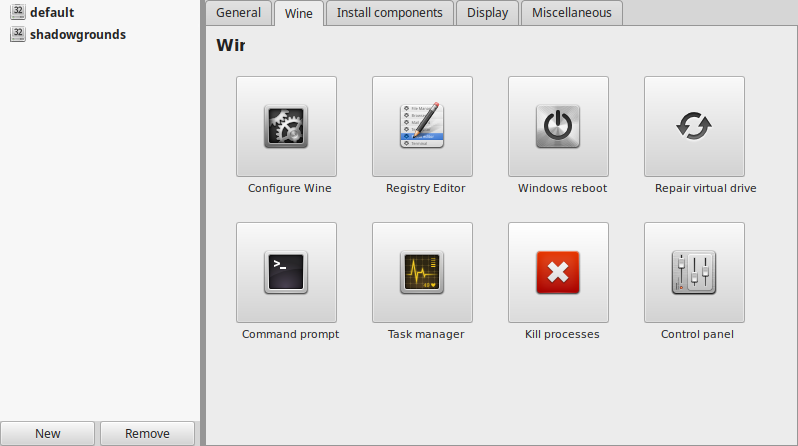

    Click Wine Tab
    Click "Kill Processes"

    Now PlayOnLinux will continue...
    Ctrl+Alt+Tab back to the installer

    PlayOnLinux Shortcuts

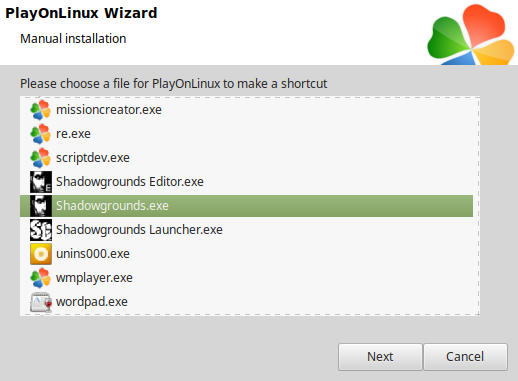

    Select "Shadowgrounds.exe"
    Click Next

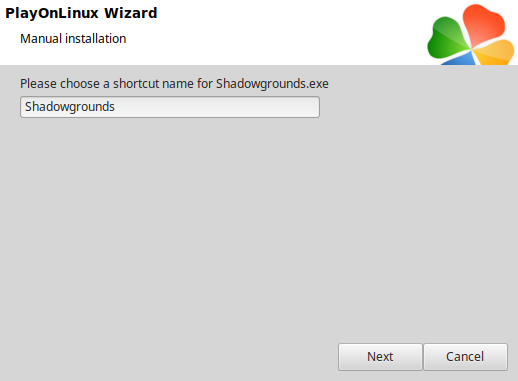

    Name the shortcut: Shadowgrounds
    Click Next

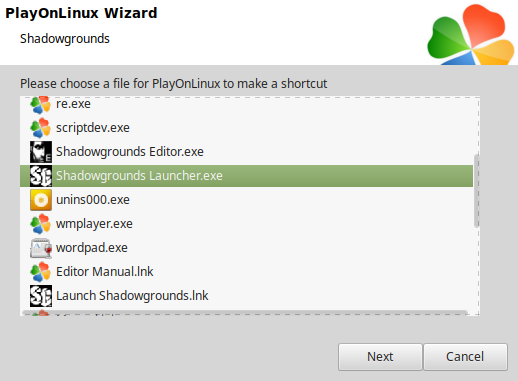

    Also Select "Shadowgrounds Launcher.exe"

    Name the shortcut: Shadowgrounds Launcher
    Click Next

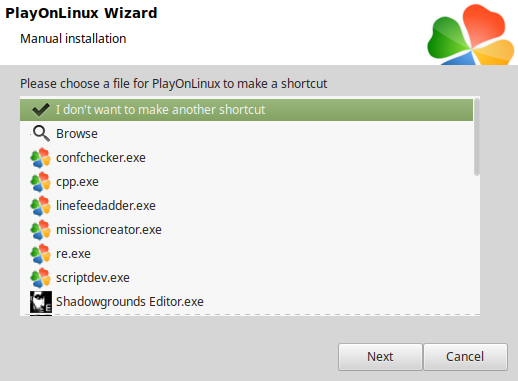

    Select "I don't want to make another shortcut"
    Click Next

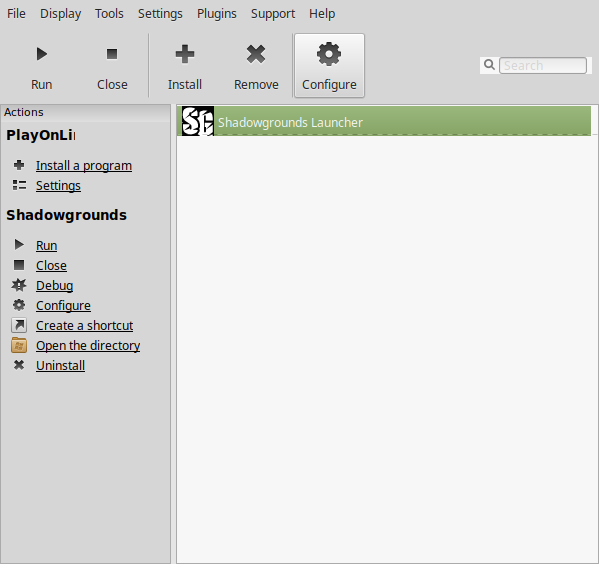

    Back to PlayOnLinux
    Click Configure

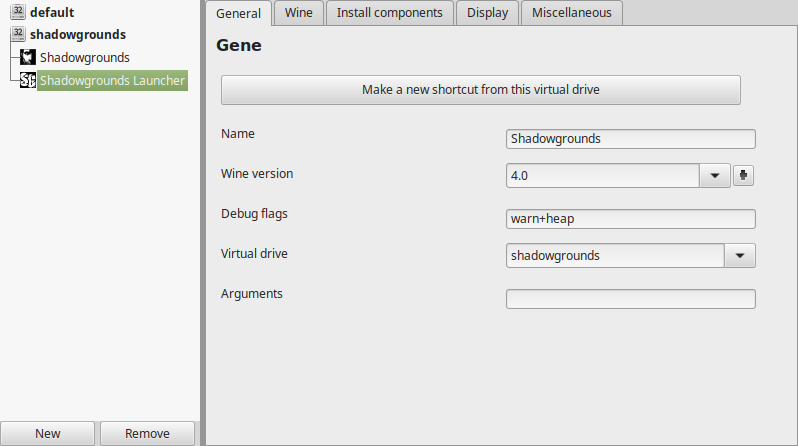

    General Tab
    Wine version: 4.0
    Debug flags: warn+heap

    Note: "warn+heap" should reduce the crashing in the game menu

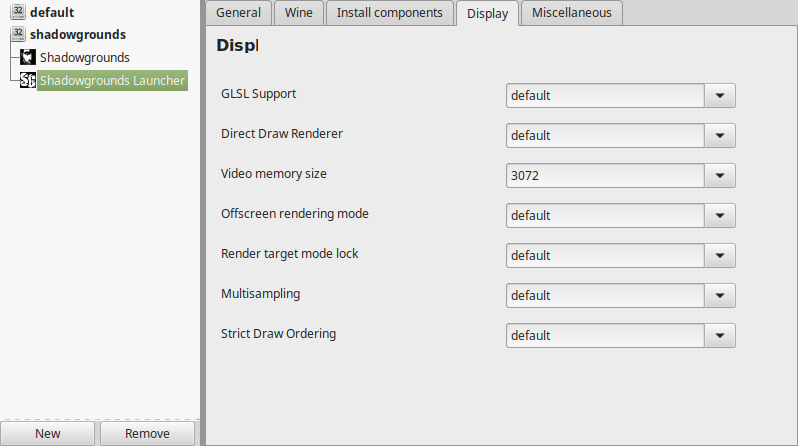

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

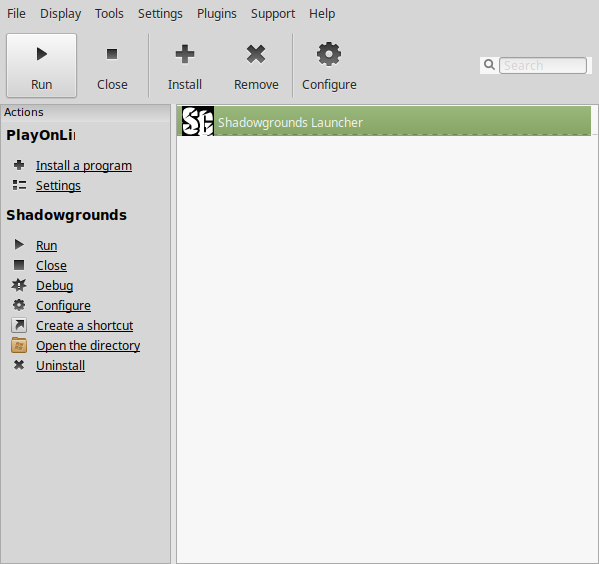

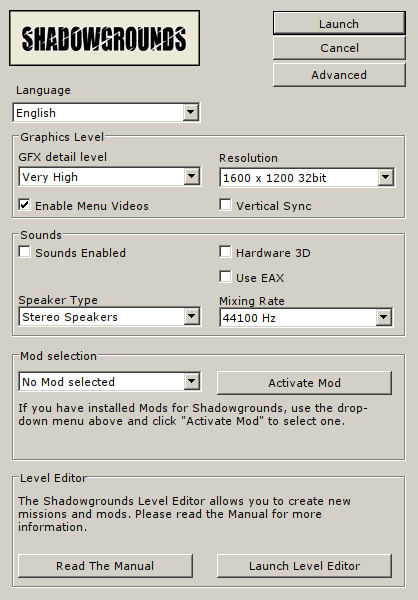

    Run Shadowgrounds Launcher

    Optimization

    Adjust:
    • GFX detail level
    • Enable Menu Videos
    • Sound Enabled
    • Speaker Type
    • Resolution
    • Vertical Sync
    • Hardware 3D
    • EAX
    • Mixing Rate

    Click Advanced
    Adjust:
    • Ground Shadows Texture
    • Lighting Level
    • Lighting Texture Quality
    • Weather Effects Level
    • Shadows Level
    • Shadows Texture Quality
    • Misc
    • Texture Detail Level
    • Anisotropic Filtering
    • Antialiasing
    • Fullscreen
    • Weather Effects
    • High Quality Lightmap
    • Extra Gamma Effects
    • Render Glow
    • Distortion Effects
    • Disappearing Corpses
    • High Quality Video
    • Reset After Load
    Click OK

    The resolution options in Shadowgrounds Launcher did not included 1920x180
    But you can open the Options.txt and enter the desired resolution.
    Make sure to run the game at least once

    Open Options.txt
    Enter 1080 for screen_height
    Enter 1920 for screen_width
    Full path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/shadowgrounds/drive_c/GOG Games/Shadowgrounds/Config

    Conclusion:
    The only issue I experienced was the in-game menu crashing when I wanted to upgrade my weapon. After some reading on AppDB someone mentioned the WINEDEBUG argument. This seemed to fix the issue, most of the time. It still crashed randomly, but rarely. Just make sure to upgrade your weapons after you load a new area.

    Gameplay Video:

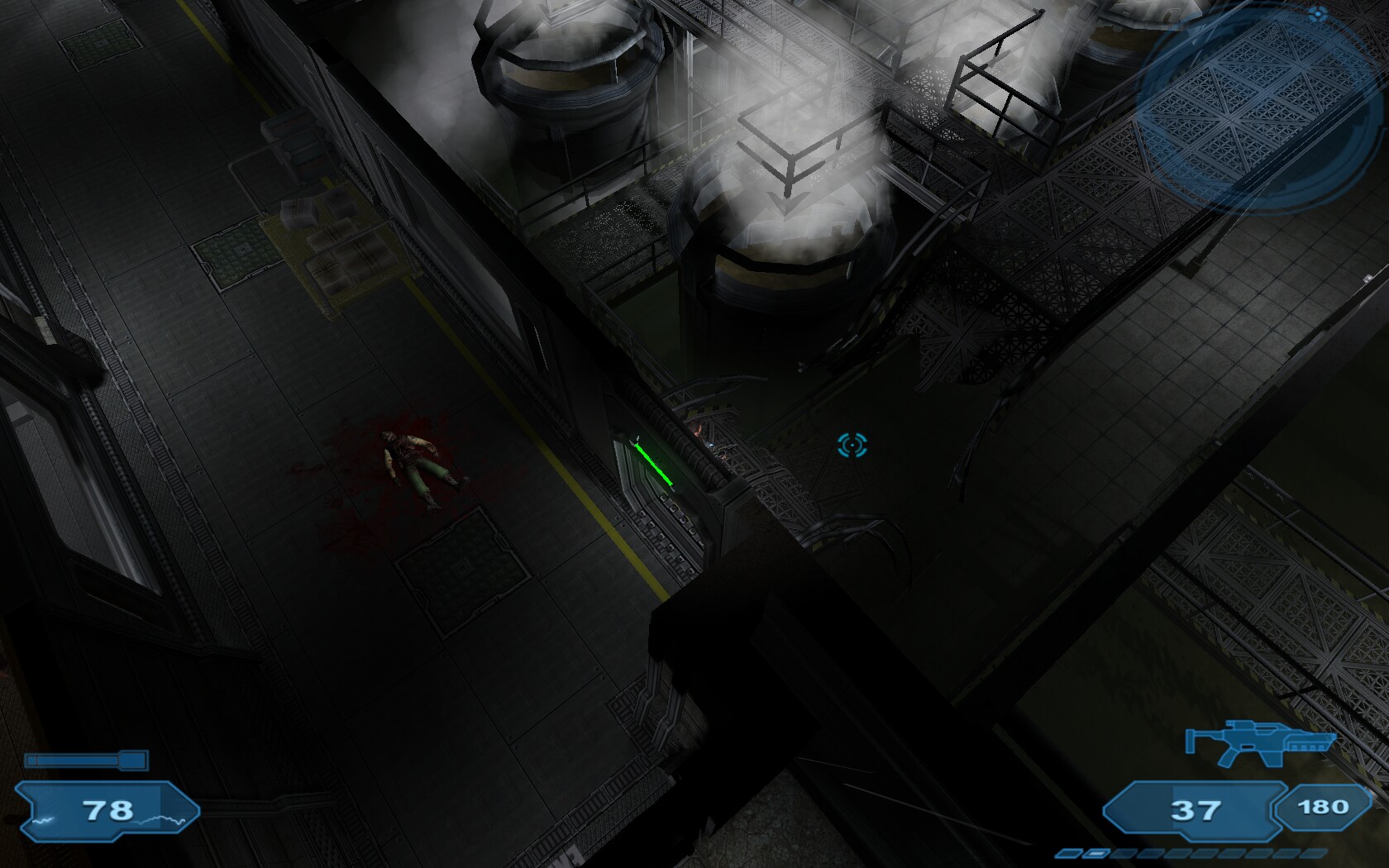

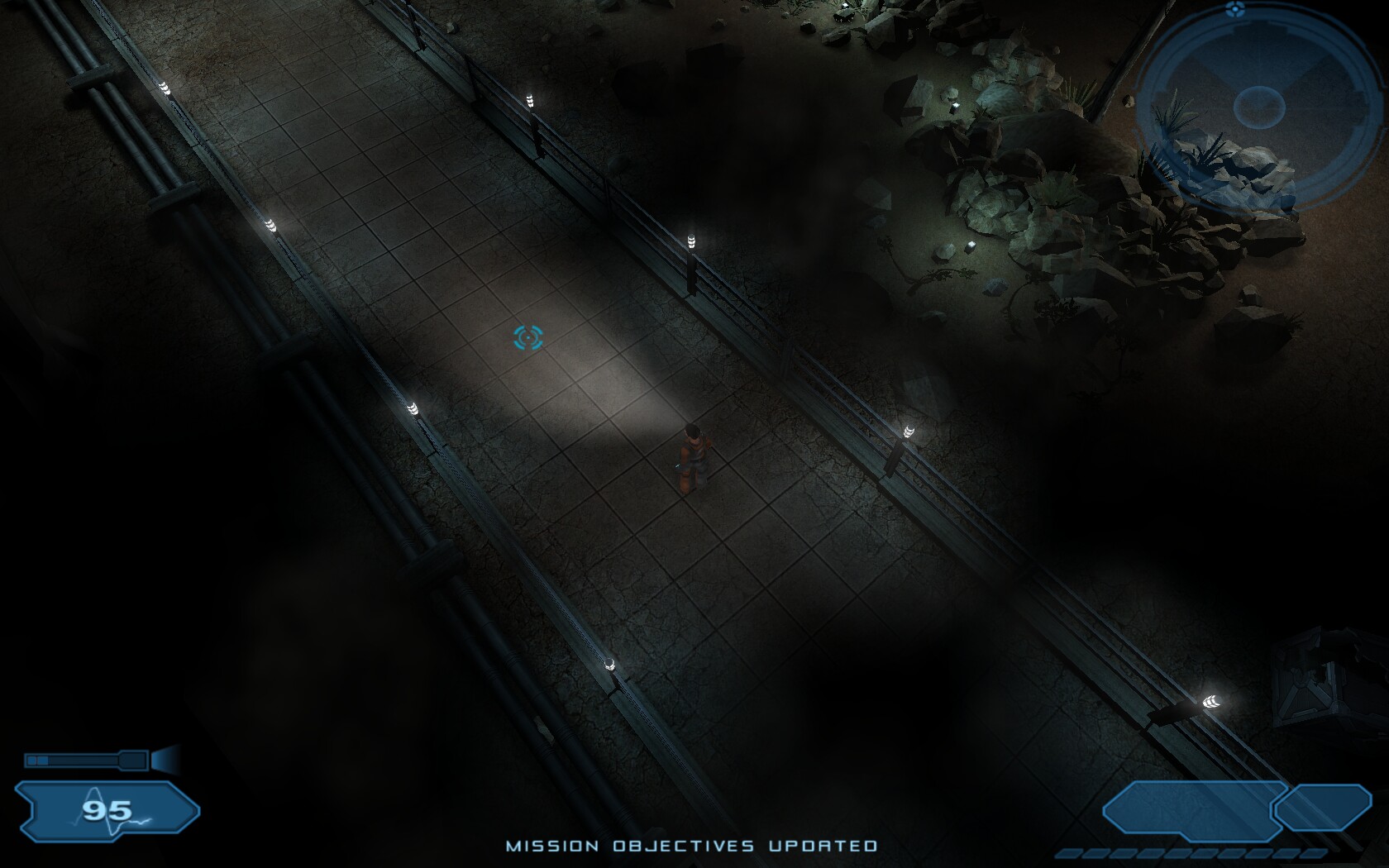

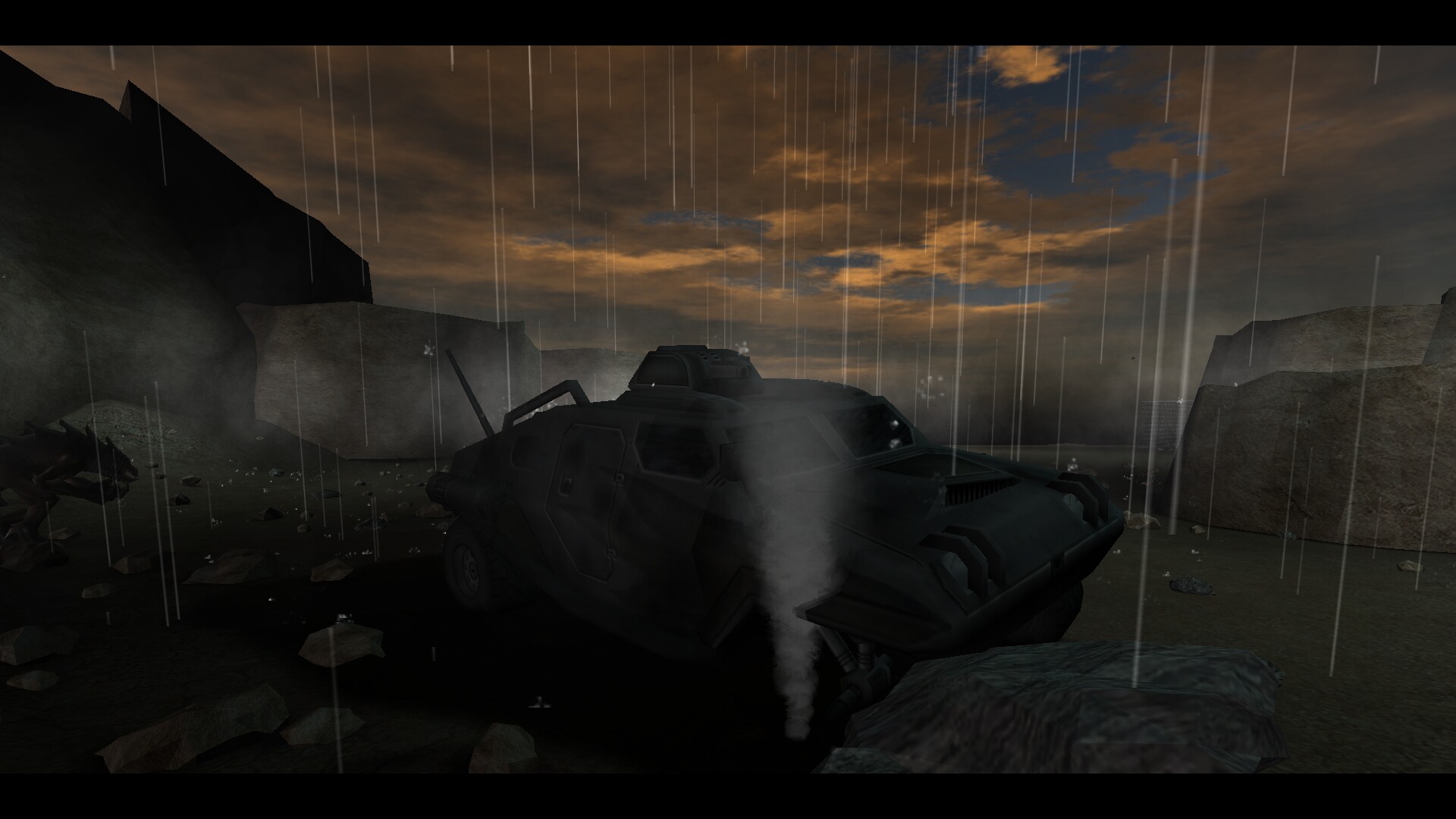

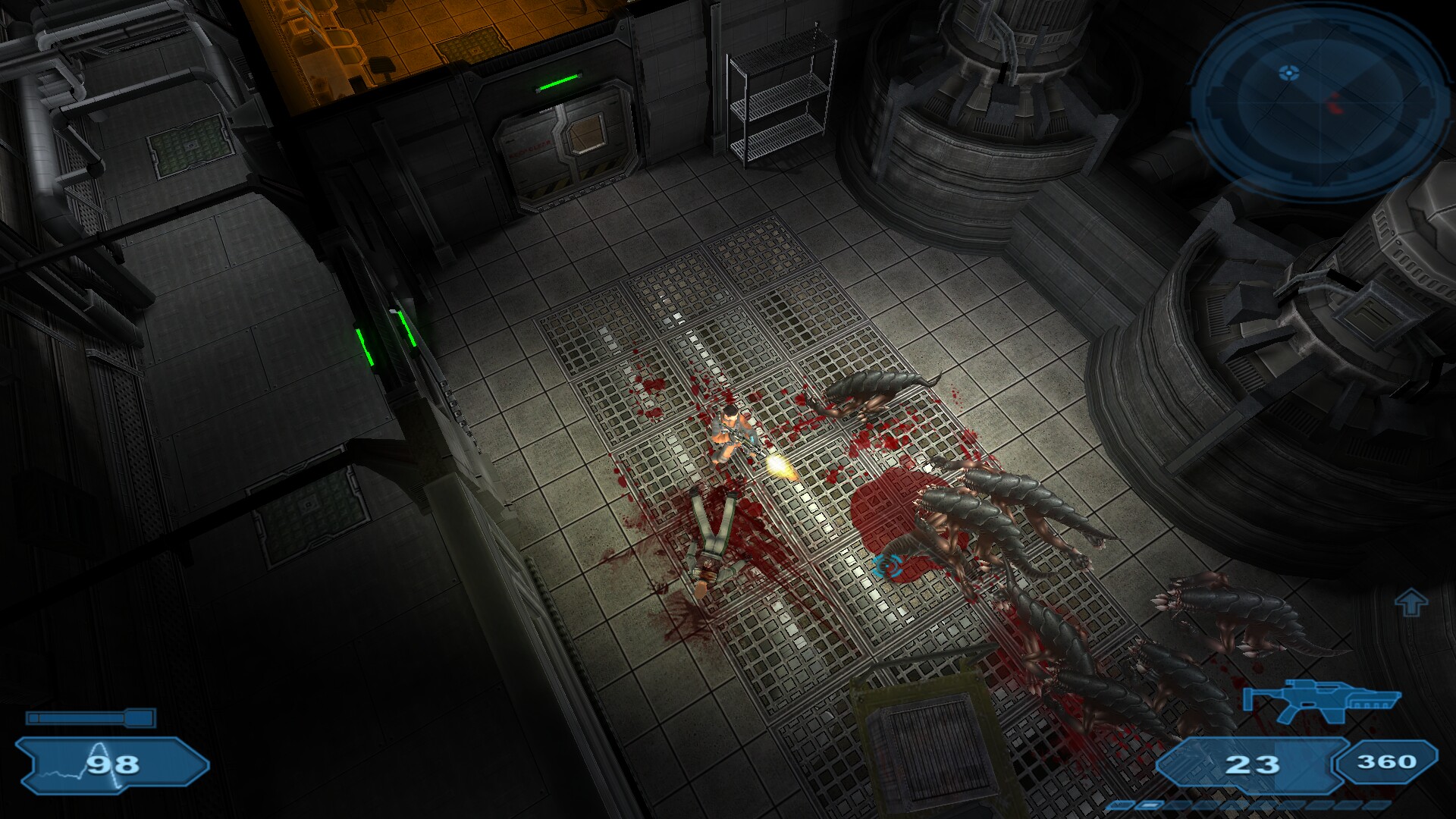

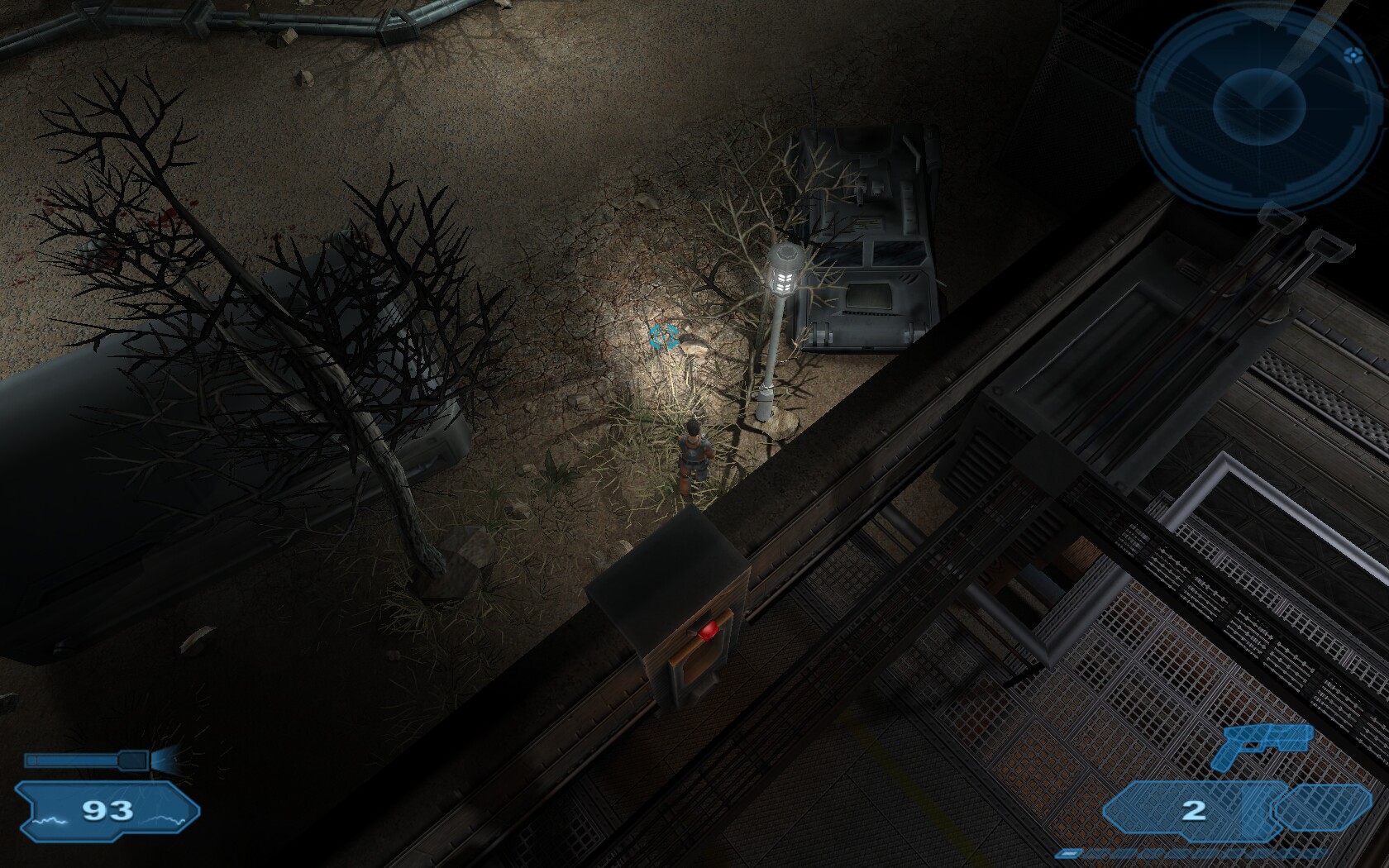

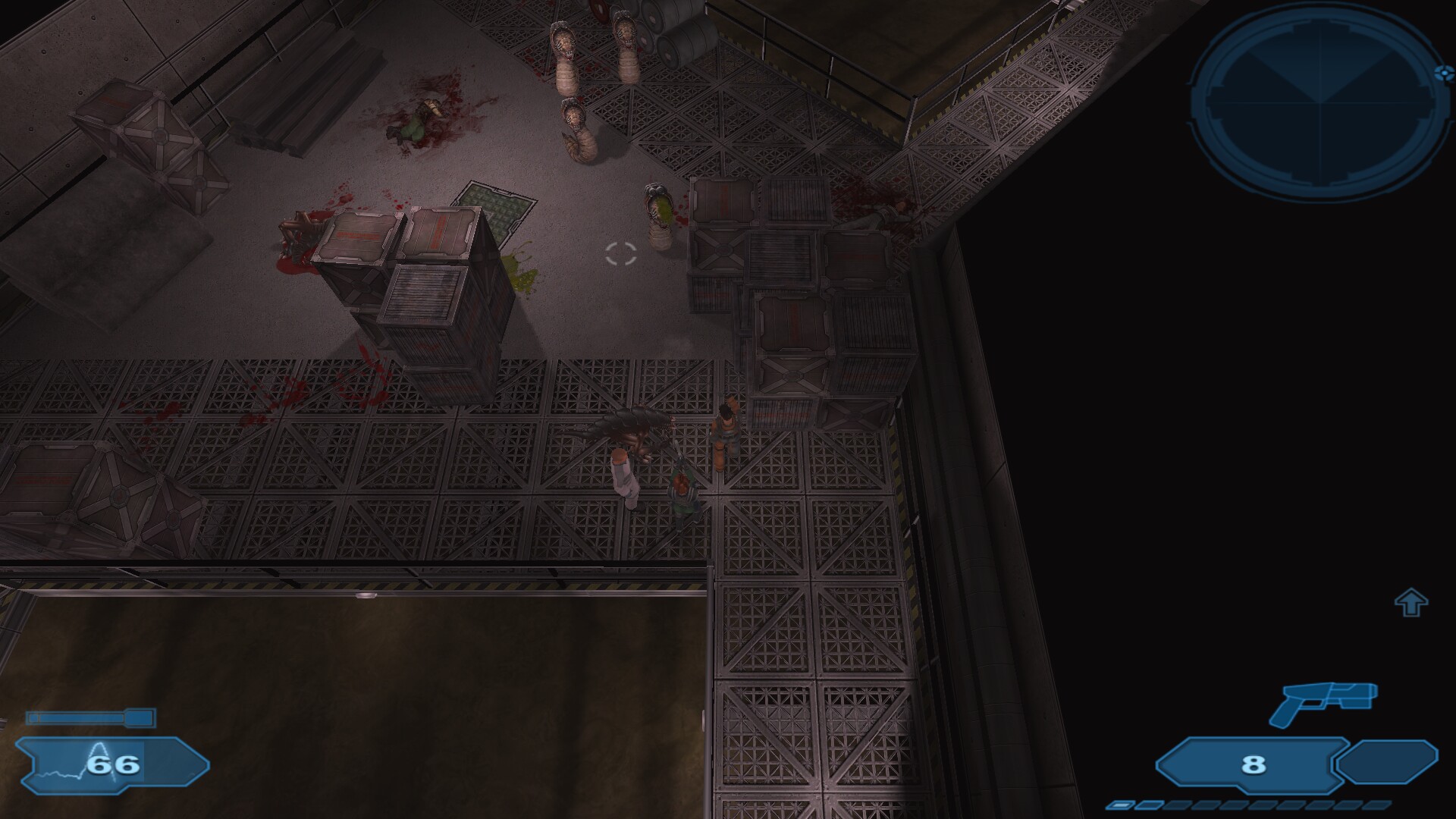

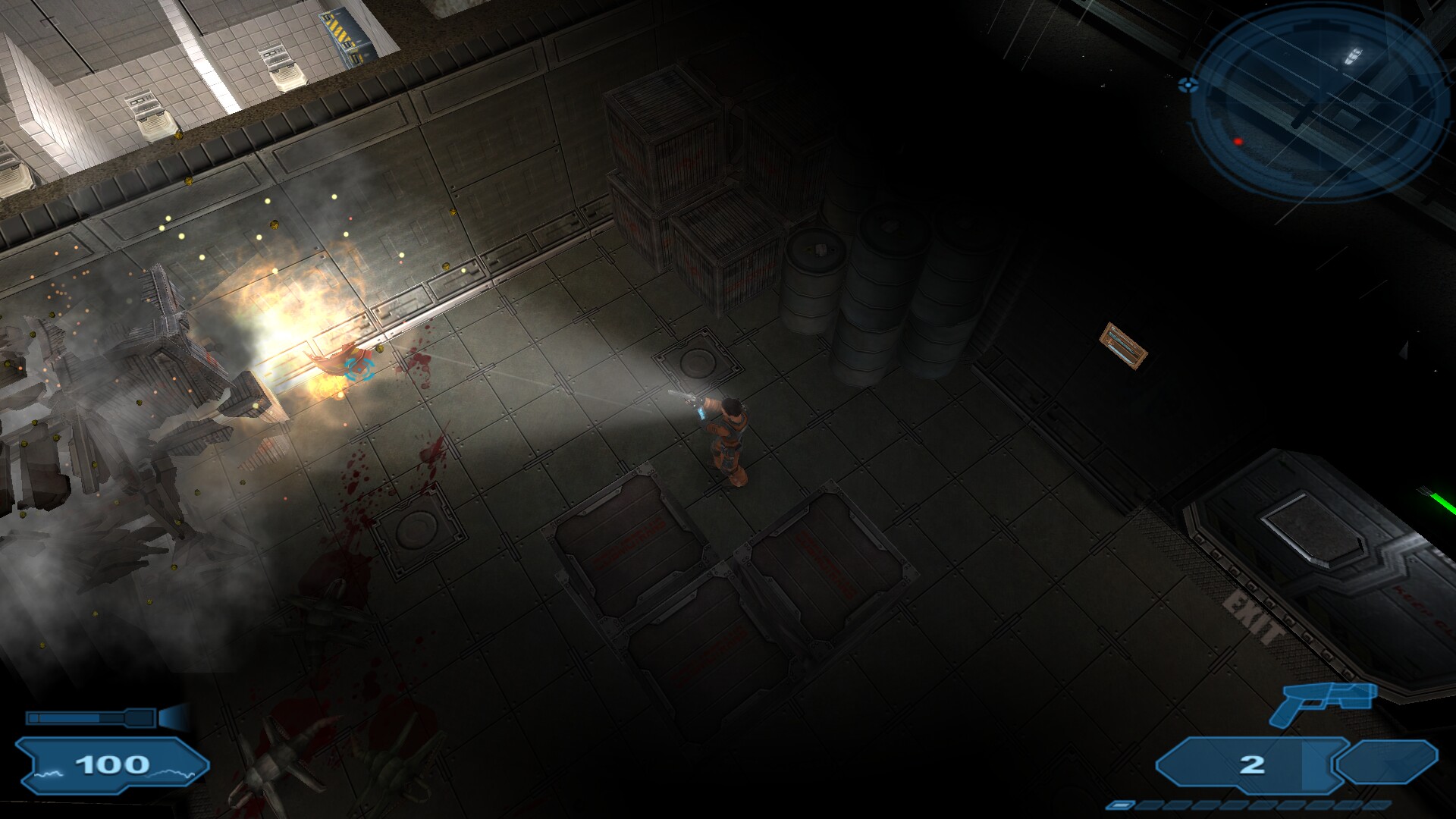

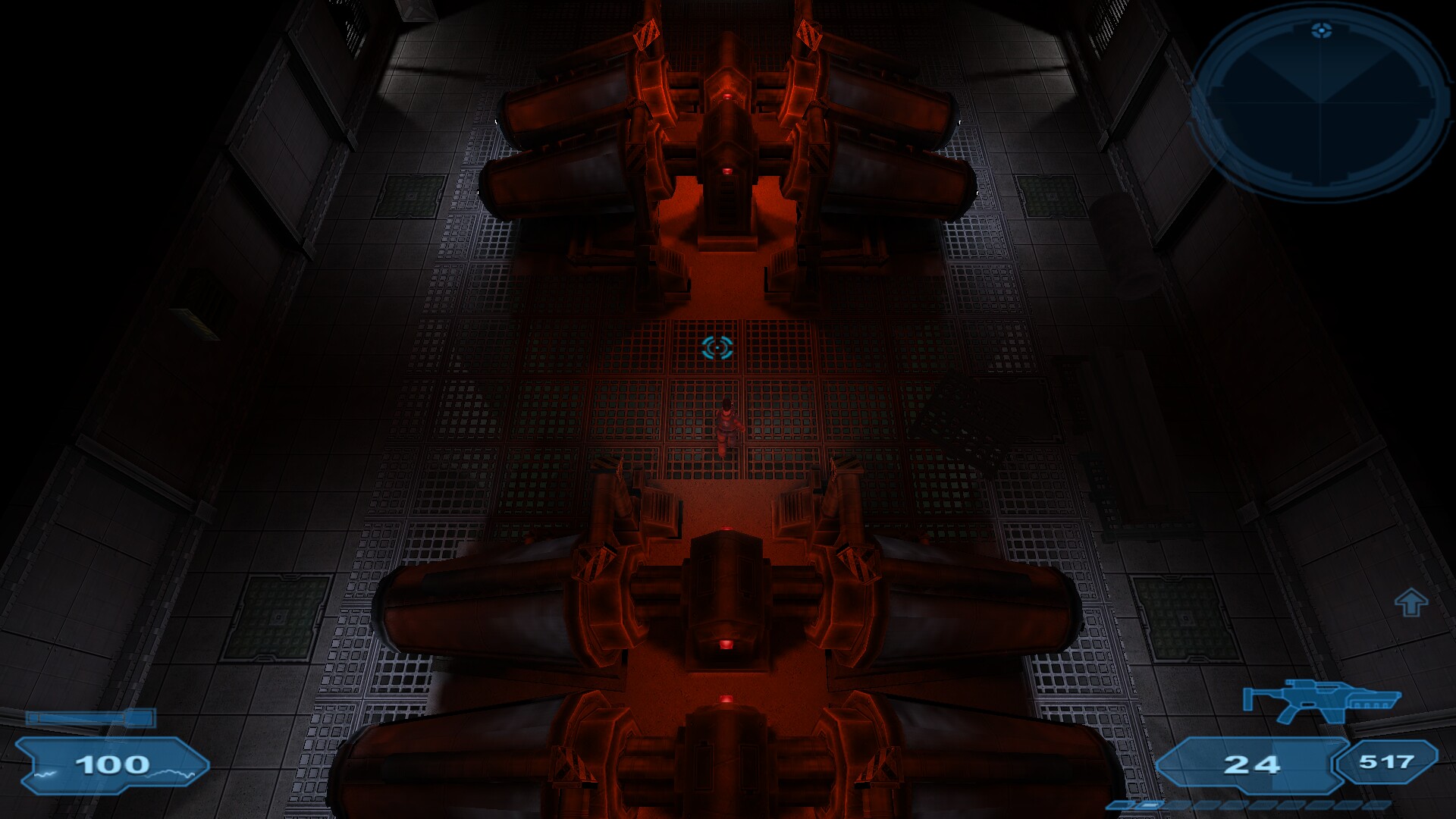

    Screenshots:
