    Play as Adalia de Volador, a noble & impetuous swordswoman! Your palace has been seized by a mysterious mastermind and his hoard of guards - you will have to defend your family's honor! Fight with your rapier and acrobatic moves against numerous opponents, and use the environment to your advantage in an intuitive way (every object is interactive, from tables to chandeliers!)


    Follow my step-by-step guide on installing, configuring and optimizing EnGarde in Linux with PlayOnLinux.

    Note: This guide applies to the Itch.io version of EnGarde. Other versions may require additional steps.

    Tips & Specs:

    To learn more about PlayOnLinux and Wine configuration, see the online manual: PlayOnLinux Explained

    Mint 18.3 64-bit
    PlayOnLinux: 4.2.12
    Wine: 3.12-staging 64-bit

    Wine Installation

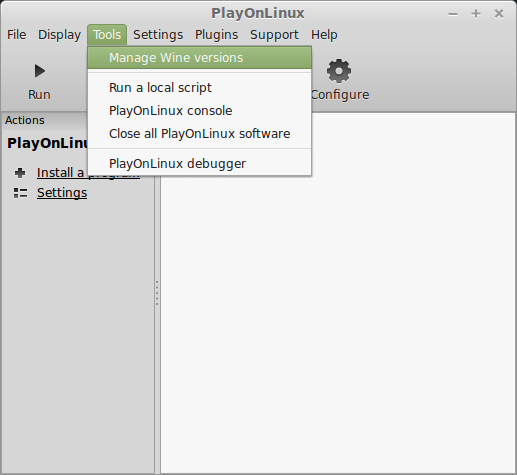

    Click Tools
    Select "Manage Wine Versions"

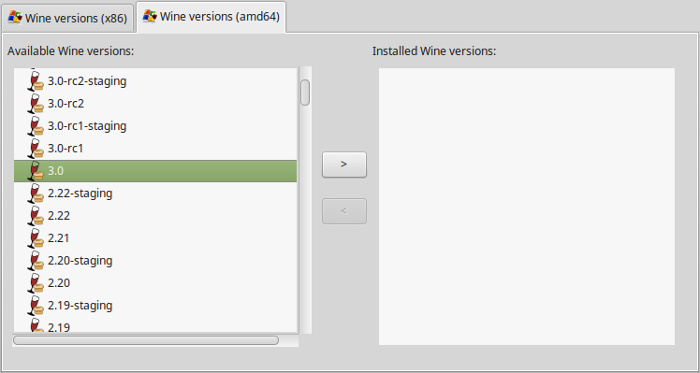

    Click Wine versions (amd64) Tab
    Look for the Wine Version: 3.0
    Select it
    Click the arrow pointing to the right

    Click Next

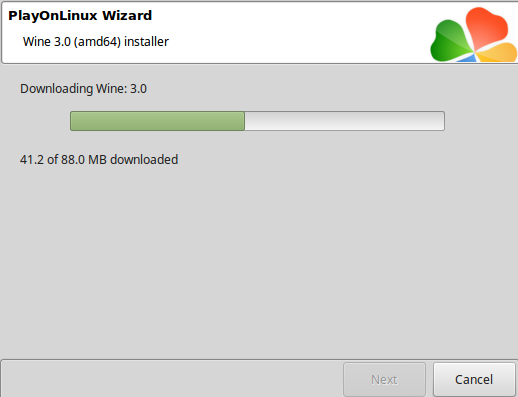

    Downloading Wine

    Extracting

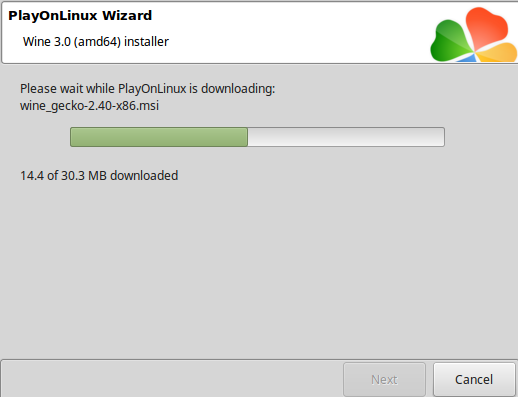

    Downloading Gecko

    Installed

    Wine 3.0 64-bit is installed, but we'll install Wine 3.12-staging 64-bit in a later step.
    You can close this window

    Launch PlayOnLinux

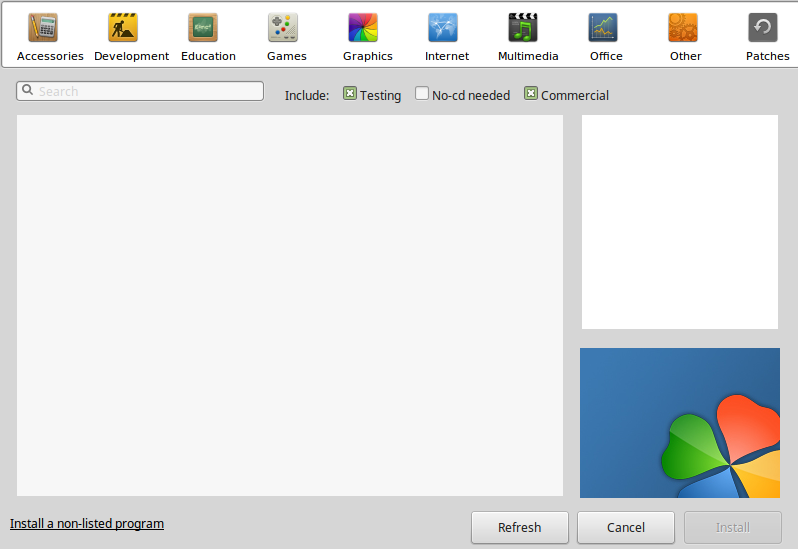

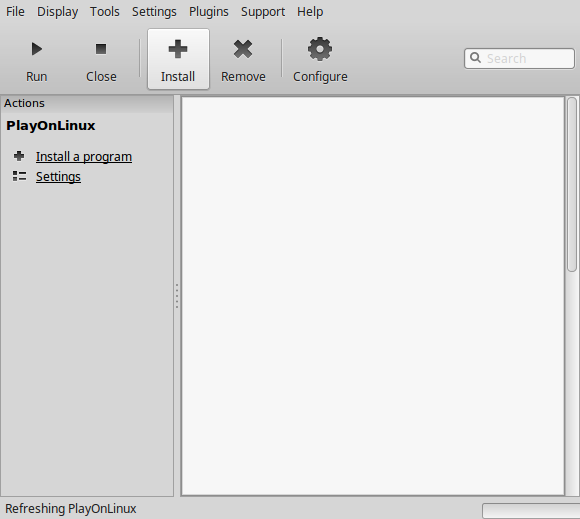

    Click Install

    Click "Install a non-listed program"

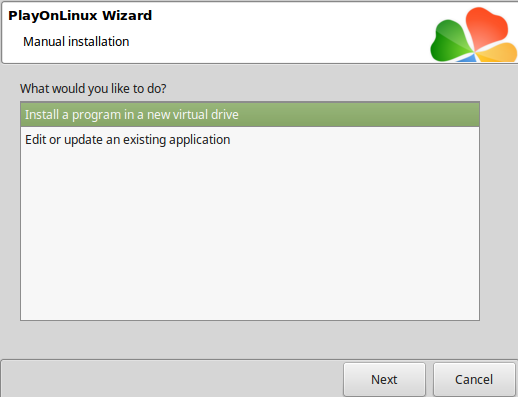

    Select "Install a program in a new virtual drive"
    Click Next

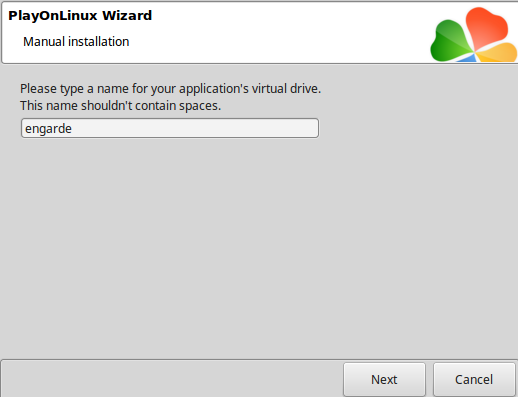

    Name the virtual drive: engarde
    Click Next

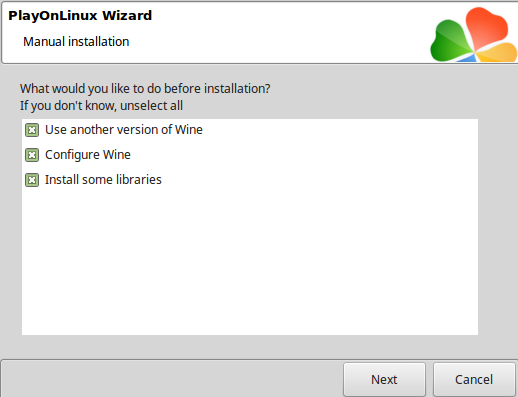

    Check all three options:
    • Use another version of Wine
    • Configure Wine
    • Install some libraries
    Click Next

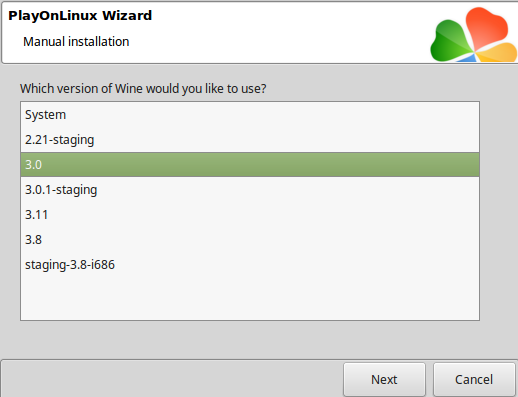

    Select Wine 3.0 for now...
    Click Next

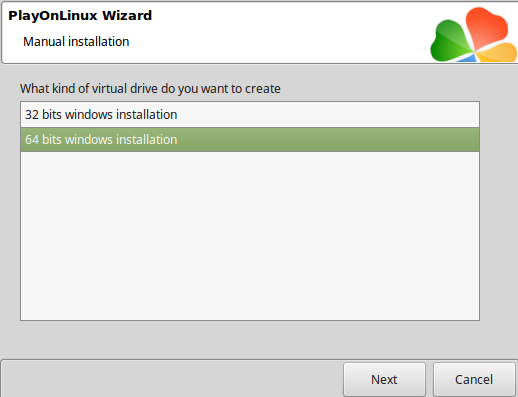

    Select "64 bits windows installation"
    Click Next

    Wine Configuration

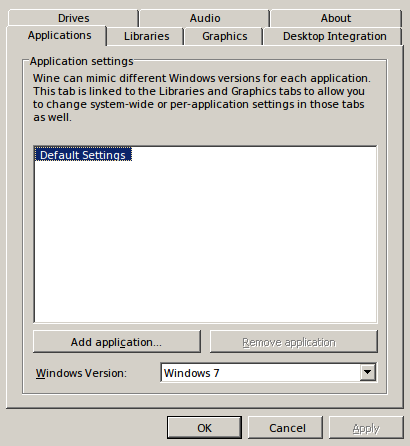

    Applications Tab
    Windows version: Windows 7

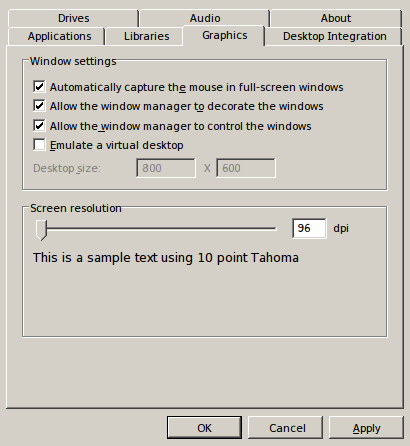

    Graphics Tab
    Check "Automatically capture the mouse in full-screen windows"

    Adding DXVK DLL's

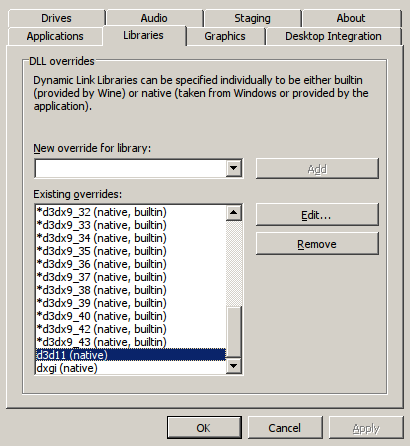

    Libraries Tab
    Type: d3d11
    Click Add
    Click Edit
    Change to "Native (Windows)"

    Type: dxgi
    Click Add
    Click Edit
    Change to "Native (Windows)"

    Type: xaudio2_7
    Click Add
    Click Edit
    Change to "Native (Windows)"

    Click OK to close Wine Configuration

    PlayOnLinux Packages (DLLs, Libraries, Components)

    Check the following:
    • POL_Install_corefonts
    • POL_Install_d3dx9
    • POL_Install_d3dx10
    • POL_Install_d3dx11
    • POL_Install_tahoma
    Click Next

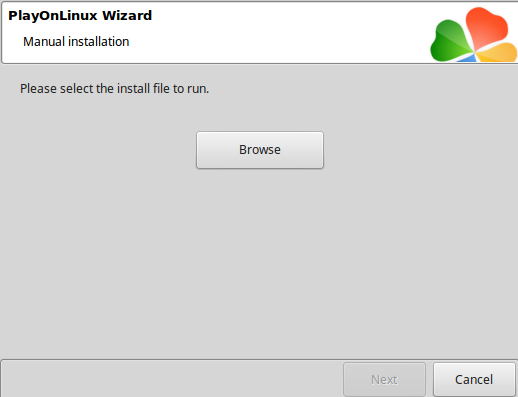

    At the install "Browse" step
    Click Cancel
    EnGarde does not have an installer

    Download EnGarde here: https://engarde.itch.io/en-garde

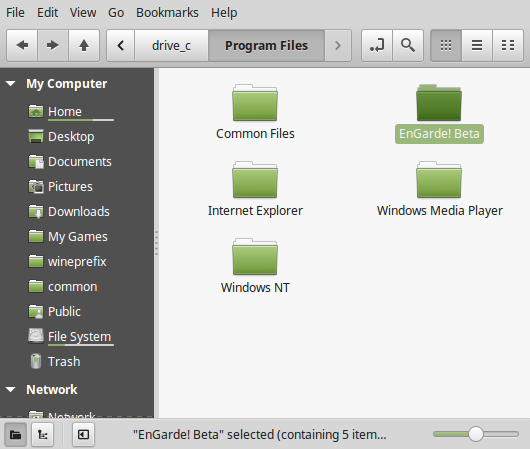

    Navigate to your new Virtual Drive
    Path: /home/username/.PlayOnLinux/wineprefix/engarde/drive_c/Program Files
    Extract Engarde into Program Files

    Installing Lutris Wine 3.12 Staging 64-bit

    Go to: https://lutris.net/files/runners/
    download wine-staging-3.12-x86_64.tar.gz
    Extract it to the PlayOnLinux Wine directory
    Path:
    Code:
    /home/username/.PlayOnLinux/Wine/linux-amd64
    Note: This version of Wine is required for DXVK to work

    PlayOnLinux Configure

    Back to PlayOnLinux

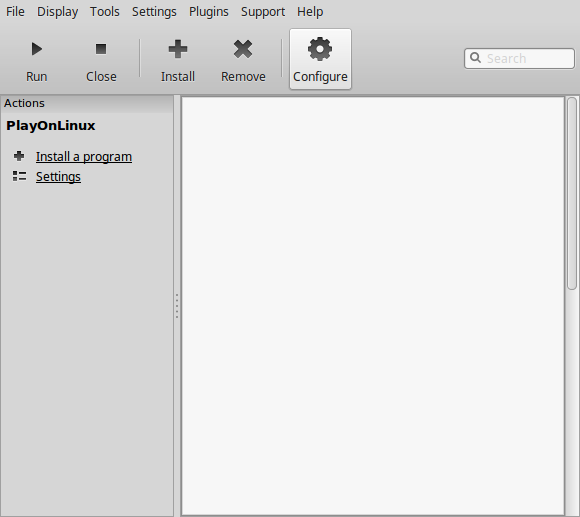

    Click Configure

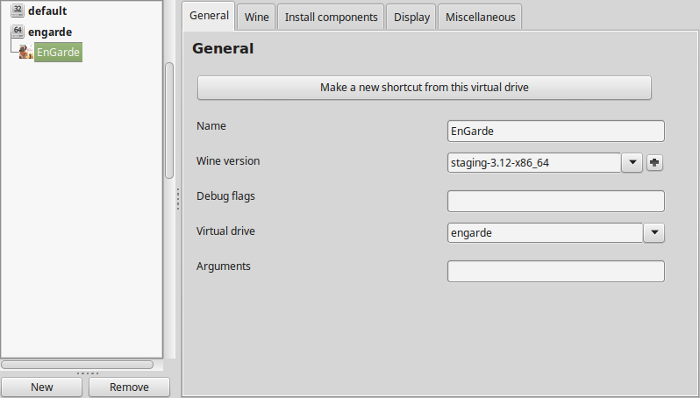

    General Tab
    Wine Version: Click the down-arrow
    Select "staging-3.12-x86_64"
    Click "Make a new shortcut from this virtual drive"

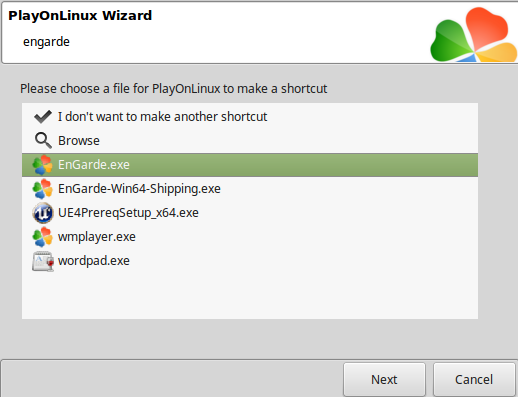

    Select "EnGarde.exe"
    Click Next

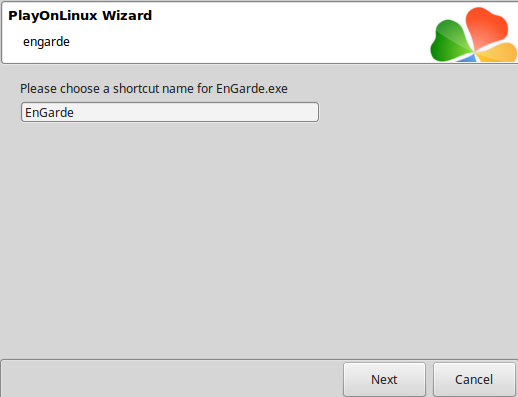

    Name the shortcut: EnGarde
    Click Next

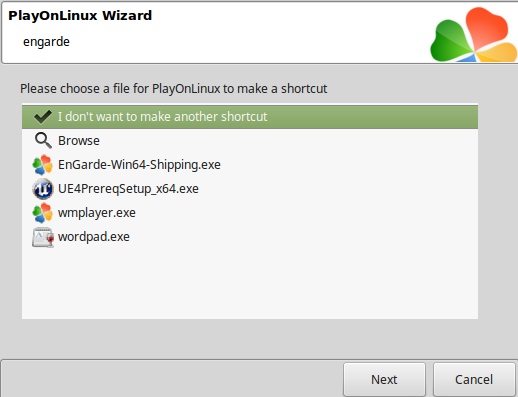

    Select "I don't want to make another shortcut"
    Click Next

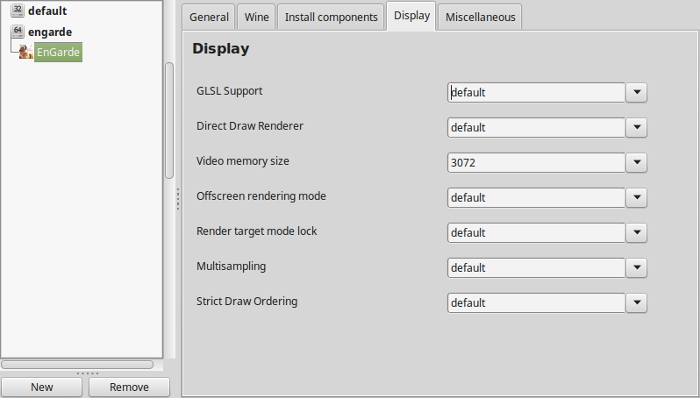

    Display Tab
    Video memory size: Enter the amount of memory your video card/chip uses

    Close Configure

    DXVK DLLs

    Go to: https://github.com/doitsujin/dxvk/releases
    Download DXVK 0.60
    Extract to your Desktop
    Copy the 64-bit d3dx11.dll & dxgi.dll to the EnGarde Win64 folder
    Path:
    Code:
    /home/username/.PlayOnLinux/wineprefix/engarde/drive_c/Program Files/EnGarde/Binaries/Win64

    Follow this full step-by-step guide in order to have DXVK running properly with Nvidia drivers
    DXVK in PlayOnLinux

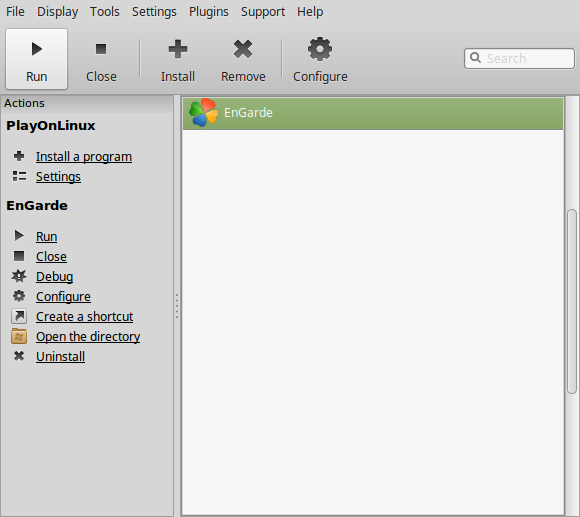

    Launch EnGarde
    Back to PlayOnLinux
    Select "EnGarde"
    Click Run

    Note: Click "debug" to see errors and bugs

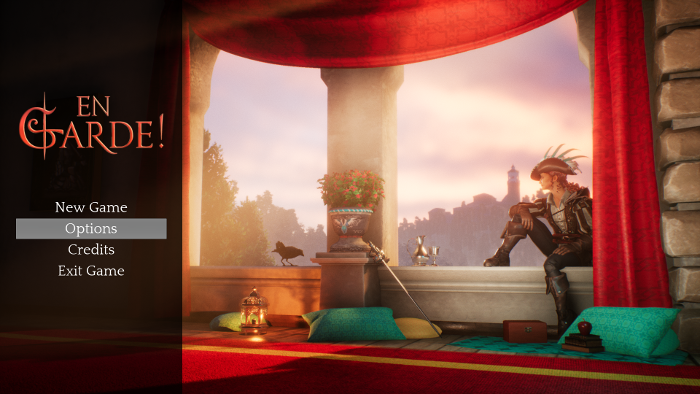

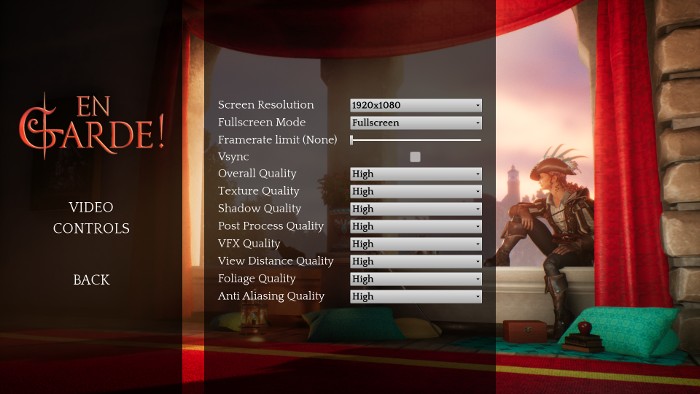

    Optimization

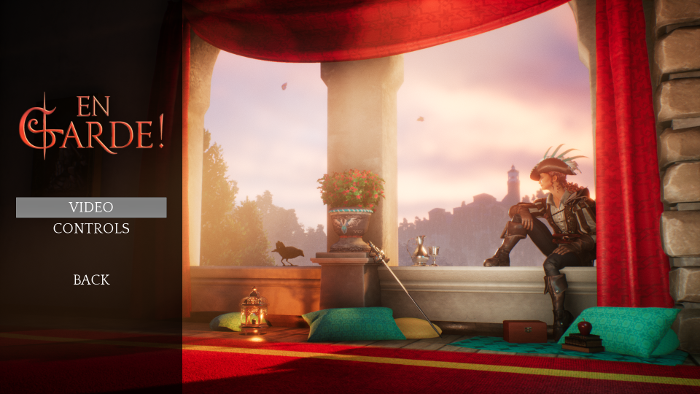

    Click Options

    Click video

    Adjust:
    • Screen Resolution
    • Fullscreen Mode
    • Framerate Limit
    • Vsync
    • Overall Quality
    • Texture Quality
    • Shadow Quality
    • Post Process Quality
    • VFX Quality
    • View Distance Quality
    • Foliage Quality
    • Anti Aliasing Quality

    Conclusion:
    Sometimes EnGarde will take 15 seconds or so to load the initial screen, but after that the game runs fine. I was able to play without any major bugs or artifacts. The level is full of enemies and objects to interact with. Its actually pretty entertaining watching ragdoll physx when killing enemies.

    Gameplay video:

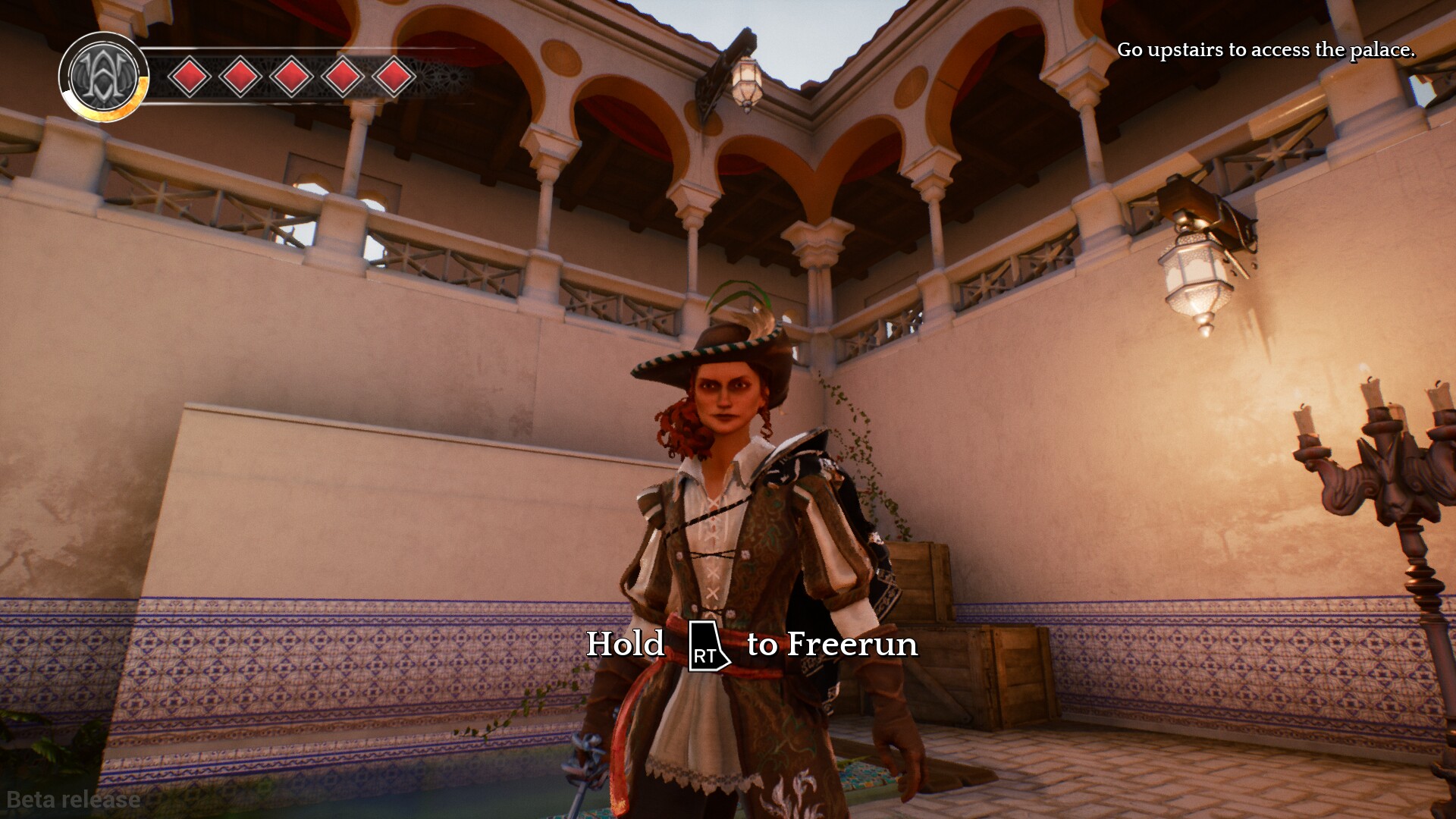

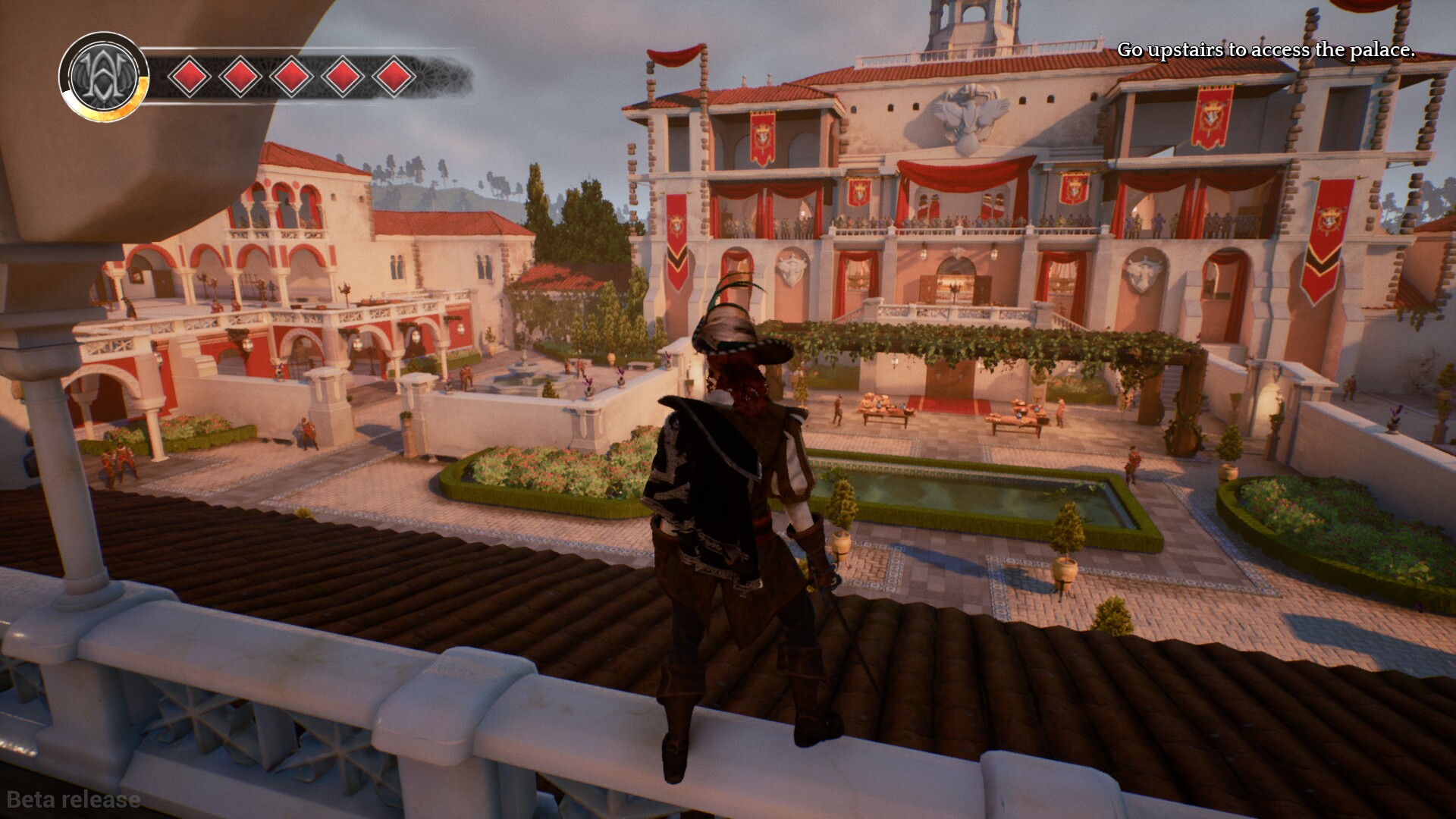

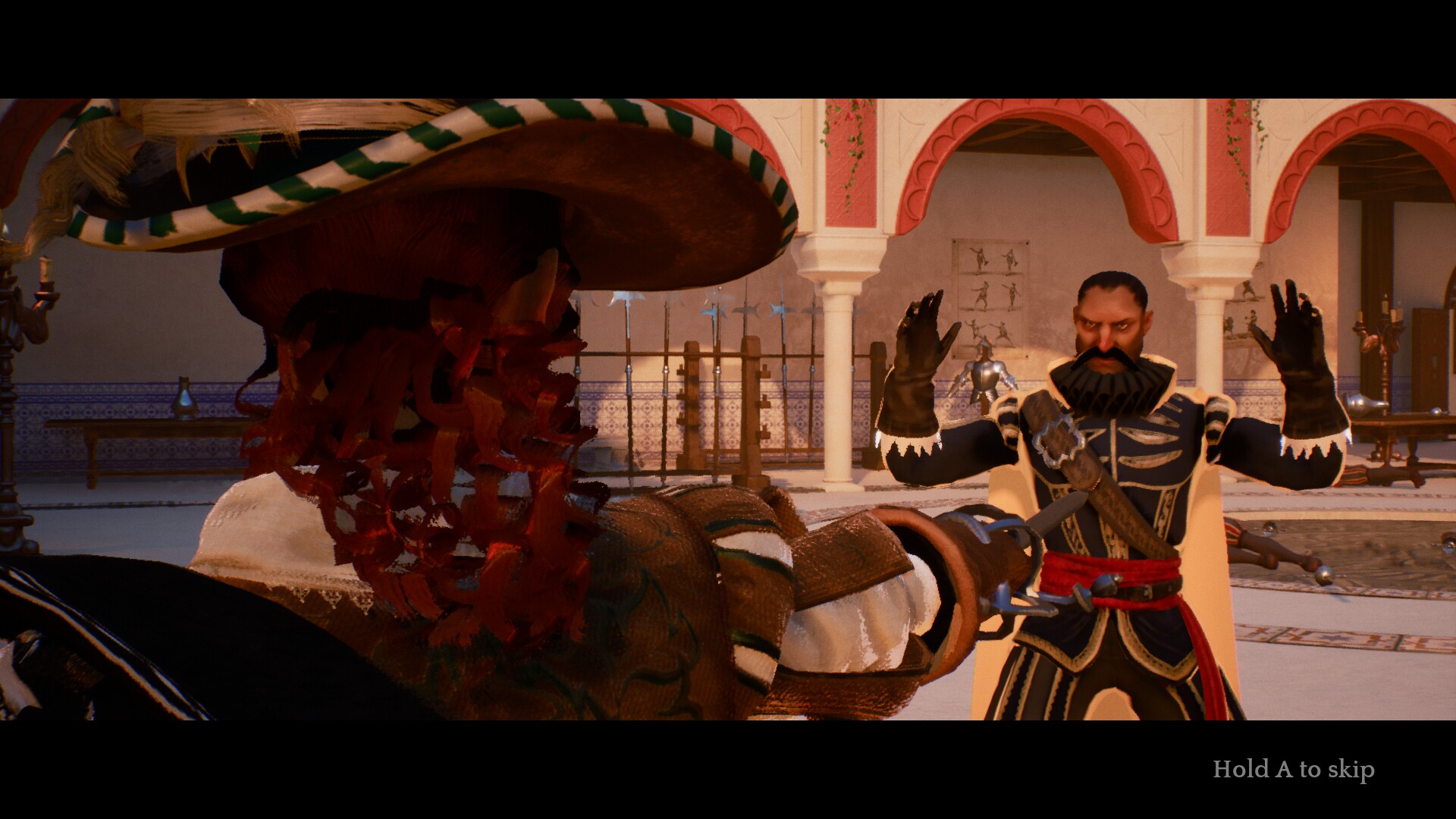

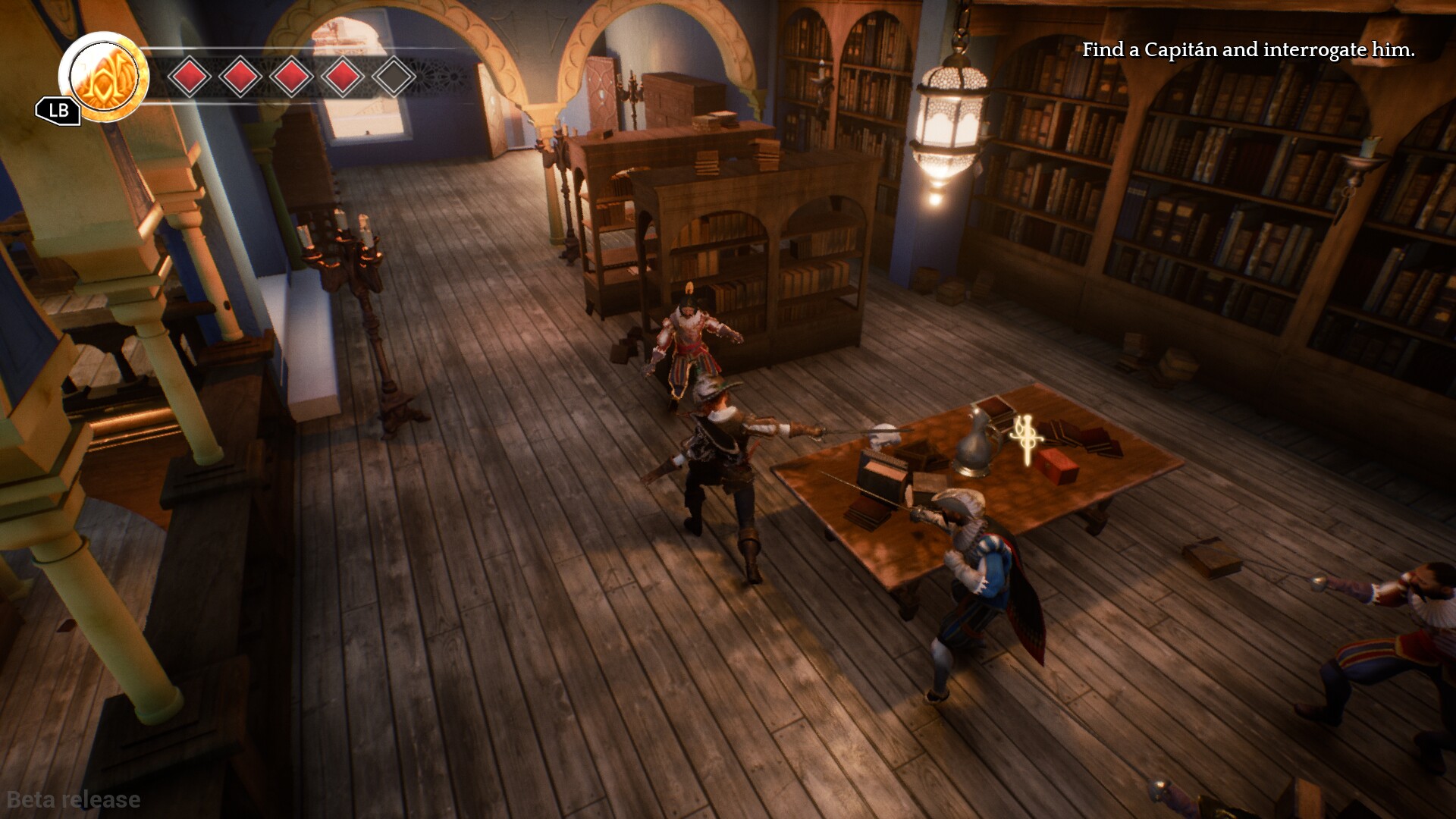

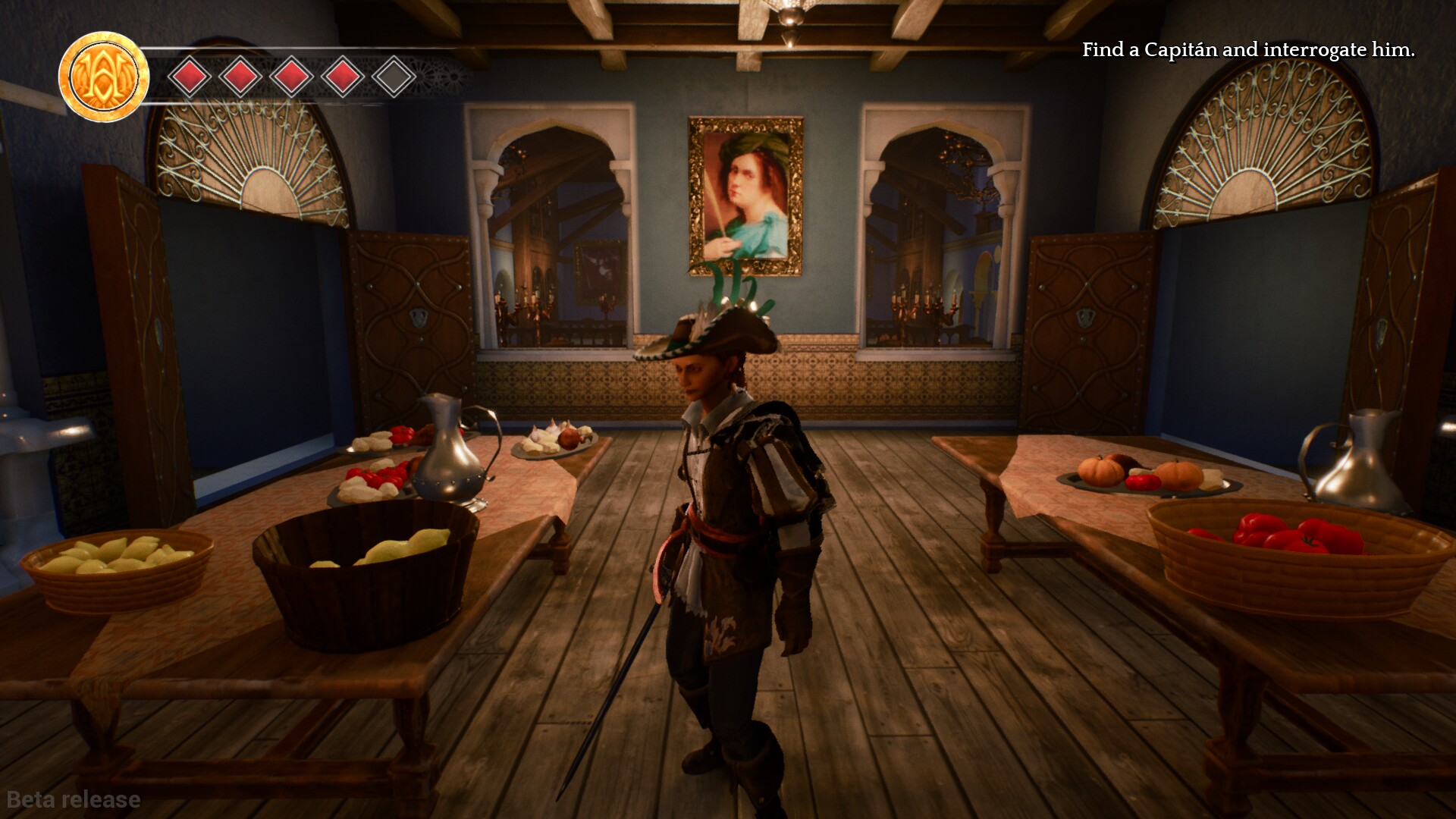

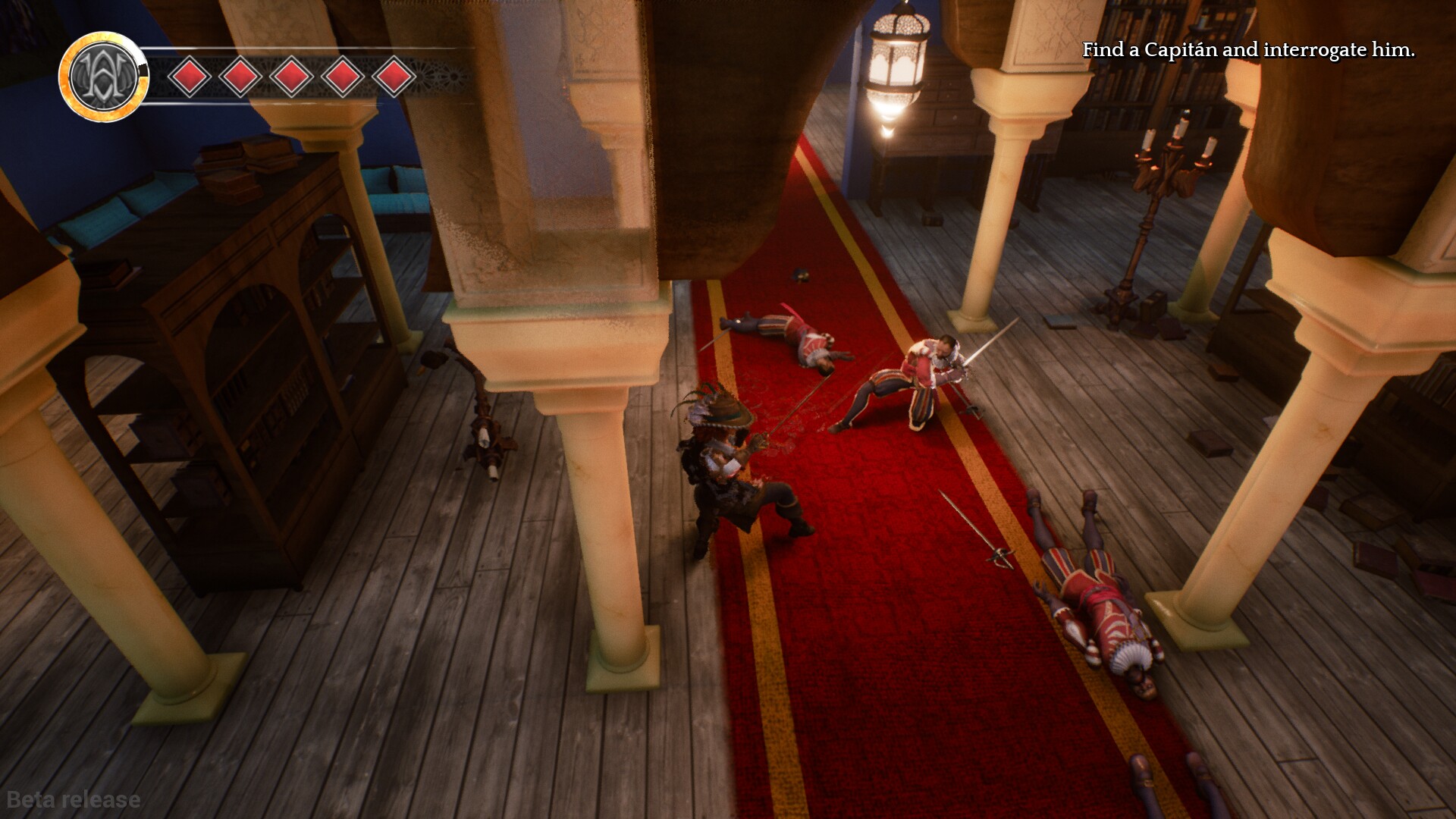

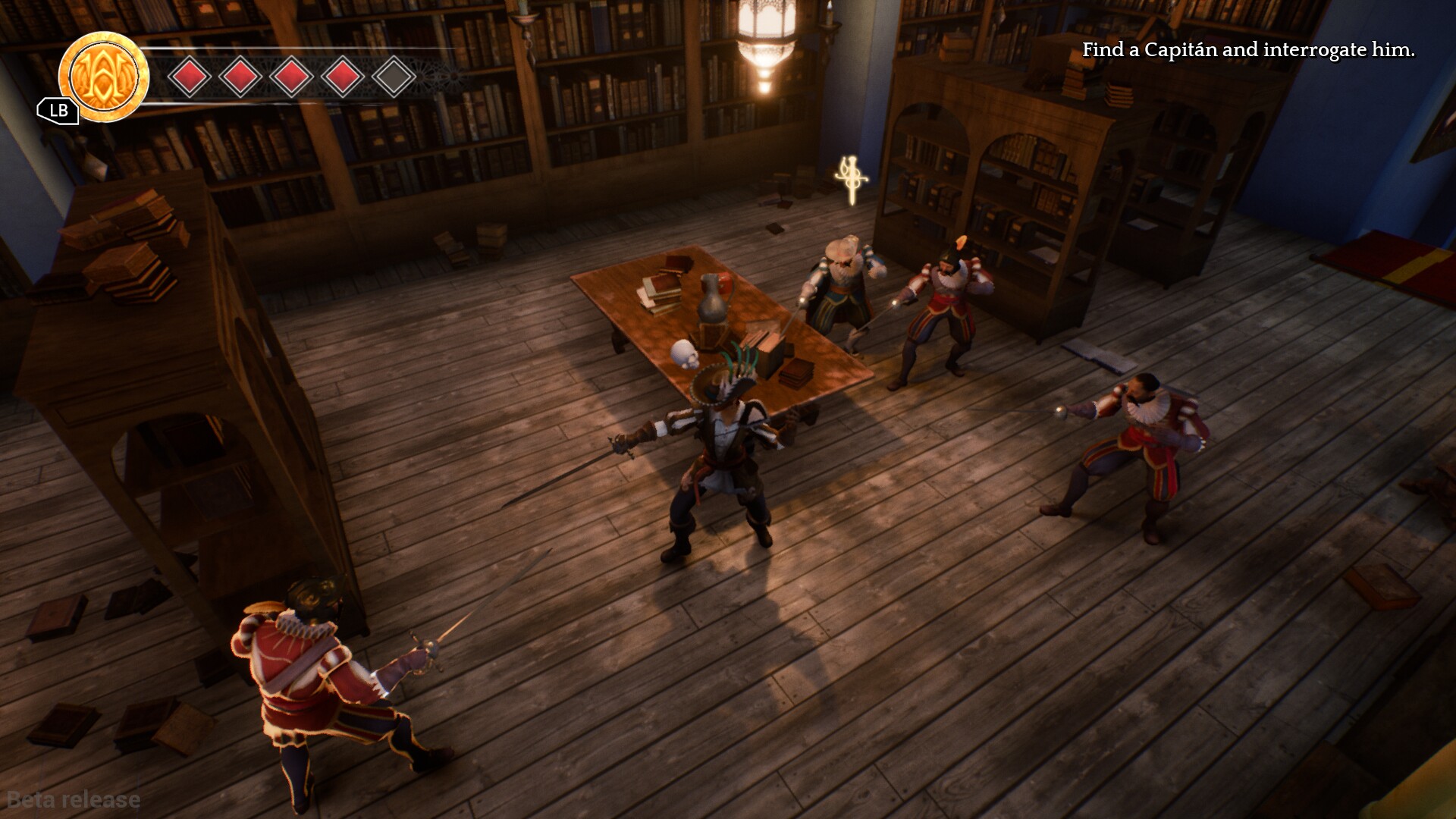

    Screenshots:
